CISCO PWR-CC1-650WDC POWER SUPPLY 650W DC
| Part No: | PWR-CC1-650WDC |
| Detail: | Cisco PWR-CC1-650WDC is a high-efficiency 650W DC power supply designed for Cisco Catalyst 8300 Series Edge Platforms, providing reliable and stable power with 80 Plus Gold certification, |
| Price: |
$1,150.00
|
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
|

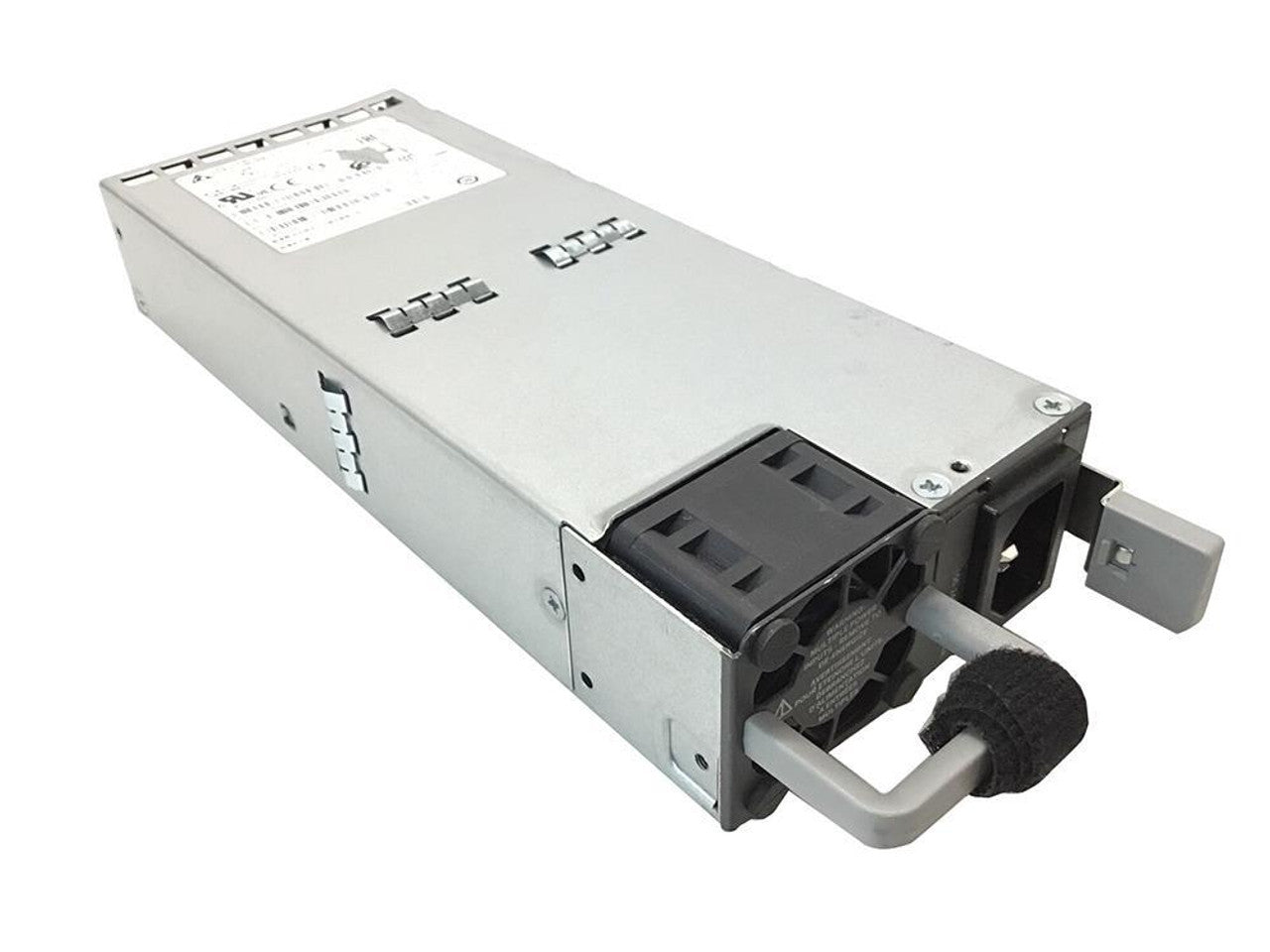

Cisco PWR-CC1-650WDC Power Supply 650W DC
The Cisco PWR-CC1-650WDC is a powerful and energy-efficient DC power supply unit, ensuring continuous and stable power delivery for network hardware. Designed for compatibility with Cisco Catalyst 8300 Series Edge Platforms, this unit features a 650W maximum power rating, 80 Plus Gold efficiency, and a wide input voltage range of -40V to -72V DC. With a terminal block input connector and rugged build quality, it is ideal for enterprise and data center applications.
Key Features:
- High Power Output: Delivers 650W of reliable power.
- Wide Input Voltage Range: Supports DC input from -40V to -72V.
- 80 Plus Gold Efficiency: Optimized for energy efficiency and low heat generation.
- Durable Design: Built for continuous operation in demanding environments.
- Terminal Block Input Connector: Ensures secure and stable power connections.
- Fast Power Recovery: 4 ms output holdup time ensures stability during voltage fluctuations.
- Compact and Modular: Plug-in module design for easy installation and maintenance.
- Compatible with Cisco Catalyst 8300 Series: Designed specifically for Cisco networking hardware.
Technical Specifications:
- Power Maximum Rating: 650W
- Input Voltage Range: DC -40V to -72V
- Power Supply Efficiency: 80 Plus Gold
- Input Current: 18A – 10A
- Output Ratings: 12V 54A
- Output Holdup Time: 4 ms
- Power Supply Input Receptacle: Terminal Block
- Power Cord Rating: 20A #14 Wire
- Form Factor: Plug-in Module
- Compatibility: Cisco Catalyst 8300 Series Edge Platforms
- Environmentally Friendly: Yes
Specifications
| Specification | |
| Maximum Power Output | 650W |
| Output Ratings | 12V / 54A |
| Output Hold-up Time | 4 ms |
| PoE Support | Yes |
| PoE Power Budget | 650W |
| Typical Use Case | High-performance SD-WAN and enterprise routing |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Field Replaceable | Yes |
Properties
| Properties | |
| Model | PWR-CC1-650WDC |
| Product Type | Internal DC Power Supply Unit |
| Compatible Platform | Cisco Catalyst 8300 Series (2RU models) |
| Redundancy Support | Yes (Dual PSU supported) |
| Input Voltage Range | -40 to -72V DC |
| Input Connector | Terminal Block |
| Power Cord Rating | 20A (#14 wire) |
| Power Supply Efficiency | 80 Plus Gold |
| Hot-Swappable Design | Yes |
