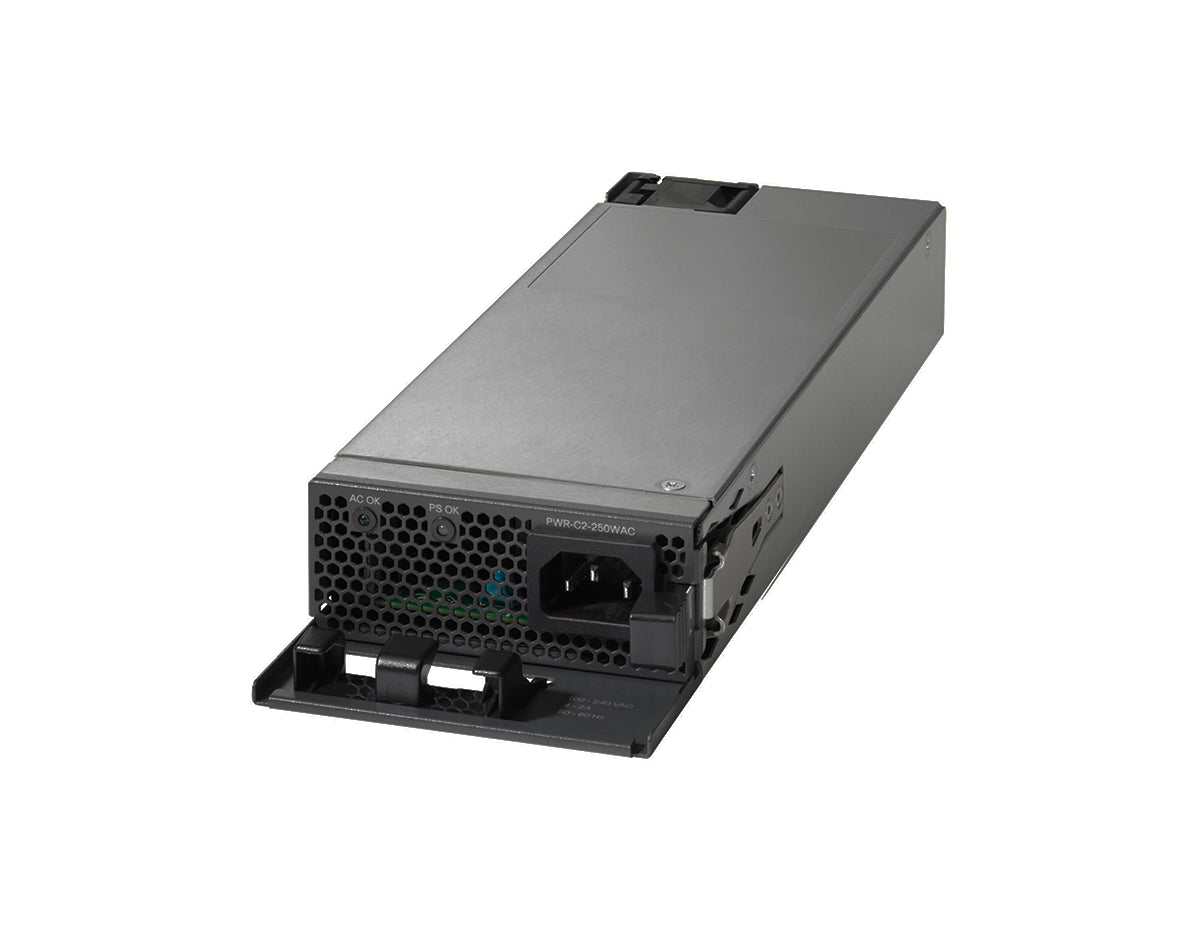

Cisco PWR-C2-250WAC Power Supply
- Power Supply (plug-in module)
- AC 100-240 V
- 250 Watt
- Field Replaceable Unit
- for Catalyst 2960XR-24
- 2960XR-48
$550.00
$195.00
Instant Savings
$355.00
Cisco PWR-C2-250WAC Power Supply
The Cisco PWR-C2-250WAC is designed for the Catalyst 3650 Series switches. This power supply provides an output power of 250W and is built with high-quality materials to ensure reliable performance even in harsh conditions. This power supply have internal fans.
Key Features:
- 250W
- Input voltages 100 - 240 VAC
- For Catalyst 3650 Series
For detailed specifications, refer to the Cisco PWR-C2-250WAC datasheet in the tabs.
| Power Supply Rated Maximum | 250W |
| Total Output BTU (Note: 1000 BTU per hr = 293 W) | 853 BTU/hr, 250W |
|
Input-Voltage Range and Frequency (Note: 10% of "Input-Voltage Range") |
100-240VAC, 50-60 Hz |
| Input Current | 4-2A |
| Output Ratings | 12V @ 20.83A |
| Output Holdup Time | 16.7 ms minimum @ 100VAC |
| Power-Supply Input Receptacles | IEC 320-C13 (IEC60320-C13) |
| Power Cord Rating | 10A |
| Physical Specifications | (H x W x D): 1.58 X 3.75 X 11.75 in (4.0 x 9.5 x 29.8 cm) Weight: 2.55 lb (1.16 kg) |
| Operating Temperature | For the operating temperature ranges at various altitudes of AC and DC power supply module powered switches, see Table 1. |
| Storage Temperature | -40 to 158F (-40 to 70C) |
| Relative Humidity Operating and Nonoperating Noncondensing | 5 to 96% noncondensing |
| Altitude | 16,400 ft. (5,000 meters) |
| MTBF | Calculated MTBF must be greater than 300,000 using Telcordia SR-332, Method 1, Issue 3. Demonstrated MTBF is 500,000 hr (with 90% confidence level). |
| EMI and EMC Compliance | "AC OK": Input power to the power supply is OK "PS OK": Output power from the power supply is OK |
| Safety Compliance | For the operating temperature ranges at various altitudes of AC and DC power supply module powered switches, see Table 1. |
| LED Indicators | -40 to 158F (-40 to 70C) |
