CISCO PWR-C1-715WAC POWER SUPPLY
| Model: | PWR-C1-715WAC |
| Detail: | --> Cisco 3850, 9300 Series Power Supply PWR-C1-715WAC 715W AC Config 1, Power Supply, < |
| List Price: | |
| Price: | $1,095.00 |
| You Save: | $436.57 (29% OFF) |
| Condition: | Brand New Sealed |
| Availability: | Out of Stock |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside New Jersey |
| Quantity: |
-->
Use Cisco PWR-C1-715WAC Power Supply for High-Performance
Cisco PWR-C1-715WAC Power Supply is designed to efficiently provide power to Cisco catalyst switch. This plug-in module fits perfectly in compatible Cisco Catalyst Series Switches.
Key Benefits of Cisco PWR-C1-715WAC Power Supply
Cisco PWR-C1-715WAC Power Supply can autorange units to support input voltages from 100 through 240 VAC. Find a power cord for connection to an AC power outlet. It delivers a 715-watt redundant power supply at AC 100-240 Watt for user convenience and high performance.
Cisco PWR-C1-715WAC Power Supply Overview
| Power supply rated maximum | 715W |
| Total output BTU (Note: 1000 BTU/hr = 293W) | 2465 BTU/hr, 715W |
| Input-voltage range and frequency | 100-240VAC, 50-60 Hz |
| Input current | 10-5A |
| Output ratings | -56V at 12.8A |
| Output holdup time | 16.7 ms minimum at 100VAC |
| Power-supply input receptacles | IEC 320-C16 (IEC60320-C16) |
| Power cord rating | 13A |
| Physical specifications | (H x W x D): 1.58 X 3.25 X 12.20 in Weight: 2.8 lb (1.3 kg) |
Specifications
-->| Power supply rated maximum | 715W |
| Total output BTU (Note: 1000 BTU/hr = 293W) | 2465 BTU/hr, 715W |
| Input-voltage range and frequency | 100-240VAC, 50-60 Hz |
| Input current | 10-5A |
| Output ratings | -56V at 12.8A |
| Output holdup time | 16.7 ms minimum at 100VAC |
| Power-supply input receptacles | IEC 320-C16 (IEC60320-C16) |
| Power cord rating | 13A |
| Physical specifications | (H x W x D): 1.58 X 3.25 X 12.20 in Weight: 2.8 lb (1.3 kg) |
| Operating temperature | 23 to 113F (-5 to 45C) |
| Storage temperature | -40 to 158F (-40 to 70C) |
| Relative humidity operating and nonoperating noncondensing | 5 to 90% noncondensing |
| Altitude | 10,000 ft. (3000 meters), up to 45C |
| MTBF | Calculated MTBF must be greater than 300,000 using Telcordia SR-332, Method 1, Case 3. Demonstrated MTBF is 500,000 hr (with 90% confidence level). |
| EMI and EMC compliance | FCC Part 15 (CFR 47) Class A ICES-003 Class A EN 55022 Class A CISPR 22 Class A AS/NZS 3548 Class A BSMI Class A (AC input models only) VCCI Class A EN 55024, EN300386, EN 50082-1, EN 61000-3-2, EN 61000-3-3 EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN 61000-6-1 |
| Safety compliance | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE Marking |

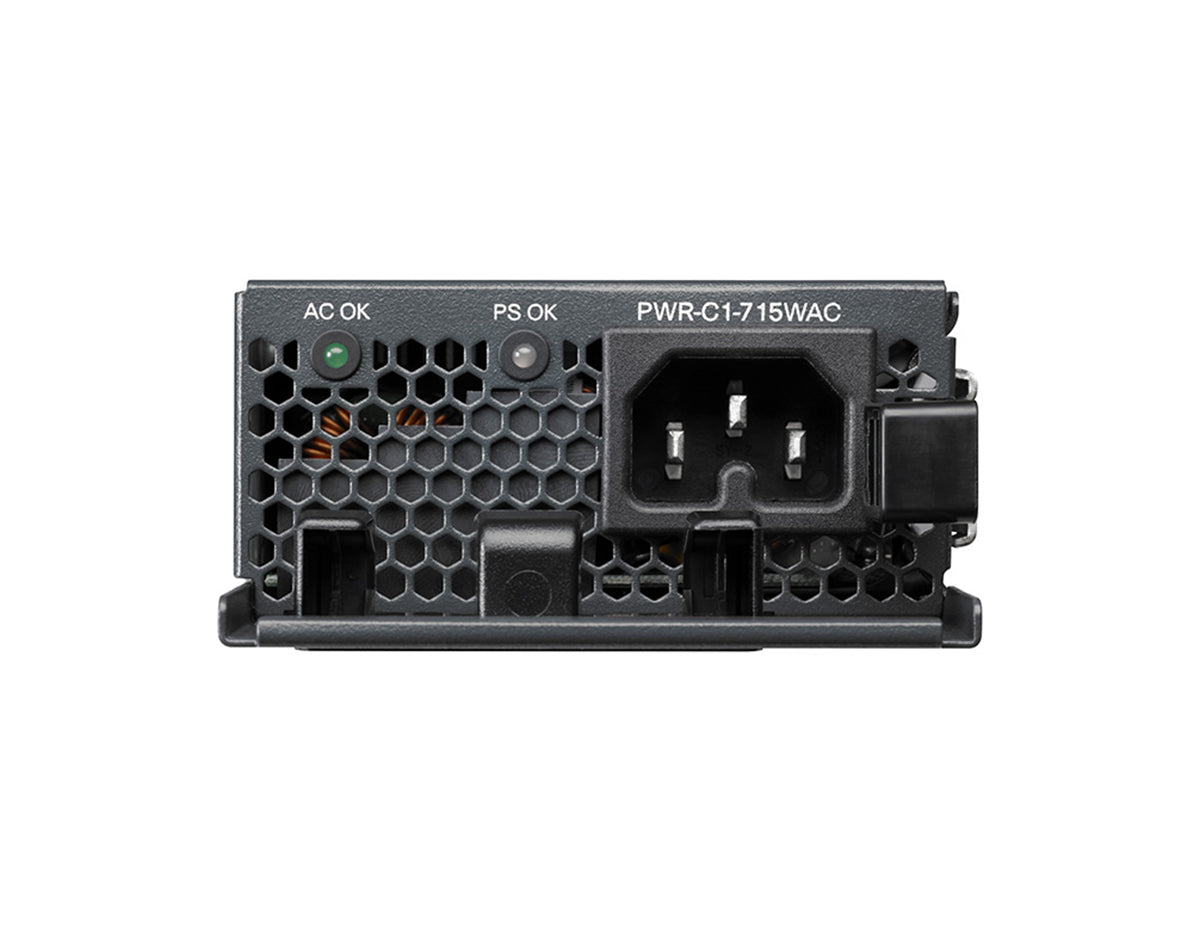

| LED indicators | "AC OK": Input power to the power supply is OK "PS OK": Output power from the power supply is OK |
