CISCO PWR-C1-350WAC POWER SUPPLY
| Model: | PWR-C1-350WAC |
| Detail: | --> Cisco 3850/9300 Series Power Supply PWR-C1-350WAC 350W AC Config 1 Power Supply, < |
| List Price: | |
| Price: | $585.00 |
| You Save: | $213.30 (27% OFF) |
| Condition: | Brand New Sealed |
| Availability: | Out of Stock |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside New Jersey |
| Quantity: |
-->

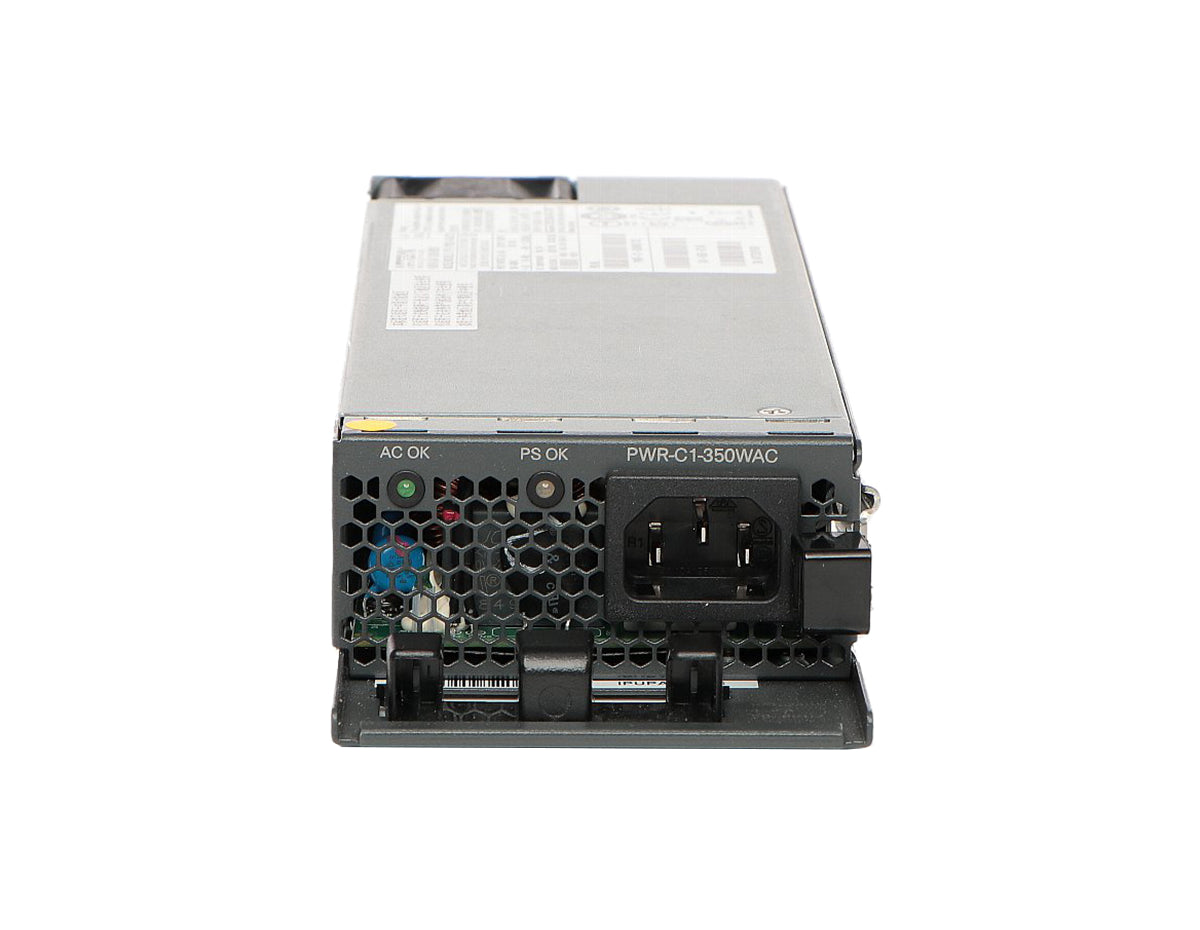

Cisco PWR-C1-350WAC Power Supply for Easy Portability & Performance
Cisco PWR-C1-350WAC Power Supply is perfect for redundant power supply guarantee. It features a replacement plug-in module and Power IEC 320 EN 60320 C16 connector. For uninterrupted power supply, its external power supply module requires 50-60 Hz frequency and AC 100-200 V input voltage.
Key Benefits of Cisco PWR-C1-350WAC Power Supply
Cisco PWR-C1-350WAC Power Supply offers compact form factor for easy portability and 350 W redundant power supply for a superior performance. Plus, guarantees power supply for Catalyst 3850-24T-E, 3850-24T-L, 3850-24T-S, 3850-48T-E, 3850-48T-L, and 3850-48T-S.
| Power supply rated maximum | 350W |
| Total output BTU (Note: 1000 BTU/hr = 293W) | 1207BTU/hr, 350W |
| Input-voltage range and frequency | 100-240VAC, 50-60 Hz |
| Input current | 4-2A |
| Output ratings | -56V at 6.25A |
| Output holdup time | 16.7 ms minimum at 100VAC |
| Power-supply input receptacles | IEC 320-C16 (IEC60320-C16) |
| Power cord rating | 10A |
| Physical specifications | (H x W x D): 1.58 X 3.25 X 12.20 in Weight: 2.6 lb (1.2 kg) |
Specifications
-->| Power supply rated maximum | 350W |
| Total output BTU (Note: 1000 BTU/hr = 293W) | 1207BTU/hr, 350W |
| Input-voltage range and frequency | 100-240VAC, 50-60 Hz |
| Input current | 4-2A |
| Output ratings | -56V at 6.25A |
| Output holdup time | 16.7 ms minimum at 100VAC |
| Power-supply input receptacles | IEC 320-C16 (IEC60320-C16) |
| Power cord rating | 10A |
| Physical specifications | (H x W x D): 1.58 X 3.25 X 12.20 in Weight: 2.6 lb (1.2 kg) |
| Operating temperature | 23 to 113F (-5 to 45C) |
| Storage temperature | -40 to 158F (-40 to 70C) |
| Relative humidity operating and nonoperating noncondensing | 5 to 90% noncondensing |
| Altitude | 10,000 ft. (3000 meters), up to 45C |
| EMI and EMC compliance | FCC Part 15 (CFR 47) Class A ICES-003 Class A EN 55022 Class A CISPR 22 Class A AS/NZS 3548 Class A BSMI Class A (AC input models only) VCCI Class A EN 55024, EN300386, EN 50082-1, EN 61000-3-2, EN 61000-3-3 EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN 61000-6-1 |
| Safety compliance | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE Marking |
| LED indicators | "AC OK": Input power to the power supply is OK "PS OK": Output power from the power supply is OK |
