CISCO Power Supply 66 Watt AC V2 for C890 and C1100 series (PWR-66W-AC-V2)

Name: CISCO Power Supply 66 Watt AC V2 for C890 and C1100 series (PWR-66W-AC-V2)
Brand: Cisco
SKU: PWR-66W-AC-V2-NEW
Price: 75.0 USD
Availability: InStock

Part Number: PWR-66W-AC-V2

Technical Details

66 Watts AC power, Compatible with Cisco 800 Series ISR, Optimized for C890 platforms

$75.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

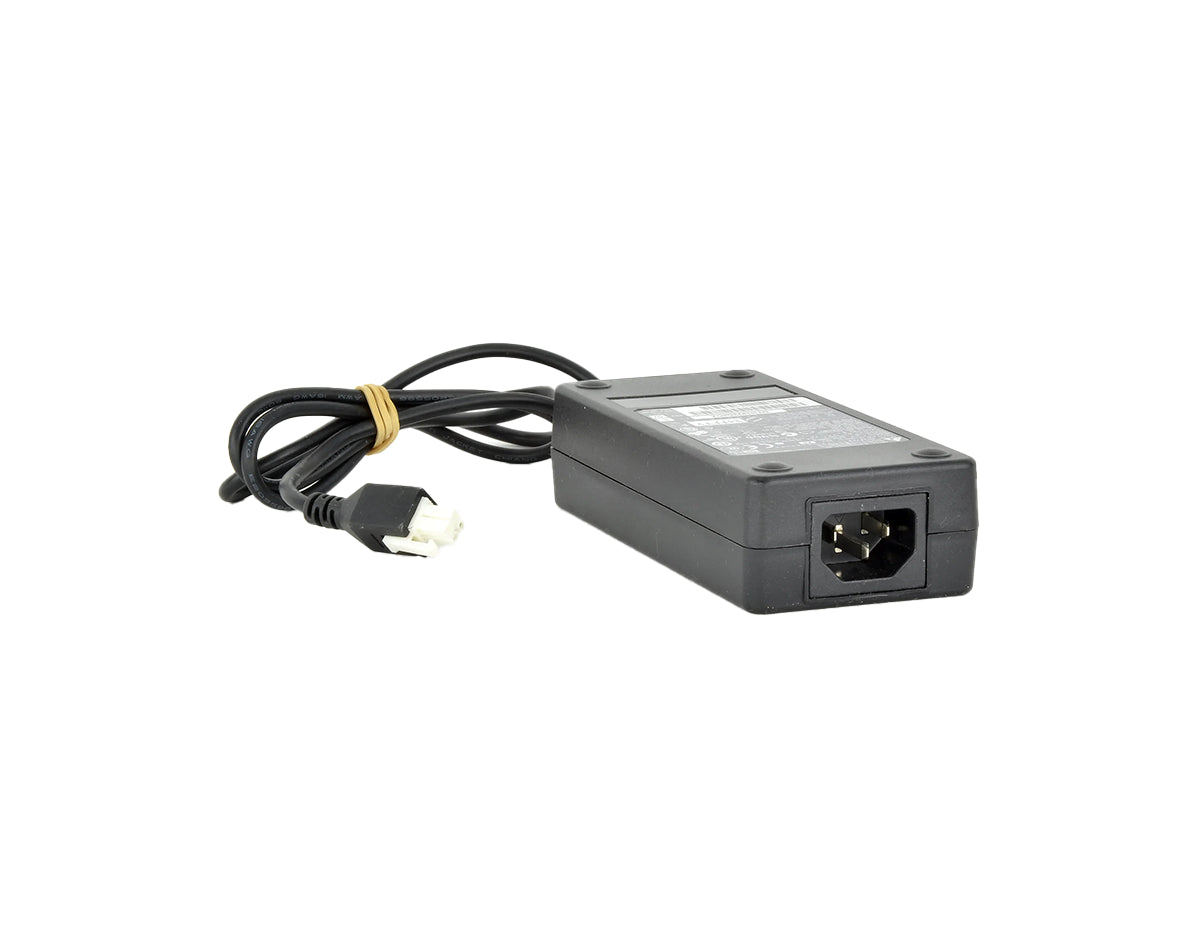

CISCO Power Supply 66 Watt AC V2 for C890 and C1100 series (PWR-66W-AC-V2)

The Cisco PWR-66W-AC-V2 Power Supply is designed for the Cisco 800 Series Integrated Services Routers (ISR). It provides 66 watts of power, ensuring reliable performance and efficiency for your network devices. This version 2 power supply is optimized for the C890 platforms, offering enhanced compatibility and support for various applications in network environments.

Quick Specs:

66 Watts AC power
Compatible with Cisco 800 Series ISR
Optimized for C890 platforms
Reliable and efficient performance
Support for various network applications

Please see the related tabs for the PWR-66W-AC-V2 datasheet and compatible accessories.

Properties

Product Name	PWR-66W-AC-V2
Description	CISCO 66 Watt AC V2 power supply, designed for use with Cisco C890 and C1100 series routers, providing reliable power in networking environments.
Input Voltage	100-240V AC, 50-60 Hz
Output Voltage	12V DC
Output Power	66W
Output Current	5.5A
Connector Type	2.5mm x 5.5mm barrel connector, center-positive
Cable Length	1.8 meters (5.9 feet)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	5% to 95% non-condensing
Dimensions	12.7 cm x 5.1 cm x 3.3 cm (5.0 in x 2.0 in x 1.3 in)
Weight	0.3 kg (0.66 lb)
Compatibility	Compatible with Cisco C890 and C1100 series routers
Usage	Provides power for routers in office, industrial, or data center environments
Durability	Tested to deliver consistent performance for over 100,000 hours

Specifications

Certifications	UL, CE, FCC, RoHS compliant
Environmental Safety	Complies with the RoHS directive 2011/65/EU for hazardous substances
EMC Compliance	EN 55032, EN 55024, and FCC Part 15 for electromagnetic compatibility
Efficiency Level	Level VI efficiency rating (meets DOE and EU efficiency standards)
Power Protection	Includes overcurrent, overvoltage, and short-circuit protection
MTBF	>150,000 hours at 25°C
Shock Resistance	Operational: 30 G, Non-operational: 50 G
Vibration Resistance	Operational: 2.2 Grms, Non-operational: 4.4 Grms (5-500 Hz)
Power Factor	>0.9 at full load
Installation	Plug-and-play installation with compatible Cisco routers
Heat Dissipation	<10 BTU/hr
Firmware Compatibility	Not applicable
Deployment	Suitable for various environments, including enterprise and industrial use
Safety Standards	Complies with IEC/EN 60950-1 and IEC/EN 62368-1 for power supply safety
Reliability	Rated for continuous operation with rigorous quality control testing
