MSI PRO WIFI PROSERIES MOTHERBOARD (PRO-Z790-P-WIFI)

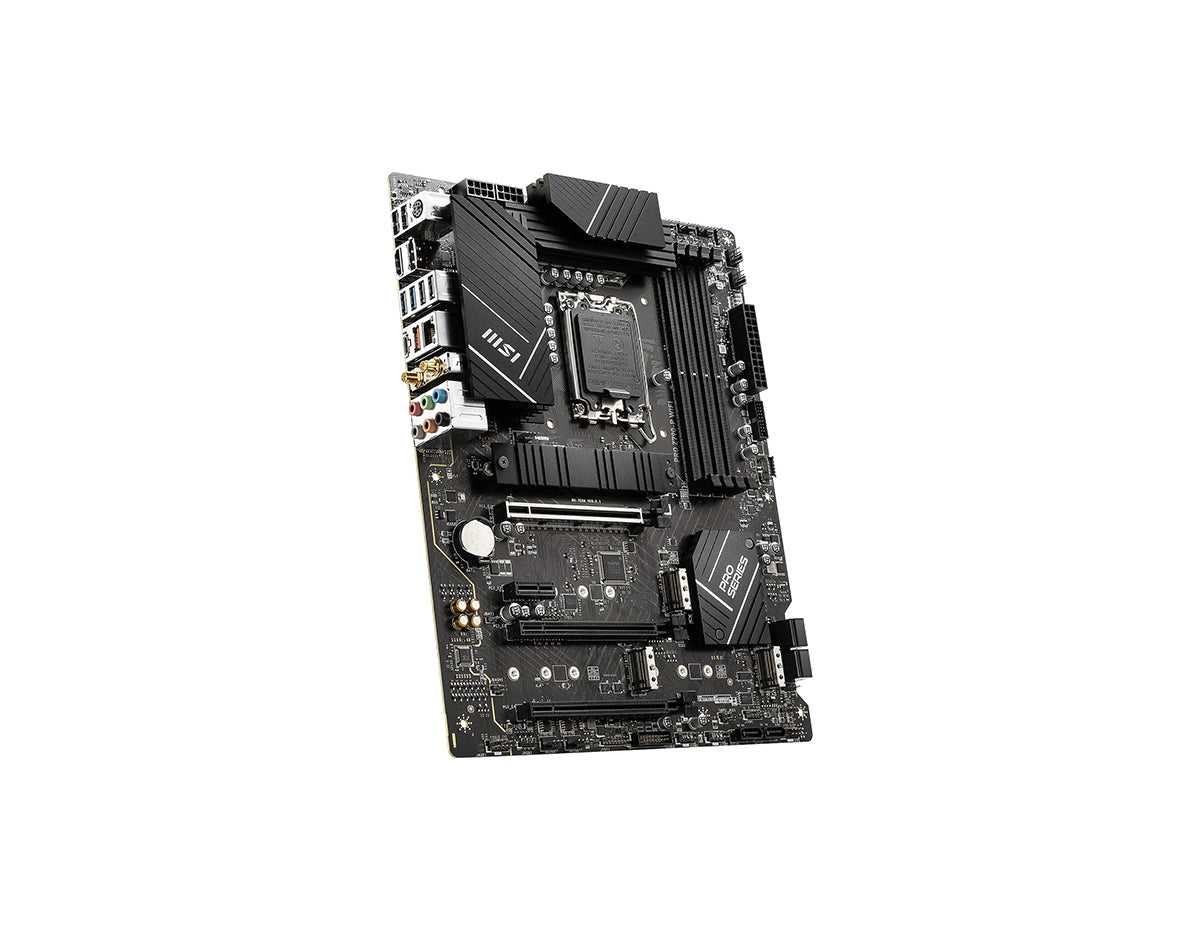

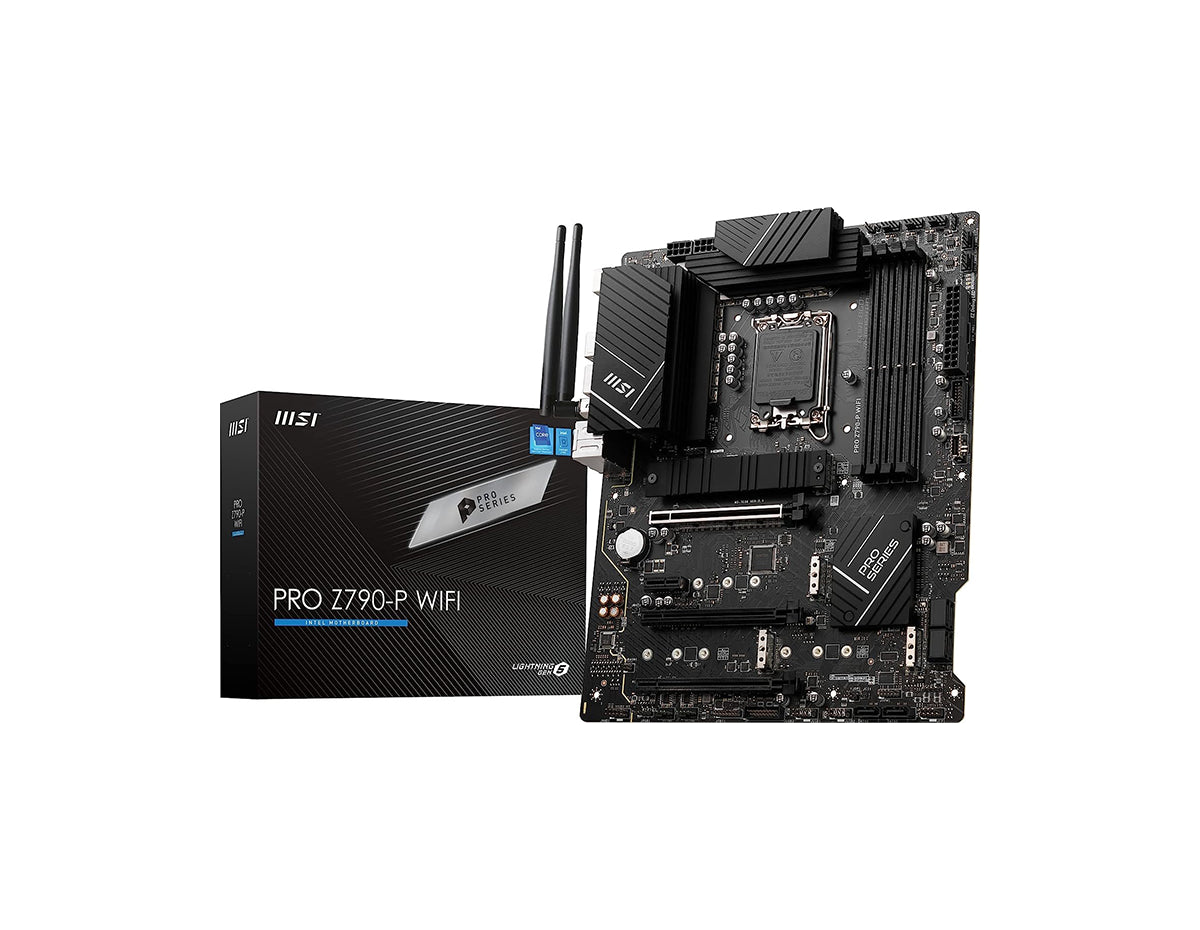

MSI PRO Z790-P WIFI Motherboard

The MSI PRO Z790-P WIFI Motherboard is designed to support the latest Intel® processors and provides advanced features for high-performance computing. With support for DDR5 memory, multiple PCIe slots, and advanced graphics capabilities, this motherboard is ideal for gaming, content creation, and other demanding applications.

CPU:

• Supports Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
• Processor socket LGA1700

Chipset:

• Intel® Z790 Chipset

Memory:

• 4x DDR5 memory slots, supporting up to 192GB*
• Supports 1R 5600 MHz (by JEDEC & POR)
• Max. overclocking frequency:
  • 1DPC 1R Max speed up to 7000+ MHz
  • 1DPC 2R Max speed up to 6400+ MHz
  • 2DPC 1R Max speed up to 6400+ MHz
  • 2DPC 2R Max speed up to 5600+ MHz
• Supports Intel® XMP 3.0 OC
• Supports Dual-Controller Dual-Channel mode
• Supports non-ECC, un-buffered memory
• * Please refer to www.msi.com for more information on compatible memory.

Expansion Slots:

• 3x PCIe x16 slots
• PCI_E1 slot (From CPU): Supports up to PCIe 5.0 x16
• PCI_E3 & PCI_E4 slots (From Z790 chipset):
• PCI_E3 supports up to PCIe 4.0 x4
• PCI_E4 supports up to PCIe 3.0 x1
• 1x PCIe x1 slot (From Z790 chipset)
• PCI_E2 supports up to PCIe 3.0 x1

Onboard Graphics:

• 1x HDMI™ 2.1 port with HDR, supports a maximum resolution of 4K 60 Hz*
• 1x DisplayPort 1.4 with HBR2, supports a maximum resolution of 4K 60Hz*
• * Available only on processors featuring integrated graphics.
• ** Graphics specifications may vary depending on the CPU installed.

SATA Ports:

• 6x SATA 6Gb/s ports (From Z790 chipset)

M.2 SSD Slots:

• 4x M.2 slots (Key M)
• M2_1 slot (From CPU): Supports up to PCIe 4.0 x4, Supports 2242/ 2260/ 2280/ 22110 storage devices
• M2_2 slot (From Z790 chipset): Supports up to PCIe 4.0 x4, Supports 2242/ 2260/ 2280 storage devices
• M2_3 slot (From Z790 chipset): Supports up to PCIe 4.0 x4, Supports SATA 6Gb/s, Supports 2242/ 2260/ 2280 storage devices
• M2_4 slot (From Z790 chipset): Supports up to PCIe 4.0 x4, Supports SATA 6Gb/s, Supports 2242/ 2260/ 2280 storage devices

RAID:

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

Audio:

• Realtek® ALC897 Codec
• 7.1-Channel High Definition Audio

LAN:

• 1x Intel® 2.5Gbps LAN controller

Wi-Fi & Bluetooth® (For PRO Z790-P WIFI only):

• Intel® Wi-Fi 6E
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth® 5.3**, FIPS, FISMA
• * The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country’s regulations.

Power Connectors:

• 1x 24-pin ATX main power connector
• 2x 8-pin +12V power connectors

Internal USB Connectors:

• 1x USB 3.2 Gen 2 10Gbps Type-C front panel port (From Z790 chipset)
• 2x USB 3.2 Gen 1 5Gbps connectors (From Z790 chipset)
• Supports additional 4 USB 3.2 Gen 1 5Gbps ports
• 2x USB 2.0 connectors (From Hub-GL850G)
• Supports additional 4 USB 2.0 ports

Fan Connectors:

• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 6x 4-pin system fan connectors

System Connectors:

• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x TPM module connector
• 1x Tuning controller connector
• 1x TBT connector (Supports RTD3)

Jumpers:

• 1x Clear CMOS jumper

LED Features:

• 4x EZ Debug LED
• 1x 4-pin RGB LED connector
• 2x 3-pin A-RAINBOW V2 (ARGB Gen2) LED connectors

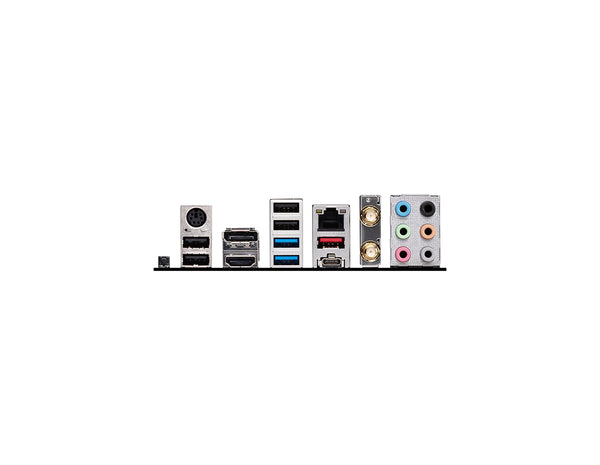

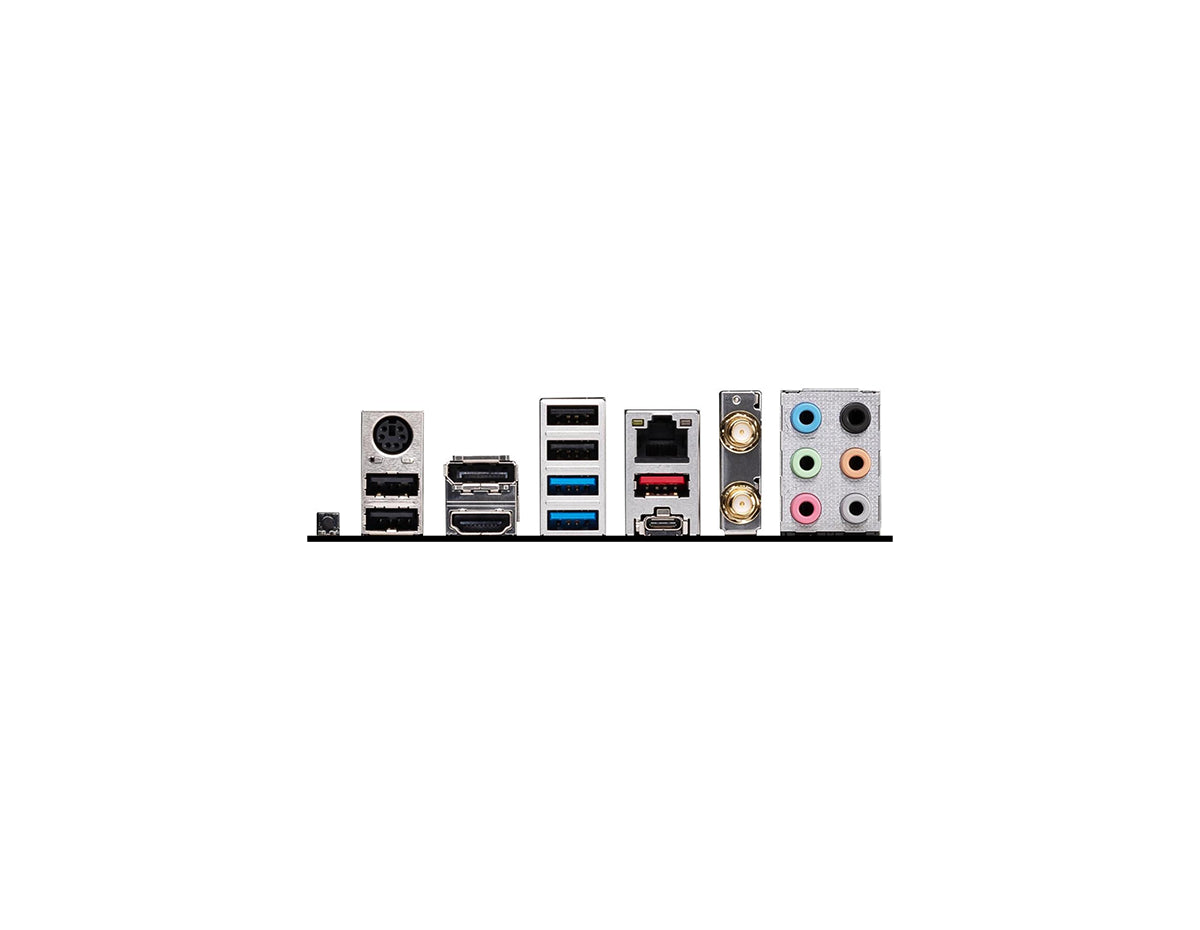

Back Panel Connectors:

• 1x Flash BIOS button
• 1x PS/2 port
• 4x USB 2.0 Type-A ports (From Z790 chipset)
• 1x DisplayPort
• 1x HDMI™ port
• 1x LAN (RJ45) jack
• 2x USB 3.
