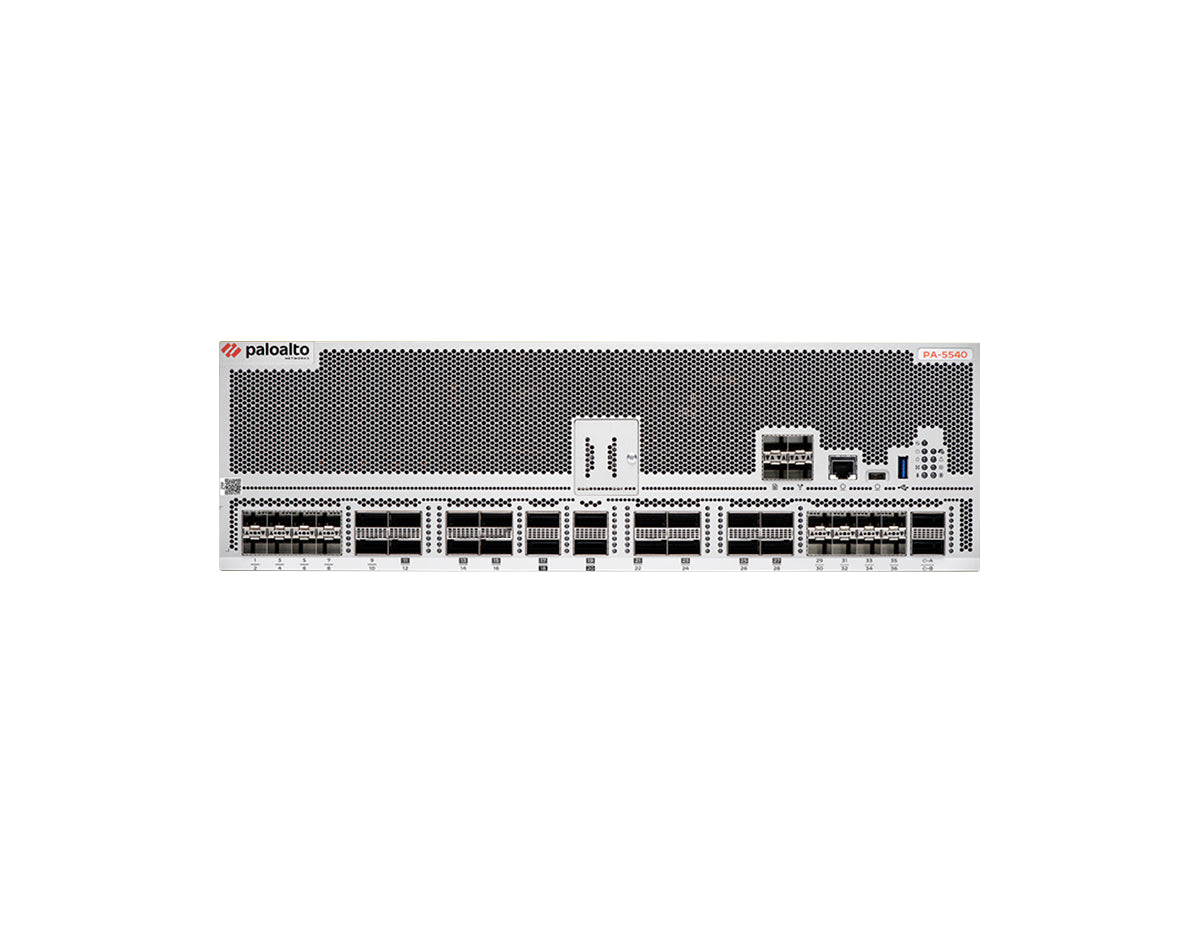

Palo Alto Networks PA-5540-AC Next-Gen Firewall 150 Gbps, PQC-Ready

High Speed Protection for Modern Data Centers

The Palo Alto Networks PA-5540 delivers data center grade throughput with deep security inspection in a compact 3U chassis. It brings ML powered defenses, predictable latency, and unified operations so you can scale east west and internet edge security without sacrificing performance or manageability.

Key Benefits & Features

• Quantum ready decryption and VPN: Post quantum cryptography support in PAN-OS helps future proof SSL/TLS inspection and site to site VPN while maintaining strong performance.
• Single pass architecture for consistency: Networking, policy lookup, application decoding, and signature matching run in one pass to keep latency low even with full security services enabled.
• AI assisted operations and visibility: Strata Cloud Manager and Strata Copilot provide real time insights, best practice guidance, and proactive issue detection across deployments.
• Application and identity aware control: App-ID and User-ID enforce precise policies by application and user to secure SaaS, reduce lateral movement, and align with Zero Trust.
• Built to scale and stay online: High availability and clustering options increase resiliency, while rich routing and SD-WAN features integrate cleanly into complex networks.

Ideal Use Cases

• Data centers and internet gateways requiring high throughput with deep inspection
• Large campus cores consolidating advanced security at scale
• Enterprises standardizing on centralized, cloud managed operations
• Zero Trust initiatives needing app and identity based control across encrypted traffic

Technical Specifications

• Firewall Throughput: up to 150 Gbps
• Threat Prevention Throughput: up to 90 Gbps
• IPsec VPN Throughput: up to 80 Gbps
• Max Concurrent Sessions: up to 39,000,000
• New Sessions per Second: up to 1,330,000
• Interfaces: 16x10/25G SFP28, 16x40/100G QSFP28, 4x100/400G QSFP-DD
• Form Factor: 3U 19 inch rack mount, front to back airflow
• Management: Strata™ Cloud Manager; single-pass architecture; App-ID™, User-ID, Precision AI® services (CDSS)

Scale Security With Confidence

Upgrade to the PA-5540 for high speed, low latency protection with AI assisted operations. Contact us for a tailored quote and deployment guidance.

Model	PA-5540
Series	PA-5500 Series
Product Type	Next-Generation Firewall (Quantum-optimized)
Operating System	PAN-OS® (measurements cited on PAN-OS 12.1)
Form Factor	3U, 19" rack
Dimensions (H × D × W)	5.2 in × 29.8 in × 17.3 in (3U)
Weight	70 lb (standalone)
Airflow	Front to back (port side to power supply side)
Operating Temperature	0 °C to 50 °C (32 °F to 122 °F)
Storage Temperature	−20 °C to 70 °C (−4 °F to 158 °F)
Humidity (Operating)	10%–90%
Max Operating Altitude	3,048 m (10,000 ft)
I/O (Data)	16 × 10/25G SFP28; 16 × 40/100G QSFP28; 4 × 100/400G QSFP-DD
Management / Console I/O	2 × 1G/10G SFP+ (OOB mgmt); RJ-45 console; USB-C console; USB 3.2 Gen1 Type-A (bootstrap); 2 × 10G SFP+ (Log); 2 × 100G/400G QSFP-DD (HSCI)
Storage	Optional 3.84 TB RAID1 SSD pair (cold swap)
Power (Input)	AC 100–240 VAC (50–60 Hz); DC −40 to −60 VDC
Power Supplies	AC: 2+2 redundant (220 V) / 3+1 (110 V); DC: 2+2 redundant
Power – Avg / Max	2,100 W / 3,100 W
Max BTU/hr	1,638
MTBF	8.1 years
Safety / EMI	cTUVus, CB; FCC Class A, CE Class A, VCCI Class A

Firewall Throughput (appmix)	150 Gbps
Threat Prevention Throughput (appmix)	90 Gbps
IPsec VPN Throughput	80 Gbps
Max Concurrent Sessions	39 million
New Sessions per Second	1.33 million
Virtual Systems	25 base / 225 max
VLANs	802.1Q VLAN tags per device/per interface: 4,094 / 4,094
Routing	OSPFv2/v3, MP-BGP, RIP, static; policy-based forwarding; DHCPv4 server/relay; PPPoE; Multicast (PIM-SM/SSM, IGMPv2/v3); BFD & multihop BFD
Network Address Translation	IPv4: Static, Dynamic IP, Dynamic IP & Port (PAT); NAT64; NPTv6; plus dynamic IP reservation and oversubscription
IPv6	Inspection in L2/L3/tap/virtual wire; dual-stack & IPv6-only; OSPFv3, MP-BGP, NAT64, NPTv6; DHCPv6 PD; SLAAC server; geolocation
IPsec VPN	IKEv1/IKEv2; manual key; Encryption: 3DES, AES-128/192/256; Authentication: MD5, SHA-1/256/384/512; GlobalProtect® VPN support
High Availability / Clustering	NGFW clustering (A/A) and HA A/P (note: some elements are roadmap-dependent)
TLS/Decryption	Outbound/inbound SSL/TLS (v1.1/1.2/1.3); classical RSA/ECDHE/DHE and post-quantum ML-KEM/HQC key exchanges; policy-based controls
Management	Strata™ Cloud Manager; single-pass architecture; App-ID™, User-ID, Precision AI® services (CDSS)

Included (PA-5540-AC bundle)	4 × PAN-PA-5500-PWR-2700-AC; 5 × PAN-PA-FAN-2RU-A; 1 × PAN-PA-5500-ACC-A accessory kit; 1 × PAN-PA-3RU-RACK-A; 2 × PAN-SFP-CG; 1 × PAN-PA-5500-SSD-3.84TB-PAIR
Spare / Optional	PAN-PA-5500-SSD-3.84TB-PAIR (spare); PAN-PA-5500-ACC-A (AC kit: 4 × PAN-PWR-C19-US-120V + USB cable + Cat6); PAN-PA-5500-ACC-B (DC kit: 4 × PAN-PWR-DC-CBL-C + USB cable + Cat6)
