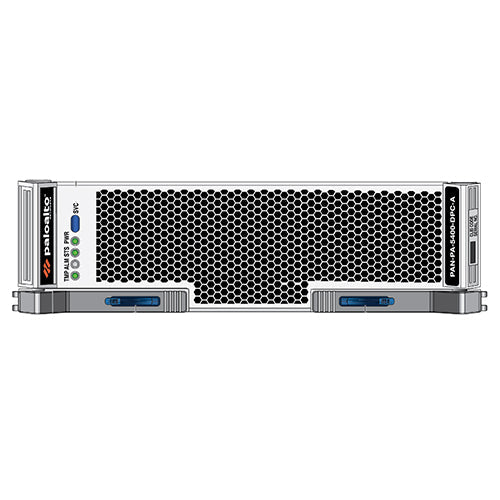

PALO ALTO PA-5400-DPC-A MODULE

Accessories

Specifications

Single PA-5400- DPC-A
Firewall throughput (HTTP/appmix) ( Firewall throughput is measured with App-ID and logging enabled, utilizing 64 KB HTTP/appmix transactions.)	67.3/70 Gbps
Threat Prevention throughput (HTTP/appmix)  (Threat Prevention throughput is measured with App-ID, IPS, antivirus, antispyware, WildFire, DNS Security, file blocking, and logging enabled, utilizing 64 KB HTTP/appmix transactions.)	30.4/38 Gbps
IPsec VPN throughput (IPsec VPN throughput is measured with 64 KB HTTP transactions and logging enabled.)	17 Gbps
Max concurrent sessions	20M
New sessions per second (New sessions per second is measured with application override, utilizing 1 byte HTTP transactions.)	725
Specifications	PA-5400 Series
Interface Modes	L2, L3, tap, virtual wire (transparent mode)
Routing	OSPFv2/v3 with graceful restart, BGP with graceful restart, RIP, static routing Policy-based forwarding Point-to-Point Protocol over Ethernet (PPPoE) and DHCP supported for dynamic address assignment Multicast: PIM-SM, PIM-SSM, IGMP v1, v2, and v3 Bidirectional Forwarding Detection (BFD)
SD-WAN	Path quality measurement (jitter, packet loss, latency) Initial path selection (PBF) Key exchange: manual key, IKEv1, and IKEv2 (pre-shared key, certificate-based authentication)
IPv6	L2, L3, tap, virtual wire (transparent mode) Features: App-ID, User-ID, Content-ID, WildFire, and SSL Decryption SLAAC
IPsec and SSL VPN	Key exchange: manual key, IKEv1, and IKEv2 (pre-shared key, certificate-based authentication) Encryption: 3des, AES (128-bit, 192-bit, 256-bit) Authentication: MD5, SHA-1, SHA-256, SHA-384, SHA-512 GlobalProtect Large Scale VPN for simplified configuration and management* Secure access over IPsec and SSL VPN tunnels using GlobalProtect gateway and portals*
VLANs	802.1Q VLAN tags per device/per interface: 4,094/4,094 Aggregate interfaces (802.3ad), LACP
Network Address Translation	NAT modes (IPv4): static IP, dynamic IP, Dynamic IP and Port (port address translation) NAT64, NPTv6 Additional NAT features: dynamic IP reservation, tunable Dynamic IP and Port oversubscription
High Availability	Modes: active/active, active/passive, HA clustering Failure detection: path monitoring, interface monitoring
Mobile Network Infrastructure	5G Security GTP Security SCTP Security * Requires GlobalProtect license
Hardware Specifications
1/O	1G/2.5G/5G/10G (8), 1G/10G SFP/SFP+ (12), 1G/10G/25G SFP/SFP+/SFP28 (4), 40G/100G QSFP+/QSFP28 (4)
Management I/O	1G/10G SFP/SFP+ out-of-band management port (1), 1G/10G SFP/SFP+ high availability (2), 40G QSFP+ high availability (1), RJ-45 console port (1), Micro USB
Storage Capacity	480 GB SSD pair, system storage
Power Supply (Avg/Max Power Consumption)	630/760 W
Max BTU/hr	1638
Power Supplies (Base/Max)	1:1 fully redundant (2/2)
AC Input Voltage (Input Hz)	100–240 VAC (50–60 Hz)
AC Power Supply Output	1,200 watts/power supply
Max Current Consumption	AC: 7 A @ 100 VAC, 3 A @ 240 VAC DC: 15 A @ -48 VDC, 12 A @ -60 VDC
Max Inrush Current	AC: 50 A @ 230 VAC, 50 A @ 120 VAC DC: 200 A @ 72 VDC
Mean Time Between Failure (MTBF)	22 years
Rack Mount Dimensions	2U, 19" standard rack (3.45" H x 22.5" D x 17.34" W)
Weight (Standalone Device/As Shipped)	35.2 lbs/48.8 lbs
Safety	cTUVus, CB
EMI	FCC Class A, CE Class A, VCCI Class A
Environment	Operating temperature: 32°F to 122°F, 0°C to 50°C Nonoperating temperature: -4°F to 158°F, -20°C to 70°C Humidity tolerance: 10% to 90% Maximum altitude: 10,000 ft/3,048 m Airflow: front to back

Properties



Properties	PAN-PA-5400-DPC-A Module
Description	For packet and security processing, the PA-5450 uses DPCs (PA-5400-DPC-A) with a minimum of one DPC and up to five DPCs that can be placed in the six slots.
Product Family	PA-5400 Series firewalls
Product Type	Expansion Module
Card Status	Up
Power (w)	335
Power Specification (Power Produced (+) or Rated Consumption (-))	(-400 Watts)
