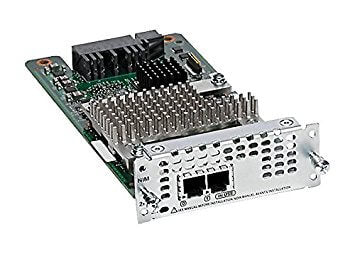

Cisco NIM-2FXSP Expansion Module
- Expansion module
- FXS/DID x 2
- For Cisco 4451-X
$886.35
$488.00
Instant Savings
$398.35
Cisco NIM-2FXSP Expansion Module for Increased Capability
Cisco NIM-2FXSP Expansion Module has hosting solutions of Cisco 4000 series integrated services routers (ISRs). It has evolved from the advanced high-speed WAN interface card (EHWIC) that results in increased port density and module capability.
Key Benefits of Cisco NIM-2FXSP Expansion Module
Cisco NIM-2FXSP Expansion Module has three integrated slots on the 4000 series. It results in flexible configurations and supports online insertion and removal (OIR). This improvement also helps in reducing downtime.
| Properties | Cisco NIM-2FXSP |
| Description | 2-Port FXS Network Interface Module with DID Support |
| Product Family | Cisco Voice NIM |
| Product Type | Analog Voice Module (FXS/DID) |
| Supported Devices | Cisco 4300 and 4400 Series ISR |
| Ports | 2 x FXS (Foreign Exchange Station) |
| Form Factor | Single-wide NIM Slot |
| Connectivity Technology | Wired (Analog Voice over TDM) |
| DSP | Integrated DSP with Echo Cancellation |
| Specifications | NIM-2FXSP |
| Number of Ports | 2 x FXS or DID |
| Software Compatibility | IOS XE 16.5 or later |
| DSP Features | Echo cancellation (128ms), VAD, CNG, RTCP, T.38 fax relay, modem support |
| Voice Protocol Support | H.323, SIP, MGCP, SCCP |
| Audio Codec Support | G.711, G.729a, G.726, G.723, iSAC (planned), iLBC (roadmap) |
| Caller ID Support | Yes (FXS only) |
| Loop Start / Ground Start | Supported |
| MWI Support | Yes (Message Waiting Indicator) |
| Physical Dimensions (Weight) | 0.42 lb (191 g) |
| Compliance | UL 60950-1, EN 60950-1, CS-03, AS/CA S003, TIA-968-B |
| Included Accessories | |
| — | No additional accessories included in the box |
| Optional Accessories | |
| CAB-CONSOLE-RJ45 | RJ45 Console Cable for configuration |
| CISCO-SM-NIM-CARRIER | NIM Carrier Module for SM-X slot conversion |
| RACK-MOUNT-KIT | Standard rack-mounting accessories for 4000 Series ISR |
