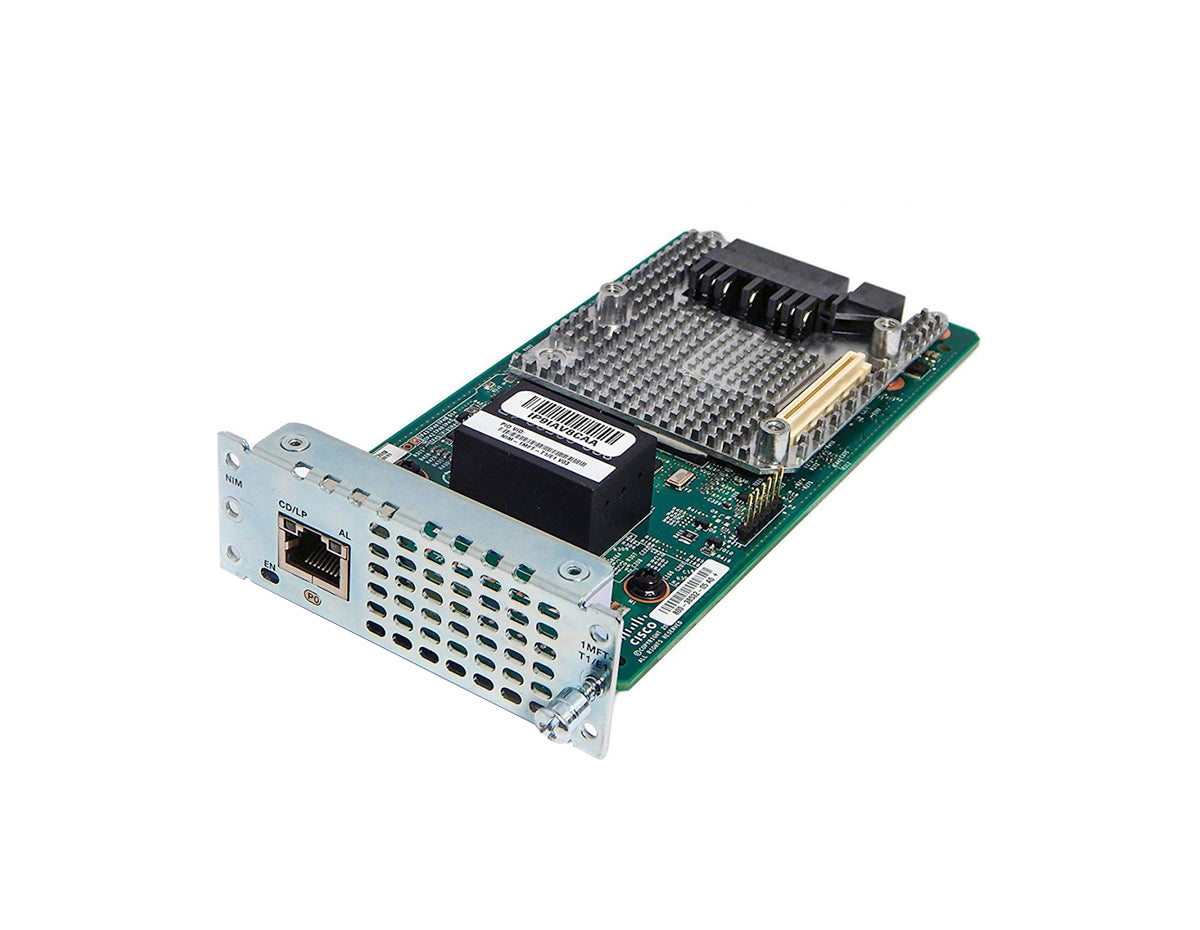

Cisco NIM-1MFT-T1/E1 Expansion Module

Name: Cisco NIM-1MFT-T1/E1 Expansion Module
Brand: Cisco
SKU: NIM-1MFT-T1/E1-NEW
Price: 611.52 USD
Availability: InStock

Part Number: NIM-1MFT-T1-E1

Technical Details

Expansion module T-1/E-1 For Cisco 4451-X

$1,601.95

$611.52

62% OFF

You Save: $990.43

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

Use CISCO NIM-1MFT-T1/E1 EXPANSION Module for Multiple Integrated Data & Voice Application Support

CISCO NIM-1MFT-T1/E1 EXPANSION Module features Fourth-Generation 1-, 2-, 4-, and 8-Port T1/E1 Multiflex Trunk Voice and WAN Network Interface. CISCO NIM-1MFT-T1/E1 EXPANSION Module is designed for providing clear-channel data, MFT packet voice.

Key Benefits of CISCO NIM-1MFT-T1/E1 EXPANSION Module

CISCO NIM-1MFT-T1/E1 EXPANSION Module is useful for those who want to integrate data and voice in multiple steps to preserve their investment in a T1/E1 WAN interface. WAN-interface-card (WIC), voice-interface-card (VIC), ISDN Primary Rate Interface (PRI), dial-access integration, and channelized-data (CE1T1) functions are integrated to provide superior flexibility, versatility, and investment protection through their many uses.

Model	NIM-1MFT-T1/E1
Serial data (channel-group)	2 per port
E1 unframed G.703	Not supported
Voice channel associated signaling (CAS) (ds0-group)	24 per port (T1) 31 per port (E1) 1 per timeslot
PRI (pri-group)	1 per port
Drop and insert (tdm-group)	24 per port (T1) 31 per port (E1) 1 per timeslot
Dimensions (H x W x D)	1.25 x 3.50 x 7.24 in. (3.18 x 8.89 x 18.39 cm)

Specifications

Cisco NIM-1MFT-T1/E1 Expansion Module Specifications

Serial data (channel-group)	2 per port
E1 unframed G.703	Not supported
Drop and insert (tdm-group)	24 per port (T1) 31 per port (E1) 1 per timeslot
Transmit bit rate	1.544 Mbps 50 bps/32 ppm
Receive bit rate	1.544 Mbps 50 bps/32 ppm
Line code	Alternate mark inversion (AMI) and binary 8-zero substitution (B8ZS)
AMI ones density	Enforced for n x 56-kbps channels
Framing format	D4 (Super Frame [SF]) and Extended Super Frame (ESF)
Output level (line build-out [LBO])	0, -7.5 or -15 dB
Input level	1 dB0 down to -24 dB0
Data-terminal-equipment (DTE) interface (WIC mode)	Fractional service
Data-communications-equipment (DCE) interface	G.704 or structured
Transmit bit rate	2.048 Mbps 100 bps/50 ppm
Receive bit rate	2.048 Mbps 100 bps/50 ppm
Data rate	1.984 Mbps (framed mode) per E1 port
Clocking	Internal and loop (recovered from network)
E1 national bits	Fixed (nonconfigurable)
Encoding	High-density bipolar three (HDB3)
DTE interface (WIC mode)	Fractional service
DTE interface (VIC mode)	G.704 or structured
DCE interface	G.704 or structured
Dimensions (H x W x D)	1.25 x 3.50 x 7.24 in. (3.18 x 8.89 x 18.39 cm)
Environmental	Operating temperature: 0 to 50C (32 to 122F) Storage temperature: -20 to +65C (-4 to 148F) Relative humidity: 10 to 85% noncondensing operating; 5 to 95% noncondensing, nonoperating
T1 Compliance (partial list)	TIA-968-A CS-03 Jate ANSI T1.403
E1 Compliance (partial list)	TBR4, TBR12, and TBR13 ITU-T G.703, G.704, G.823, and I.431 S016
Weight	0.40 lb (181g)
