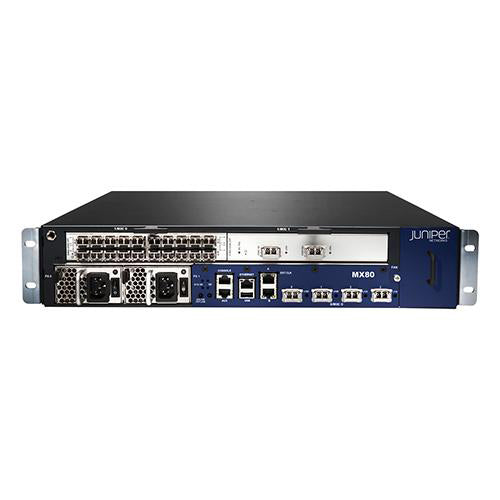

JUNIPER MX80-DC-B ROUTER
| Model: | MX80-DC-B |
| Detail: |
MX80 Chassis , ADV Bundle, Junos-WW License, DC power supply, Fan Tray with filter |
| List Price: | |
| Price: | $63,000.00 |
| You Save: | $27,000.00 (30% OFF) |
| Condition: | Brand New Sealed |
| Availability: | SPECIAL ORDER |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description
The compact, agile, and full-featured MX80 Universal Routing Platform is ideally suited for enterprise and service provider applications in facilities with limited space and power. MX80 routers are optimized for enterprise WAN, Data Center Interconnect (DCI), branch aggregation, and campus applications.Accessories
| MICs | |
| MIC-3D-8OC3-2OC12-ATM | ATM MIC with SFP |
| MIC-3D-8DS3-E3/MIC-3D-8CHDS3-E3-B | DS3/E3 MIC |
| MIC-3D-16CHE1-T1-CE | Channelized E1/T1 Circuit Emulation MIC |
| MIC-3D-16CHE1-T1-CE-H | Channelized E1/T1 Circuit Emulation MIC (H) |
| MIC-3D-20GE-SFP | Gigabit Ethernet MIC with SFP |
| MIC-3D-20GE-SFP-E | Gigabit Ethernet MIC with SFP (E) |
| MIC-3D-20GE-SFP-EH | Gigabit Ethernet MIC with SFP (EH) |
| MIC-MACSEC-20GE | Gigabit Ethernet MIC with 256b-AES MACsec |
| MIC-3D-2XGE-XFP | 10-Gigabit Ethernet MICs with XFP |
| MIC-3D-4OC3OC12-1OC48 | SONET/SDH OC3/STM1 (Multi-Rate) MICs with SFP |
| MIC-3D-8OC3OC12-4OC48 | SONET/SDH OC3/STM1 (Multi-Rate) MICs with SFP |
| MIC-3D-4CHOC3-2CHOC12 | Channelized SONET/SDH OC3/STM1 (Multi-Rate) MICs with SFP |
| MIC-3D-8CHOC3-4CHOC12 | Channelized SONET/SDH OC3/STM1 (Multi-Rate) MICs with SFP |
| MIC-3D-4COC3-1COC12-CE | Channelized OC3/STM1 (Multi-Rate) Circuit Emulation MIC with SFP |
| MIC-4COC3-1COC12-CE-H | Channelized OC3/STM1 (Multi-Rate) Circuit Emulation MIC with SFP (H) |
| MIC-3D-40GE-TX | Tri-Rate MIC |
| MS-MIC-16G | Multiservices MIC |
| MIC-3D-1OC192-XFP | SONET/SDH OC192/STM64 MIC with XFP |
| JNP-MIC1 | 12-Port Multi-Rate MIC with QSFP+ |
| JNP-MIC1-MACSEC | 12-Port Multi-Rate MACsec MIC with QSFP+ |
| Midrange router upgrade licenses | |
| MX-40-80-UPG-B | Software upgrade for MX40 to MX80 |
| Junos OS | |
| Junos-WW | Worldwide |
| Junos OS | USA |
| Software Licenses | |
| S-MX80-ADV-R | License to support full scale L3 route and L3 VPN on MX80 |
| S-MX80-Q | License Svc F/ MPC F/ Mx80 Series Routers Limited to 5g |
| S-MX80-SA-FP | Subscriber Management Feature Pack License |
| S-MX80-SSM-FP | Subscriber Service Management Feature Packet License (RADIUS/SRC Series-based service activation and deactivation) per service accounting features for subscribers, MX80 |
Specifications
| Specifications | MX80-DC-B |
| System capacity | 80 Gbps |
| System throughput | 160 Gbps |
| Packet forwarding capacity | 55 to 60 Mpps |
| Per slot capacity | 20 Gbps |
| Slot orientation | Horizontal |
| Built-in Routing Engine | 8 MB boot flash; 4 GB on NAND flash storage; 2 GB of DDR2 RAM |
| Number of cores | 1 core |
| Platform Features | |
| Security | Firewall filters/ACLs DDoScontrol plane DDoSFlowSpec Stateless filters L2-L4 Stateful services* |
| Inline Services | GRE reassembly 1:1 NAT* Flow monitoring** Video monitoring*** Lawful intercept Mirroring |
| Service Card Supported Services | CGNAT J-Flow** Ipsec**** Stateful firewall^ |
| Resiliency | Fast restoration Operation, Administration, and Maintenance (OAM) |
| System Virtualization |
Logical systems Virtual router/switch Enhanced SLA and queuing Junos Fusion Edge (AD) |
| Automation | Path Computation Element Protocol (PCEP) OpenConfig YANG data modeling Juniper Extension Toolkit |
| Operating temperature | 32° to 104° F (0° to 40° C) |
| Humidity | 5% to 90% noncondensing humidity |
| Altitude | 13,000 ft (4,000 m) |
| Safety | CAN/CSA-22.2 No. 60950-00/UL 1950 Third Edition, Safety of Information Technology Equipment EN 60825-1 Safety of Laser Products - Part 1: Equipment Classification, Requirements, and Users Guide EN 60950 Safety of Information Technology Equipment |
| EMC | AS/NZS 3548 Class A (Australia/New Zealand) EN 55022 Class A Emissions (Europe) FCC Part 15 Class A (USA) VCCI Class A (Japan) |
| NEBS | GR-63-Core:NEBS, Physical Protection GR-1089-Core:EMC and Electrical Safety for Network Telecommunications Equipment |
| ETSI | ETS-300386-2 Telecommunication Network Equipment Electromagnetic Compatibility Requirements |
| Immunity | EN 61000-3-2 Power Line Harmonics EN 61000-3-3 Voltage Fluctuations and Flicker EN 61000-4-2 ESD EN 61000-4-3 Radiated Immunity EN 61000-4-4 EFT EN 61000-4-5 Surge EN 61000-4-6 Low Frequency Common Immunity EN 1000-4-11 Voltage Dips and Sags |
| Element Management | Junos Space Platform and applications J-Web Software graphical user interface |
| Policy Management | Junos Scope SRC Series Session and Resource Control Modules |
| Third-Party Management Applications | HP, IBM, InfoVista, Intelliden, WANDL |
| SNMP | SNMP v2/v3 bilingual agent support |
Properties
| Properties | Juniper MX80-DC-B |
| Description | MX80 Chassis , ADV Bundle, Junos-WW License, DC power supply, Fan Tray with filter. |
| Product Family | MX80 Series |
| Product Type | Router |
| Interface Features | |
| Maximum 1GbE | 80 |
| Maximum 10GbE | 8 |
| Maximum 40GbE | NA |
| Maximum 100GbE | NA |
| 10GbE DWDM | NA |
| 100GbE DWDM | NA |
| Ports | 4 10GbE fixed |
| Slots | 3 MIC slots (The MX80 has two front MIC slots and one rear MIC slot. The rear MIC slot only supports the MS-MIC.) |
| PDH | Yes |
| Sonet/SDH | Yes |
| Advanced Bundle | Yes |
| Junos-WW | Yes |
| Physical dimensions (W x D x H) | |
| Fixed chassis | 17.5 in. (44.5 cm) x 23.46 in. (59.6 cm) x 3.5 in. (8.9 cm) |
| Modular chassis | 17.5 in. (44.5 cm) x 23.46 in. (59.6 cm) x 3.5 in. (8.9 cm) |
| Air filter | 0.25 in. (0.64 cm) x 18.43 in. 46.81 cm) x 3.35 in. (8.5 cm) |
| MIC | 6.25 in. (15.9 cm) x 6.8 in (17.3 cm) x 1.2 in. (3.05 cm) |
| Dual-wide MIC | 12.5 in. (31.75 cm) x 6.8 in (17.3 cm) x 1.2 in. (3.05 cm) |
| Fan tray | 2.75 in. (6.96 cm) x 20.5 in. 52.07 cm) x 3.35 in. (8.5 cm) |
| DC power supply | 2.8 in. (7.1 cm) x 13.2 in. (33.5 cm) x 1.6 in. (4.1 cm) |
| AC power supply | 2.8 in. (7.1 cm) x 13.2 in. (33.5 cm) x 1.6 in. (4.1 cm) |
| Weights | |
| Fixed chassis | Chassis with fan tray and power supplies: 28 lb (12.7 kg) |
| Modular chassis | Chassis with fan tray, power supplies, and MICs: 30 lb (13.6 kg) |
| Air filter | 0.1 lb (0.05 kg) |
| MIC | Maximum up to 1.2 lb (0.54 kg) |
| Dual-wide MIC | 1.9 lb (0.9 kg) |
| Fan tray | 2.3 lb (1.04 kg) |
| DC power supply | 2.6 lb (1.18 kg) |
| AC power supply | 2.6 lb (1.18 kg) |
| Weight (lb/kg) fully configured | 30 lb/13.7 kg |
| Mounting | Front or center |
| Rack units | 2 |
| Systems per rack | 24 |
| Redundancy | Power supplies and fans |
| Air flow | Side to side [forced air] |
| Power (DC) | -40 to -72 V DC |
| Typical power draw (DC) | 310 W |
| Maximum output power | 500 W |
| DC input voltage | Minimum: 40 VDC Nominal: 48 VDC, 60 VDC Operating range: 40 to 72 VDC |
| DC input line frequency | 50 to 60 Hz (nominal) |
| DC system current rating | 13 A @ 48 VDC (maximum) (625 W DC) |
| DC system input power | 13 A @ 48 VDC (625 W DC) |
