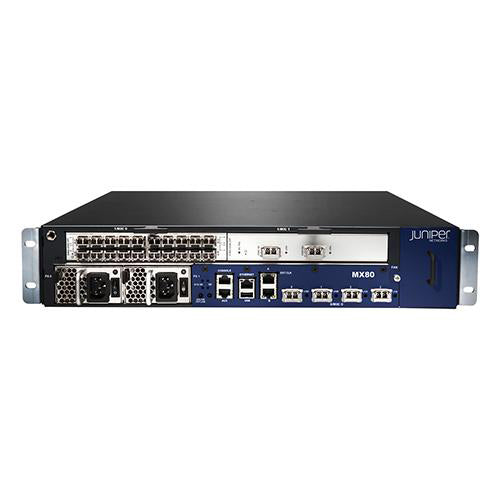

Juniper MX80-48T-AC Router

The compact, agile, and full-featured MX80 Universal Routing Platform is ideally suited for enterprise and service provider applications in facilities with limited space and power

Properties	Juniper MX80-48T-AC
Description	MX80-48T Chassis , with 48 x RJ-45, 4 x 10GE XFP Built-in Ports, AC power supply, Fan Tray with filter.
Product Family	MX80 Series
Product Type	Router
Interface Features
Maximum 1GbE	80
Maximum 10GbE	8
Maximum 40GbE	NA
Maximum 100GbE	NA
10GbE DWDM	NA
100GbE DWDM	NA
Ports	4 10GbE fixed, 48 RJ-45
Slots	3 MIC slots (The MX80 has two front MIC slots and one rear MIC slot. The rear MIC slot only supports the MS-MIC.)
PDH	Yes
Sonet/SDH	Yes
Physical dimensions (W x D x H)
Fixed chassis	17.5 in. (44.5 cm) x 23.46 in. (59.6 cm) x 3.5 in. (8.9 cm)
Modular chassis	17.5 in. (44.5 cm) x 23.46 in. (59.6 cm) x 3.5 in. (8.9 cm)
Air filter	0.25 in. (0.64 cm) x 18.43 in. 46.81 cm) x 3.35 in. (8.5 cm)
MIC	6.25 in. (15.9 cm) x 6.8 in (17.3 cm) x 1.2 in. (3.05 cm)
Dual-wide MIC	12.5 in. (31.75 cm) x 6.8 in (17.3 cm) x 1.2 in. (3.05 cm)
Fan tray	2.75 in. (6.96 cm) x 20.5 in. 52.07 cm) x 3.35 in. (8.5 cm)
DC power supply	2.8 in. (7.1 cm) x 13.2 in. (33.5 cm) x 1.6 in. (4.1 cm)
AC power supply	2.8 in. (7.1 cm) x 13.2 in. (33.5 cm) x 1.6 in. (4.1 cm)
Weights
Fixed chassis	Chassis with fan tray and power supplies: 28 lb (12.7 kg)
Modular chassis	Chassis with fan tray, power supplies, and MICs: 30 lb (13.6 kg)
Air filter	0.1 lb (0.05 kg)
MIC	Maximum up to 1.2 lb (0.54 kg)
Dual-wide MIC	1.9 lb (0.9 kg)
Fan tray	2.3 lb (1.04 kg)
DC power supply	2.6 lb (1.18 kg)
AC power supply	2.6 lb (1.18 kg)
Weight (lb/kg) fully configured	30 lb/13.7 kg
Mounting	Front or center
Rack units	2
Systems per rack	24
Redundancy	Power supplies and fans
Air flow	Side to side [forced air]
Power (AC)	100 to 240 V AC
Typical power draw (AC)	365 W
Maximum output power	500 W
AC input voltage	Operating range: 90 to 264 VAC
AC input line frequency	50 to 60 Hz (nominal)
AC system current rating	6 A @ 110 VAC (7 A maximum per inlet at 90 VAC) or 3 A @ 220 VAC
AC system input power	610 W

Specifications	MX80-48T-AC
System capacity	80 Gbps
System throughput	160 Gbps
Packet forwarding capacity	55 to 60 Mpps
Per slot capacity	20 Gbps
Slot orientation	Horizontal
Built-in Routing Engine	8 MB boot flash; 4 GB on NAND flash storage; 2 GB of DDR2 RAM
Number of cores	1 core
Platform Features
Security	Firewall filters/ACLs DDoS—control plane DDoS—FlowSpec Stateless filters L2-L4 Stateful services*
Inline Services	GRE reassembly 1:1 NAT* Flow monitoring** Video monitoring*** Lawful intercept Mirroring
Service Card Supported Services	CGNAT J-Flow** Ipsec**** Stateful firewall^
Resiliency	Fast restoration Operation, Administration, and Maintenance (OAM)
System Virtualization	Logical systems Virtual router/switch Enhanced SLA and queuing Junos Fusion Edge (AD)
Automation	Path Computation Element Protocol (PCEP) OpenConfig YANG data modeling Juniper Extension Toolkit
Operating temperature	32° to 104° F (0° to 40° C)
Humidity	5% to 90% noncondensing humidity
Altitude	13,000 ft (4,000 m)
Safety	CAN/CSA-22.2 No. 60950-00/UL 1950 Third Edition, Safety of Information Technology Equipment EN 60825-1 Safety of Laser Products - Part 1: Equipment Classification, Requirements, and User’s Guide EN 60950 Safety of Information Technology Equipment
EMC	AS/NZS 3548 Class A (Australia/New Zealand) EN 55022 Class A Emissions (Europe) FCC Part 15 Class A (USA) VCCI Class A (Japan)
NEBS	GR-63-Core:NEBS, Physical Protection GR-1089-Core:EMC and Electrical Safety for Network Telecommunications Equipment
ETSI	ETS-300386-2 Telecommunication Network Equipment Electromagnetic Compatibility Requirements
Immunity	EN 61000-3-2 Power Line Harmonics EN 61000-3-3 Voltage Fluctuations and Flicker EN 61000-4-2 ESD EN 61000-4-3 Radiated Immunity EN 61000-4-4 EFT EN 61000-4-5 Surge EN 61000-4-6 Low Frequency Common Immunity EN 1000-4-11 Voltage Dips and Sags
Element Management	Junos Space Platform and applications J-Web Software graphical user interface
Policy Management	Junos Scope SRC Series Session and Resource Control Modules
Third-Party Management Applications	HP, IBM, InfoVista, Intelliden, WANDL
SNMP	SNMP v2/v3 bilingual agent support

MICs
MIC-3D-8OC3-2OC12-ATM	ATM MIC with SFP
MIC-3D-8DS3-E3/MIC-3D-8CHDS3-E3-B	DS3/E3 MIC
MIC-3D-16CHE1-T1-CE	Channelized E1/T1 Circuit Emulation MIC
MIC-3D-16CHE1-T1-CE-H	Channelized E1/T1 Circuit Emulation MIC (H)
MIC-3D-20GE-SFP	Gigabit Ethernet MIC with SFP
MIC-3D-20GE-SFP-E	Gigabit Ethernet MIC with SFP (E)
MIC-3D-20GE-SFP-EH	Gigabit Ethernet MIC with SFP (EH)
MIC-MACSEC-20GE	Gigabit Ethernet MIC with 256b-AES MACsec
MIC-3D-2XGE-XFP	10-Gigabit Ethernet MICs with XFP
MIC-3D-4OC3OC12-1OC48	SONET/SDH OC3/STM1 (Multi-Rate) MICs with SFP
MIC-3D-8OC3OC12-4OC48	SONET/SDH OC3/STM1 (Multi-Rate) MICs with SFP
MIC-3D-4CHOC3-2CHOC12	Channelized SONET/SDH OC3/STM1 (Multi-Rate) MICs with SFP
MIC-3D-8CHOC3-4CHOC12	Channelized SONET/SDH OC3/STM1 (Multi-Rate) MICs with SFP
MIC-3D-4COC3-1COC12-CE	Channelized OC3/STM1 (Multi-Rate) Circuit Emulation MIC with SFP
MIC-4COC3-1COC12-CE-H	Channelized OC3/STM1 (Multi-Rate) Circuit Emulation MIC with SFP (H)
MIC-3D-40GE-TX	Tri-Rate MIC
MS-MIC-16G	Multiservices MIC
MIC-3D-1OC192-XFP	SONET/SDH OC192/STM64 MIC with XFP
JNP-MIC1	12-Port Multi-Rate MIC with QSFP+
JNP-MIC1-MACSEC	12-Port Multi-Rate MACsec MIC with QSFP+
Midrange router upgrade licenses
MX-40-80-UPG-B	Software upgrade for MX40 to MX80
Junos OS
Junos-WW	Worldwide
Junos OS	USA
Software Licenses
S-MX80-ADV-R	License to support full scale L3 route and L3 VPN on MX80
S-MX80-Q	License Svc F/ MPC F/ Mx80 Series Routers Limited to 5g
S-MX80-SA-FP	Subscriber Management Feature Pack License
S-MX80-SSM-FP	Subscriber Service Management Feature Packet License (RADIUS/SRC Series-based service activation and deactivation) per service accounting features for subscribers, MX80
