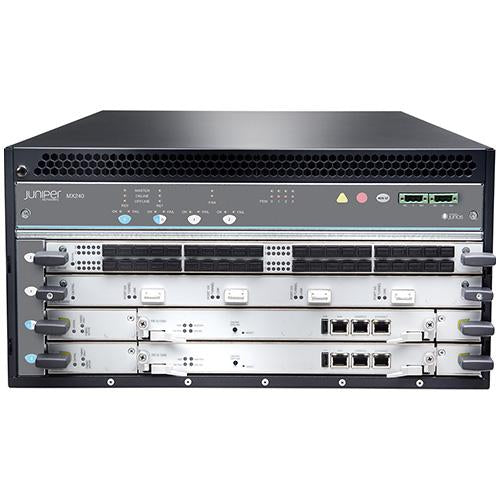

JUNIPER MX240BASE3-ACL ROUTER
| Part No: | MX240BASE3-ACL |
| Detail: |
|
| List Price: |
|
| Price: |
$57,153.60
|
| You Save: | $10,886.40 (16% OFF) |
| Condition: | Brand New Sealed |
| Availability: | SPECIAL ORDER |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ, TX, FL and PA |
| Quantity: |
|
Description
The SDN-enabled MX240 Universal Routing Platform offers high performance, scale, and investment protection for a wide variety of service provider and enterprise applications. Those include business and residential broadband services and high-volume data center internetworking.Accessories
Specifications
| System capacity | 3 Tbps |
| Slot orientation | Horizontal |
| Default memory | 2x16 MB NOR flash storage; 64 GB of DDR4 RAM; 2x50 GB SSD |
| Number of cores | 6 cores |
| Security | Firewall filters/ACLs DDoS—control plane DDoS—FlowSpec Stateless filters L2-L4 Stateful services |
| Inline Services | GRE reassembly 1:1 NAT Flow monitoring Video monitoring Lawful intercept Mirroring Corero SmartWall Threat Defense Director SecIntel Threat Intelligence |
| Service Card Supported Services6 | Deep packet inspection CGNAT Flow monitoring Server traffic load balancing7 IPsec Stateful firewall HTTP header manipulation Web filtering DNS sinkhole Intrusion detection system |
| Resiliency | Redundant RE Unified ISSU Nonstop active routing (NSR) Fast restoration Operation, Administration, and Maintenance (OAM) |
| System Virtualization | Enhanced SLA and queuing Junos Fusion Edge (AD) Logical systems Virtual router/switch Path Computation Element Protocol (PCEP) OpenConfig YANG data modeling Juniper Extension Toolkit |
| Operating temperature | 32° to 115° F (0° to 46° C) at sea level |
| Certifications | GR-1089-Core EMC and Electrical Safety - Common Bonding Network (CBN) - National Electrical Code (NEC) - GR-63-Core |
Properties
| Properties | MX240BASE3-ACL |
| Description | 4 slot MX240 base 3 chassis, lowline AC power |
| Product Family | Juniper MX Routers |
| Product Type | Router |
| Slots | 2 MPCs |
| Per slot capacity | 1.5 Tbps |
| Maximum system throughput1 | 3 Tbps |
| PDH | Yes |
| Sonet/SDH | Yes |
| Maximum 1GbE | 80 |
| Maximum 10GbE | 120 |
| Maximum 40GbE | 30 |
| Maximum 100GbE | 30 |
| Maximum 400GbE | 6 |
| 10GbE DWDM | 16 |
| 100GbE DWDM | 4 |
| Rack units | 5 |
| Systems per rack | 9 |
| Redundancy Components | Power supplies, REs, fans |
| Air flow | Side to side |
| Mounting | Front or center |
| Dimensions | 17.45 x 8.71 x 24.5 (44.3 x 22.1 x 62.2 cm) |
| Weight fully loaded | 130 lb/59 kg |
| Weight unloaded | 52 lbs/23.6 kg |
