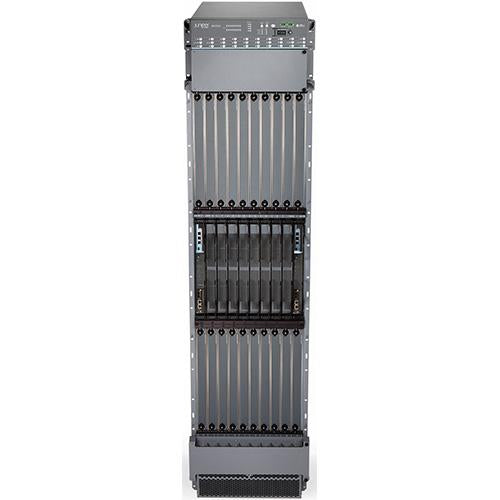

JUNIPER MX2020-BASE-DC CHASSIS
| Part No: | MX2020-BASE-DC |
| Detail: |
|
| List Price: |
|
| Price: |
$234,329.76
|
| You Save: | $44,634.24 (16% OFF) |
| Condition: | Brand New Sealed |
| Availability: | SPECIAL ORDER |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ, TX, FL and PA |
| Quantity: |
|
Description
The SDN-ready MX2020 Universal Routing Platform is the industry's highest-capacity edge router. It delivers 80 Tbps of system capacity and supports up to 800 100GbE interfaces, 320 200GbE interfaces, or 160 400GbE interfaces in a single chassis when used with the Modular Port Concentrator 11E (MPC11E) line card.Accessories
Specifications
| Specifications | MX2020-BASE-DC |
| Slots | 20 |
| Per slot capacity | 4 Tbps |
| System throughput | 80 Tbps |
| Power-to-throughput efficiency ratio (max) | 0.25W/GbE |
| Operating temperature | 32°F (0°C) to 104°F (40°C) |
| Humidity | 5% to 90% noncondensing humidity |
Properties
| Properties | Juniper MX2020-BASE-DC |
| Description | 20 slot MX2020 chassis, base bundle with 1 Routing Engine, SFBs, fan trays, DC power |
| Product Family | MX2000 Series |
| Product Type | Router |
| DPCs and/or MPCs per chassis | 20 (MPC only) |
| Maximum Line-Rate Port Density | |
| with MPC11E 100GbE | 800 |
| with MPC11E 400GbE | 160 |
| with MPC9E 10GbE | 1920 |
| with MPC9E 40GbE | 480 |
| with MPC9E 100GbE | 320 |
| Physical dimensions (W x D x H) | 78.75 x 36.2 x 17.5 in (200 x 91.95 x 44.45 cm) |
| Approximate maximum weight | 1,500 lbs (680.39 kg) |
| Rack units | 45 |
| Number of fan trays | 4 |
| System mounting | Four-post rack mounting |
| Power options | AC/DC: -40 to -72 V DC 100-240 V AC |
| Air flow | Front to back |
