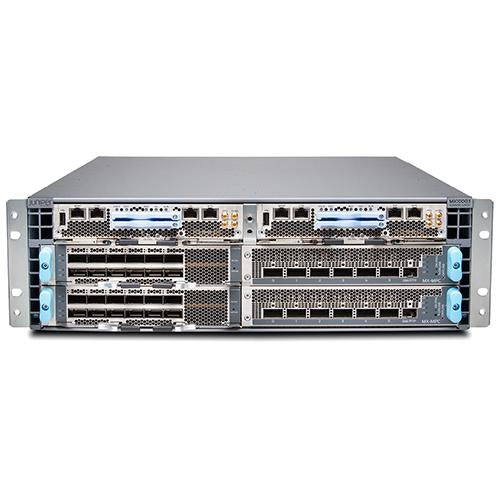

Juniper MX10003-BASE Chassis
- JNP10003/MX10003 Base 2-slot chassis - price includes 1 Routing Engine, 4 Power Supplies (Offers PS redundancy but not feed redundancy), 4 Fan trays
$70,200.00
$49,140.00
Instant Savings
$21,060.00
Juniper MX10003-BASE Chassis
The MX10003-BASE is a small, high-capacity, and adaptable solution suitable for both service providers and enterprises. It features a versatile design and impressive capabilities, this 2-slot chassis can support a diverse array of applications. This product revolutionizes the cost-effectiveness of individual slots, allowing users to achieve greater efficiency with fewer resources. It simplifies network design, lowers operational expenses, and facilitates the profitable provision of a wide array of services for business, residential, mobile, cable, data center, and cloud applications.
Quick Specs:
- 4 Tbps throughput with 2 slots
- Power & Space efficiency – 3RU
- Rich multiservice edge, timing features
- 4 Fan Trays
Please see the related tabs for the MX10003-BASE datasheet and compatible accessories.
| Product Name | MX10003-BASE |
| Description | MX10003 Base 2-slot chassis, includes 1 Routing Engine, 4 Power Supplies (offers PS redundancy but not feed redundancy), 4 Fan trays |
| Brand | Juniper |
| Type | Chassis Bundle |
| Compatibility | MX10003 Universal Routing Platform |
| Slot Configuration | 2 slots |
| Included Components | 1 Routing Engine |
| Included Components | 4 Power Supplies (offers PS redundancy but not feed redundancy) |
| Included Components | 4 Fan trays |
| Form Factor | 3 rack units (3U) |
| Dimensions (W x D x H) | 17.5 x 24.5 x 5.25 inches (444.5 x 622.3 x 133.4 mm) |
| Weight | Approximately 120 lbs (54.43 kg) |
| Power Consumption | Maximum: 1,800 W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 5% to 90%, non-condensing |
| Compliance | CE, FCC, RoHS |
| Installation | Hot-swappable components |
| Management | Monitored via Junos OS |
| Support | Juniper Care Services |
| Additional Information | The MX10003-BASE is a small, high-capacity, and adaptable solution suitable for both service providers and enterprises. It features a versatile design and impressive capabilities. This 2-slot chassis can support a diverse array of applications. This product revolutionizes the cost-effectiveness of individual slots, allowing users to achieve greater efficiency with fewer resources. It simplifies network design, lowers operational expenses, and facilitates the profitable provision of a wide array of services for business, residential, mobile, cable, data center, and cloud applications. |
