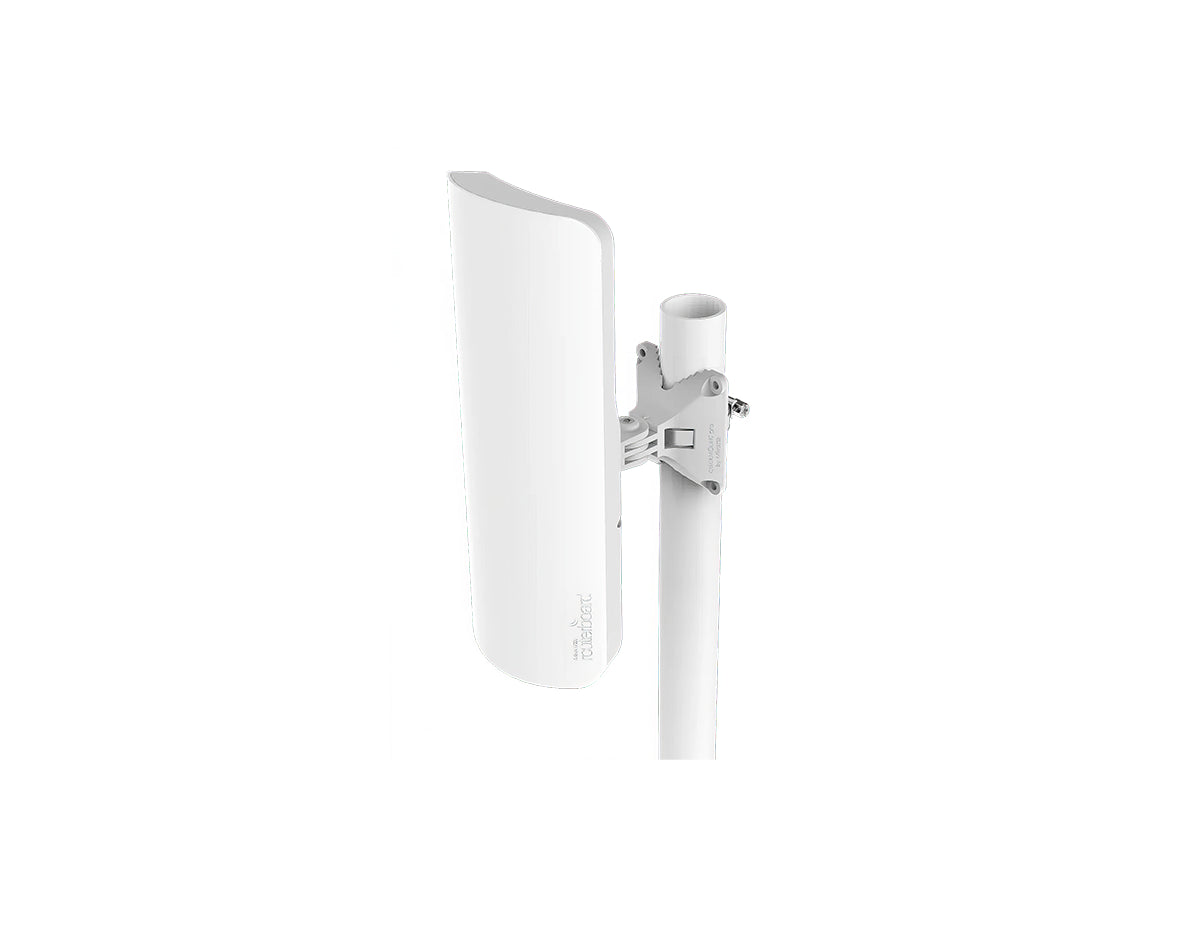

Mikrotik MTAS-5G-15D120 mANT 15s Antenna

MikroTik MTAS-5G-15D120 Antenna

The MTAS-5G-15D120 is a 15dBi 120-degree beamwidth antenna with dual-polarization and two RP-SMA connectors. It is designed to be compatible with the SXT type mount, allowing for use with QuickMount systems. Additionally, it includes the quickMOUNT PRO for added convenience and versatility. The frequency range is between 5.17 - 5.875.

Quick Specs:

• Frequency Range. 5.17-5.825 GHz
• Connector: two RP-SMA
• Polarization: Vertical and horizontal
• Antenna Gain: 15 dbi

Please see the related tabs for the MTAS-5G-15D120 datasheet and compatible accessories.



Product Name	MikroTik MTAS-5G-15D120 mANT 15s Antenna
Product Description	Dual-polarization 5 GHz 15 dBi 120-degree beamwidth sector antenna with two RP-SMA connectors.
Compatibility	BaseBox, NetBox, NetMetal, and other outdoor wireless devices.
Frequency Range	5.17 – 5.825 GHz
Gain	15 dBi
Polarization	Vertical and horizontal
Beamwidth (Azimuth)	120°
Beamwidth (Elevation)	10°
Front-to-Back Ratio	>30 dB
Cross Polarization	>30 dB
Port-to-Port Isolation	>40 dB
VSWR	1.43 (typical), 1.8 (maximum)

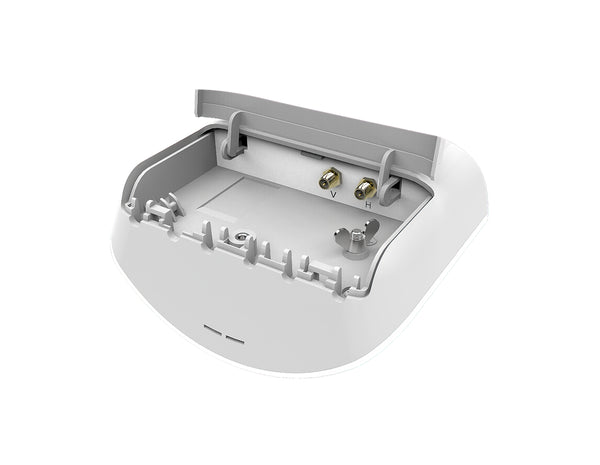

Connector Type	2 x RP-SMA

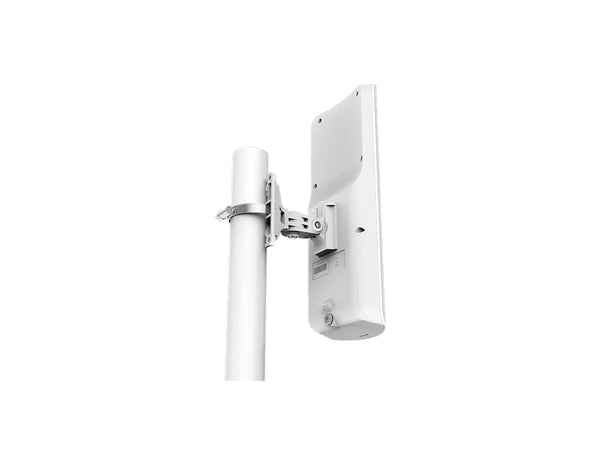

Mounting	Compatible with SXT type mount; includes quickMOUNT PRO
Dimensions (W x H x D)	140 x 348 x 82 mm
Weight	734 g
Operating Temperature Range	-40°C to 70°C



Product Code	MTAS-5G-15D120
Antenna Type	Sector
Frequency Range	5.17 – 5.825 GHz
Gain	15 dBi
Polarization	Dual (vertical and horizontal)
3 dB Beamwidth (Azimuth)	120°
3 dB Beamwidth (Elevation)	10°
Front-to-Back Ratio	>30 dB
Cross Polarization	>30 dB
Port-to-Port Isolation	>40 dB
VSWR	1.43 (typical), 1.8 (maximum)
Connector Type	2 x RP-SMA
Mounting	Compatible with SXT type mount; includes quickMOUNT PRO
Dimensions (W x H x D)	140 x 348 x 82 mm
Weight	734 g
Operating Temperature Range	-40°C to 70°C
