MikroTik mANT30 (MTAD-5G-30D3)



Properties	mANT30 MTAD-5G-30D3

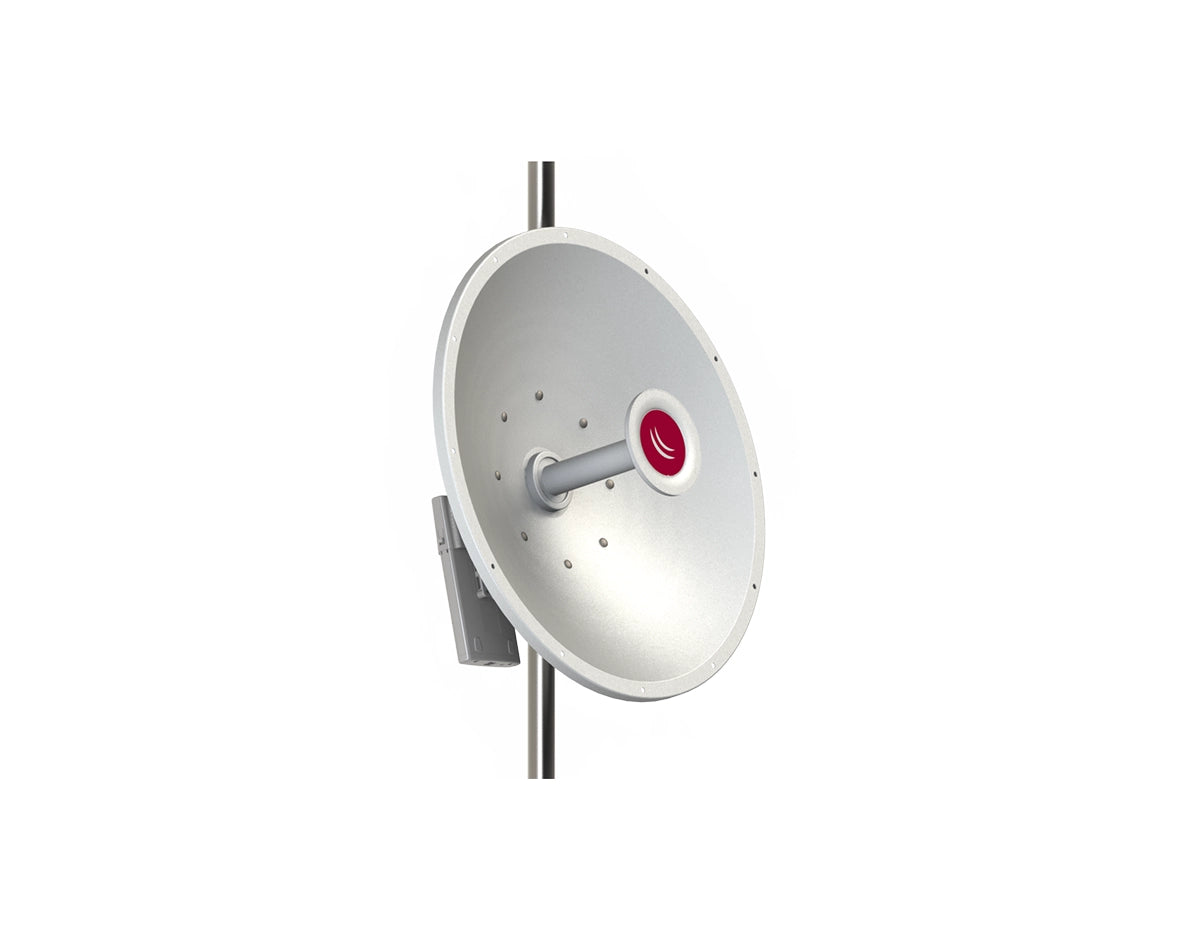

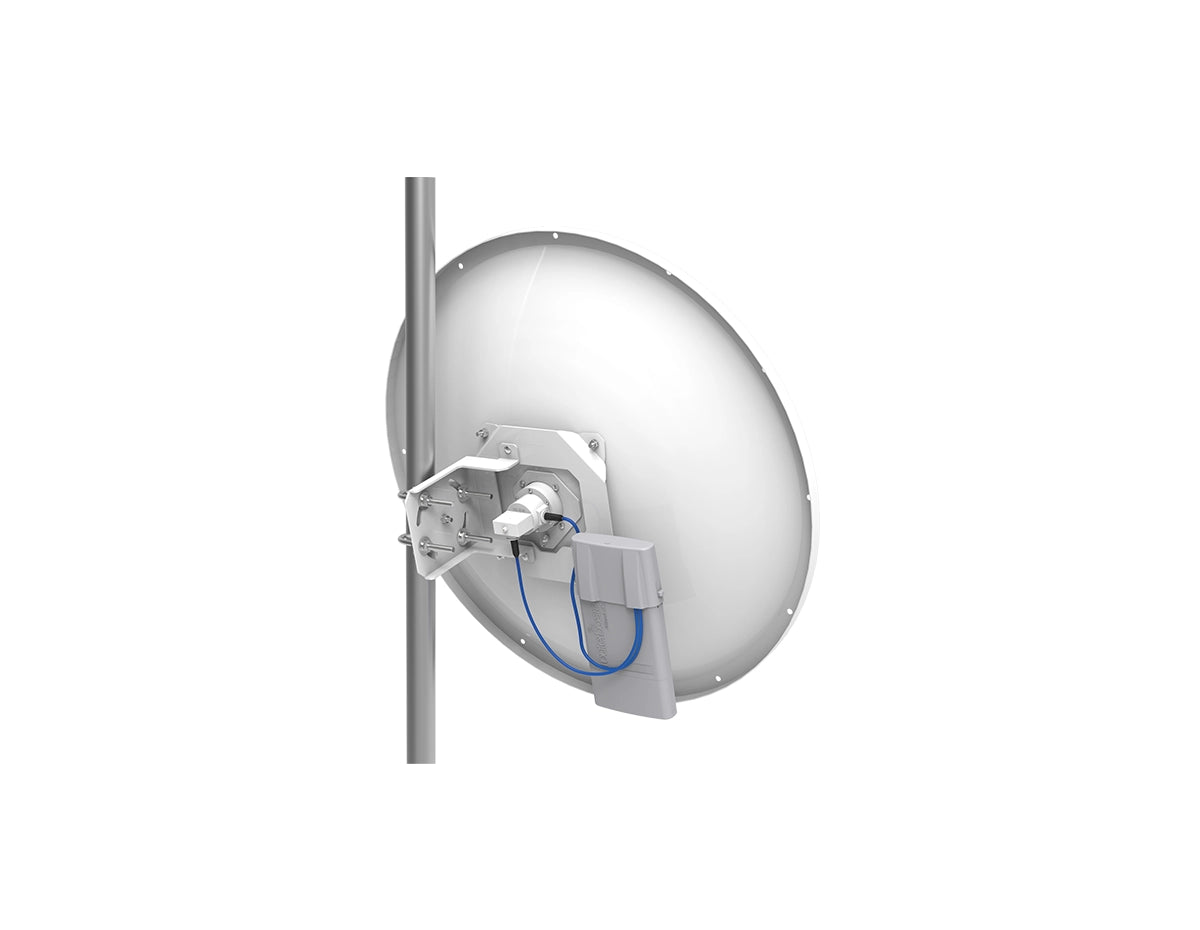

Description	The mANT30 is a 5 GHz dish antenna with 30dBi rating. It works with our Basebox series products and any pole-mounted wireless device. The FlexGuide cable is included.
Product Family	Mikrotik Antennas
Product Type	Antenna
Connector	2x RP-SMA Female (outside thread)
Cross Polarization	>40 dB
Diameter x Depth	70 x 45cm (27.5 x 17.8in)
Elevation adjustment range	+/- 20 deg
Frequency Range	4.7-5.875 GHz
Front-to-Back Ratio	>30 dB
Impedance	50 ohms
Outdoor Rating	ETSI EN 300 019-2-4
VSWR	≤ 1.4 typ, ≤ 1.8 max
Wind Load (125 mph)	181.4kg (400 lbs) at 125 mph, 50 kg at 40 m/s, 28 kg at 30 m/s
Wind Survivability	201kph (125mph)
Dimensions	Ø 550 x 245 mm
Weight	4.8kg (10.7 lbs)
Packaged size	73x73x20cm (29x29x8in)

Specifications	mANT30 MTAD-5G-30D3
Beamwidth	+/-2.5 deg
Polarization	Vertical and Horizontal
Pole Mount Diameter Range	3 to 7cm (1.2 to 2.75in)
Port to Port Isolation	>40dB min
Power Rating	100W
Reflector	Aluminum
Tested ambient temperature	-50°C to 80°C(-49°F to 158°F)
Certification	CE, ROHS
Standards	EN 302 326 DN1, DN2, DN3, DN5

NetMetal 5SHP	Dual chain 5GHz integrated 802.11ac AP/Backbone/CPE, 2xRPSMA connectors, high TX power, Gigabit Ethernet, waterproof metal enclosure
NetMetal 5	Dual chain 5GHz integrated 802.11a/n/ac AP/Backbone/CPE with an additional miniPCI-e slot, 2xRPSMA connectors, Gigabit Ethernet, waterproof metal enclosure
MTA Radome Kit	Radome Cover Kit for mANT, reduces wind load, increases antenna operational life
QME	Advanced wall mount adapter for large point to point and sector antennas
