Description

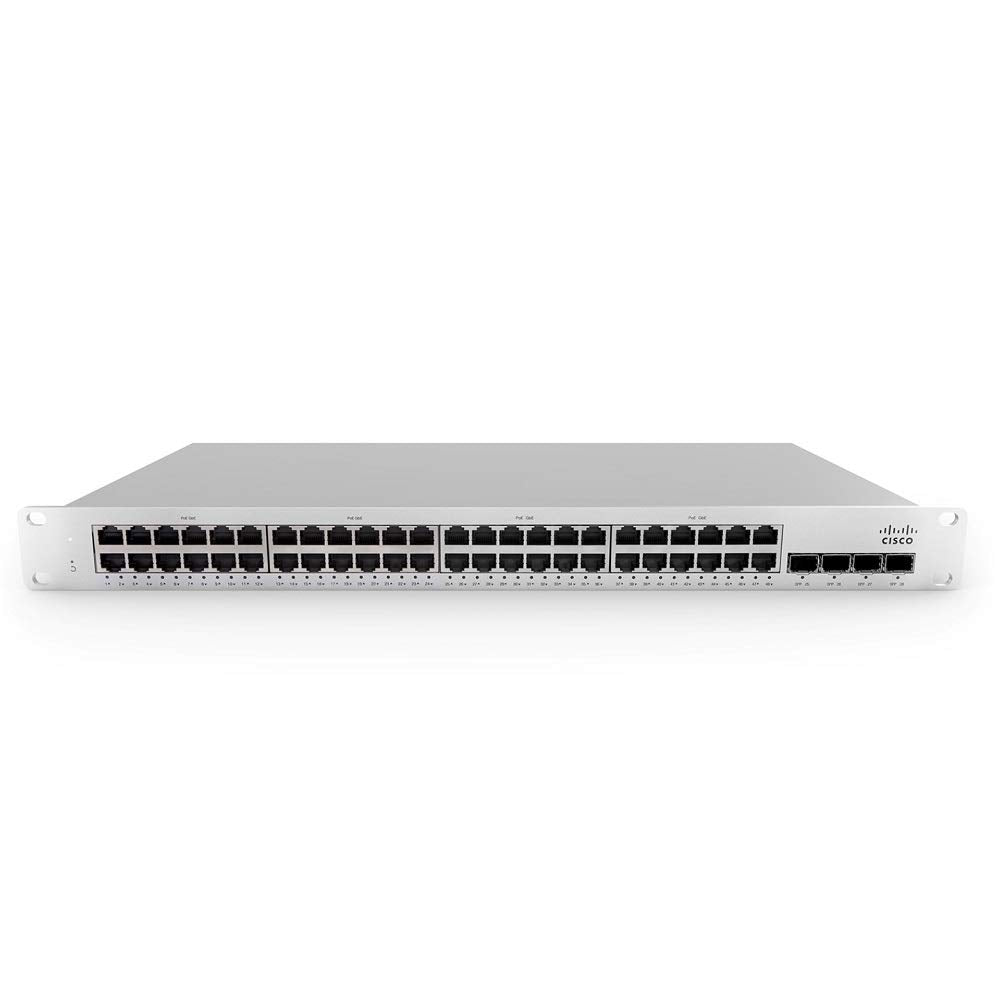

Cisco MS225-48FP-HW Cloud-Managed Access Switch 48xGE PoE+ 4x1G SFP

The Cisco Meraki MS225-48FP-HW is a powerful cloud-managed Layer 2 access switch designed for branch and campus networks. With 48x 1GbE RJ45 ports and support for PoE+ up to 740W, it powers a broad range of connected devices such as VoIP phones and wireless access points. The switch also includes 4x 10G SFP+ uplink ports for high-speed fiber connectivity. Built-in stacking capabilities deliver up to 80 Gbps of bandwidth, ensuring high performance and redundancy. Managed entirely via the Meraki Dashboard, it offers centralized visibility, Layer 3 static routing, QoS, DHCP snooping, and 802.1X authentication. This 1U rack-mountable switch is engineered for reliable performance in demanding environments.

Key Features:

• Cloud Managed: Fully controlled through the Meraki Dashboard for centralized configuration and monitoring.
• PoE+ Power Budget: Delivers up to 740W total for PoE-enabled devices across all 48 ports.
• High-Speed Uplinks: 4x 10G SFP+ ports enable high-bandwidth fiber uplinks to aggregation switches.
• Scalable Stacking: Supports physical stacking with 80 Gbps bandwidth for resilience and scalability.
• Enterprise Features: Includes QoS, VLAN tagging, static routing, 802.1X, and DHCP snooping.
• Compact Design: Standard 1U rack-mount form factor with internal power supply.

Technical Specifications:

• Model: MS225-48FP-HW
• Ports: 48 x 10/100/1000BASE-T (PoE+)
• Uplinks: 4 x 10G SFP+
• PoE Power Budget: 740W
• Layer Support: Layer 2 with static Layer 3 routing
• Switching Capacity: 176 Gbps
• Stacking Bandwidth: 80 Gbps (2x dedicated stack ports)
• Mount Type: 1U Rack Mount
• Dimensions: 1.72 x 19 x 13.38 in (4.38 x 48.46 x 34 cm)
• Weight: 9.63 lb (4.37 kg)
• Power Consumption (Idle/Max): 54W / 882W
• Operating Temperature: 23°F to 122°F (-5°C to 50°C)
• Humidity: 5% to 95% non-condensing
• Power Supply: Fixed internal; optional external RPS (RPS-2300)*
