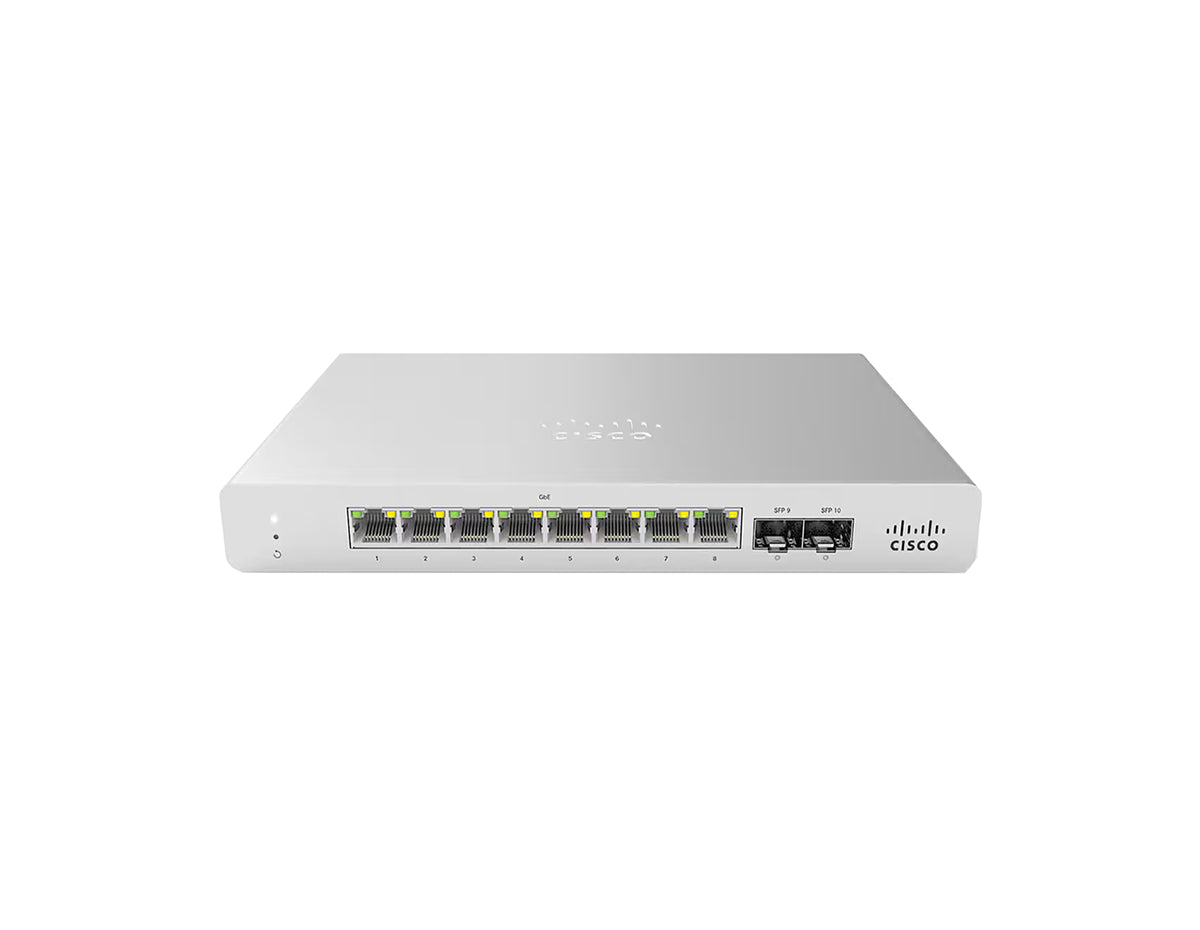

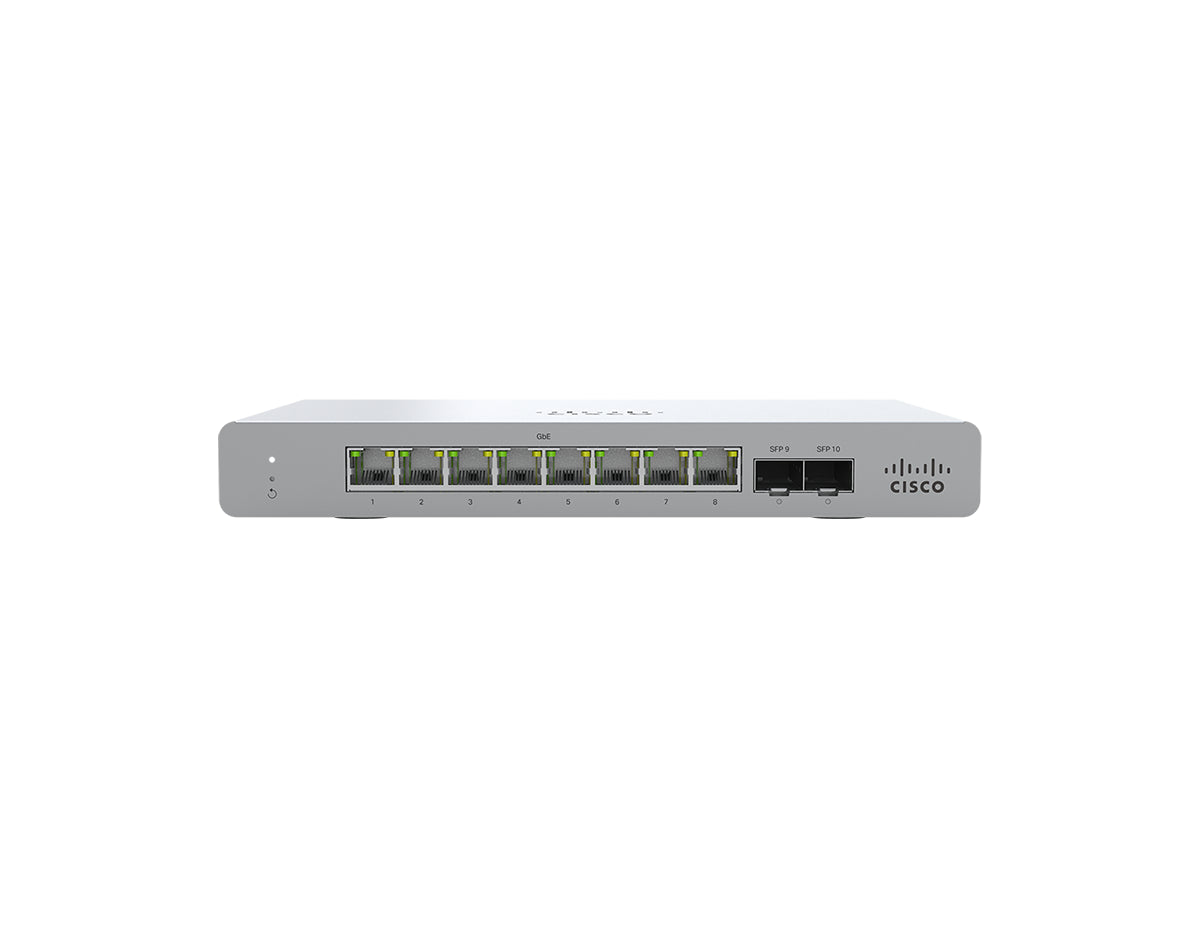

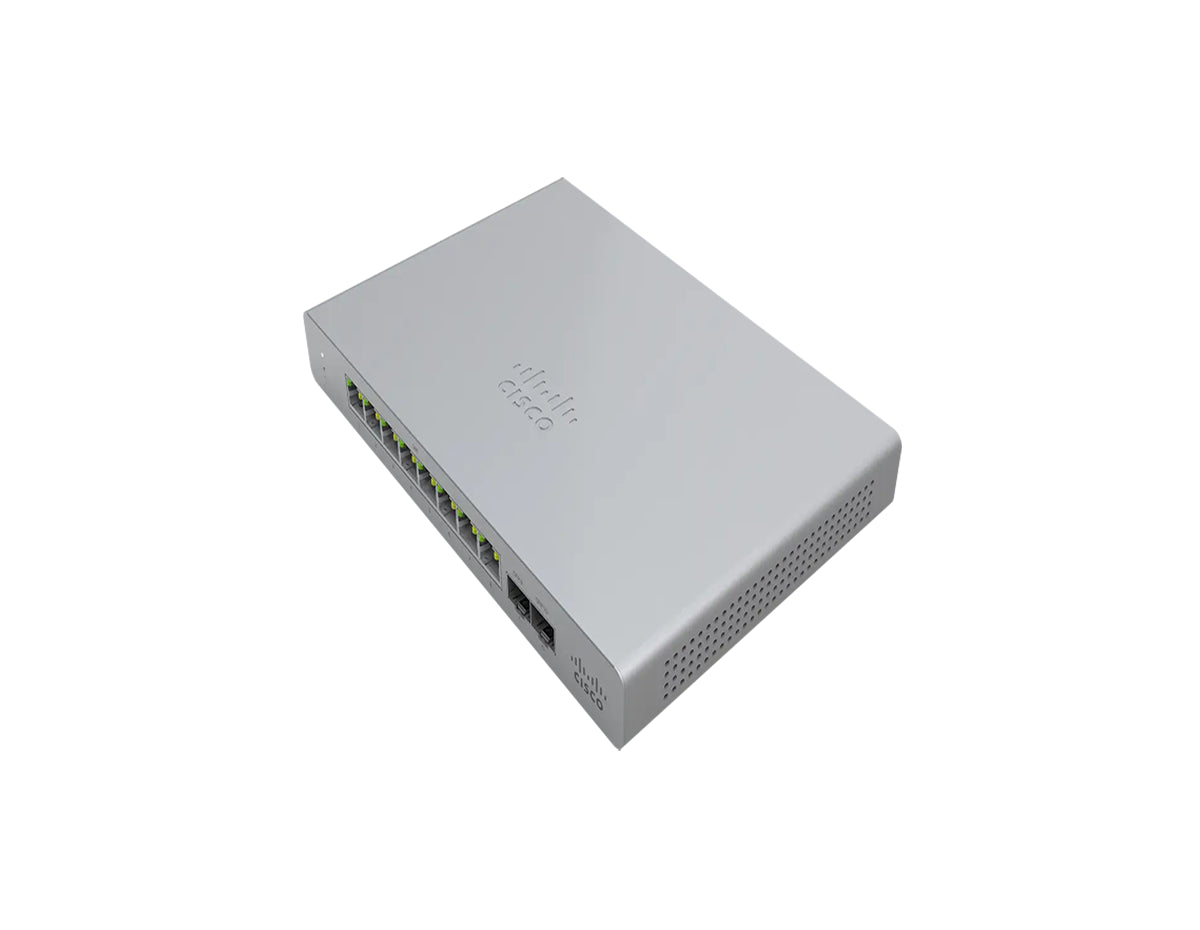

CISCO MS120-8FP-HW SWITCH

Accessories

Specifications

Specifications	Cisco MS120-8FP-HW Switch
Dimensions & Interfaces
Physical Dimensions (H x W x D)	1.75 x 8.97 x 8.58” (4.4 x 22.7 x 23cm)
Weight	3.42 lb (1.55 kg)
Interface	• 8 x 10/100/1000BASE-T Ethernet RJ45 with auto negotiation and crossover detection (auto-MDIX crossover) • 2 x 1G SFP uplink
Switching Capacity	20 Gbps
Power Options & Specifications
Idle / Full Load Power	9 / 162 W
Available PoE/PoE+ Power	124 W
Power Supply Configuration	Fixed internal
Power Supply/Model Number	DC 56V/2.7A, 150W
Management
• Managed via the web with the Meraki cloud management platform • Integrated with Meraki wireless and complete portfolio of IT products and solutions • Zero-touch remote provisioning (no staging needed) • Detailed historical per-port and per-client usage statistics • DHCP, client, and hostname fingerprinting • SNMP and Syslog support for integration with other network management solutions • Automatic firmware upgrades with scheduling control
Remote Diagnostics
• Email, SMS and mobile push notification alerts* • Ping, traceroute, cable testing, and link failure detection with alerting • Remote packet capture • Dynamic and interactive network discovery and topology • Combined event and configuration change logs with instant search * Requires carrier-supported email to SMS gateway and/or Meraki Mobile app
Ethernet Switching Capabilities
• 802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping) • 802.1Q VLAN and trunking support for up to 4,094 VLANs • 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP) • STP Enhancements: BPDU guard, Root Guard, Loop guard, UDLD • 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP) • 802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates • supported on stacked switches • Port mirroring • IGMP snooping for multicast filtering • MAC forwarding entries: 16K for all models
Security
• Integrated multi-factor authentication for Dashboard management • Role-based access control (RBAC) with granular device and configuration control • Corporate-wide password policy enforcement • IEEE 802.1X RADIUS and MAB, hybrid authentication and RADIUS server testing • Single-Host/Multi-Domain/Multi-Host/Multi Authentication • Port security: Sticky MAC, MAC whitelisting • DHCP snooping, detection and blocking • IPv4 and IPv6 ACLs
Stacking	Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Performance
• Switching capacity: 20Gbps • Forwarding rate: 14.88mpps with standard packet size • Jumbo frame support (9578-byte ethernet frame) • Flow control support
Power
• Power input: 100 - 240 VAC, 47-63 Hz • Power consumption: 6-162 W • External power supply for MS120-8, MS120-8 LP
Mounting
• Wall or utility board mountable with included mount hardware • Desktop-mountable with included feet • Kensington lock slot included
Environment
• Operating temperature: 0 °C to 45 °C • Humidity: 5 to 95% non-condensing • Fanless operation
MTBF (at 25c)	347,479

Properties

Properties	Cisco MS120-8FP-HW Switch
Description	The Cisco MS120-8FP-HW Switch is a compact and powerful networking device designed for small to medium-sized businesses. It features 8 ports with PoE/PoE+ support, providing both data connectivity and power to compatible devices like IP phones and cameras. With advanced management capabilities and robust security features, this switch ensures reliable and secure network operations, making it an ideal choice for modern business environments.
Product Family	Cisco Meraki MS120-8 Compact Switch Series
Product Type	Switch
Product Highlights	• Gigabit access switching with 8 x 1GbE ports and optional PoE/PoE+ • 2 x 1G SFP uplink interfaces on all models • Fanless operation • 20 Gbps non-blocking compact switch • 67/124 watt PoE budget with PoE+ support and dynamic power allocation for powering access points, phones, cameras, and other PoE-enabled devices • 6 dedicated QoS queues for converged voice, video, and data applications • Integrated mounting brackets for wall or desk mounting, with included Kensington security slot • Lifetime hardware warranty and advanced replacement at no additional cost
