CISCO MERAKI STACKING CLOUD-MANAGED 24X GIGE 370W POE SWITCH (MS120-24P-HW)
| Model: | MS120-24P-HW |
| Detail: |
Managed, Rack-mountable, 24 x 1G PoE+ ports, 4 x 1G SFP Uplinks, PoE+ (370W), Layer 2,
< |
| Price: | $795.00 |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ, TX and FL |
| Quantity: |

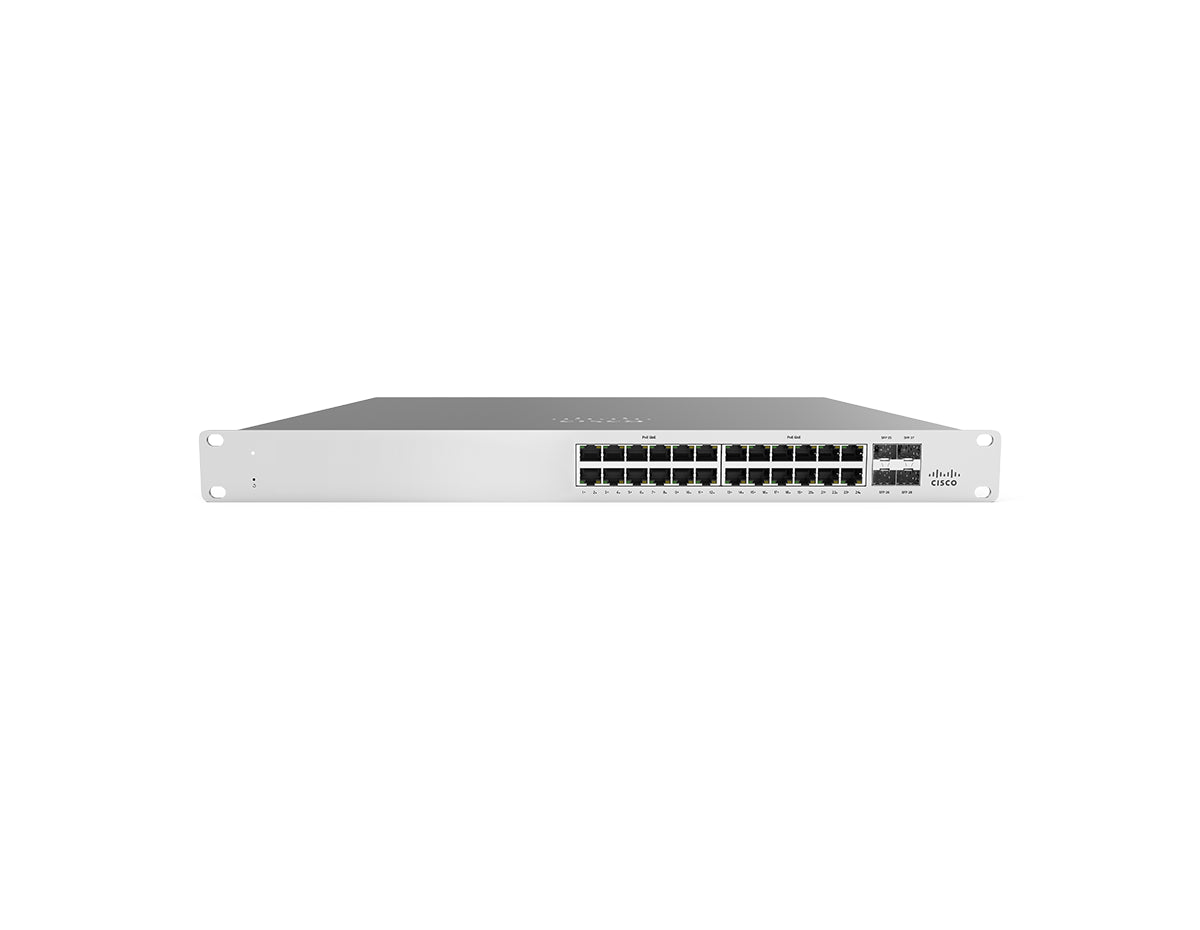

Cisco MS120-24P-HW Switch
The Cisco MS120-24P-HW is a cloud-managed 24-port Gigabit Ethernet switch designed for simplified management and high-performance networking in small to medium-sized businesses. Featuring 24 PoE-enabled ports with a power budget of 370W and 4 SFP uplinks, this switch delivers reliable power and connectivity for devices such as IP phones, cameras, and access points. The MS120-24P-HW integrates seamlessly with Cisco's cloud-based management platform, offering centralized control and easy deployment.
Key Features:
- 24 x Gigabit PoE Ports: Provides both power and connectivity to devices like IP phones and cameras with a total PoE budget of 370W.
- 4 x Gigabit SFP Uplinks: Ensures reliable high-speed uplinks for seamless network expansion.
- Cloud-Based Management: Simplifies network management with Meraki’s centralized dashboard for monitoring, configuration, and automation.
- Energy-Efficient Design: Supports IEEE 802.3az standards to minimize power consumption.
- Zero-Touch Provisioning: Facilitates easy, remote configuration and deployment without on-site setup.
Technical Overview:
- Recommended for: Small to medium-sized businesses and branch offices.
- Ports: 24 x 10/100/1000 PoE Ethernet ports, 4 x Gigabit SFP uplinks.
- PoE Power Budget: 370W.
- Switching Capacity: 128 Gbps.
- Forwarding Rate: 41.67 Mpps.
- Stacking Bandwidth: 80 Gbps.
You can check the related tab for the MS120-24P-HW datasheet.
Specifications
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.7 Mpps |
| PoE Standard | IEEE 802.3af/at (PoE+) |
| Latency | 0.7 microseconds for 64-byte packets |
| Certifications | CE, FCC, RoHS compliant |
| Environmental Safety | Mercury-free, low-halogen materials used |
| EMC Compliance | Meets international EMC standards for networking equipment |
| Power Consumption | Maximum 425W (with PoE load) |
| Stacking Support | Virtual stacking managed through cloud dashboard |
| MTBF | 1,300,000 hours |
| Security Features | Port security, MAC-based RADIUS authentication, 802.1X |
| Management Features | Remote monitoring, firmware updates, and configuration via Meraki dashboard |
| VLAN Support | Supports up to 4,094 VLANs |
| QoS | Quality of Service for prioritizing critical traffic |
| Deployment | Optimized for enterprise, branch, and campus networks |
| Monitoring | Real-time network monitoring and troubleshooting via cloud dashboard |
| Firmware Compatibility | Automated firmware updates via the cloud |
Properties
| Product Name | MS120-24P-HW |
| Description | Cisco Meraki MS120-24P, a cloud-managed 24-port Gigabit Ethernet switch with 370W PoE power, designed for enterprise networking and easy management. |
| Switch Type | Cloud-managed Layer 2 switch |
| Total Ports | 24 x Gigabit Ethernet (PoE+) |
| PoE Power Budget | 370W (802.3af/at PoE+) |
| Uplink Ports | 4 x 1G SFP |
| Management | Cloud-based via Meraki dashboard |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 5% to 95% non-condensing |
| Dimensions | 44.0 cm x 25.4 cm x 4.5 cm (17.3 in x 10.0 in x 1.8 in) |
| Weight | 3.6 kg (7.9 lb) |
| Mounting Options | Rack-mountable (1U), mounting brackets included |
| Power Supply | Internal power supply |
| Cooling | Fanless design for silent operation |
| Usage | Ideal for small to medium-sized enterprise networks |
| Durability | Designed for continuous operation in commercial environments |
