Extend High-Performance Wi-Fi 6 to Demanding Outdoor Networks

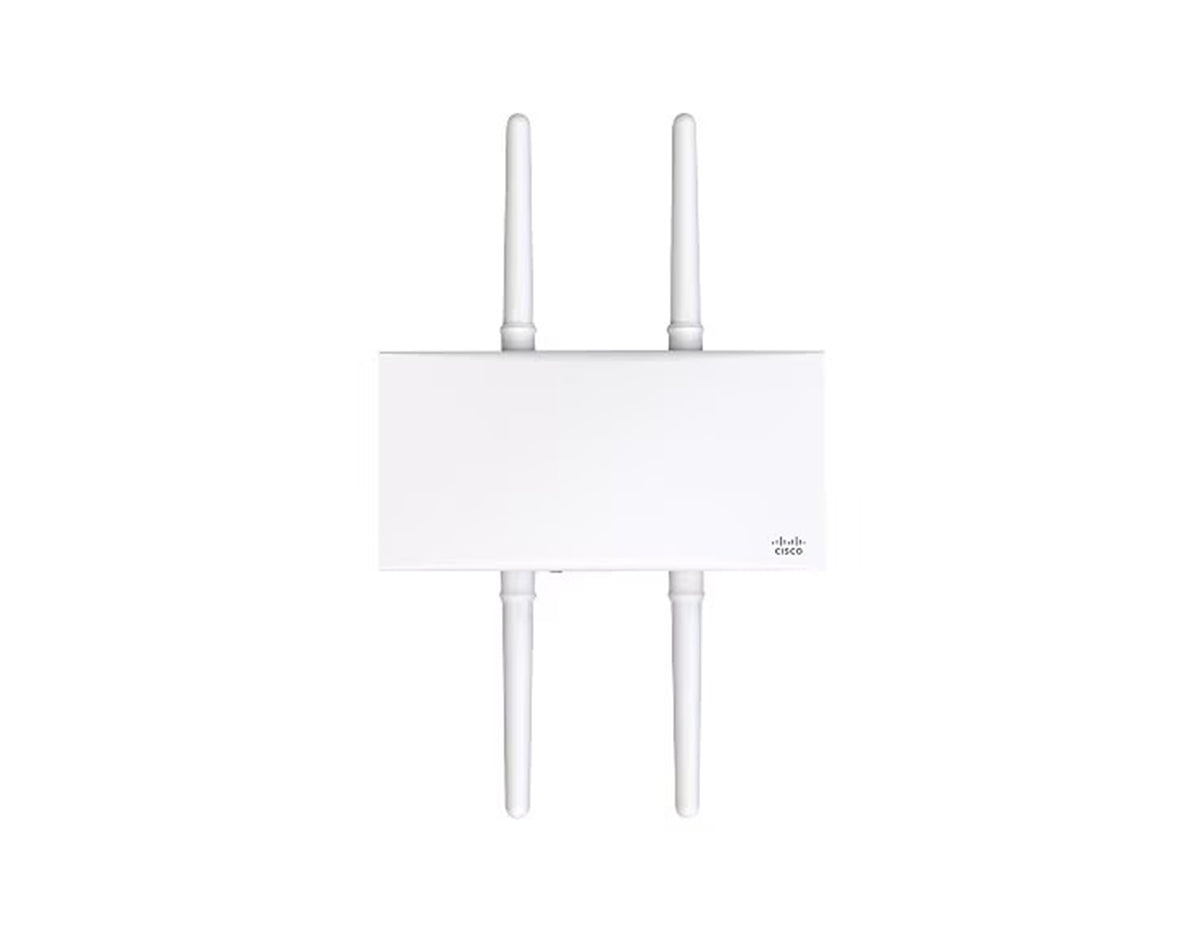

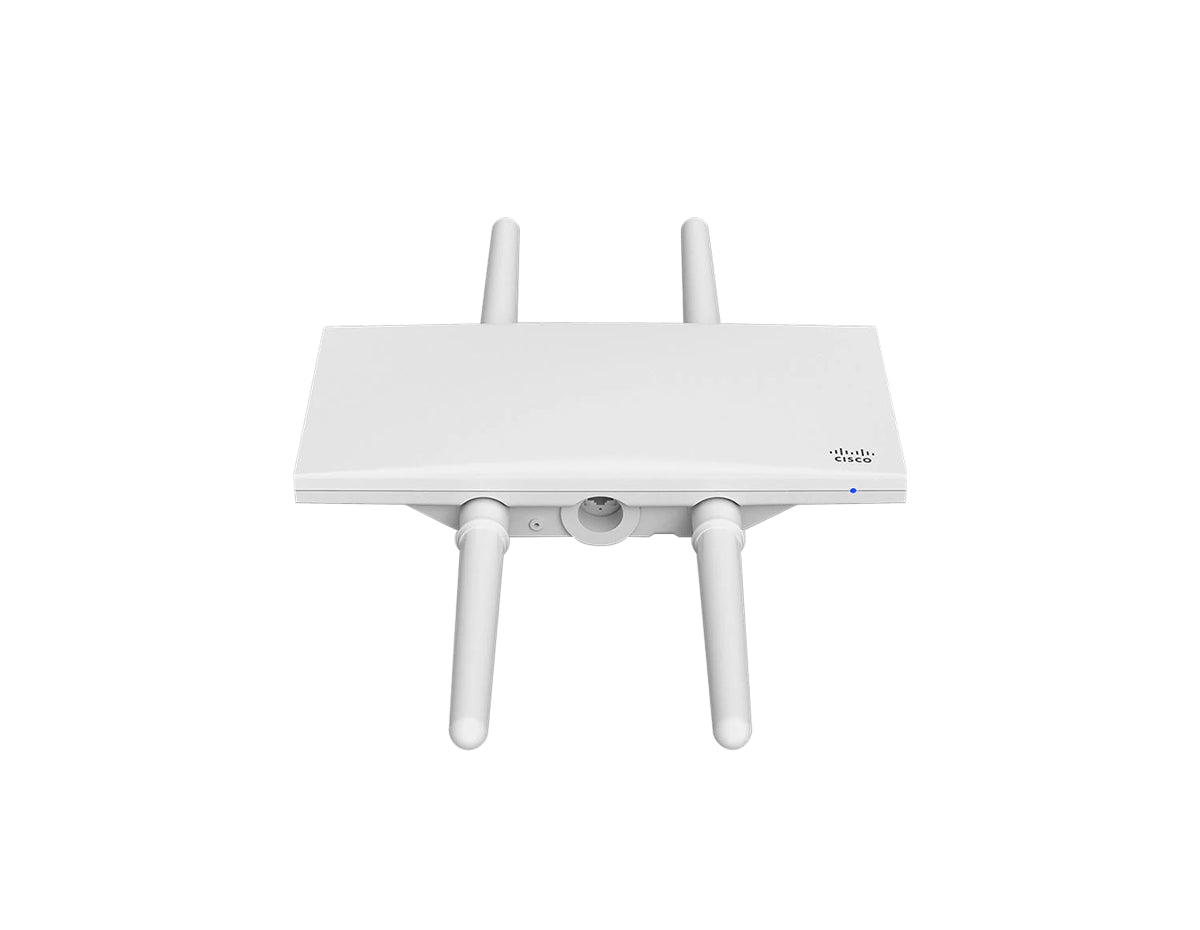

The Cisco Meraki MR86-HW is a cloud-managed 802.11ax outdoor access point built for high-density, performance-sensitive wireless environments. With rugged IP67 protection, 4x4:4 MU-MIMO, OFDMA, and a 2.5G multigigabit uplink, the MR86 helps organizations deliver reliable Wi-Fi 6 connectivity across outdoor campuses, industrial areas, hospitality spaces, schools, and distributed enterprise sites.
Key Benefits and Features
- High-speed Wi-Fi 6 performance: Delivers up to 3.0 Gbps dual-radio aggregate frame rate with 2.4 GHz and 5 GHz client access radios for bandwidth-intensive users and applications.
- 4x4:4 MU-MIMO and OFDMA: Improves wireless efficiency in dense environments by supporting multiple spatial streams and more efficient client communication.
- Dedicated security and RF radio: Provides real-time WIDS/WIPS, spectrum analysis, rogue AP detection, and RF optimization without reducing client-serving performance.
- Cloud-managed deployment: Uses the Meraki dashboard for centralized configuration, monitoring, troubleshooting, and automatic firmware updates across multiple locations.
- Outdoor-ready construction: IP67-rated enclosure supports harsh environments with water and dust sealing, vibration testing, and external antenna flexibility.
Ideal Use Cases
- Outdoor campus Wi-Fi for schools, universities, and corporate facilities
- High-density wireless coverage for hospitality, retail, and public venues
- Industrial yards, warehouses, and rugged outdoor network zones
- Outdoor location services, Bluetooth scanning, and beacon-enabled deployments
- Cloud-managed multi-site networks requiring simple remote administration
Technical Specifications
- SKU: MR86-HW
- Product Type: Cloud managed outdoor 802.11ax access point
- Wireless Standard: Wi-Fi 6, 802.11ax
- Aggregate Frame Rate: Up to 3.0 Gbps
- Radio Design: 2.4 GHz, 5 GHz, dedicated WIDS/WIPS radio, and BLE radio
- MIMO: 4x4:4 MU-MIMO with OFDMA and beamforming
- Ethernet Interface: 1x 100/1000/2.5G BASE-T RJ45 port
- Power: 802.3at PoE, 30W maximum power consumption
- Environmental Rating: IP67 outdoor rated
- Dimensions: 11.81 x 6.02 x 2.16 in, antennas not included
Build Stronger Outdoor Wireless Coverage
Deploy Cisco Meraki MR86-HW for secure, scalable, high-performance outdoor Wi-Fi 6. Order today.
