CISCO MERAKI MR76 WI-FI 6 OUTDOOR ACCESS POINT (MR76-HW)
| Model: | MR76-HW |
| Detail: |
Radio Specifications: One 802.11b/g/n/ax, One 802.11a/n/ac/ax, WIDS/WIPS: Integrated, Bluetooth Radio: Yes,
< |
| Price: | $690.00 |
| Condition: | Brand New Sealed |
| Availability: | Out of Stock |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |

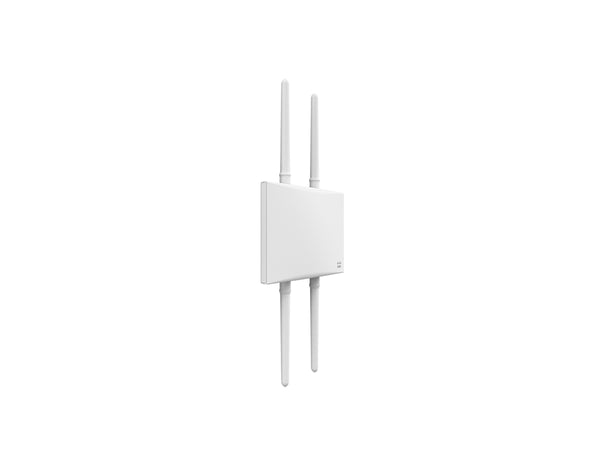

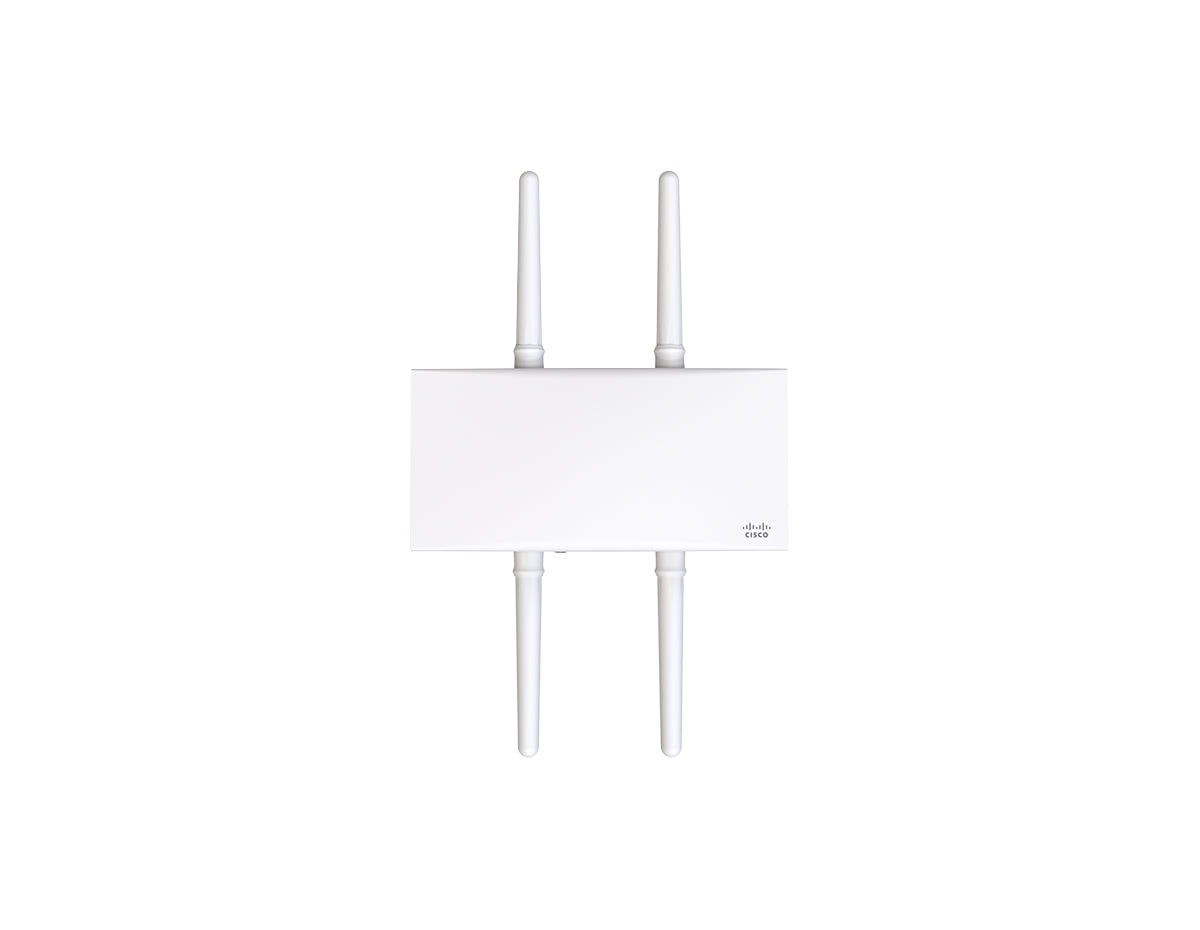

Meraki MR76 Access Point
The Meraki MR76 Access Point is a high-performance, rugged, and outdoor Wi-Fi 6 access point designed for challenging environments such as outdoor campuses, industrial areas, point-to-point links, and outdoor location services. Equipped with advanced features and robust hardware, the MR76 ensures reliable connectivity and optimal performance.
Quick Specs:
- Radio Specifications: One 802.11b/g/n/ax, One 802.11a/n/ac/ax
- WIDS/WIPS: Integrated
- Bluetooth Radio: Yes
- Maximum Data Rate: 1.7 Gbit/sec
- MIMO: Two 2:2 MU-MIMO and OFDMA with beamforming
- Networking Interface: One Gigabit Ethernet port
- External Antenna Connectors: Four N-type (antennas sold separately)
- Power: 802.3af PoE
- Physical Design: Rugged industrial design, IP67 rated for water and dust resistance, vibration and shock tested
- Dimensions: 11.81 in x 6.02 in x 2.16 in (30.0 cm x 15.3 cm x 5.5 cm)
- Weight: 47.27 oz (1.34 kg)
Features:
- Third radio dedicated to security and RF management
- Priority voice and power save (802.11e/WMM)
- Hardware-accelerated encryption
- Band steering
- Bluetooth Low Energy radio for beacon and scanning
Specifications
| Frequency Bands | 2.4 GHz (up to 574 Mbps) and 5 GHz (up to 1.2 Gbps) |
| Transmit Power | Up to 27 dBm |
| Certifications | CE, FCC, IC, RoHS compliant |
| Environmental Safety | Complies with global environmental standards, low-halogen materials used |
| EMC Compliance | Meets international EMC standards for outdoor wireless equipment |
| Ingress Protection | IP67 rated for dust and water resistance |
| Advanced Features | Supports OFDMA, MU-MIMO, BSS Coloring, and Target Wake Time |
| Latency | <2 ms in typical outdoor conditions |
| Power Consumption | Maximum 12.95W (PoE) |
| Management | Cloud-based management via the Meraki dashboard |
| MTBF | 1,700,000 hours |
| Mesh Networking | Supports mesh networking to extend wireless coverage in outdoor areas |
| Firmware Updates | Automated cloud-based updates |
| Deployment | Designed for outdoor deployments in challenging environments |
| Monitoring | Real-time monitoring and remote troubleshooting via cloud dashboard |
| Security Features | WPA3 encryption, rogue AP detection, VPN tunneling |
Properties
| Product Name | MR76-HW |
| Description | Cisco Meraki MR76, a cloud-managed Wi-Fi 6 (802.11ax) outdoor access point with rugged design, suitable for harsh environments and outdoor deployments. |
| Wireless Standard | Wi-Fi 6 (802.11ax) |
| Radio Configuration | Dual-band (2.4 GHz and 5 GHz) with 2x2:2 MU-MIMO |
| Maximum Data Rate | 1.7 Gbps |
| Ethernet Ports | 1x 1 Gbps Ethernet (PoE) |
| Antenna Type | External antennas (N-type connectors, antennas sold separately) |
| Power Supply | Powered via 802.3af PoE (Power over Ethernet) |
| Operating Temperature | -40°C to 65°C (-40°F to 149°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 5% to 95% non-condensing |
| Dimensions | 25.7 cm x 16.7 cm x 6.4 cm (10.1 in x 6.6 in x 2.5 in) |
| Weight | 1.4 kg (3.0 lb) |
| Mounting Options | Pole or wall mount (mounting kits included) |
| Security | Integrated Layer 7 firewall, WPA3 encryption |
| Usage | Ideal for outdoor areas, campuses, and industrial settings |
| Durability | Rugged, weat |
