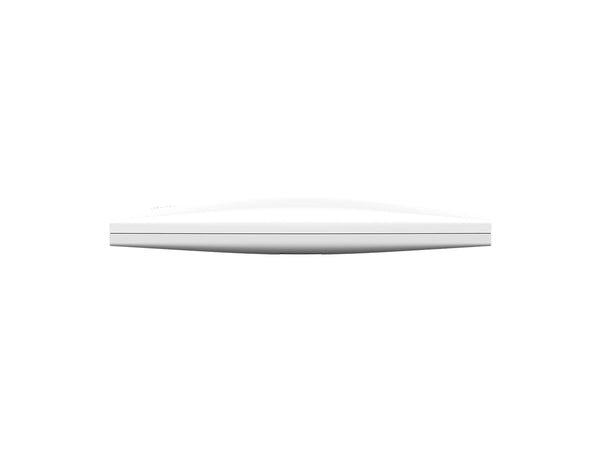

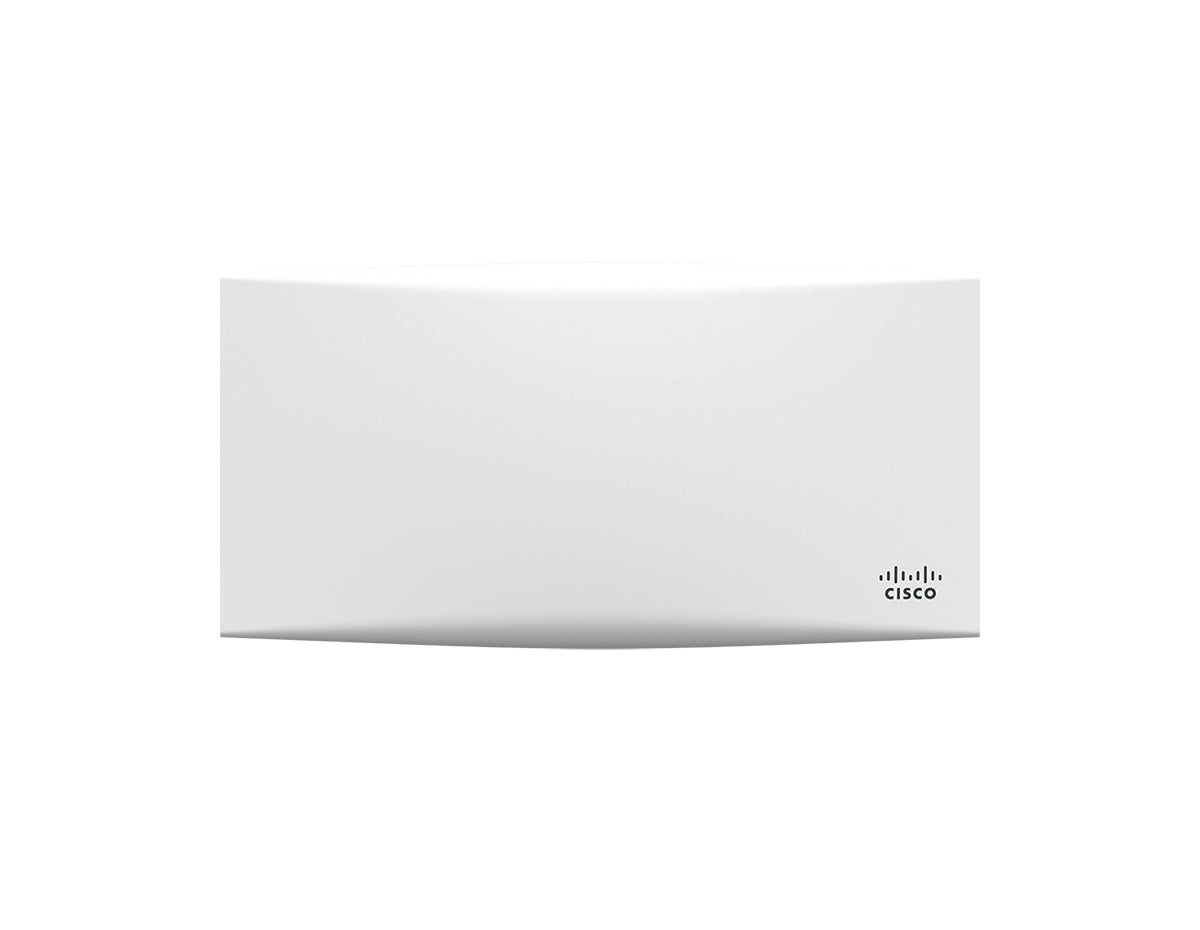

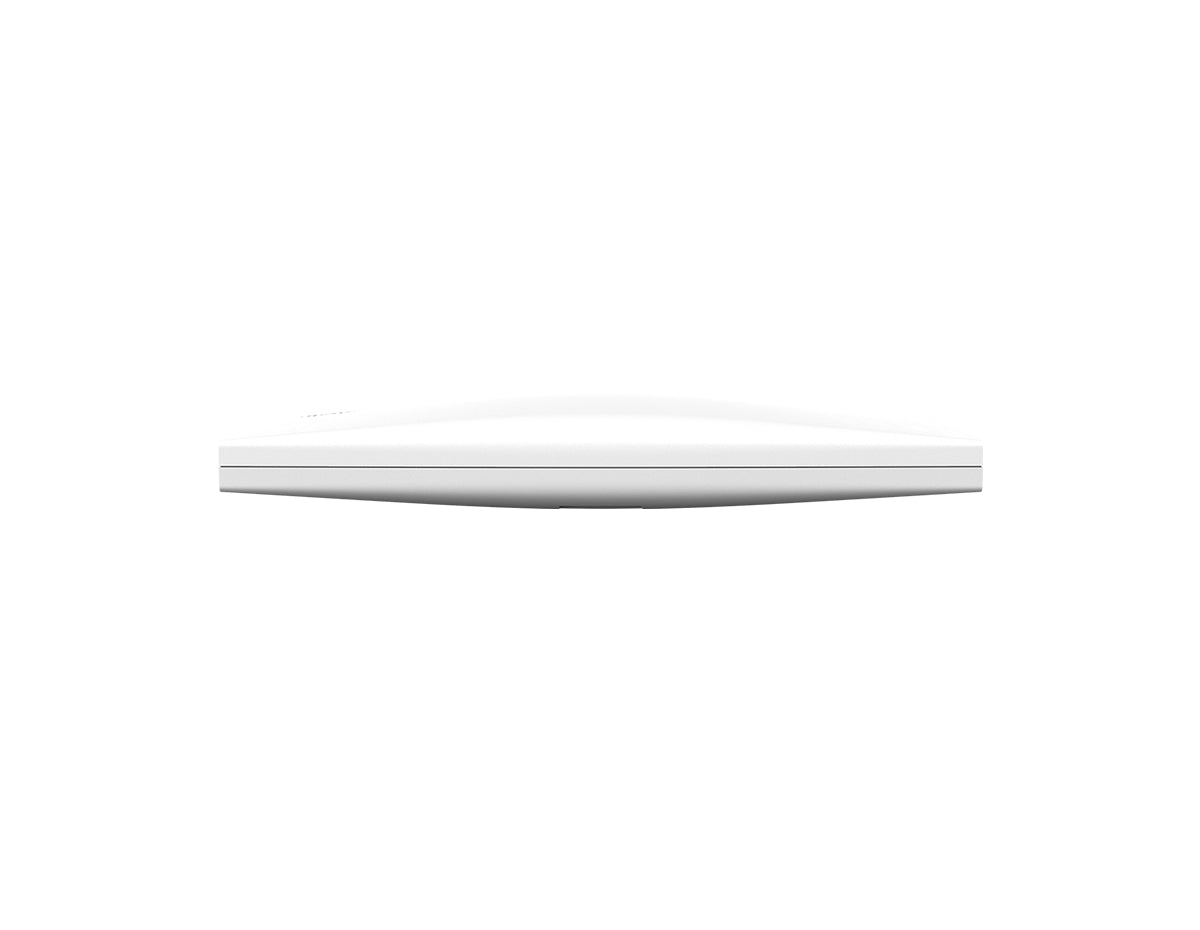

CISCO MR56-HW ACCESS POINT
| Part No: | MR56-HW |
| Detail: | |
| Price: |
$680.00
|
| Condition: | Brand New Sealed |
| Availability: | Ask For ETA |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ, TX, FL and PA |
| Quantity: |
|
Description
The Cisco Meraki MR56 is an 8x8:8 802.11ax access point that is managed through the cloud, setting a new standard for wireless performance and efficiency. It is specifically designed for advanced deployments in various settings such as offices, schools, hospitals, shops, and hotels. The MR56 offers high data throughput, top-tier security features, and user-friendly management capabilities. With a maximum aggregate frame rate of 5.9 Gbps and simultaneous operation of 2.4 GHz and 5 GHz radios, this access point ensures robust connectivity.
Quick Specs:
- 8x8:8 MU-MIMO 802.11ax
- 9 Gbps dual-radio aggregate frame rate
- Integrated Bluetooth Low Energy Beacon
- Sleek design blends into office environments
Please see the related tabs for the MR56-HW datasheet and compatible accessories.
Accessories
Specifications
| Specifications | |
| Radios | 2.4 GHz 802.11b/g/n/ax client access radio 5 GHz 802.11a/n/ac/ax client access radio 2.4 GHz & 5 GHz dual-band WIDS/WIPS, spectrum analysis, & location analytics radio 2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon and BLE scanning support Concurrent operation of all four radios Supported frequency bands (country-specific restrictions apply): 2.401 - 2.484 GHz 5.150 - 5.250 GHz (UNII-1) 5.250 - 5.350 GHZ (UNII-2A) 5.490 - 5.730 GHz (UNII-2C) 5.735 - 5.825 GHz (UNII-3) |
| Antenna | Internal Antenna (5.4 dBi gain at 2.4 GHz, 6 dBi gain at 5 GHz) |
| 802.11ax, 802.11ac Wave 2 and 802.11n Capabilities | DL-OFDMA**, UL-OFDMA**, TWT support**, BSS Coloring** 8 x 8 multiple input, multiple output (MIMO) with eight spatial streams on 5GHz 4 x 4 multiple input, multiple output (MIMO) with four spatial streams on 2.4GHz SU-MIMO, UL MU-MIMO** and DL MU-MIMO support Maximal ratio combining (MRC) & beamforming 20 and 40 MHz* channels (802.11n); 20, 40*, and 80 MHz channels (802.11ac Wave 2); 20, 40* and 80 MHz channels (802.11ax) Up to 1024-QAM on both 2.4 GHz & 5 GHz bands Packet aggregation *40MHz channels are supported only in the 5GHz band. ** software features can be enabled via firmware updates |
| Power | Power over Ethernet: 42.5 - 57 V (802.3at compliant) Alternative: 12 V DC input Power consumption: 30W max (802.3at required) Power over Ethernet injector and DC adapter sold separately |
| Interfaces | 1x 100/1000/2.5G/5G BASE-T Ethernet (RJ45) 1x DC power connector (5.5 mm x 2.5 mm, center positive) |
| Mounting | • All standard mounting hardware included • Desktop, ceiling, and wall mount capable • Ceiling tile rail (9/16, 15/16 or 1 1⁄2” flush or recessed rails), assorted cable junction boxes • Bubble level on mounting cradle for accurate horizontal wall mounting |
| Physical Security | • Two security screw options (included) (3.5 mm long and 2.5 mm diameter and 5 mm head) • Kensington lock hard point • Concealed mount plate with anti-tamper cable bay |
| Environment | • Operating temperature: 32 °F to 104 °F (0 °C to 40 °C) • Humidity: 5 to 95% non-condensing • Operating altitude: Up to 40,000 feet (12,192 meters) |
| Reliability | Mean Time Between Failure (MTBF): 1,315,498hrs at +25°C operating temperature |
| Physical Dimensions | • 12.83” x 5.54” x 1.76” (32.6 cm x 14.079 cm x 4.47 cm), not including deskmount feet or mount plate • Weight: 35.27 oz (1 kg) |
| Security | • Integrated Layer 7 firewall with mobile device policy management • Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal • Flexible guest access with device isolation • VLAN tagging (802.1q) and tunneling with IPsec VPN • PCI compliance reporting • WEP***, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X, WPA3 - Personal**, WPA3 - Enterprise**, WPA3 - Enhanced Open (OWE)** • EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM • TKIP and AES encryption • Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration • Cisco ISE integration for Guest access and BYOD Posturing ** software features can be enabled via firmware updates *** feature can be enabled for required networks |
| RF Performance Table | |
| Operating Band: 2.4GHz Operating Mode: 802.11b |
Data Rate: 1 Mb/s TX Power (conducted): 26 RX Sensitivity: -98 Data Rate: 2 Mb/s TX Power (conducted): 26 RX Sensitivity: -91 Data Rate: 5.5 Mb/s TX Power (conducted): 26 RX Sensitivity: -92 Data Rate: 11 Mb/s TX Power (conducted): 26 RX Sensitivity: -89 |
| Operating Band: 2.4GHz Operating Mode: 802.11g |
Data Rate: 6 Mb/s TX Power (conducted): 26 RX Sensitivity: -92 Data Rate: 9 Mb/s TX Power (conducted): 26 RX Sensitivity: -91 Data Rate: 12 Mb/s TX Power (conducted): 26 RX Sensitivity: -89 Data Rate: 18 Mb/s TX Power (conducted): 26 RX Sensitivity: -87 Data Rate: 24 Mb/s TX Power (conducted): 24 RX Sensitivity: -84 Data Rate: 36 Mb/s TX Power (conducted): 24 RX Sensitivity: -81 Data Rate: 48 Mb/s TX Power (conducted): 24 RX Sensitivity: -77 Data Rate: 54 Mb/s TX Power (conducted): 24 RX Sensitivity: -76 |
| Operating Band: 2.4GHz Operating Mode: 802.11n (HT20) |
Data Rate: MCS0 TX Power (conducted): 26 RX Sensitivity: -93 Data Rate: MCS1 TX Power (conducted): 26 RX Sensitivity: -91 Data Rate: MCS2 TX Power (conducted): 26 RX Sensitivity: -88 Data Rate: MCS3 TX Power (conducted): 26 RX Sensitivity: -86 Data Rate: MCS4 TX Power (conducted): 26 RX Sensitivity: -82 Data Rate: MCS5 TX Power (conducted): 24 RX Sensitivity: -78 Data Rate: MCS6 TX Power (conducted): 24 RX Sensitivity:-77 Data Rate: MCS7 TX Power (conducted): 23.5 RX Sensitivity: -76 |
| Operating Band: 2.4GHz Operating Mode: 802.11ax (HE20) |
Data Rate: MCS0 TX Power (conducted): 26 RX Sensitivity: -93 Data Rate: MCS1 TX Power (conducted): 26 RX Sensitivity: -91 Data Rate: MCS2 TX Power (conducted): 26 RX Sensitivity:-89 Data Rate: MCS3 TX Power (conducted): 26 RX Sensitivity: -86 Data Rate: MCS4 TX Power (conducted): 26 RX Sensitivity: -83 Data Rate: MCS5 TX Power (conducted): 25 RX Sensitivity: -79 Data Rate: MCS6 TX Power (conducted): 25 RX Sensitivity: -78 Data Rate: MCS7 TX Power (conducted): 23.5 RX Sensitivity: -76 Data Rate: MCS8 TX Power (conducted): 22.5 RX Sensitivity: -72 Data Rate: MCS9 TX Power (conducted): 22.5 RX Sensitivity: -70 Data Rate: MCS10 TX Power (conducted): 20.5 RX Sensitivity: -67 Data Rate: MCS11 TX Power (conducted):20.5 RX Sensitivity: -64 |
| Operating Band: 5 GHz Operating Mode: 802.11a |
Data Rate: 6 Mb/s TX Power (conducted): 26 RX Sensitivity: -92 Data Rate: 9 Mb/s TX Power (conducted): 26 RX Sensitivity: -91 Data Rate: 12 Mb/s TX Power (conducted): 26 RX Sensitivity: -89 Data Rate: 18 Mb/s TX Power (conducted): 26 RX Sensitivity: -87 Data Rate: 24 Mb/s TX Power (conducted): 26 RX Sensitivity: -83 Data Rate: 36 Mb/s TX Power (conducted): 26 RX Sensitivity: -81 Data Rate: 48 Mb/s TX Power (conducted): 25 RX Sensitivity: -77 Data Rate: 54 Mb/s TX Power (conducted): 24.5 RX Sensitivity: -75 |
| Operating Band: 5 GHz Operating Mode: 802.11n (HT20) |
Data Rate: MCS0 TX Power (conducted): 26 RX Sensitivity: -93 Data Rate: MCS1 TX Power (conducted): 26 RX Sensitivity: -90 Data Rate: MCS2 TX Power (conducted): 26 RX Sensitivity: -88 Data Rate: MCS3 TX Power (conducted): 26 RX Sensitivity: -85 Data Rate: MCS4 TX Power (conducted): 26 RX Sensitivity: -82 Data Rate: MCS5 TX Power (conducted): 25 RX Sensitivity: -78 Data Rate: MCS6 TX Power (conducted): 25 RX Sensitivity: -77 Data Rate: MCS7 TX Power (conducted): 24.5 RX Sensitivity: -75 |
| Operating Band: 5 GHz Operating Mode: 802.11n (HT40) |
Data Rate: MCS0 TX Power (conducted): 26 RX Sensitivity: -90 Data Rate: MCS1 TX Power (conducted): 26 RX Sensitivity: -88 Data Rate: MCS2 TX Power (conducted): 26 RX Sensitivity: -85 Data Rate: MCS3 TX Power (conducted): 26 RX Sensitivity: -82 Data Rate: MCS4 TX Power (conducted): 26 RX Sensitivity: -79 Data Rate: MCS5 TX Power (conducted): 25 RX Sensitivity: -75 Data Rate: MCS6 TX Power (conducted): 24.5 RX Sensitivity: -73 Data Rate: MCS7 TX Power (conducted): 24 RX Sensitivity: -72 |
| Operating Band: 5 GHz Operating Mode: 802.11ac (VHT20) |
Data Rate: MCS0 TX Power (conducted): 26 RX Sensitivity: -90 Data Rate: MCS1 TX Power (conducted): 26 RX Sensitivity: -88 Data Rate: MCS2 TX Power (conducted): 26 RX Sensitivity: -85 Data Rate: MCS3 TX Power (conducted): 26 RX Sensitivity: -82 Data Rate: MCS4 TX Power (conducted): 26 RX Sensitivity: -79 Data Rate: MCS5 TX Power (conducted): 25 RX Sensitivity: -75 Data Rate: MCS6 TX Power (conducted): 24.5 RX Sensitivity: -73 Data Rate: MCS7 TX Power (conducted): 24 RX Sensitivity: -72 Data Rate: MCS8 TX Power (conducted): 23 RX Sensitivity: -68 Data Rate: MCS9 TX Power (conducted): 22.5 RX Sensitivity: -67 |
| Operating Band: 5 GHz Operating Mode: 802.11ac (VHT80) |
Data Rate: MCS0 TX Power (conducted): 26 RX Sensitivity: -87 Data Rate: MCS1 TX Power (conducted): 26 RX Sensitivity: -84 Data Rate: MCS2 TX Power (conducted): 26 RX Sensitivity: -82 Data Rate: MCS3 TX Power (conducted): 26 RX Sensitivity: -79 Data Rate: MCS4 TX Power (conducted): 26 RX Sensitivity: -76 Data Rate: MCS5 TX Power (conducted): 24 RX Sensitivity: -72 Data Rate: MCS6 TX Power (conducted): 24 RX Sensitivity: -70 Data Rate: MCS7 TX Power (conducted): 23 RX Sensitivity: -69 Data Rate: MCS8 TX Power (conducted): 22 RX Sensitivity: -65 Data Rate: MCS9 TX Power (conducted): 22 RX Sensitivity: -63 |
| Operating Band: 5 GHz Operating Mode: 802.11ax (HE20) |
Data Rate: MCS0 TX Power (conducted): 26 RX Sensitivity: -93 Data Rate: MCS1 TX Power (conducted): 26 RX Sensitivity: -91 Data Rate: MCS2 TX Power (conducted): 26 RX Sensitivity: -89 Data Rate: MCS3 TX Power (conducted): 26 RX Sensitivity: -86 Data Rate: MCS4 TX Power (conducted): 26 RX Sensitivity: -83 Data Rate: MCS5 TX Power (conducted): 25 RX Sensitivity: -79 Data Rate: MCS6 TX Power (conducted): 25 RX Sensitivity: -77 Data Rate: MCS7 TX Power (conducted): 24.5 RX Sensitivity: -75 Data Rate: MCS8 TX Power (conducted): 23.5 RX Sensitivity: -72 Data Rate: MCS9 TX Power (conducted): 23 RX Sensitivity: -69 Data Rate: MCS10 TX Power (conducted): 21.5 RX Sensitivity: -66 Data Rate: MCS11 TX Power (conducted): 21.5 RX Sensitivity: -63 |
| Operating Band: 5 GHz Operating Mode: 802.11ax (HE40) |
Data Rate: MCS0 TX Power (conducted): 25 RX Sensitivity: -90 Data Rate: MCS1 TX Power (conducted): 26 RX Sensitivity: -88 Data Rate: MCS2 TX Power (conducted): 26 RX Sensitivity: -86 Data Rate: MCS3 TX Power (conducted): 26 RX Sensitivity: -83 Data Rate: MCS4 TX Power (conducted): 26 RX Sensitivity: -81 Data Rate: MCS5 TX Power (conducted): 25 RX Sensitivity: -76 Data Rate: MCS6 TX Power (conducted): 24.5 RX Sensitivity: -75 Data Rate: MCS7 TX Power (conducted): 24 RX Sensitivity: -72 Data Rate: MCS8 TX Power (conducted): 23 RX Sensitivity: -69 Data Rate: MCS9 TX Power (conducted): 22.5 RX Sensitivity: -67 Data Rate: MCS10 TX Power (conducted): 21 RX Sensitivity: -64 Data Rate: MCS11 TX Power (conducted): 21 RX Sensitivity: -61 |
| Operating Band: 5 GHz Operating Mode: 802.11ax (HE80) |
Data Rate: MCS0 TX Power (conducted): 26 RX Sensitivity: -87 Data Rate: MCS1 TX Power (conducted): 26 RX Sensitivity: -85 Data Rate: MCS2 TX Power (conducted): 26 RX Sensitivity: -83 Data Rate: MCS3 TX Power (conducted): 26 RX Sensitivity: -80 Data Rate: MCS4 TX Power (conducted): 26 RX Sensitivity: -77 Data Rate: MCS5 TX Power (conducted): 24 RX Sensitivity: -73 Data Rate: MCS6 TX Power (conducted): 24 RX Sensitivity: -72 Data Rate: MCS7 TX Power (conducted): 23 RX Sensitivity: -70 Data Rate: MCS8 TX Power (conducted): 22 RX Sensitivity: -66 Data Rate: MCS9 TX Power (conducted): 22 RX Sensitivity: -65 Data Rate: MCS10 TX Power (conducted): 20 RX Sensitivity: -61 Data Rate: MCS11 TX Power (conducted): 20 RX Sensitivity: -59 |
Properties
| Properties | Cisco MR56-HW Access Point |
| Description | The Cisco MR56-HW Access Point is a high-performance 802.11ax wireless device ideal for demanding environments. It offers fast speeds, real-time security, and easy cloud-based management. Perfect for high-density setups and advanced applications, it ensures reliable connectivity and seamless deployment. |
| Product Family | Cisco Meraki MR Series |
| Product Type | Access Point |
| Product Highlights |
• 4x4:4 (2.4GHz) and 8x8:8 (5GHz)MU-MIMO 802.11ax * Refers to maximum over-the-air data frame rate capability of the radio chipset, and may exceed data rates allowed by IEEE 802.11ax operation. |
