CISCO MERAKI WI-FI 6 CLOUD MANAGED WITH EXTERNAL ANTENNAS AND MULTIGIGABIT ETHERNET ACCESS POINT (MR46E-HW)
| Model: | MR46E-HW |
| Detail: |
4x4:4 MU-MIMO, 2.98 Gbps dual-radio aggregate frame rate, 24x7 real-time WIDS/WIPS and spectrum analytics,
< |
| Price: | $527.00 |
| Condition: | Brand New Sealed |
| Availability: | Out of Stock |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |

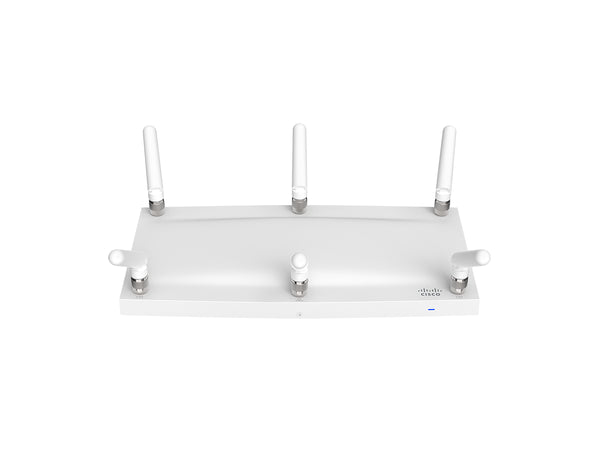

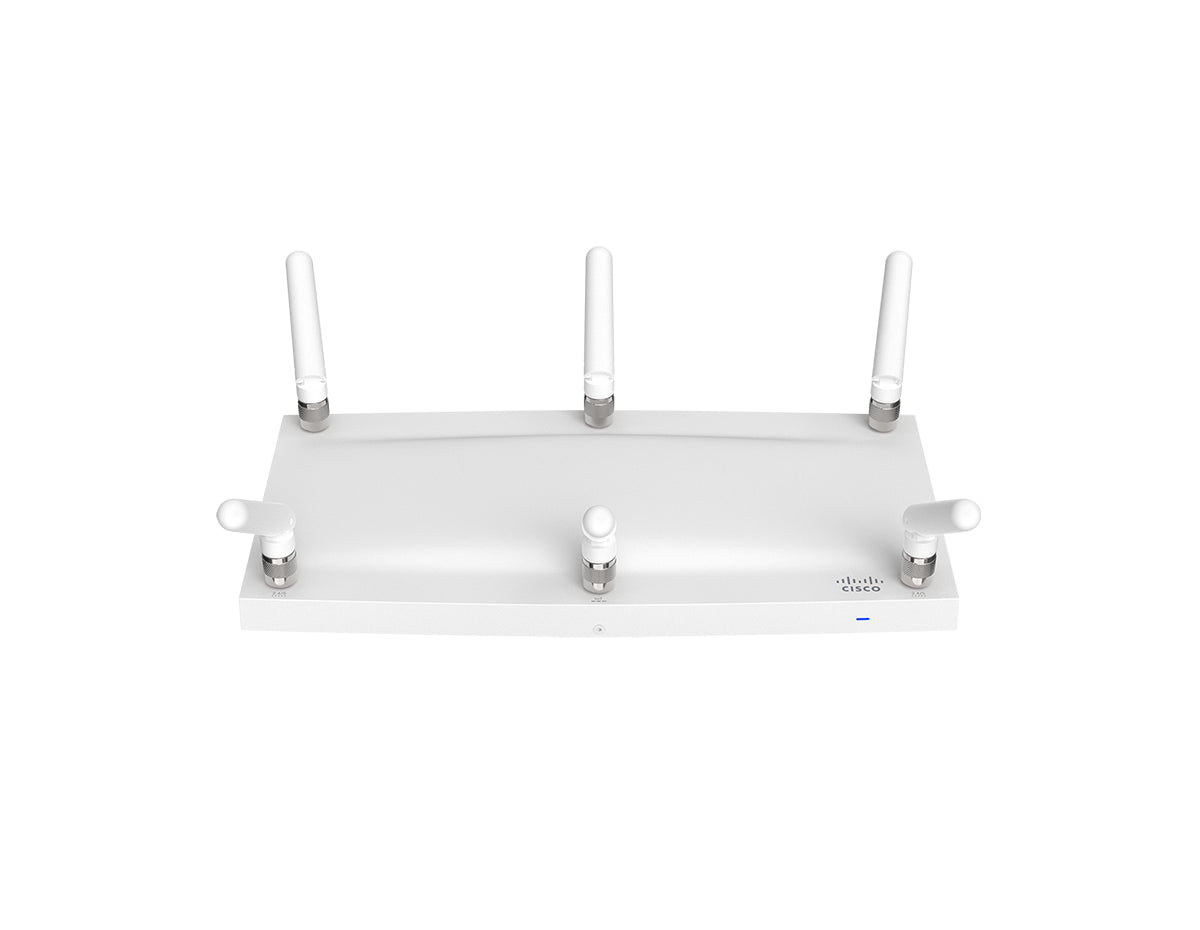

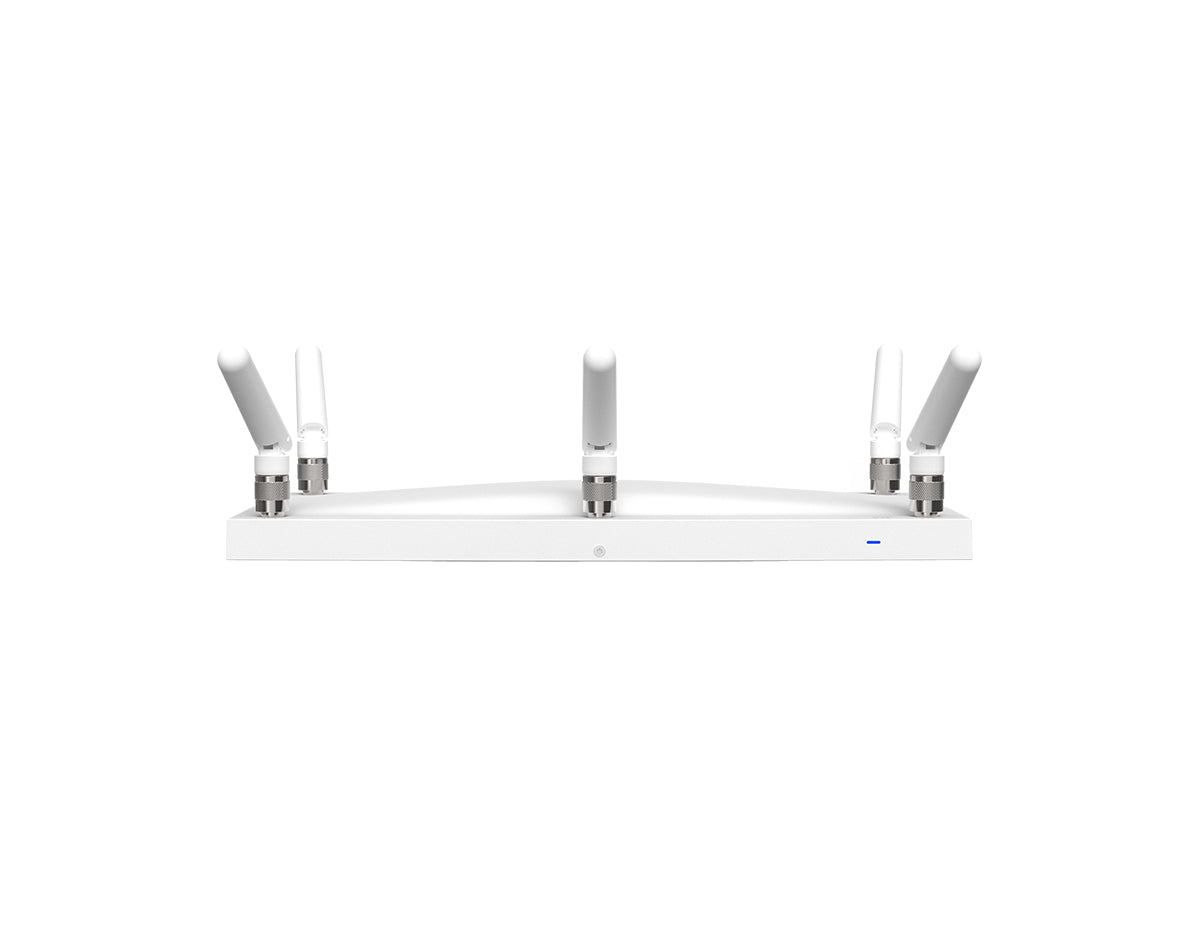

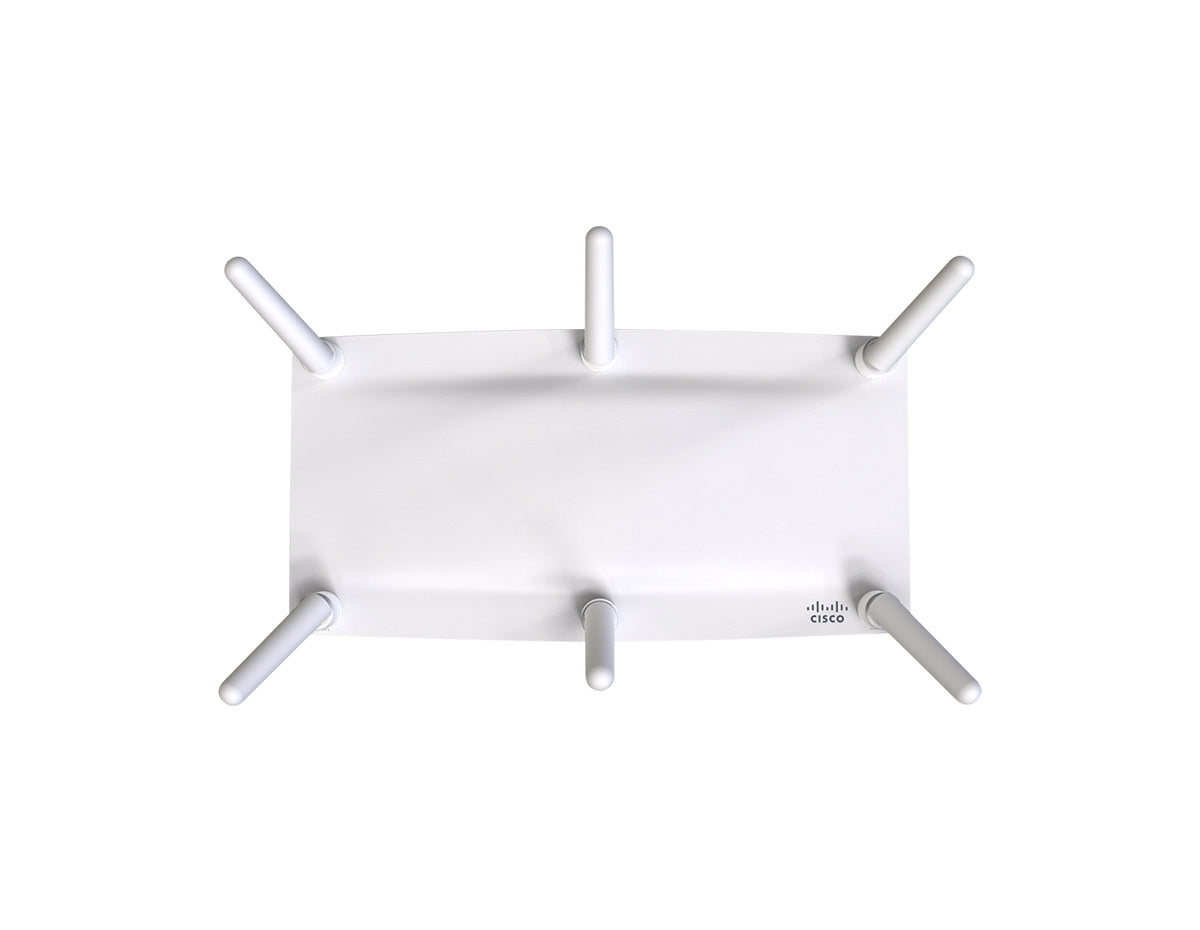

Cisco Meraki MR46E Access Point
The Cisco Meraki MR46E is a cloud-managed 4x4:4 802.11ax access point designed for high-performance wireless deployments. It offers a maximum aggregate frame rate of 2.98 Gbps with concurrent 2.4 GHz and 5 GHz radios. A dedicated third radio provides real-time WIDS/WIPS with automated RF optimization, and a fourth radio delivers Bluetooth scanning and beaconing.
Product Highlights
- 4x4:4 MU-MIMO 802.11ax
- 2.98 Gbps dual-radio aggregate frame rate
- 24x7 real-time WIDS/WIPS and spectrum analytics
- Integrated Bluetooth Low Energy Beacon
- Enhanced transmit power and receive sensitivity
- Integrated enterprise security and guest access
- Application-aware traffic shaping
- Optimized for voice and video
- Self-configuring, plug-and-play deployment
Features
- Dual-radio aggregate frame rate of up to 2.98 Gbps
- 5 GHz 4x4:4 radio and 2.4 GHz 4x4:4 radio
- Supports MU-MIMO and OFDMA
- Dedicated third radio for wireless security and RF analytics
- Bluetooth Low Energy Beacon and scanning radio
- Automatic cloud-based RF optimization
- Integrated enterprise security and guest access
- Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration
- Application-aware traffic shaping
- Voice and video optimizations
- Self-configuring, self-maintaining, always up-to-date
- Advanced analytics
Specifications
| Category | Specifications |
|---|---|
| Radios |
|
| Antenna | List of compatible antennas: MA-ANT-3-A6/B6/C6/D6/E6/F6 |
| Power |
|
| Interfaces |
|
| Mounting |
|
| Environment |
|
| Physical Dimensions |
|
| Security |
|
| Quality of Service |
|
| Mobility |
|
| Analytics |
|
| LED Indicators | 1 power/booting/firmware upgrade status |
| Regulatory |
|
| Warranty | Lifetime hardware warranty with advanced replacement included |
Specifications
| Frequency Bands | 2.4 GHz (up to 1.2 Gbps) and 5 GHz (up to 2.4 Gbps) |
| Transmit Power | Up to 24 dBm |
| Certifications | CE, FCC, RoHS compliant |
| Environmental Safety | Low-halogen materials used, complies with global environmental standards |
| EMC Compliance | Meets international EMC standards for wireless networking |
| Advanced Features | Supports OFDMA, MU-MIMO, Target Wake Time, and BSS Coloring |
| Latency | <1.5 ms under typical conditions |
| Power Consumption | Maximum 25.5W (PoE+) |
| Management | Cloud-based management via Meraki dashboard |
| MTBF | 1,600,000 hours |
| Mesh Networking | Supports mesh networking to extend wireless coverage |
| Firmware Updates | Automated updates through the cloud management system |
| Deployment | Suitable for high-density environments with external antenna flexibility |
| Monitoring | Comprehensive real-time monitoring via the cloud dashboard |
| Security Features | Intrusion detection and prevention, WPA3, and VPN tunneling |
Properties
| Product Name | MR46E-HW |
| Description | Cisco Meraki MR46E, a cloud-managed Wi-Fi 6 (802.11ax) access point with external antenna support, designed for high-density and performance-critical environments. |
| Wireless Standard | Wi-Fi 6 (802.11ax) |
| Radio Configuration | Dual-band (2.4 GHz and 5 GHz) with 4x4:4 MU-MIMO |
| Maximum Data Rate | 3.5 Gbps |
| Ethernet Ports | 1x 2.5 Gbps Ethernet (PoE+) |
| Antenna Type | External antennas (sold separately) |
| Power Supply | Powered via 802.3at PoE+ (Power over Ethernet) |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 5% to 95% non-condensing |
| Dimensions | 29.0 cm x 14.0 cm x 3.7 cm (11.4 in x 5.5 in x 1.5 in) |
| Weight | 0.9 kg (2.0 lb) |
| Mounting Options | Ceiling, wall mount (brackets included) |
| Security | Integrated Layer 7 firewall, WPA3 encryption |
| Usage | Ideal for enterprise networks, stadiums, and large venues |
| Durability | Designed for continuous operation in demanding environments |
