MIKROTIK 300 MBIT/S LTAP LR8 LTE6 KIT ACCESS POINT (LTAP-2HND&FG621-EA&LR8)
| Model: | LTAP-2HND-FG621-EA-LR8 |
| Detail: |
Supports carrier aggregation for improved performance in weak signal areas and crowded environments, Includes LTE, GPS, and LoRa® technology in a rugged case designed for outdoor and mobile applications, CPU: Dual-core MT7621AT 880 MHz, RAM: 128 MB DDR3,
< |
| Price: | $260.00 |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |

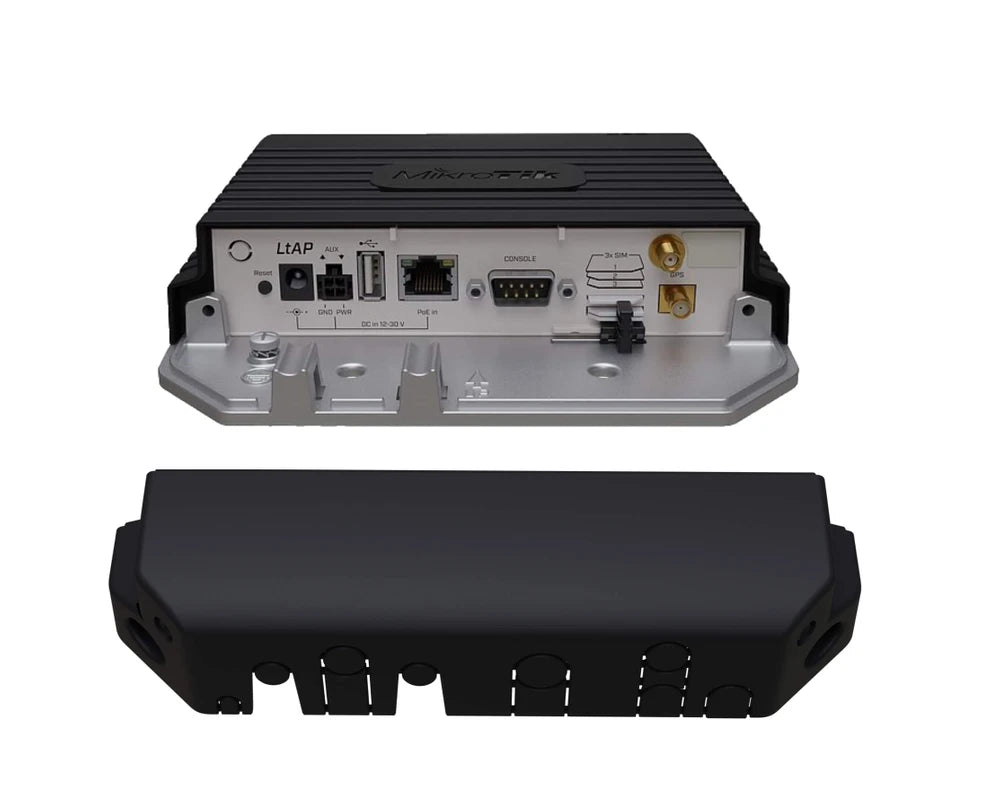

MikroTik LtAP LR8 LTE6 Kit
The MikroTik LtAP LR8 LTE6 kit is an all-in-one rugged solution that combines LTE, GPS, and LoRa® technology, making it perfect for Internet-of-Things (IoT) applications. With a durable, heavy-duty case, the LtAP LR8 LTE6 kit is designed to withstand extreme outdoor environments, making it suitable for remote locations, industrial setups, and mobile applications. This versatile device supports LTE connectivity with a powerful CAT6 modem for high-speed internet, and LoRa® technology for long-range IoT networks. It also includes a built-in GPS for real-time location tracking, along with 2.4 GHz wireless AP functionality and three MiniSIM slots for seamless roaming and network switching.
Key Features:
- All-in-One Solution: Includes LTE, GPS, and LoRa® technology in a rugged case designed for outdoor and mobile applications.
- Powerful CAT6 LTE Modem: Supports carrier aggregation for improved performance in weak signal areas and crowded environments.
- Internet of Things (IoT) Ready: Supports LoRa® technology, making it ideal for smart agriculture, logistics, and smart city applications.
- Built-in GPS: Offers real-time location tracking, making it perfect for vehicle and asset tracking solutions.
- Rugged Design: IP54-rated for protection against dust and water, with a temperature range of -40°C to 70°C.
- Flexible Powering Options: Supports PoE-in, DC jack, and automotive power options, making it suitable for various deployment scenarios.
Technical Specifications:
- CPU: Dual-core MT7621AT 880 MHz
- RAM: 128 MB DDR3
- Storage: 16 MB Flash
- Ethernet Ports: 1 Gigabit Ethernet port
- Wireless: 2.4 GHz 802.11b/g/n
- LTE Bands: 1, 3, 5, 7, 8, 20, 28 (FDD) and 38, 40, 41 (TDD)
- Power Consumption: Max 24 W
- Operating Temperature: -40°C to +70°C
- LoRa Frequency: 863-870 MHz (EU863-870, RU864-870, IN865-867)
Specifications
| Wireless Features | 2.4 GHz (up to 300 Mbps) with 2x2 MIMO |
| Certifications | CE, FCC, IC, RoHS compliant |
| Environmental Safety | RoHS 3 compliant (Directive 2015/863/EU), uses halogen-free materials |
| EMC Compliance | Meets EN 55032, EN 55024, and FCC Part 15 standards |
| MTBF | >200,000 hours |
| Shock Resistance | Tested to withstand 30 G for 11 ms according to IEC 60068-2-27 |
| Vibration Resistance | Tested up to 3.0 Grms (5-500 Hz) under IEC 60068-2-6 |
| Heat Dissipation | Maximum 12W |
| Power Consumption | Up to 12W with full LTE and LoRaWAN usage |
| Firmware Updates | Supports automatic updates via RouterOS |
| LTE Band Support | Bands 1, 2, 3, 5, 7, 8, 20, 38, 40 |
| GPS Accuracy | <5 meters under clear sky conditions |
| LoRaWAN Sensitivity | -137 dBm |
| Deployment | Optimized for mobile and remote IoT use cases, including vehicle-mounted applications |
| Reliability | Tested for continuous operation in extreme temperature and vibration conditions |
| Security Features | Supports WPA2 encryption, firewall configuration, and RouterOS security tools |
Properties
| Product Name | LtAP-2HnD&FG621-EA&LR8 |
| Description | Mikrotik LtAP LR8 LTE6 kit, an access point with integrated LTE modem, GPS, and LoRaWAN gateway, designed for mobile and remote IoT applications. |
| Wireless Standard | 802.11b/g/n (2.4 GHz) |
| Maximum Data Rate | 300 Mbps |
| LTE Modem | Category 6 LTE modem with up to 300 Mbps download and 50 Mbps upload |
| LoRaWAN | Integrated LoRaWAN gateway (863-870 MHz, EU band) |
| GPS | Integrated GPS receiver with external antenna support |
| Ethernet Ports | 1 x 10/100 Ethernet |
| SIM Slots | 2 Mini SIM slots for dual SIM functionality |
| Power Supply | Powered via 9-30V DC input, PoE in (802.3af/at) |
| Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% non-condensing |
| Dimensions | 24.7 cm x 16.3 cm x 4.4 cm (9.7 in x 6.4 in x 1.7 in) |
| Weight | 0.93 kg (2.05 lb) |
| Mounting Options | Wall, DIN rail, or pole mount (kits included) |
| Usage | Ideal for transportation, remote IoT applications, and outdoor deployments |
| Durability | Rated for continuous outdoor operation with IP54 weather resistance |
