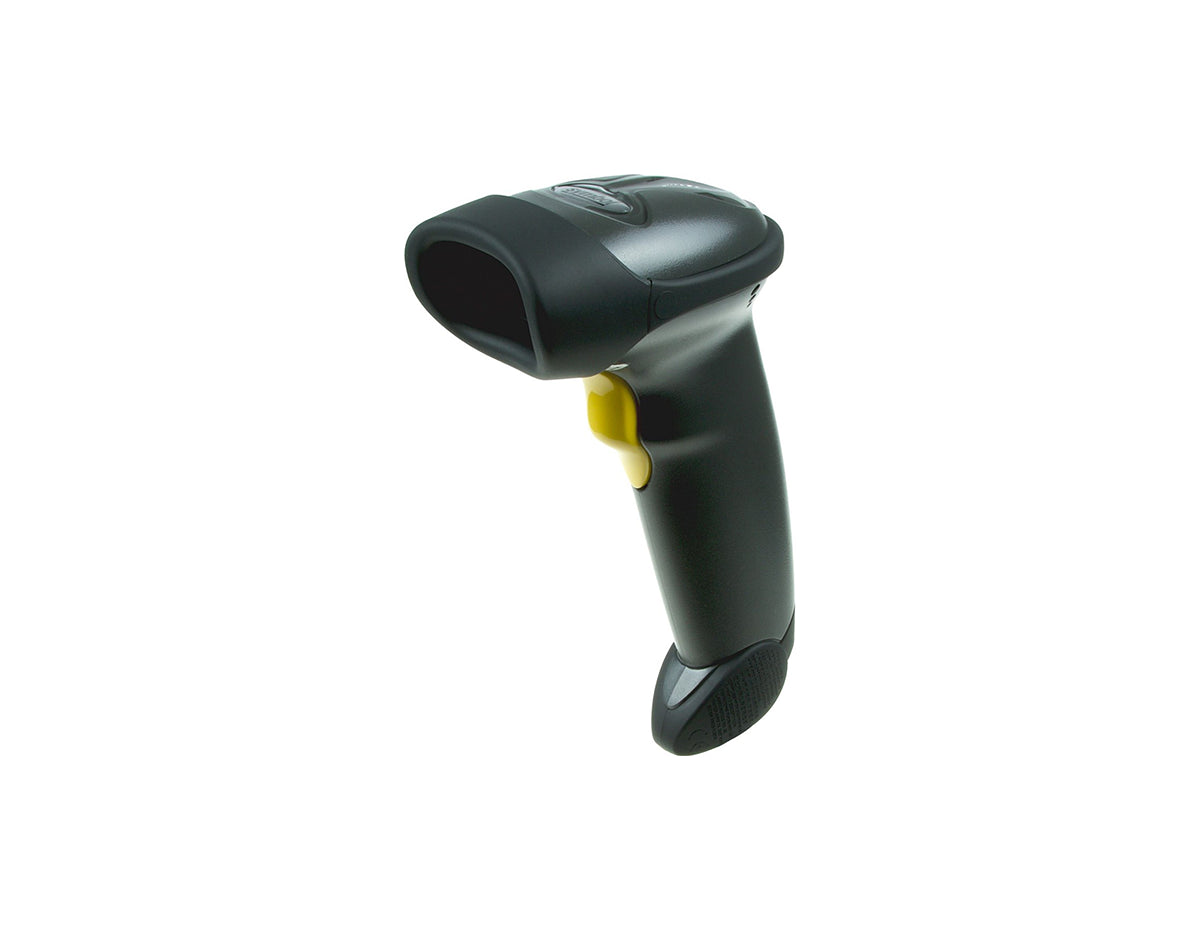

LS2208 Zebra Barcode Scanner USB LS2208-SR20007R (LS2208)



Zebra LS2208-SR20007R Barcode Scanner

The LS2208 scanner, manufactured by Zebra Technologies, provides superior scanning capabilities at a competitive price. It is well-suited for various uses that demand swift, dependable, and effective barcode scanning. The LS2208 delivers enhanced scanning performance and resilience, rendering it well-suited for retail, warehouse, and workshop settings and in healthcare facilities and laboratories. Its harmonious blend of performance and durability contributes to heightened productivity and efficiency while concurrently lowering operational and maintenance expenses.

Quick Specs:

• Maximum read distance exceeds 40m
• Reads 1D barcodes at 100 scans/sec.
• Multi-interface for universal configuration
• Handheld barcode scanner with pistol grip

Please see the related tabs for the LS2208-SR20007R datasheet and compatible accessories.

Properties	LS2208
Description	The LS2208 Handheld Scanner is a highly efficient 1D USB Laser Scanner with stand. It ensures fast and accurate scanning with a comfortable ergonomic design, enhancing operational efficiency.
Product Type	Scanner
Supported Host Interfaces	USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485
Keyboard Support	Supports over 90 international keyboards
User Indicators	Direct decode indicator, good decode LEDs, beeper (adjustable tone/volume)
Color	Cash Register White, Twilight Black
Input Voltage Range	4.5 to 5.5 VDC host powered; 4.5 to 5.5 VDC external power supply
Operating Current at Nominal Voltage (5.0V)	175 mA (typical)
Standby Current (idle) at Nominal Voltage (5.0V)	90 mA (typical)
Scanner Type	Bi-directional
Light Source	650 nm Laser Diode Class 2
Scan Pattern	Single line
Scan Speed	100 scans per second
Scan Angle	35°
Minimum Print Contrast	20% minimum reflective difference
Skew Tolerance	± 10°
Pitch Tolerance	± 65°
Roll Tolerance	± 60°
Dimensions	6.3 cm x 8.4 cm x 15.2 cm

Specifications	LS2208
Scanning Technology	Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma). Refer to Product Reference Guide for complete list of symbologies.
Minimum Element Resolution	Code 39: 3.0 mil
Electrostatic Discharge (ESD)	ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect
Environmental Sealing	IP30
Operating Temperature	32° to 122° F/0° to 50° C
Electrical Safety	EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011; IEC 60950-1: 2005 + A1: 2009; UL 60950-1, second edition; CAN/CSA-C22.2 No. 60950-1-07
EMI/RFI	FCC 47 CFR Part 15, Subpart B, Class B; ICES-003 Issue 4, Class B; Compliant with EMC Directive 2004/108/EC
Laser Safety	CDRH Class II; IEC Class 2
Environmental	Compliant with RoHS Directive 2011/65/EU; EN 50581: 2012
