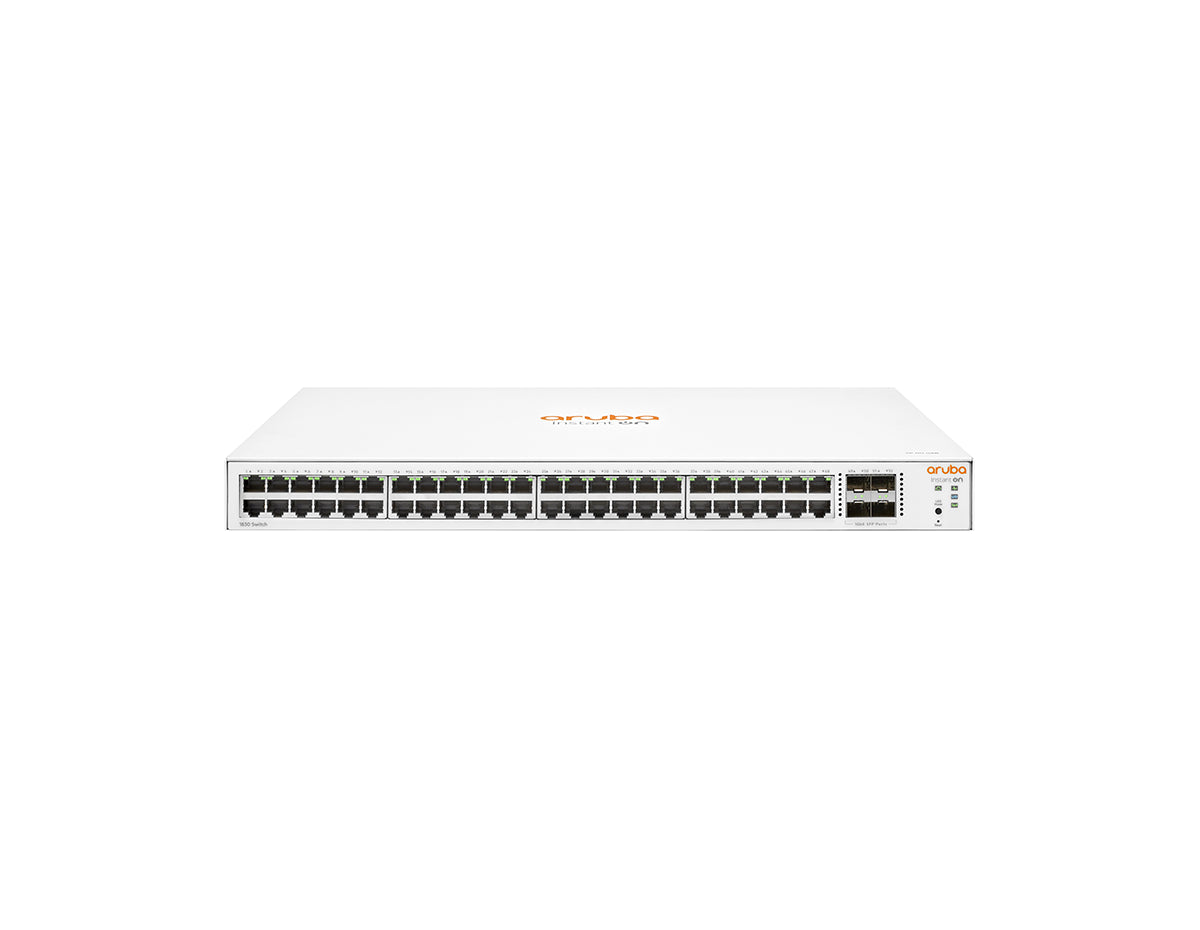

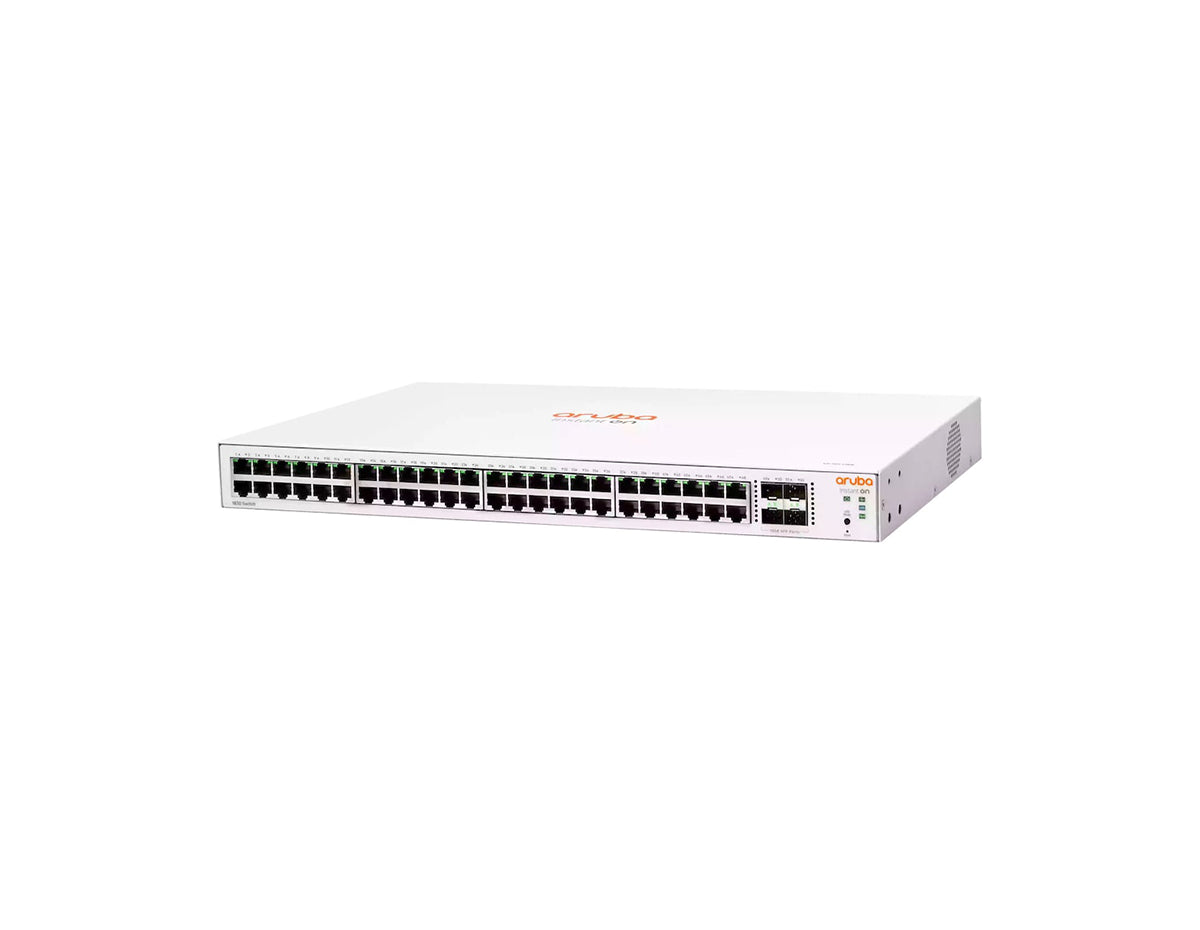

HPE Networking Instant On 1830 JL814A 48-Port Data Switch with 4x 1G SFP
- Smart-Managed, Rack-mountable, 48 x 1G ports, 4 x 1G SFP Uplinks, Non-PoE, Layer 2
Overview
The HPE Networking Instant On 1830 Series is HPE's line of entry-level, smart-managed Layer 2 Gigabit switches for small and medium businesses, set up and run from the Instant On mobile app, the cloud portal or a local web GUI. The JL814A is the 48-port data-only model, with twice the access ports and twice the dedicated 1G SFP fiber ports of the 24-port JL812A, which gives more room to aggregate traffic from a full floor of wired endpoints. Unlike the fanless JL812A, it is cooled by variable-speed fans.
Technical Details
HPE Networking Instant On 1830 JL814A is a Layer 2 smart-managed 1U rackmount switch with 48 Gigabit Ethernet ports and four fixed 1G SFP uplinks. It is managed through the Instant On mobile app, the Instant On cloud portal or a local web GUI. Switching capacity is 104 Gbps and forwarding rate is 77.37 Mpps. It carries no Power over Ethernet, so all 48 access ports are data-only. The switch connects larger groups of non-powered endpoints such as desktops, printers and wired IoT devices in offices, retail stores and smart spaces.
Best For
The JL814A suits offices, retail stores and smart spaces that connect many non-powered endpoints such as desktops, printers and wired IoT devices and want app- or cloud-based management. Its 48 access ports and four 1G SFP ports give higher density and more fiber uplink capacity than the 24-port 1830 models.
Not suitable if:
- you need to power access points, IP cameras or IP phones over the network, since this model carries no Power over Ethernet
- you need 10G uplinks, because the four SFP ports are 1G only
- you need routing between VLANs on the switch itself, because HPE documents the 1830 series as Layer 2 with no IP routing feature
- you need several switches to operate as one stacked unit, since HPE lists no stacking capability for the 1830 series
- you need a fanless switch for a silent room, since this model is cooled by variable-speed fans
JL814A Specifications
| Class & Licensing | |
|---|---|
| License Tier | None (all features included; no feature tiers or subscription) |
| License Detail / MTBF | None (all features included; no feature tiers or subscription); MTBF 114.4 years |
| Ports & Uplinks | |
| Port Speed | Gigabit |
| Uplink Configuration | 4x 1G SFP (fixed) |
| Performance & Scale | |
| Stacking | No |
| Switching Capacity | 104 Gbps |
| Forwarding Rate | 77.37 Mpps |
| MAC Table | 16,000 entries |
| Hardware & Memory | |
| DRAM | 512 MB SDRAM |
| Flash | 256 MB |
| Power & Thermal | |
| Power Input / PSU | Internal power supply; 100-127 VAC / 200-240 VAC, 50/60 Hz |
| Redundant PSU | No (single internal power supply) |
| Cooling | Variable-speed fans |
| Physical & Environmental | |
| Dimensions (H x W x D) | 1.72 x 17.44 x 9.96 in (4.39 x 44.3 x 25.3 cm) |
| Weight | 7.80 lbs (3.54 kg) |
| Operating Temperature | 32 to 104 °F (0 to 40 °C), up to 10,000 ft (3 km) |
| Software | |
| Operating System | Not published |
FAQ
Does the HPE Networking Instant On 1830 JL814A support PoE?
No. The HPE Networking Instant On 1830 JL814A is a data-only switch: none of its 48 Gigabit Ethernet ports supply Power over Ethernet, so it cannot power access points, IP cameras or IP phones. The closest PoE model is the Instant On 1830 JL815A, which keeps 48 Gigabit ports and four 1G SFP ports and adds IEEE 802.3at power on ports 1-24 from a 370 W budget.
What transceivers do the uplinks on the 1830 JL814A use?
The JL814A has four fixed 1G SFP ports. They are 1-Gigabit SFP slots and do not support 10G SFP+ optics. For the 24- and 48-port 1830 models HPE lists three Instant On transceivers: 1G SFP LC SX (500 m, multimode), 1G LX SFP LC (10 km, single-mode) and 1G SFP RJ45 (100 m, Cat5e). Confirm current compatibility in the HPE Networking Instant On Transceiver Guide. Transceivers are sold separately.
How is the Instant On 1830 JL814A managed?
The JL814A is a smart-managed switch. HPE lists three ways to manage it: the Instant On mobile app, the Instant On cloud portal, and a local web GUI that supports up to five HTTP and HTTPS sessions. SNMPv1 and v2c are supported read-only for monitoring, and firmware updates can be scheduled from the app or the cloud portal. A few tools, including remote syslog, the cable diagnostic tool and the support file, are available only through the local web interface.
Can the Instant On 1830 JL814A be stacked?
No. HPE lists no stacking capability for the Instant On 1830 series, so each JL814A operates as a standalone switch. Several Instant On switches can be managed together as one site in the Instant On cloud portal or mobile app, and link aggregation (LACP or manual) bundles up to eight ports per trunk for higher-bandwidth links between switches. Spanning Tree protects redundant links against loops.
Does the Instant On 1830 JL814A route between VLANs?
No. HPE describes the Instant On 1830 series as offering Layer 2 switching capabilities and lists no IP routing feature for it, so traffic between VLANs on the JL814A must be routed by an upstream router or Layer 3 switch. The 1830 supports up to 64 VLANs for segmenting traffic. HPE's Instant On 1930 and 1960 series list static routing.
What is the difference between the 1830 JL814A and the JL812A?
Both are data-only Instant On 1830 switches with 1G SFP uplinks and no Power over Ethernet. The JL814A has 48 Gigabit ports, four 1G SFP ports, 104 Gbps switching capacity and 77.37 Mpps forwarding, and is cooled by fans. The JL812A has 24 ports, two 1G SFP ports, 52 Gbps and 38.68 Mpps, and is fanless. Choose the JL814A for larger sites and the JL812A for smaller, noise-sensitive rooms.
What condition is the JL814A sold in, and what warranty applies?
The JL814A is sold new and factory-sealed. It is covered by the Network Devices Inc. 1-year warranty and a 30-day return policy.
