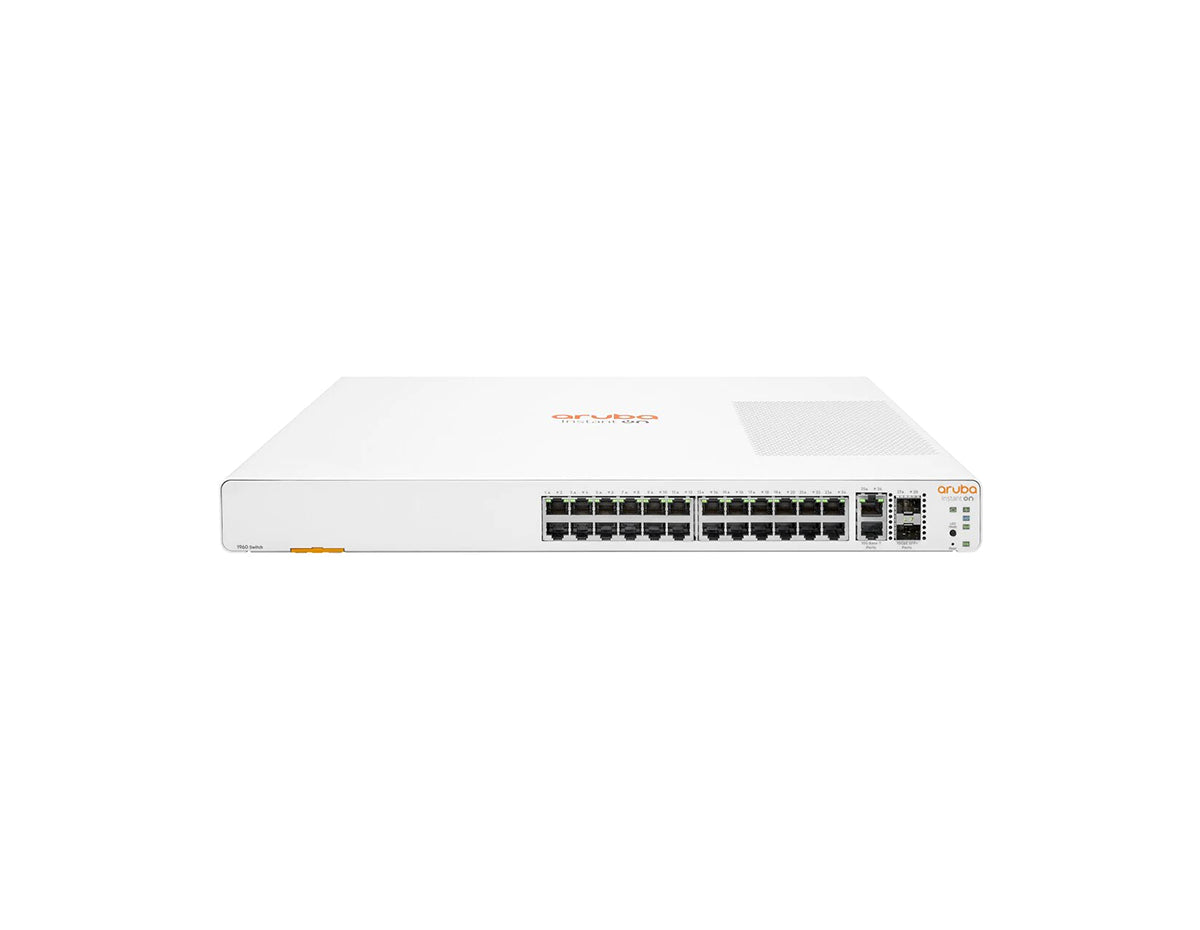

HPE Aruba Networking JL806A Instant On 1960 24-Port Smart Switch

Empower Your Network with High-Speed, Scalable Performance

The HPE Networking Instant On 1960 (JL806A) Switch is an advanced smart-managed Layer 2+ Gigabit stackable switch designed for small and growing businesses. It delivers enterprise-class connectivity for high-performance access and aggregation, offering 24 Gigabit ports and four 10 GbE uplinks to handle bandwidth-intensive workloads like voice and video conferencing, ensuring consistent connectivity. Its stackable architecture simplifies deployment and management through both local and cloud options.

Key Benefits & Features

• 10G Uplink Performance: Two 10GBase-T and two SFP+ ports deliver lightning-fast network speeds, eliminating traffic bottlenecks to servers, storage, and core switches.
• Smart Cloud Management: Easily manage your network via the HPE Instant On mobile app or cloud-based portal—on-site or remotely. The front panel's QR code simplifies onboarding.
• Flexible Stacking: Stack up to four switches and manage them through a single IP address, supporting seamless scalability as your business grows.
• Advanced Security: Safeguard sensitive data using VLANs, Access Control Lists (ACLs), and 802.1X authentication with a RADIUS server, along with automatic DoS protection.
• Affordable & Efficient: An affordable solution for small businesses, providing maximum power efficiency with idle consumption as low as 30W (100–127V).

Ideal Use Cases

• Small and medium-sized business networks requiring reliable Gigabit access with 10 GbE backbone.
• Branch offices connecting multiple devices and users with unified cloud-managed control.
• Voice over IP (VoIP) and video conferencing deployments needing stable, high-bandwidth links.
• Server and network storage aggregation in compact environments.

Technical Specifications Summary

• Product Number: JL806A
• Ports: 24 × 10/100/1000BASE-T, 2 × 10GBase-T, 2 × SFP+
• Switching Capacity: 128 Gbps
• Throughput: 95 Mpps
• Processor/Memory: Single-Core ARM v7 Cortex-A9 @ 800 MHz, 1 GB DDR3
• Packet Buffer: 1.5 MB
• Input Voltage: 100–127 VAC / 200–240 VAC
• Power Consumption: Max 60W (100–127V) / 80W (200–220V); Idle 30W (100–127V) / 40W (200–220V)
• Dimensions (W × D × H): 44.25 × 35.05 × 4.4 cm
• Weight: 3.9 kg
• Operating Temperature: 0–40°C

Upgrade Your Network Efficiency Today

Experience enterprise-grade switching with the HPE Instant On 1960 JL806A—built for speed, security, and simplicity. It's the ideal Gigabit Stackable Switch to scale your business connectivity with confidence. Order now to power your network's future.

Model	HPE Networking Instant On 1960 (JL806A)
Product Type	Smart-managed Layer 2+ Gigabit Stackable Switch
Ports	24 × 10/100/1000BASE-T (RJ-45) autosensing ports
Uplink Ports	2 × 10GBASE-T, 2 × SFP+ 10 GbE
Switching Capacity	128 Gbps
Throughput	95 Mpps
Processor / Memory	Single-Core ARM v7 Cortex-A9 @ 800 MHz, 1 GB DDR3, 512 MB NAND Flash
Packet Buffer	1.5 MB
Stacking Capability	Up to 4 switches (cloud-managed or local stacking)
Power Consumption	Max: 60 W (100–127V) / 80 W (200–220V); Idle: 30 W (100–127V) / 40 W (200–220V)
Input Voltage	100–127 VAC / 200–240 VAC
Operating Temperature	0°C to 40°C
Operating Altitude	0–10,000 ft
Product Dimensions (W × D × H)	44.25 × 35.05 × 4.4 cm
Weight	3.9 kg
Management	HPE Networking Instant On Cloud, Local Web GUI, SNMP Manager
Mounting	Rack-mountable (4H height)

Ethernet Standards	IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T), IEEE 802.an (10GBASE-T)
Duplex Mode	100BASE-TX: Half or Full; 1000BASE-T and 10GBASE-T: Full only
Layer Support	Smart-managed Layer 2+
Stacking Management	Local and Cloud-managed stacking up to 4 members
PoE Support	Non-PoE model (PoE is available on other 1960 models)
Security Features	VLAN segmentation, ACL support, 802.1X authentication via RADIUS, DoS protection
Network Management	HPE Instant On Mobile App, Cloud Web Portal, Local Web GUI, SNMP
Performance	High-level Gigabit with 10 GbE Networking for Advanced Small Businesses
Reliability	Automatic denial-of-service (DoS) monitors
Certifications	Subject to change; covered by express warranty statements

Included in the Box	Switch unit, power cord, rack-mount kit, documentation (per QuickSpecs)
Optional Accessories	HPE supported replacement parts and materials
Management Tools	HPE Networking Instant On Mobile App, Cloud-based Web Portal, Local Web GUI
