HPE ARUBA INSTANT ON 1960 12XGT 4SFP+ SWITCH (JL805A)
| Model: | JL805A |
| Detail: | Managed, Rack-mountable, 12 x 10G ports, Fixed Uplinks (4 x SFP+), No PoE (Data Only), Layer 2+, |
| Price: | $885.00 |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

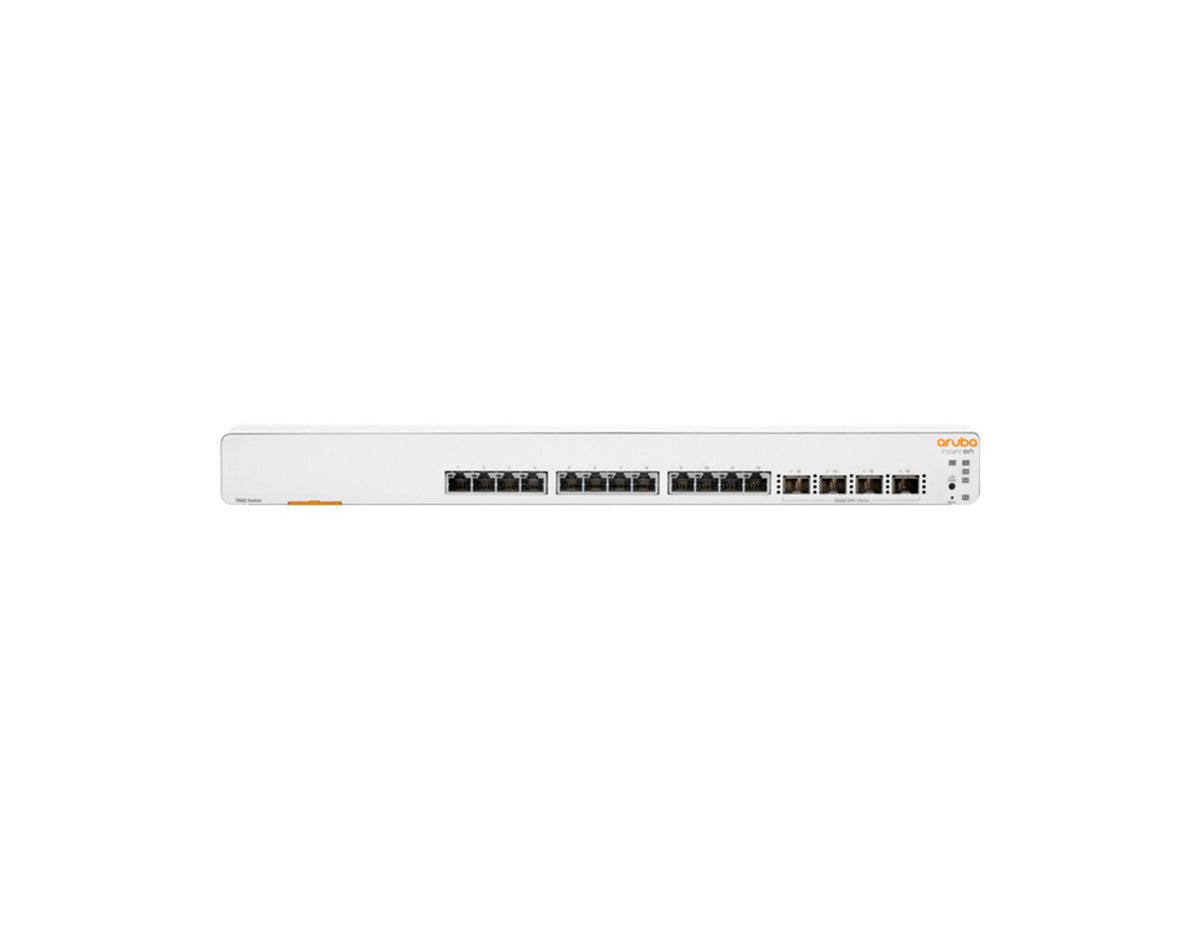

HPE Aruba Instant On 1960 12XGT 4SFP+ Switch (JL805A)
The HPE Aruba Instant On 1960 12XGT 4SFP+ Switch (JL805A) is a high-performance smart-managed switch designed for small and growing businesses that require fast data transfer and advanced connectivity. With 12 multi-gigabit 10GbE ports and 4 dedicated SFP+ uplink ports, this switch delivers exceptional performance for bandwidth-intensive applications. Its easy-to-use cloud-based management system allows for quick deployment and remote monitoring, making it ideal for businesses with limited IT resources.
Key Features:
- 12 x 10GbE Ports: Provides high-speed 10GbE connectivity for devices requiring fast data transfers and low-latency performance.
- 4 x SFP+ Uplink Ports: Supports high-speed uplinks, enabling seamless network expansion and improved bandwidth management.
- Cloud-Based Management: Easily monitor and manage the switch remotely via the Aruba Instant On mobile app or cloud-based web portal.
- Advanced Security Features: Includes support for ACLs, VLANs, and 802.1X authentication for enhanced network security.
- Stacking Capability: Supports cloud-managed stacking of up to four switches, simplifying network operations and scalability.
Technical Overview:
- Recommended for: Small businesses, retail, and educational institutions.
- Ports: 12 x 10GbE ports, 4 x SFP+ uplinks.
- Switching Capacity: 320 Gbps.
- Forwarding Rate: 238 Mpps.
- Management: Managed via Aruba Instant On mobile app or cloud-based GUI.
- Security: Supports ACLs, 802.1X authentication, and denial-of-service protection.
You can check the related tab for the JL805A datasheet.
Accessories
Specifications
| Specifications | |
| I/O ports and slots | 12 RJ-45 autosensing 100/1000/10GBASE-T ports (IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.an 10GBASE- T); Duplex: 100BASE-TX: half or full; 1000BASE-T: full only 10GBASE-T: full only 4 SFP+ 10GbE ports |
| Dimensions | 350.5(d) x 442.5(w) x 43.95(h) mm |
| Weight | 9.6 lb (4.3 kg) |
| CPU | Single Core ARMv7 Cortex-A9 @2Ghz |
| 100 Mb Latency | < 7.4 uSec |
| 1000 Mb Latency | < 4.2 uSec |
| 10000 Mb Latency | < 1.1 uSec |
| Throughput (Mpps) | 238 Mpps |
| Capacity | 320 Gbps |
| Routing Table size (# of static entries) | 512 IPv4/IPv6 |
| MAC Address table size (# of entries) | 16,000 entries |
| Reliability MTBF (years) | 88.8 |
| Operating temperature | 0-40°C, 0-10,000 ft |
| Operating relative humidity | 15% to 95% @ 104°F (40°C) non-condensing |
| Nonoperating/Storage temperature | -40°F to 158°F (-40°C to 70°C) up to 15000 ft |
| Nonoperating/Storage relative humidity | 15% to 90% @ 149°F (65°C) non-condensing |
| Altitude | up to 10,000 ft (3 km) |
| Acoustics | LWAd = 4.0 Bel Notes: Acoustics measured in 23°C semi-anechoic chamber with a loading of 100% traffic and (for JL807A and JL809A) 50% PoE on all ports. Measured in accordance with ISO 7779. Declared in accordance with ECMA-109:2010. Values presented are the Declared A- Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm) |
| Electrical Characteristics | |
| Frequency | 50Hz/60Hz |
| AC voltage | 100-127VAC / 200-240VAC |
| Current | 1.3A/0.4A |
| Maximum power rating | 100-127V: 130W 200-220V: 160W |
| Idle power | 100-127V: 60W 200-220V: 80W |
| PoEpower | (-) |
| Power Supply | Internal power supply |
| Safety | EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 1 |
| Emissions | EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A |
| Generic | EN 55035, CISPR 35, KN35 |
| EN | EN 55035, CISPR 35 |
| ESD | EN/IEC 61000-4-2 |
| Radiated | EN/IEC 61000-4-3 |
| EFT/Burst | EN/IEC 61000-4-4 |
| Surge | EN/IEC 61000-4-5 |
| Conducted | EN/IEC 61000-4-6 |
| Power frequency magnetic field | EN/IEC 61000-4-8 |
| Voltage dips and interruptions | EN/IEC 61000-4-11 |
| Harmonics | EN/IEC 61000-3-2 |
| Flicker | EN /IEC 61000-3-3 |
| Device Management | Aruba Instant On Cloud; Web browser; SNMP Manager |
| Mounting Positions and Supported Racking | • Mounts in an EIA-standard 19 in. telco rack or equipment cabinet. 2-post rack kit included • Supports table-top mounting • Supports rack-mounting • Supports wall-mounting with ports facing either up or down • Supports under-table mounting using the brackets provided |
| Transceivers | • Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A) • Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D) • Aruba Instant On 1G SFP RJ45 T 100m Cat5e Transceiver (R9D17A) • Aruba Instant On 10G SFP+ LC SR 300m OM3 MMF Transceiver (R9D18A) • Aruba 10G SFP+ LC LR 10km SMF Transceiver (J9151E) • Aruba 10G SFP+ to SFP+ 1m DAC (J9281D) • Aruba 10G SFP+ to SFP+ 3m DAC (J9283D) |
| Standards and Protocols (applies to all products in series) | • IEEE 802.3 10BASE-T • IEEE 802.3u 100BASE-TX • IEEE 802.3ab 1000BASE-T • IEEE 802.3z 1000BASE-X • IEEE 802.2af PoE 1 (PoE models only) • IEEE 802.3at PoE 1 (PoE models only) • IEEE 802.3x Flow control • IEEE 802.1Q VLANS • IEEE 802.1p Priority • IEEE 802.3ad Link Aggregation Control Protocol (LACP) • IEEE 802.1X Port Access Authentication • IEEE 802.3az Energy Efficient Ethernet • IEEE 802.1D: Spanning Tree Protocol • IEEE 802.1W: Rapid Spanning Tree Protocol • IEEE 802.1S: Multiple Spanning Tree Protocol • IEEE 802.1AB Link Layer Discovery Protocol • Denial of service protection • CPU DoS protection |
| IETF Standards Support | • RFC 768 • RFC 783 • RFC 791 • RFC 792 • RFC 793 • RFC 813 • RFC 879 • RFC 896 • RFC 826 • RFC 894 • RFC 919 • RFC 922 • RFC 950 • RFC 1042 • RFC 1071 • RFC 1123 • RFC 1141 • RFC 1155 • RFC 1157 • RFC 1350 • RFC 1533 • RFC 1541 • RFC 1624 • RFC 1700 • RFC1867 • RFC 2030 • RFC2616 • RFC 2131 • RFC 2132 • RFC 3164 • RFC 5424 • RFC3411 • RFC3412 • RFC3413 • RFC3414 • RFC3415 • RFC2576 • RFC 4330 • RFC 3268 • RFC 4251 • RFC 4252 • RFC 4253 • RFC 4254 • RFC 4716 • RFC 4419 • RFC 2869 • RFC 3580 • RFC 2474 • RFC 4541 |
| IETF Standards Management Support | • RFC 1213 • RFC 1215 • RFC 1286 • RFC 1442 • RFC 1451 • RFC 1493 • RFC 1573 • RFC 1643 • RFC 1757 • RFC 1907 • RFC 2011 • RFC 2012 • RFC 2013 • RFC 2233 • RFC 2578 • RFC 2618 • RFC 2865 • RFC 2866 • RFC 2869 • RFC 2665 • RFC 2666 • RFC 2674 • RFC 2737 • RFC 2819 • RFC 2863 • RFC 4022 • RFC 4113 • RFC 1212 • RFC 1901 • RFC 1908 • RFC 2271 • RFC 2295 • RFC 2576 • RFC 2579 • RFC 2580 • RFC 3410 • RFC 3417 • RFC 2620 |
| IETF Standard SNMP Traps Supported | • RFC 1157 • RFC 1493 • RFC 1215 • RFC 3416 • RFC 3418 |
| IETF IPv6 Support |
• RFC 1981 • RFC 2460 • RFC 2464 • RFC 2465 • RFC 2466 • RFC 2526 • RFC 2710 • RFC 2711 • RFC 2732 • RFC 3484 • RFC 3587 • RFC 3879 • RFC 4001 • RFC 4007 • RFC 4113 • RFC 4147 • RFC 4193 • RFC 4213 • RFC 4291 • RFC 4292 • RFC 4293 • RFC 4294 • RFC 4443 • RFC 4773 • RFC 4786 • RFC 4861 • RFC 4862 • RFC 4943 • RFC 5095 • RFC 5220 • RFC 5221 • RFC 5350 • RFC 5722 • RFC 5942 • RFC 5952 • RFC 6177 • RFC 3736 • RFC 2365 |
Properties
| Properties | Aruba Instant On 1960 12XGT 4SFP+ Switch (JL805A) |
| Description | High-performance 10G smart-managed stackable switch with advanced security and scalability for businesses. |
| Product Family | Aruba Instant On 1960 Switch Series |
| Product Type | Switch |
