HPE ARUBA 6200F 48G CLASS4 POE 4SFP+ 740W SWITCH (JL728A)
| Model: | JL728A |
| Detail: | HPE Aruba 6200F 48G Class4 PoE 4SFP+ 740W Switch (JL728A) The CX 6200 series is fully adaptable and provides a range of management options, including cloud-based and on-premises Central, CLI, |
| List Price: | |
| Price: | $2,295.00 |
| You Save: | $7,524.00 (77% OFF) |
| Condition: | Brand New Sealed |
| Availability: | Out of Stock |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

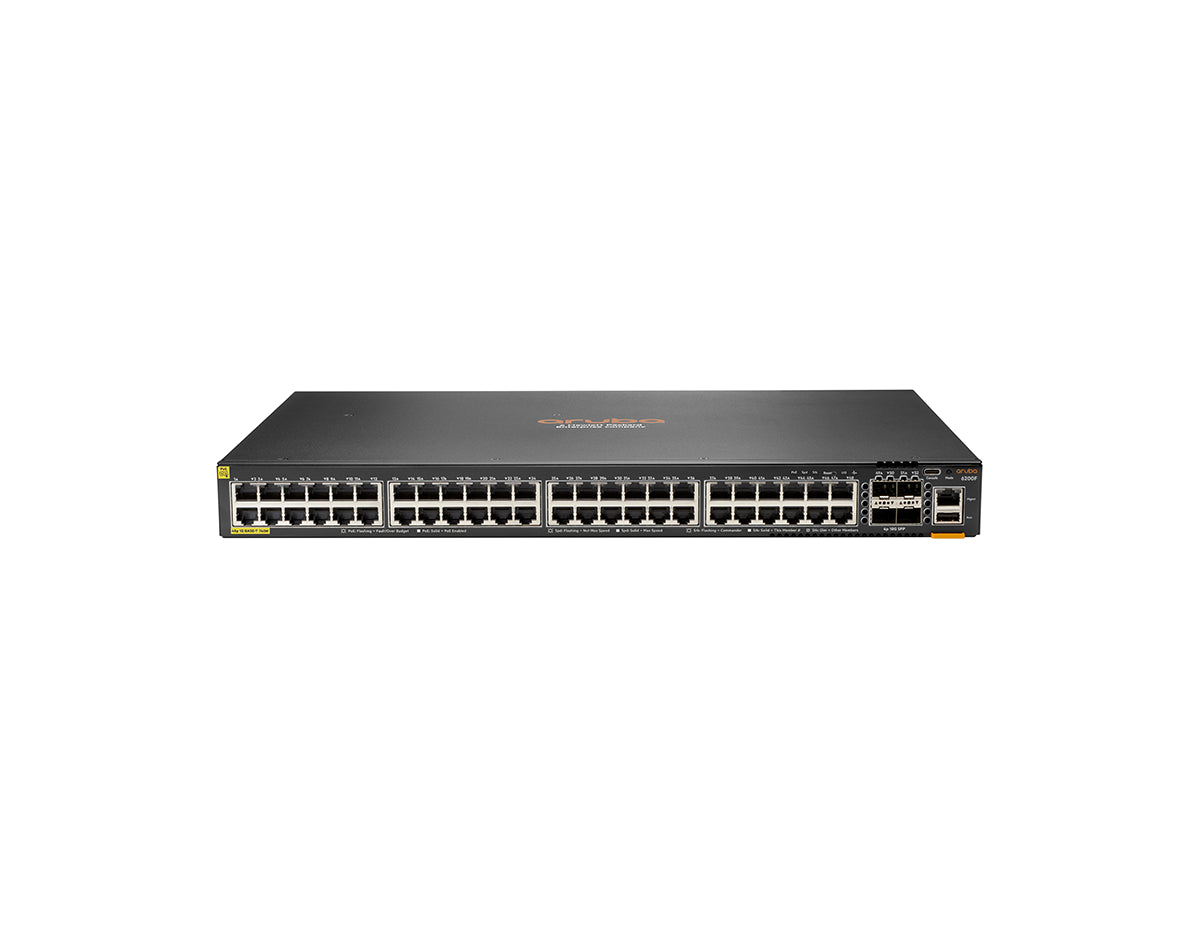

HPE Aruba 6200F 48G Class4 PoE 4SFP+ 740W Switch (JL728A)
The CX 6200 series is fully adaptable and provides a range of management options, including cloud-based and on-premises Central, CLI, and REST APIs. HPE Aruba 6200F 48G Class4 PoE 4SFP+ 740W Switch (JL728A) offers incredible performance with 48x ports 10/100/1000BaseT PoE+ ports supporting up to 30W per port. Designed for simplicity, reliability, and fortified security, the Aruba 6200 48G switch facilitates PoE (Power over Ethernet) capabilities, adhering to IEEE standards 802.3af and 802.3at, with a total PoE power budget of 370W, ideal for supporting various IoT devices without the need for additional power supplies.
Key Features:
- Up to 740W of Class 4 PoE
- Aruba Virtual Switching Framework (VSF)
- Aruba Dynamic Segmentation
For detailed specifications, click on the Aruba JL728A datasheet in the tabs above.
Accessories
| Accessories | |
| JL669B | • Aruba X751 Port to Power Fan Tray |
| J9583A | • HPE X410 1U Universal 4-post Rack Mount Kit |
| J9583B | • Aruba X414 1U Universal 4-post Rack Mounting Kit |
| R9G48A | • Aruba USB-A to RJ45 PC-to-Switch Cable |
| R8Q73A | • Aruba 6200F 12-port Cable Guard |
| R8Z87A | • Aruba USB-A to RJ45 PIN3TX-6RX Cable |
| R9J32A | • Aruba USB-A to USB-C PC-to-Switch Cable |
| R9J33A | • Aruba USB-C to USB-C PC-to-Switch Cable |
| JL448A | • Aruba X2C2 RJ45 to DB9 Console Cable |
| S1H23A | • HPE Aruba Networking CX Switch Bluetooth Adapter |
| Cables | |
| J9281D | • Aruba 10G SFP+ to SFP+ 1m Direct Attach Copper Cable |
| J9283D | • Aruba 10G SFP+ to SFP+ 3m Direct Attach Copper Cable |
| Transceivers | |
| J4858D | • Aruba 1G SFP LC SX 500m MMF Transceiver |
| J4859D | • Aruba 1G SFP LC LX 10km SMF Transceiver |
| J4860D | • Aruba 1G SFP LC LH 70km SMF Transceiver |
| J8177D | • Aruba 1G SFP RJ45 T 100m Cat5e Transceiver |
| J9150D | • Aruba 10G SFP+ LC SR 300m MMF Transceiver |
| J9151E | • Aruba 10G SFP+ LC LR 10km SMF Transceiver |
| J9153D | • Aruba 10G SFP+ LC ER 40km SMF Transceiver |
| JL563B | • Aruba 10GBASE-T SFP+ RJ-45 30m Cat6A Transceiver |
| J9152D | • Aruba 10G SFP+ LC LRM 220m MMF Transceiver |
| R9X54A | • Aruba 10G LC BiDi 40km-D 1330/1270 XCVR |
| R9X55A | • Aruba 10G LC BiDi 40km-U 1270/1330 XCVR |
Specifications
| Specifications | 6200F 48G Class4 PoE 4SFP+ 740W Switch (JL728A) |
| CPU | Quad Core ARM Cortex™ A72 @ 1.8 GHz |
| Memory and Flash | 8 GB DDR4 16 GB eMMC |
| Packet Buffer | 8 MB Packet Buffer Memory |
| Model Switching Capacity | 176 Gbps |
| Model Throughput Capacity | Up to 130.9 Mpps |
| Average Latency (LIFO-64-bytes packets) | 1 Gbps: 2.28 μSec 10 Gbps: 1.46 μSec |
| Switched Virtual Interfaces (dual stack) | 128 |
| IPv4 Host Table (ARP) | 8,192 |
| IPv6 Host Table (ND) | 8,192 |
| IPv4 Unicast Routes | 2,048 |
| IPv6 Unicast Routes | 1,024 |
| MAC Table Capacity | 16000 |
| IGMP Groups | 1,024 |
| MLD Groups | 1,024 |
| IPv4/IPv6/MAC ACL Entries (ingress) | 5,120/1,280/5,120 |
| Stack Size | 8 members |
| Max. Stacking Distance | Up to 10 kms with long range transceivers |
| Operating Temperature |
32°F to 113°F (0°C to 45°C) up to 5,000 ft derate -1°C for every 1,000 ft from 5,000 ft to 10,000 ft.
|
| Acoustic |
Sound Power, LWAd= 5.3 Bel Sound Pressure, LpAm(Bystander) = 37.1 dB
|
| Primary Airflow | Front and side to back |
| Safety | US: UL 60950-1 2nd Ed. |
| Emissions | US: FCC 47 CFR part 15B, Class A |
| Lasers |
EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only)
|
| Immunity |
EN 55035:2017 IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-8 IEC 61000-4-11 EN 61000-3-2, IEC 61000-3-2 EN 61000-3-3, IEC 61000-3-3 |
Properties
| Properties | 6200F 48G Class4 PoE 4SFP+ 740W Switch (JL728A) |
| Description | 48x ports 10/100/1000BASE-T Class 4 PoE Ports, supporting up to 30W per port 4x 1/10G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x OOBM 1x USB Type-A Host port 1x Bluetooth dongle to be used with Aruba CX Mobile App |
| Product Family | CX6200 Series |
| Product Type | Ethernet Switch |
| Ports and Slots | 24x 10/100/1000BASE-T Class 4 PoE ports 4x 1/10G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x OOBM 1x USB Type-A Host port 1x Bluetooth Adapter to be used with Aruba CX Mobile App |
| Power supplies |
Fixed power supply (950W) Up to 740W of Class 4 PoE Power
|
| Frequency | 50/60 Hz |
| Voltage | 100-127 VAC / 200-240 VAC |
| Current | 11A/6A |
| Power Consumption (230 VAC) | Hibernation (0 rpm fan): 12W Idle: 62W 100% Traffic Rate: 76W |
| Fans | Fixed fans |
| Dimensions | 1.73” x 17.4” x 12.9” |
| Weight | 5.10 kg (11.24 lbs) |
| Mounting and enclosure |
Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included.
|
