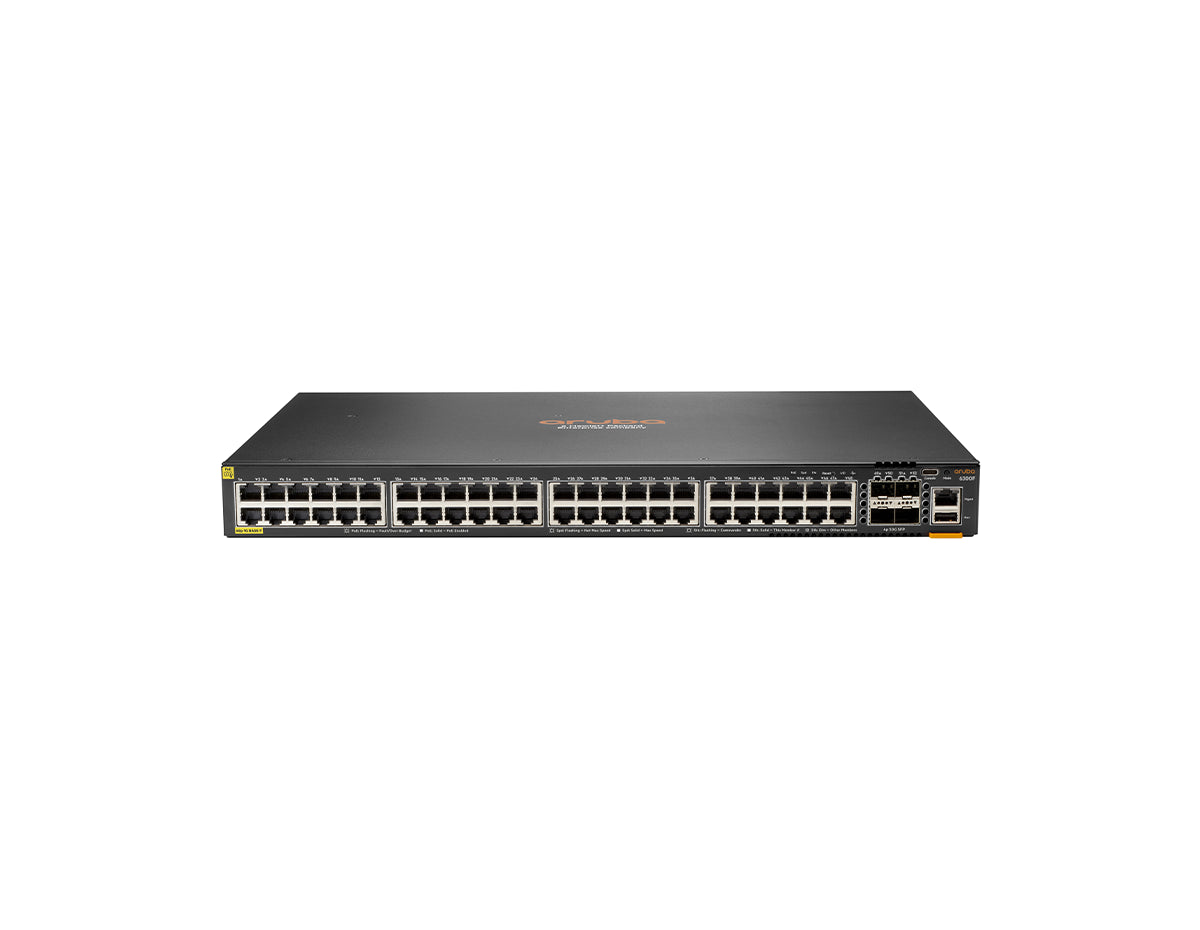

HPE ARUBA NETWORKING CX 6200F 48G CLASS‑4 POE 4SFP+ 370W SWITCH (JL727B)
| Model: | JL727B | ||
| Detail: |
| ||
| Condition: | Brand New Sealed | ||
| Availability: | IN STOCK | ||
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. | ||
| Tax: | $0.00 Tax Outside NJ and TX | ||
| Quantity: |
Description
HPE Aruba Networking CX 6200F 48G Class‑4 PoE 4SFP+ 370W Switch (JL727B)
The HPE Aruba JL727B is a member of the Aruba CX6200 series. The Aruba CX 6200 Switch Series is equipped with Aruba Gen7 ASICs and uses a fully distributed architecture. This results in very low latency, increased packet buffering, and adaptive power consumption. With wire-speed switching and routing, it can easily manage bandwidth-intensive applications. Additionally, the Aruba VSF allows for high-performance front-plane stacking, enabling you to expand your network quickly. This product is equipped with 48x 10/100/1000BASE-T Class 4 PoE ports, 4 x 100M/1G/10G SFP+ ports, and 8GB DDR4 RAM.
Quick Specs:
- 48x 10/100/1000 Base-T Class 4 PoE ports
- 4x 100M/1/10G SFP+ uplink ports
- 8GB DDR4 RAM
- 16GB eMMC
Please see the related tabs for the JL727B datasheet and compatible accessories.
Accessories
| HPE Aruba Networking CX6200 Switch Series Accessories |
|
| Power supplies | • HPE Aruba Networking X371 12VDC 250W 100–240VAC Power Supply (JL085A) • HPE Aruba Networking X372 54VDC 680W 100–240VAC Power Supply (JL086A) • HPE Aruba Networking X372 54VDC 1050W 110–240VAC Power Supply (JL087A) |
| Cables | • HPE Aruba Networking 10G SFP+ to SFP+ 1m Direct Attach Copper Cable (J9281D) • HPE Aruba Networking 10G SFP+ to SFP+ 3m Direct Attach Copper Cable (J9283D) |
| Accessories | • HPE Aruba Networking X751 Port to Power Fan Tray (JL669B) • HPE X410 1U Universal 4-post Rack Mount Kit (J9583A) • HPE Aruba Networking X414 1U Universal 4-post Rack Mounting Kit (J9583B) • HPE Aruba Networking 6200F 12-port Cable Guard (R8Q73A) • HPE Aruba Networking USB-A to RJ45 PC-to-Switch Cable (R9G48B) • HPE Aruba Networking USB-A to RJ45 PIN3TX-6RX Cable (R8Z87A) • HPE Aruba Networking USB-A to USB-C PC-to-Switch Cable (R9J32A) • HPE Aruba Networking USB-C to USB-C PC-to-Switch Cable (R9J33A) • HPE Aruba Networking X2C2 RJ45 to DB9 Console Cable (JL448A) • HPE Aruba Networking CX Switch Bluetooth Adapter (S1H23A) |
| Transceivers | • HPE Aruba Networking 1G SFP LC SX 500m MMF Transceiver (J4858D) • HPE Aruba Networking 1G SFP LC LX 10km SMF Transceiver (J4859D) • HPE Aruba Networking 1G SFP LC LH 70km SMF Transceiver (J4860D) • HPE Aruba Networking 1G SFP RJ45 T 100m Cat5e Transceiver (J8177D) • HPE Aruba Networking 10G SFP+ LC SR 300m MMF Transceiver (J9150D) Data sheet Page 31 • HPE Aruba Networking 10G SFP+ LC LR 10km SMF Transceiver (J9151E) • HPE Aruba Networking 10G SFP+ LC ER 40km SMF Transceiver (J9153D) • HPE Aruba Networking 10GBASE-T SFP+ RJ-45 30m Cat6A Transceiver (JL563B) • HPE Aruba Networking 10G SFP+ LC LRM 220m MMF Transceiver (J9152D)1 • HPE Aruba Networking 10G LC BiDi 40km-D 1330/1270 XCVR (R9X54A) • HPE Aruba Networking 10G LC BiDi 40km-U 1270/1330 XCVR (R9X55A) |
| Software | • HPE Aruba Networking CX Mobile App arubanetworks. com/products/ networking/switches/cx-mobileapp/ • HPE Aruba Networking NetEdit Single Node: 1 year (JL639AAE) • HPE Aruba Networking NetEdit Single Node: 3 years (JL640AAE) |
| HPE Aruba Networking Central Foundational licenses |
HPE Aruba Networking Central Switch 6200/29xx Foundation 1-Year Subscription E-STU (Q9Y73AAE) • HPE Aruba Networking Central Switch 6200/29xx Foundation 3-Year Subscription E-STU (Q9Y74AAE) • HPE Aruba Networking Central Switch 6200/29xx Foundation 5-Year Subscription E-STU (Q9Y75AAE) • HPE Aruba Networking Central Switch 6200/29xx Foundation 7-Year Subscription E-STU (Q9Y76AAE) • HPE Aruba Networking Central Switch 6200/29xx Foundation 10-Year Subscription E-STU (Q9Y77AAE) • HPE Aruba Networking Central On-Premises 62xx or 29xx Switch Foundation 1-Year Subscription E-STU (R6U78AAE) • HPE Aruba Networking Central On-Premises 62xx or 29xx Switch Foundation 3-Year Subscription E-STU (R6U79AAE) • HPE Aruba Networking Central On-Premises 62xx or 29xx Switch Foundation 5-Year Subscription E-STU (R6U80AAE) • HPE Aruba Networking Central On-Premises 62xx or 29xx Switch Foundation 7-Year Subscription E-STU (R6U81AAE) • HPE Aruba Networking Central On-Premises 62xx or 29xx Switch Foundation 10-Year Subscription E-STU (R6U82AAE) • HPE Aruba Networking Central 25xx/6100/8 to 12 port Switch Foundation 1-Year Subscription E-STU (Q9Y68AAE) • HPE Aruba Networking Central 25xx/6100/8 to 12 port Switch Foundation 3-Year Subscription E-STU (Q9Y69AAE) • HPE Aruba Networking Central 25xx/6100/8 to 12 port Switch Foundation 5-Year Subscription E-STU (Q9Y70AAE) • HPE Aruba Networking Central 25xx/6100/8 to 12 port Switch Foundation 7-Year Subscription E-STU (Q9Y71AAE) • HPE Aruba Networking Central 25xx/6100/8 to 12 port Switch Foundation 10-Year Subscription E-STU (Q9Y72AAE) • HPE Aruba Networking Central On-Premises 25xx/6100/8 to 12 port Switch Foundation 1-Year Subscription E-STU (R6U73AAE) • HPE Aruba Networking Central On-Premises 25xx/6100/8 to 12 port Switch Foundation 3-Year Subscription E-STU (R6U74AAE) • HPE Aruba Networking Central On-Premises 25xx/6100/8 to 12 port Switch Foundation 5-Year Subscription E-STU (R6U75AAE) • HPE Aruba Networking Central On-Premises 25xx/6100/8 to 12 port Switch Foundation 7-Year Subscription E-STU (R6U76AAE) • HPE Aruba Networking Central On-Premises 25xx/6100/8 to 12 port Switch Foundation 10-Year Subscription E-STU (R6U77AAE) |
| Support | • JL724A: 4 Hour Onsite 3 Year (HR0J5E) • JL725A: 4 Hour Onsite 3 Year (HR0X6E) • JL726A: 4 Hour Onsite 3 Year (HR0J5E) • JL727A: 4 Hour Onsite 3 Year (HL2D2E) • JL728A: 4 Hour Onsite 3 Year (HL2M7E) |
| Standards and protocols | • ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED) • SNMP RFC3411-3418 • IEEE 802.1AE MACsec • CPU DoS Protection • VPNdraft-ietf-savi-mix • IEEE 802.1AB-2005 • IEEE 802.1ak-2007 • IEEE 802.1AX-2008 Link Aggregation • IEEE 802.1D MAC Bridges • IEEE 802.1p Priority • IEEE 802.1Q VLANs • IEEE 802.1s Multiple Spanning Trees • IEEE 802.1t-2001 • IEEE 802.1v VLAN classification by Protocol and Port • IEEE 802.1w Rapid Reconfiguration of Spanning Tree • IEEE 802.3ab 1000BASE-T • IEEE 802.3ad Link Aggregation Control Protocol (LACP) • IEEE 802.3ae 10-Gigabit Ethernet • IEEE 802.3af Power over Ethernet • IEEE 802.3at Power over Ethernet • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3bz 2.5 Gbps and 5 Gbps interfaces • IEEE 802.3x Flow Control • IEEE 802.3z 1000BASE-X • RFC 1122 Requirements for Internet Hosts-Communications Layers • RFC 1215 Convention for defining traps for use with the SNMP • RFC 1256 ICMP Router Discovery Messages • RFC 1350 TFTP Protocol (revision 2) • RFC 1393 Traceroute Using an IP Option • RFC 1519 CIDR • RFC 1542 BOOTP Extensions • RFC 1583 OSPF Version 2 • RFC 1591 Domain Name System Structure and Delegation • RFC 1812 Requirements for IP Version 4 Router • RFC 1918 Address Allocation for Private Internet • RFC 2236 IGMP • RFC 2328 OSPF Version 2 • RFC 2375 IPv6 Multicast Address Assignments • RFC 2401 Security Architecture for the Internet Protocol • RFC 2402 IP Authentication Header • RFC 2460 Internet Protocol, Version 6 (IPv6) Specification • RFC 2461 Neighbor Discovery for IPv6 • RFC 2462 IPv6 Stateless Address Autoconfiguration • RFC 2463 ICMPv6 for IPv6 • RFC 2464 Transmission of IPv6 over Ethernet Networks • RFC 2576 (Coexistence between SNMP V1, V2, V3) • RFC 2579 (SMIv2 Text Conventions) • RFC 2580 (SMIv2 Conformance) • RFC 2710 Multicast Listener Discovery (MLD) for IPv6 • RFC 2711 IPv6 Router Alert Option • RFC 2925 Definitions of Managed Objects for Remote Ping, Traceroute, and Lookup Operations (Ping only) • RFC 2934 Protocol Independent Multicast MIB for IPv4 • RFC 3019 MLDv1 MIB • RFC 3056 Connection of IPv6 Domains via IPv4 Clouds • RFC 3137 OSPF Stub Router Advertisement sFlow • RFC 3376 IGMPv3 • RFC 3416 (SNMP Protocol Operations v2) • RFC 3417 (SNMP Transport Mappings) • RFC 3418 Management Information Base (MIB) for the Simple Network Management Protocol (SNMP) • RFC 3484 Default Address Selection for IPv6 • RFC 3509 Alternative Implementations of OSPF Area Border Routers • RFC 3575 IANA Considerations for RADIUS • RFC 3596 DNS Extensions to Support IPv6 • RFC 3623 Graceful OSPF Restart • RFC 3810 Multicast Listener Discovery Version 2 (MLDv2) for IPv6 Data sheet Page 29 • RFC 4022 MIB for TCP • RFC 4113 MIB for UDP • RFC 4213 Basic Transition Mechanisms for IPv6 Hosts and Routers • RFC 4251 The Secure Shell (SSH) Protocol • RFC 4252 SSHv6 Authentication • RFC 4253 SSHv6 Transport Layer • RFC 4254 SSHv6 Connection • RFC 4291 IP Version 6 Addressing Architecture • RFC 4292 IP Forwarding Table MIB • RFC 4293 Management Information Base for the Internet Protocol (IP) • RFC 4419 Key Exchange for SSH • RFC 4443 ICMPv6 • RFC 4541 IGMP & MLD Snooping Switch • RFC 4552 Authentication/Confidentiality for OSPFv3 • RFC 4601 PIM Sparse Mode • RFC 4607 Source-Specific Multicast for IP • RFC 4675 RADIUS VLAN & Priority • RFC 4861 IPv6 Neighbor Discovery • RFC 4862 IPv6 Stateless Address Auto-configuration • RFC 4940 IANA Considerations for OSPF • RFC 5095 Deprecation of Type 0 Routing Headers in IPv6 • RFC 5187 OSPFv3 Graceful Restart • RFC 5340 OSPFv3 for IPv6 • RFC 5424 Syslog Protocol • RFC 5798 VRRP (exclude Accept Mode and sub-sec timer) • RFC 3768 VRRP • RFC 5519 Multicast Group Membership Discovery MIB (MLDv2 only) • RFC 5722 Handling of Overlapping IPv6 Fragments • RFC 5905 Network Time Protocol Version 4: Protocol and Algorithms Specification • RFC 6620 FCFS SAVI • RFC 6987 OSPF Stub Router Advertisement • RFC 7047 The Open vSwitch Database Management Protocol • RFC 768 User Datagram Protocol • RFC 783 TFTP Protocol (revision 2) • RFC 791 IP • RFC 792 ICMP • RFC 793 TCP • RFC 813 Window and Acknowledgement Strategy in TCP • RFC 815 IP datagram reassembly algorithms • RFC 8201 Path MTU Discovery for IP version 6 • RFC 826 ARP • RFC 879 TCP maximum segment size and related topics • RFC 896 Congestion control in IP/TCP internetworks • RFC 917 Internet subnets • RFC 919 Broadcasting Internet Datagrams • RFC 922 Broadcasting Internet Datagrams in the Presence of Subnets (IP_BROAD) • RFC 925 Multi-LAN address resolution • RFC 951 BOOTP • RFC 1027 Proxy ARP • SNMPv1/v2c/v3 • RFC 4861 IPv6 Neighbor Discovery • RFC 4862 IPv6 Stateless Address Auto-configuration • RFC 1757 Remote Network Monitoring Management Information Base • RFC 3101 OSPF Not-so-stubby-area option • RFC 4750 OSPFv2 MIB partial support no SetMIB |
Specifications
| Specifications | JL727B |
| Description | 48x ports 10/100/1000BASE-T Class 4 PoE Ports, supporting up to 30W per port 4x 1/10G SFP ports; PHY-less Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x OOBM 1x USB Type-A Host port 1x RJ-45 Console Port |
| Power supplies | Fixed power supply Up to 370W of Class 4 PoE Power |
| Fans | Fixed fans |
| Dimensions | (H) 4.37 cm x (W) 44.25 cm x (D) 30.43 cm (1.72” x 17.42” x 11.98”) |
| Configuration weight | 4.87 kg (10.74 lbs) |
| CPU | Quad Core ARM Cortex™ A72 @ 1.8 GHz |
| Memory and flash | 8 GB DDR4 16 GB eMMC |
| Packet buffer | 8 MB (6 MB + 2 MB) |
| Model switching capacity | 176 Gbps |
| Model throughput capacity | Up to 130.9Mpps |
| Average latency (LIFO-64- bytes packets) | 1 Gbps: 3.3μSec 10 Gbps: 2.3μSec |
| Stack size | 8 members (with other 24/48p 6200F and 6200M switches only) |
| Max. stacking distance | Up to 10 kms with long range transceivers |
| Stacking bandwidth | Up to 40Gbps |
| Switched virtual interfaces (dual stack) |
256 |
| IPv4 host table (ARP) | 8,192 |
| IPv6 host table (ND) | 8,192 |
| IPv4 unicast routes | 2,048 |
| IPv6 unicast routes | 1,024 |
| MAC table capacity | 32,768 |
| IGMP groups | 1,024 |
| MLD groups | 1,024 |
| IPv4/IPv6/MAC ACL entries (ingress) | 5,120/1,280/5,120 |
| IPv4/IPv6/MAC ACL entries (egress) | 2,048/512/2,048 |
| Operating temperature | 32°F to 113°F (0°C to 45°C) up to 5,000 ft; derate 1°C for every 1,000 ft from 5,000 ft to 10,000 ft. |
| Operating relative humidity | 5% to 95% @ 104°F (40°C) non-condensing |
| Non-operating | (-40°F to 158°F) (-40°C to 70°C) up to 15,000 ft |
| Non-operating storage relative humidity |
5% to 95% @ 149°F (65°C) non-condensing |
| Max operating altitude | 10,000 feet (3.048 km) Max |
| Max non-operating altitude | 15,000 feet (4.6 km) Max |
| Acoustic | Sound Power, LWAd = 5.2 Bel Sound Pressure, LpAm (Bystander) = 36.8 dB |
| Primary airflow | Front and side to back |
| Frequency | 50Hz/60Hz |
| AC voltage | 100V–127V/200V–240V, rated |
| Current (for voltages listed above) | 5.2A/2.6A |
| 80plus.org certification | (-) |
| Maximum heat dissipation BTU/hr and kj/hr |
194 BTU/hr 205 kj/hr |
| Power consumption (230VAC) |
Idle: 38W 100% Traffic Rate: 57W |
| Safety | Europe: EN 62368-1:2014 +A11:2017 EN 62368-1:2020 +A11:2020 UK: BS EN 62368-1:2014 + A11:2017 2nd Ed BS EN 62368-1:2020 + A11:2020 3rd Ed US: UL 62368-1, 3rd Ed., Canada: CAN/CSA C22.2 No. 62368- 1:19, 3rd Ed. Worldwide: IEC 62368-1:2014 2nd Ed. IEC 62368-1: 2018 3rd Ed. Taiwan: CNS-15598-1:2020 China: GB 4943.1:2022 |
| Emissions | Europe: EN 55032:2015 +A11:2020, Class A EN 61000-3-2:2019 EN 61000-3-3:2013 US: FCC 47 CFR part 15B: Class A Canada: ICES-003 Issue 7: 2020, Class A Worldwide: VCCI-CISPR 32, Class A CISPR 32: 2016, Class A AS/NZS CISPR 32: 2015, Class A GB/T 9254.1-2021, Class A CNS 15936: 2020, Class A KS C 9832 |
| Lasers | EN 60825-1:2007 IEC 60825-1:2007 Class 1 Class 1 Laser Products/Laser Klasse 1 (Applicable for accessories—Optical Transceivers only) |
| Immunity | |
| Generic | CISPR 35: 2016 |
| EN | EN 55035:2017 +A11:2020 |
| ESD | IEC 61000-4-2 |
| Radiated | IEC 61000-4-3 |
| EFT/Burst | IEC 61000-4-4 |
| Surge | IEC 61000-4-5 |
| Conducted | IEC 61000-4-6 |
| Power frequency magnetic field | IEC 61000-4-8 |
| Voltage dips and interruptions | IEC 61000-4-11 |
| Harmonics | IEC 61000-3-2, EN 61000-3-2 |
| Flicker | IEC 61000-3-3, EN 61000-3-3 |
| RoHs | EN 63000:2018/IEC 63000:2018 |
| Mounting and enclosure | Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included. |
Properties
| Properties | JL727B |
| Description | HPE Aruba Networking CX 6200F 48G Class 4 PoE 4SFP+ 370W Switch |
| Product Family | HPE Aruba Networking CX6200 Switch Series |
| Product Type | Switch |
| Key Benefits of the Product Family | • Enterprise-class connectivity with support for ACLs, robust QoS and common protocols such as static and Access OSPF routing • Scalability with 8-member switch VSF stacking for up to 384 downlink ports • Versatile 1G/10G uplinks with LRM and MACsec 256 support on modular switches • Convenient built-in 1G/10G uplinks on fixed power switches and additional cost-efficient 1G uplink switch models • Industry standard Power over Ethernet with up to 30W PoE (Class 4) per port on fixed power switches and up to 60W PoE (Class 6) per port on modular power switches • Intelligent monitoring, visibility, and troubleshooting with HPE Aruba Networking Network Analytics Engine • Manage via single pane of glass with HPE Aruba Networking Central across wired, wireless, and WAN • Simple, one touch deployment with the HPE Aruba Networking CX Mobile App • Automated configuration and verification with HPE Aruba Networking Switch Multi-Edit Software • Secure and simple access for users and IoT with HPE Aruba Networking Dynamic Segmentation |
