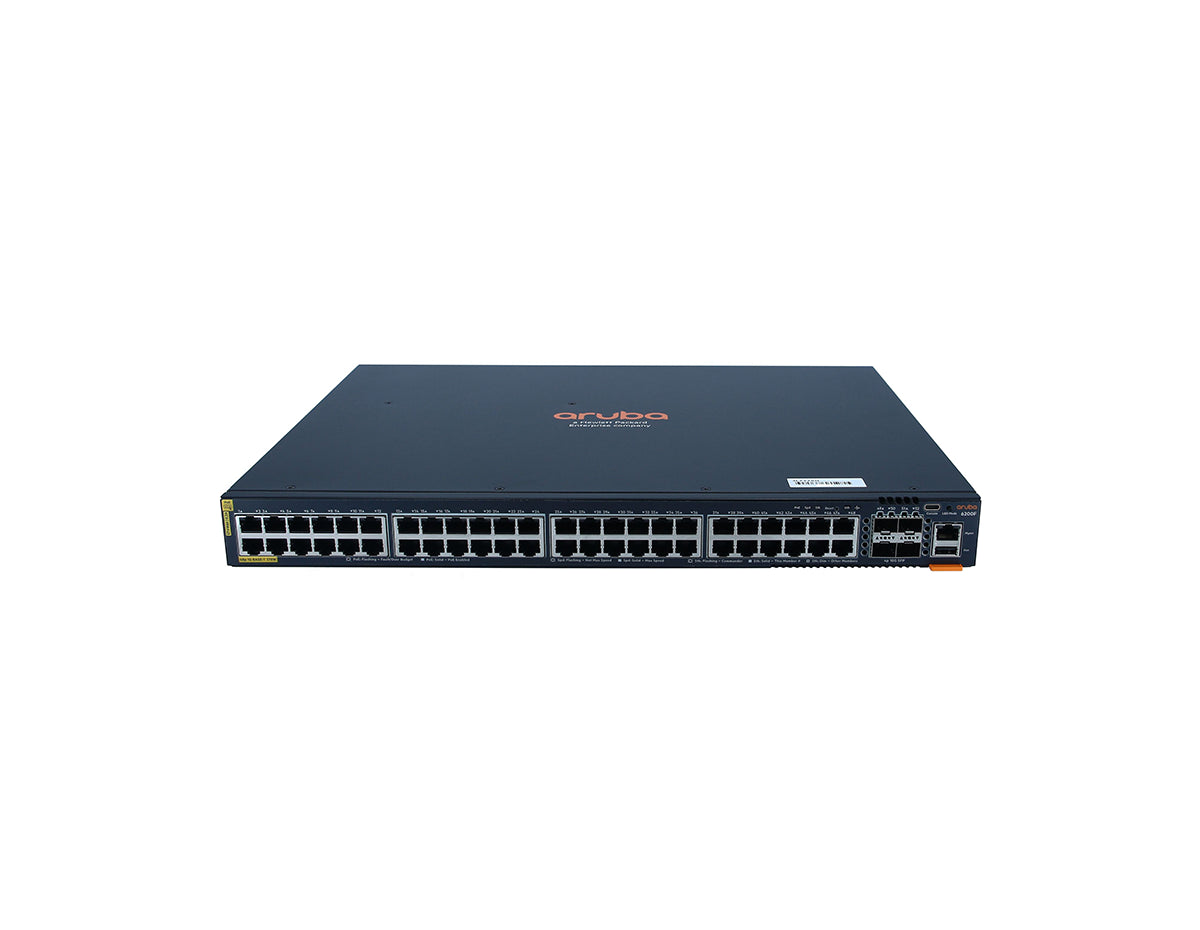

HPE Aruba Networking JL727A 6200F 48G Class4 PoE 4SFP+ 370W Switch



HPE Aruba 6200F 48G Class4 PoE 4SFP+ 370W Switch (JL727A)

The HPE Aruba 6200F 48G Class4 PoE 4SFP+ 370W Switch (JL727A) is an ideal choice for businesses looking for reliable, high-performance network solutions. With 48 Gigabit Ethernet ports and 4 SFP+ uplink ports, this switch provides seamless connectivity and high-speed data transfers. The 370W PoE budget allows for the powering of various devices, including IP cameras, access points, and VoIP phones, making it a great solution for edge networking.

Key Features:

• 48 x 1GbE Class 4 PoE Ports: Supports up to 30W per port, delivering sufficient power to connected devices like IP phones and wireless access points.
• 4 x SFP+ Uplink Ports: Offers up to 10Gbps uplink speeds, ensuring reliable connectivity to the network core or other switches.
• 370W PoE Power Budget: Provides ample power for multiple PoE-enabled devices, reducing the need for external power supplies.
• Layer 2+ Features: Includes VLANs, link aggregation, and QoS for advanced traffic management and network segmentation.
• Cloud-Based Management: Managed through Aruba Central or local CLI, allowing easy setup and monitoring from anywhere.

Technical Overview:

• Recommended for: Small to medium-sized businesses, branch offices, and retail environments.
• Ports: 48 x 1GbE PoE ports, 4 x 1G/10G SFP+ uplink ports.
• Switching Capacity: 176 Gbps.
• Forwarding Rate: 130.9 Mpps.
• PoE Power Budget: 370W to power connected PoE devices.
• Layer 2+ Features: Supports VLANs, link aggregation, and QoS for efficient traffic control.
• Management: Managed via Aruba Central, CLI, and web-based GUI.
• Energy Efficiency: Compliant with IEEE 802.3az standards for reduced power consumption.

You can check the related tab for the JL727A datasheet.

Properties	JL727A
Description	48x ports 10/100/1000BASE-T Class 4 PoE Ports, supporting up to 30W per port   4x 1/10GbE SFP+ uplink ports   Supports PoE Standards IEEE 802.3af, 802.3at   1x USB-C Console Port 1x OOBM 1x USB Type-A Host port 1x Bluetooth adapter (for Aruba CX Mobile App)
Product Family	HPE Aruba Networking CX 6200 Switch Series
Product Type	Switch

Specifications
Power supplies	Fixed power supply Up to 370W of Class 4 PoE power
Fans	Fixed fans
Physical characteristics
Dimensions	4.39 x 44.2 cm x 32.7 cm (1.73 x 17.4 x 12.9 in)
Weight	5.05 kg (11.13 lbs)
CPU	Quad Core ARM Cortex™ A72 @ 1.8 GHz
Memory and Flash	8 GB DDR4 16 GB eMMC
Packet buffer	8 MB packet buffer memory
Performance
Model switching capacity	176 Gbps
Model throughput capacity	Up to 130.9 Mpps
Average latency (LIFO-64-bytes packets)	1 Gbps: 2.28 μSec 10 Gbps: 1.46 μSec
Stack size	Up to 8 members (via 10GbE SFP+ ports)
Max. stacking distance	Up to 10 kms with long range transceivers
Switched virtual interfaces (dual stack)	128
IPv4 host table (ARP)	8,192
IPv6 host table (ND)	8,192
IPv4 unicast routes	2,048
IPv6 unicast routes	1,024
MAC table capacity	32,768
IGMP groups	1,024
Environment
Operating temperature	32°F to 113°F (0°C to 45°C) up to 5,000 ft - derate -1°C for every 1,000 ft from 5,000 to 10,000 ft
Operating relative humidity	15% to 95% @ 104°F (40°C) non-condensing
Non-operating temperature	-40°F to 158°F (-40°C to 70°C) up to 15,000 ft
Non-operating relative humidity	15% to 90% @ 149°F (65°C) non-condensing
Max operating altitude	Up to 10,000ft (3.048 Km)
Max non-operating altitude	Up to 15,000 ft (4.6 km)
Acoustics	Sound power, LWAd = 4.9 Bel Sound pressure, LpAm (bystander) = 32.7 dB
Primary airflow	Front and side-to-back
Electrical characteristics
Frequency	50Hz/60Hz
AC voltage	100-120V/200-240V
Current	7.5A/3.5A
Maximum heat dissipation BTU/hr and kJ/hr info needed	260 BTU/hr (≈274 kJ/hr)
Power consumption (230 VAC)	Hibernation (0 rpm fan): 10W Idle: 60W 100% traffic rate: 76W
Safety	Europe: EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011 + A2:2013 EN 62368-1:2014 +A11:2017   US: UL 60950-1 2nd Ed.   Canada: CAN/CSA-C22.2 No. 60950-1-07   Worldwide: IEC 60950-1:2005 w/all known National Deviations IEC 62368-1:2014 2nd Ed.   Taiwan: CNS-14336-1
Emissions	Europe: EN 55032:2015 +AC:2016, Class A EN 55024:2010 EN 55035:2017 EN 61000-3-2:2014 EN 61000-3-3:2013   US: FCC 47 CFR part 15B, Class A   Canada: ICES-003 Class A   Worldwide: VCCI Class A CISPR 32 Ed 2.0: 2015 + COR1:2016, Class A CISPR 24:2010 CISPR 35:2016
Lasers	EN 60825-1:2007 / IEC 60825-1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only)
Immunity
Generic	CISPR 35
EN	EN 55035:2017
ESD	EN 61000-4-2
Radiated	EN 61000-4-3
EFT/Burst	EN 61000-4-4
Surge	EN 61000-4-5
Conducted	EN 61000-4-6
Power frequency magnetic field	IEC 61000-4-8
Voltage dips and interruptions	EN 61000-4-11
Harmonics	EN 61000-3-2, IEC 61000-3-2
Flicker	EN 61000-3-3, IEC 61000-3-3
Mounting and Enclosure	Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included.
