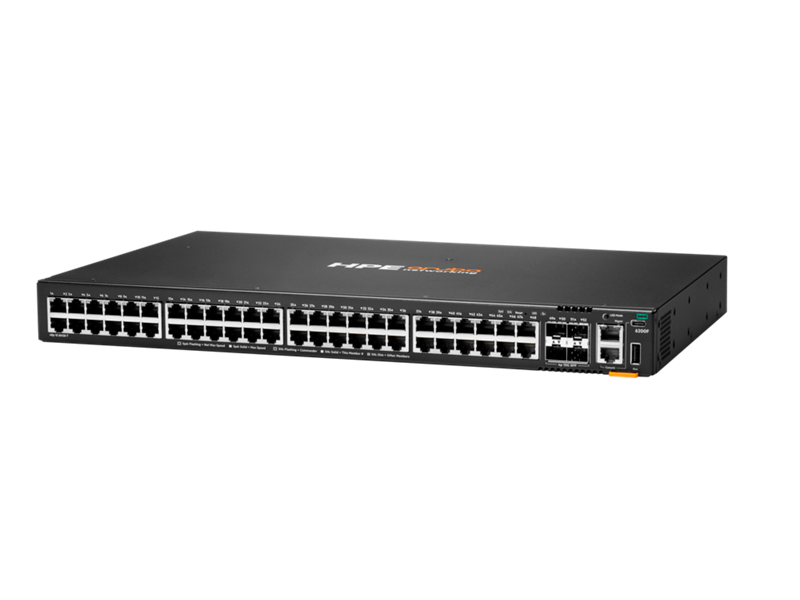

HPE Aruba Networking CX 6200F JL726B 48-Port Data Switch with 4x 100M/1G/10G SFP+
- Managed, Rack-mountable, 48 x 1G ports, 4 x 1G/10G SFP+ Uplinks, No PoE, Layer 2 with Static/OSPF Routing
Overview
The HPE Aruba Networking CX 6200 Switch Series is a family of stackable access switches for enterprise campus and branch wired access and SMB networks, built on the HPE Aruba Networking Gen7 ASIC and the HPE Aruba Networking CX Switch Operating System. The JL726B is the 48-port data-only model of the fixed CX 6200F line, ordered as the HPE Aruba Networking CX 6200F 48G 4SFP+ Switch; it has a fixed power supply and fixed fans, where the modular CX 6200M uses hot-swappable power supplies and field-replaceable fans. This B-suffix model provides both USB-C and RJ-45 console ports, and HPE's QuickSpecs list its SFP+ uplinks at 100M as well as 1G and 10G. Routing is Layer 2+ access routing (static and access OSPF), and the optional term-based CX Advanced Feature Pack, supported from CX-OS 10.18, unlocks visibility and advanced security use cases without adding routing.
Technical Details
The HPE Aruba Networking CX 6200F JL726B is a Layer 2+ managed 1U rackmount switch with 48 10/100/1000BASE-T ports and four fixed 100M/1G/10G SFP+ uplinks, running AOS-CX. Switching capacity is 176 Gbps and forwarding rate is 130.9 Mpps. It carries no Power over Ethernet, so all 48 access ports are data-only. It supports Virtual Switching Framework (VSF) stacking of up to 8 members with 40 Gbps stacking bandwidth. It connects desktops, printers and wired IoT devices at the campus or branch access layer.
Best For
The JL726B suits campus and branch wiring closets that connect self-powered endpoints such as desktops, printers and wired IoT devices and need managed Layer 2+ access with basic routed connectivity. Its four 100M/1G/10G SFP+ uplinks connect to the distribution layer, and VSF lets up to 8 CX 6200 switches be managed as one stack.
Not suitable if:
- you need to power wireless access points, IP phones or IP cameras, since this switch has no Power over Ethernet
- you need BGP or multi-area OSPF, since unicast routing on this switch is limited to static routes, RIP/RIPng and single-area OSPF
- you need uplinks faster than 10G, since the four SFP+ uplinks top out at 10G
- you need 2.5G or 5G multigigabit access ports, since the access ports are 10/100/1000BASE-T
- you need redundant or hot-swappable power supplies, since this switch has a fixed power supply
JL726B Specifications
| Class & Licensing | |
|---|---|
| License Tier | None (all base AOS-CX features included; optional term-based CX Advanced Feature Pack supported from CX-OS 10.18) |
| License Detail / MTBF | None (all base AOS-CX features included; optional term-based CX Advanced Feature Pack supported from CX-OS 10.18); MTBF not published |
| Ports & Uplinks | |
| Port Speed | Gigabit |
| Uplink Configuration | 4x 100M/1G/10G SFP+ (fixed) |
| Performance & Scale | |
| Stacking | Virtual Switching Framework (VSF) |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.9 Mpps |
| MAC Table | 32,768 entries |
| Stacking Bandwidth | 40 Gbps |
| Max Stack Members | 8 |
| Hardware & Memory | |
| DRAM | 8 GB DDR4 |
| ASIC | HPE Aruba Networking Gen7 ASIC |
| Flash | 16 GB eMMC |
| Power & Thermal | |
| Power Input / PSU | Fixed power supply; 100-120V/200-240V AC, 50/60 Hz |
| Redundant PSU | No (fixed power supply) |
| Cooling | Fixed fans |
| Physical & Environmental | |
| Dimensions (H x W x D) | 1.72 x 17.42 x 11.2 in (4.37 x 44.25 x 28.45 cm) |
| Weight | 8.59 lbs (3.90 kg) |
| Operating Temperature | 32 to 113 °F (0 to 45 °C) up to 5,000 ft; derate 1 °C for every 1,000 ft from 5,000 to 10,000 ft |
| Software | |
| Operating System | AOS-CX (HPE Aruba Networking CX Switch Operating System) |
FAQ
Does the HPE Aruba Networking CX 6200F JL726B support PoE?
No. The HPE Aruba Networking CX 6200F JL726B is a data-only switch: its 48 10/100/1000BASE-T access ports carry no Power over Ethernet, so it cannot power wireless access points, IP phones or IP cameras. The 48-port PoE+ models with the same B suffix are the HPE Aruba Networking CX 6200F 48G Class-4 PoE 4SFP+ 370W Switch (JL727B) and the 740 W JL728B.
What transceivers do the JL726B uplinks use?
The JL726B has four fixed SFP+ uplink ports that HPE's QuickSpecs list as 100M/1G/10G (the data sheet lists them as 1/10G), so they take 100M FX and 1G SFP optics, 10G SFP+ optics and 10G direct-attach cables; they do not support 25G optics. One footnote restricts this: HPE lists the 10G SFP+ LRM transceiver as natively supported only on the modular CX 6200M, not on the CX 6200F. Unsupported Transceiver Mode can enable non-HPE 1G and 10G optics, but HPE does not support the transceiver or cable when that mode is used. Transceivers are sold separately.
How many JL726B switches can you stack?
Up to 8. The JL726B supports Virtual Switching Framework (VSF) stacking of up to 8 members in a chain or ring with 40 Gbps stacking bandwidth, and the members are managed as a single chassis. HPE's data sheet limits the stack to other 24- and 48-port CX 6200F and CX 6200M switches, so the 12-port CX 6200F and other CX series cannot join it. Stacks can span up to 10 km with long-range transceivers.
What is the difference between the JL726B and the JL724B?
Both are data-only CX 6200F switches with 100M/1G/10G SFP+ uplinks, 40 Gbps VSF stacking and the same published dimensions (4.37 x 44.25 x 28.45 cm). The JL726B has 48 access ports with 176 Gbps switching and 130.9 Mpps forwarding and weighs 3.90 kg, while the JL724B has 24 ports with 128 Gbps and 95.2 Mpps and weighs 3.77 kg.
Does the JL726B need a license or subscription to operate?
No. The JL726B comes with the base AOS-CX feature set, including Layer 2 switching, VSF stacking and Layer 2+ routing with static routes, RIP/RIPng, single-area OSPFv2/OSPFv3 and ECMP. HPE lists an optional, term-based CX Advanced Feature Pack, supported from CX-OS 10.18, that unlocks visibility and advanced security use cases; application-based policy is one feature that requires it. The pack adds no routing capability and is not needed to operate the switch. HPE Aruba Central cloud or on-premises management is ordered separately as a subscription.
What condition is the JL726B sold in, and what warranty applies?
The JL726B is sold new and factory-sealed. It is covered by the Network Devices Inc. 1-year warranty and a 30-day return policy.
