HPE ARUBA 6200F 24G 4SFP+ SWITCH (JL724A)
| Model: | JL724A |
| Detail: |
|
| List Price: | |
| Price: | $975.00 |
| You Save: | $3,654.00 (79% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

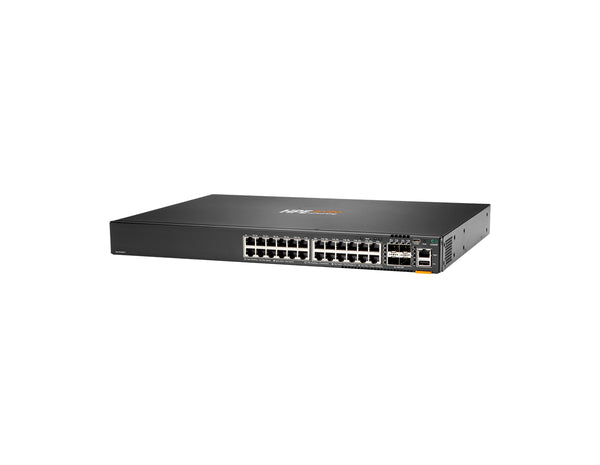

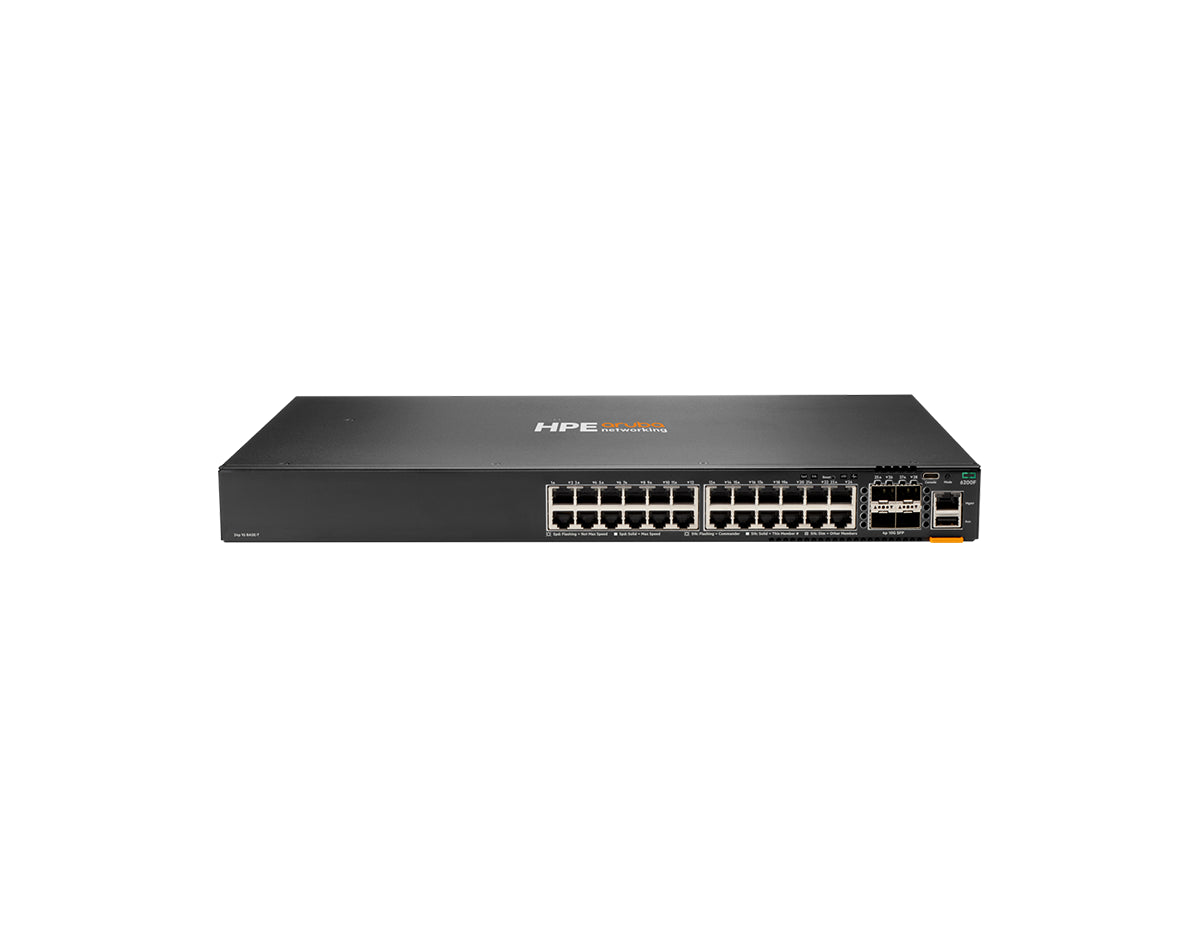

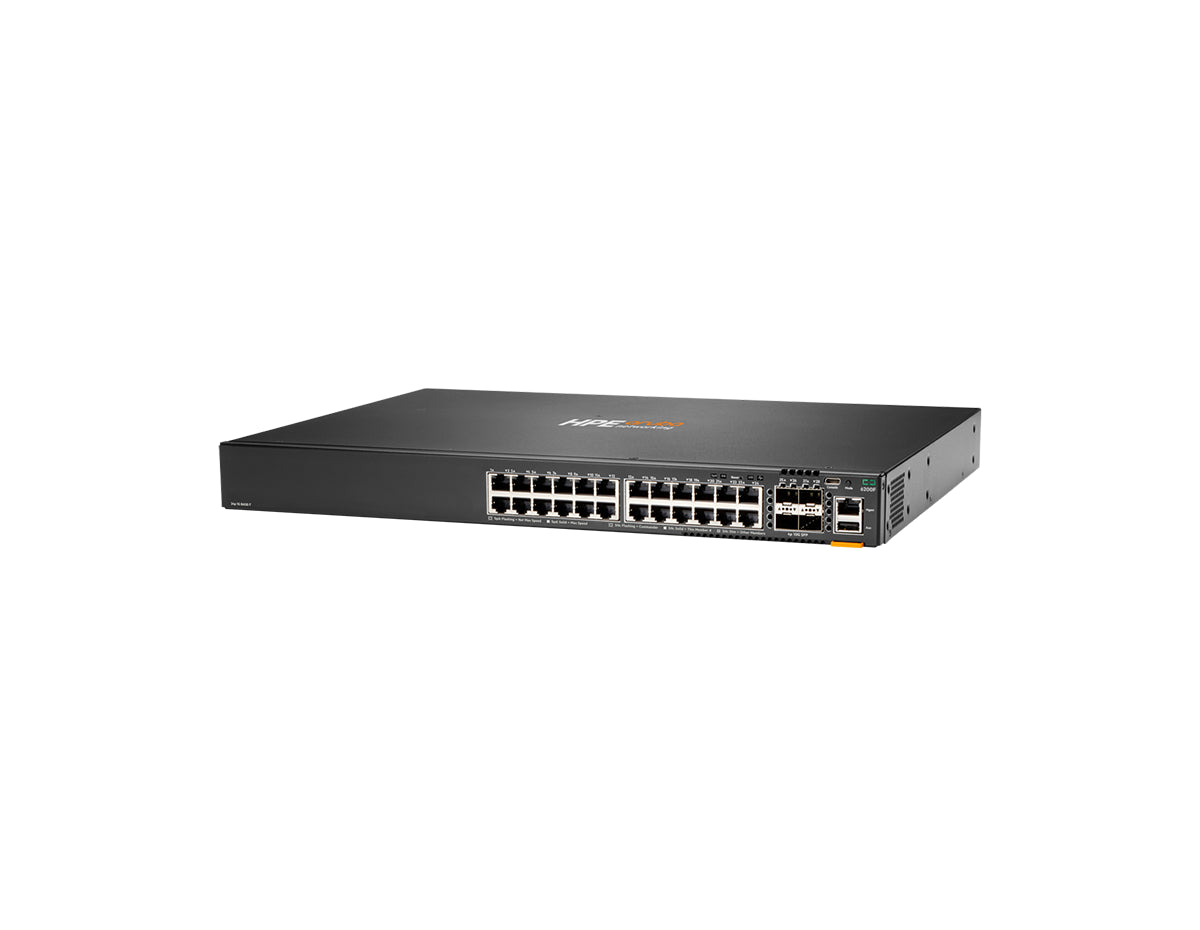

HPE Aruba 6200F 24G 4SFP+ Switch (JL724A)
The HPE Aruba 6200F 24G 4SFP+ Switch (JL724A) delivers reliable performance and advanced networking features ideal for small to medium-sized businesses. Equipped with 24 Gigabit Ethernet ports and 4 SFP+ uplink ports, this Layer 2 switch offers flexible, high-speed connectivity. The switch is designed to simplify network management while maintaining optimal performance for bandwidth-intensive applications.
Key Features:
- 24 x 1GbE Ports: Provides fast, reliable Ethernet connections for a wide range of devices in business environments.
- 4 x SFP+ Uplink Ports: Supports uplinks at speeds up to 10Gbps, ensuring efficient and flexible network expansion.
- Advanced Layer 2 Switching: Includes VLAN support, link aggregation, and QoS for enhanced traffic management and network efficiency.
- Stackable Design: Supports up to 8 switches in a stack, providing scalability and simplifying management for growing networks.
- Easy Management: Managed via the web-based GUI, CLI, or Aruba Central for remote configuration and monitoring.
Technical Overview:
- Recommended for: Small to medium-sized businesses and branch offices.
- Ports: 24 x 1GbE ports, 4 x 1/10GbE SFP+ uplinks.
- Switching Capacity: 128 Gbps.
- Forwarding Rate: 95.2 Mpps.
- Layer 2 Features: Supports VLANs, QoS, and link aggregation for enhanced traffic control.
- Management: Managed via web-based GUI, CLI, and Aruba Central.
- Energy Efficiency: Compliant with IEEE 802.3az for reduced power consumption.
You can check the related tab for the JL724A datasheet.
Accessories
| Accessories | |
| JL669B | • Aruba X751 Port to Power Fan Tray |
| J9583A | • HPE X410 1U Universal 4-post Rack Mount Kit |
| J9583B | • Aruba X414 1U Universal 4-post Rack Mounting Kit |
| R9G48A | • Aruba USB-A to RJ45 PC-to-Switch Cable |
| R8Q73A | • Aruba 6200F 12-port Cable Guard |
| R8Z87A | • Aruba USB-A to RJ45 PIN3TX-6RX Cable |
| R9J32A | • Aruba USB-A to USB-C PC-to-Switch Cable |
| R9J33A | • Aruba USB-C to USB-C PC-to-Switch Cable |
| JL448A | • Aruba X2C2 RJ45 to DB9 Console Cable |
| S1H23A | • HPE Aruba Networking CX Switch Bluetooth Adapter |
| Cables | |
| J9281D | • Aruba 10G SFP+ to SFP+ 1m Direct Attach Copper Cable |
| J9283D | • Aruba 10G SFP+ to SFP+ 3m Direct Attach Copper Cable |
| Transceivers | |
| J4858D | • Aruba 1G SFP LC SX 500m MMF Transceiver |
| J4859D | • Aruba 1G SFP LC LX 10km SMF Transceiver |
| J4860D | • Aruba 1G SFP LC LH 70km SMF Transceiver |
| J8177D | • Aruba 1G SFP RJ45 T 100m Cat5e Transceiver |
| J9150D | • Aruba 10G SFP+ LC SR 300m MMF Transceiver |
| J9151E | • Aruba 10G SFP+ LC LR 10km SMF Transceiver |
| J9153D | • Aruba 10G SFP+ LC ER 40km SMF Transceiver |
| JL563B | • Aruba 10GBASE-T SFP+ RJ-45 30m Cat6A Transceiver |
| J9152D | • Aruba 10G SFP+ LC LRM 220m MMF Transceiver |
| R9X54A | • Aruba 10G LC BiDi 40km-D 1330/1270 XCVR |
| R9X55A | • Aruba 10G LC BiDi 40km-U 1270/1330 XCVR |
Specifications
| Specifications | 6200F 24G 4SFP+ Switch (JL724A) |
| CPU | Quad Core ARM Cortex™ A72 @ 1.8 GHz |
| Memory and Flash | 8 GB DDR4 16 GB eMMC |
| Packet Buffer | 8 MB Packet Buffer Memory |
| Model Switching Capacity | 126 Gbps |
| Model Throughput Capacity | Up to 95.2 Mpps |
| Average Latency (LIFO-64-bytes packets) | 1 Gbps: 2.28 μSec 10 Gbps: 1.46 μSec |
| Switched Virtual Interfaces (dual stack) | 128 |
| IPv4 Host Table (ARP) | 8,192 |
| IPv6 Host Table (ND) | 8,192 |
| IPv4 Unicast Routes | 2,048 |
| IPv6 Unicast Routes | 1,024 |
| MAC Table Capacity | 16000 |
| IGMP Groups | 1,024 |
| MLD Groups | 1,024 |
| IPv4/IPv6/MAC ACL Entries (ingress) | 5,120/1,280/5,120 |
| Stack Size | 8 members |
| Max. Stacking Distance | Up to 10 kms with long range transceivers |
| Operating Temperature |
32°F to 113°F (0°C to 45°C) up to 5,000 ft derate -1°C for every 1,000 ft from 5,000 ft to 10,000 ft.
|
| Acoustic |
Sound Power, LWAd= 4.9 Bel Sound Pressure, LpAm(Bystander) = 33.0 dB
|
| Primary Airflow | Front and side to back |
| Safety | US: UL 60950-1 2nd Ed. |
| Emissions | US: FCC 47 CFR part 15B, Class A |
| Lasers |
EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only)
|
| Immunity |
EN 55035:2017 IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-8 IEC 61000-4-11 EN 61000-3-2, IEC 61000-3-2 EN 61000-3-3, IEC 61000-3-3 |
Properties
| Properties | 6200F 24G 4SFP+ Switch (JL724A) |
| Description | 24x ports 10/100/1000BASE-T Ports 4x 1/10G SFP ports 1x USB-C Console Port 1x OOBM 1x USB Type-A Host port 1x Bluetooth dongle to be used with Aruba CX Mobile App |
| Product Family | CX6200 Series |
| Product Type | Ethernet Switch |
| Ports and Slots | 24x 10/100/1000BASE-T Class 4 PoE ports 4x 1/10G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x OOBM 1x USB Type-A Host port 1x Bluetooth Adapter to be used with Aruba CX Mobile App |
| Power supplies | Fixed power supply (200W) |
| Frequency | 50/60 Hz |
| Voltage | 100-127 VAC / 200-240 VAC |
| Current | 2.5A/1.4A |
| Power Consumption (230 VAC) | Hibernation (0 rpm fan): 7W Idle: 49W 100% Traffic Rate: 59W |
| Fans | Fixed fans |
| Dimensions | 1.73” x 17.4” x 12.9” |
| Weight | 4.36 kg (9.61 lbs) |
| Mounting and enclosure |
Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included.
|
