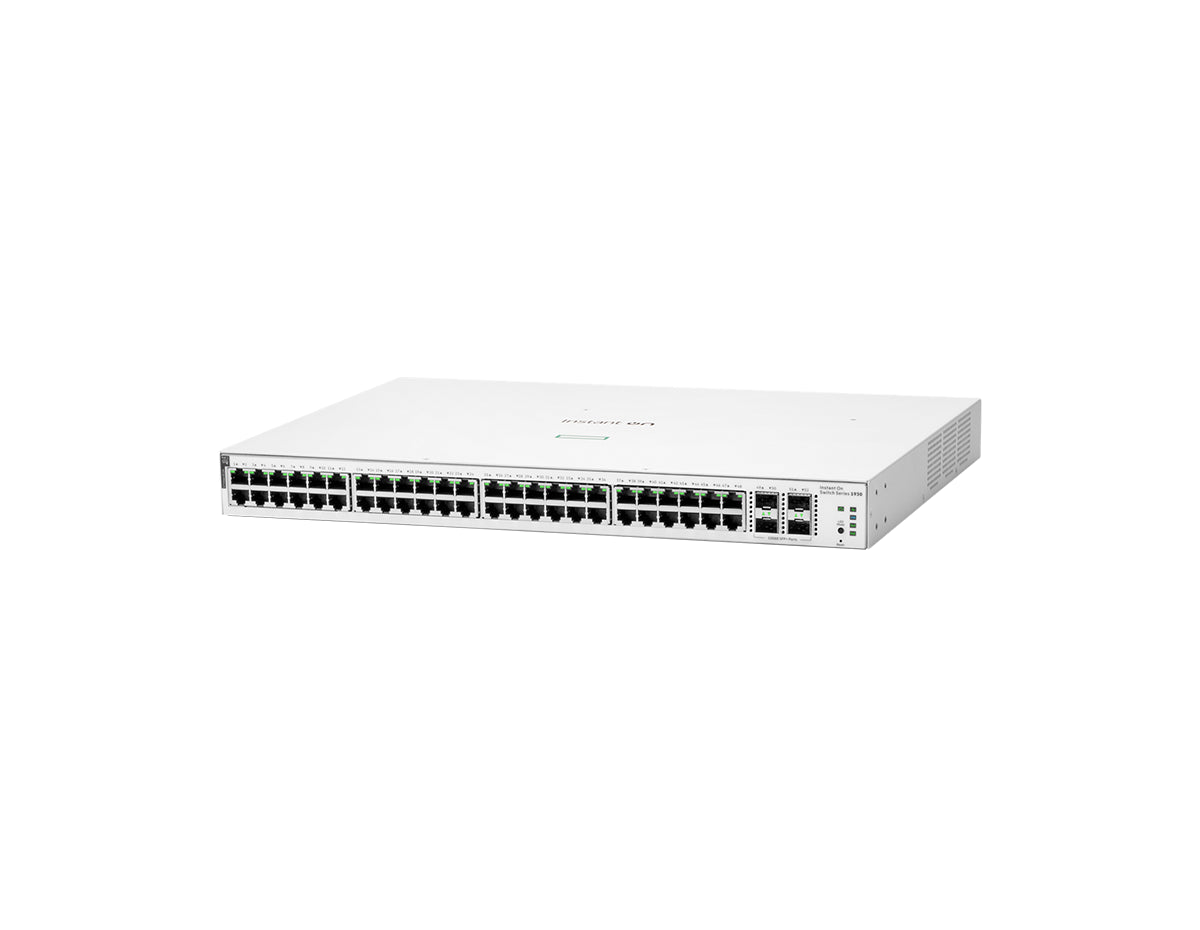

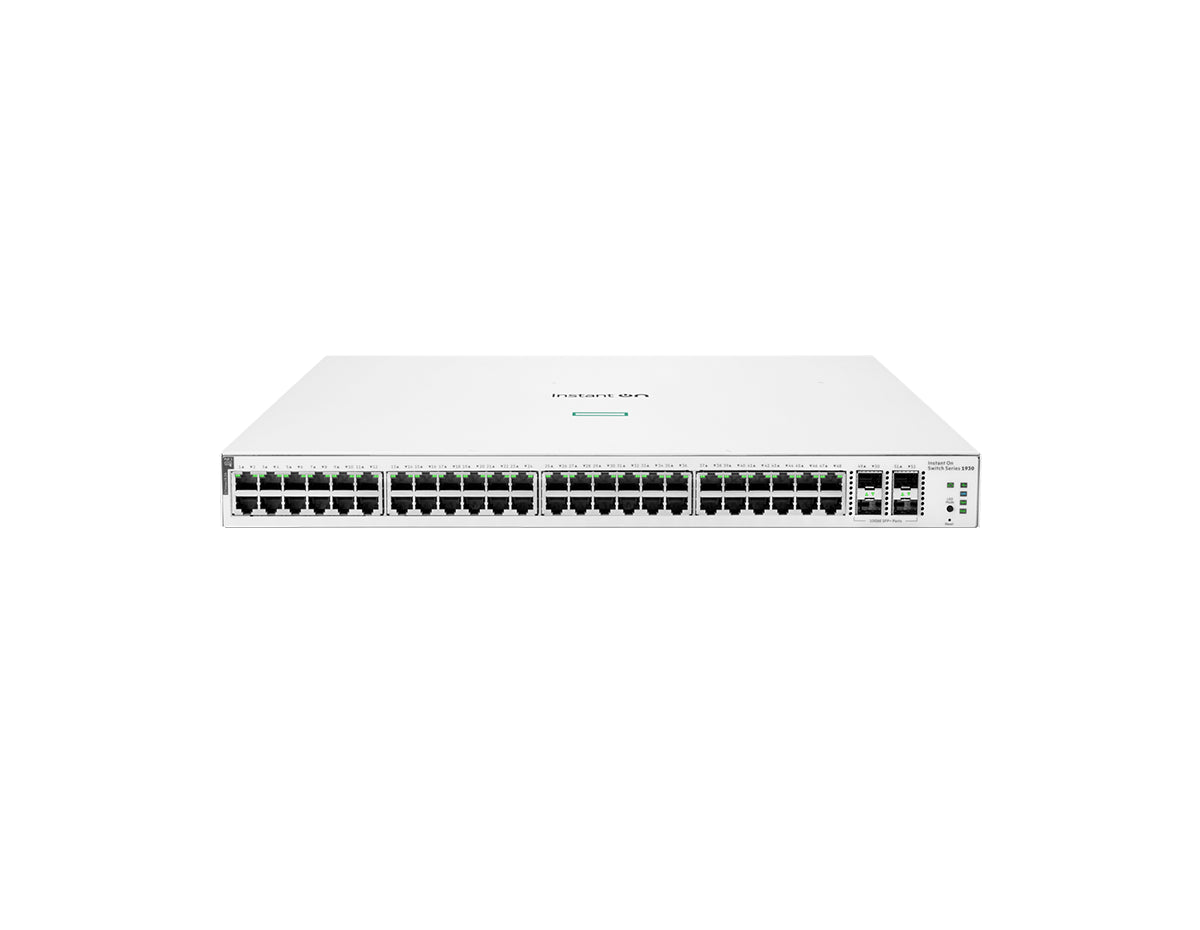

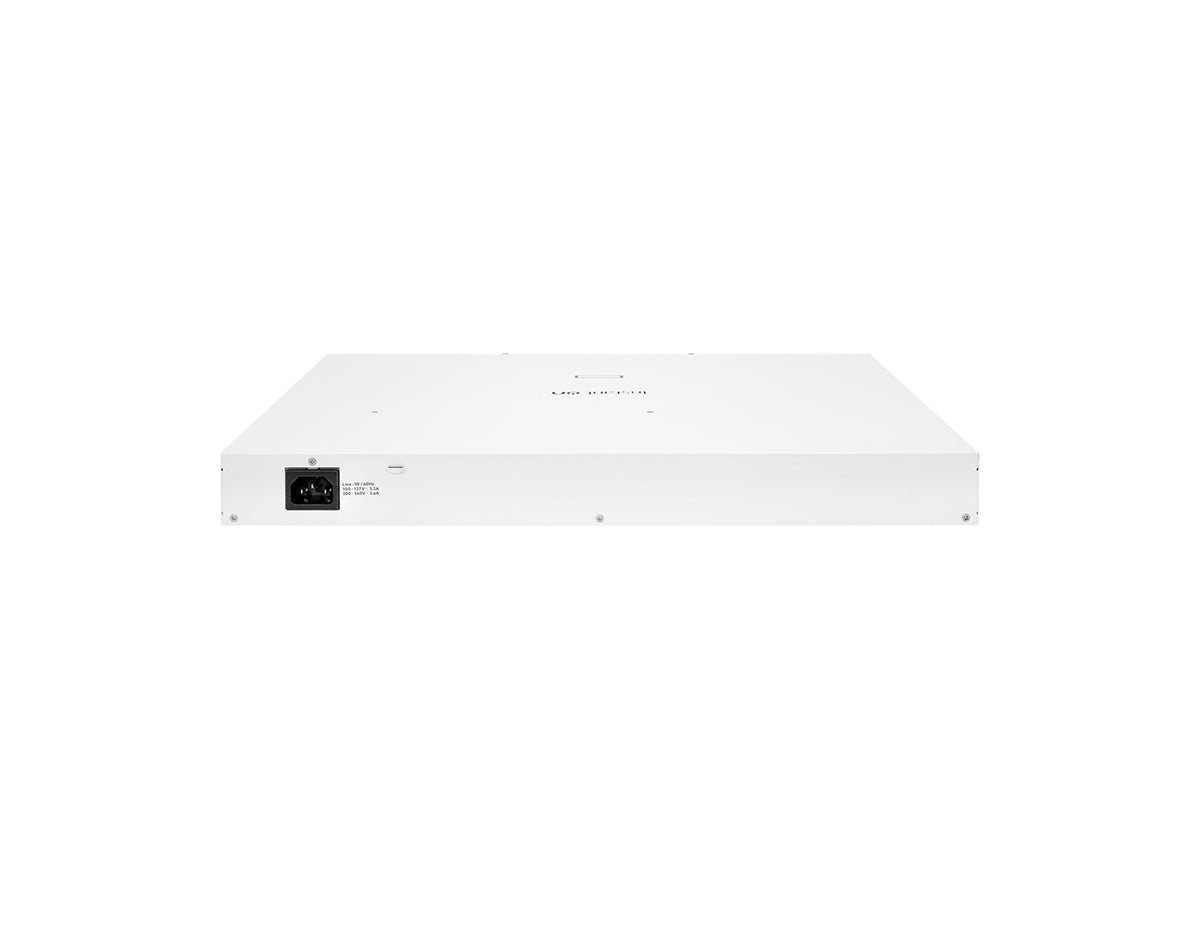

HPE Aruba Networking JL686B Instant On 1930 48p Gigabit CL4 PoE 4p SFP+ 370W Switch

HPE Aruba Networking Instant On 1930 48p Gigabit CL4 PoE 4p SFP+ 370W Switch (JL686B)

The HPE Aruba Networking Instant On 1930 48p Gigabit CL4 PoE 4p SFP+ 370W Switch (JL686B) is designed for growing businesses that require reliable and high-speed networking. With 48 Gigabit Ethernet ports, this smart-managed switch supports Power over Ethernet (PoE), delivering up to 30W per port for connected devices such as IP phones, access points, and security cameras. Its four SFP+ uplink ports offer up to 10Gbps speeds for seamless connectivity to the network core, ensuring smooth data flow across your network.

Key Features:

• 48 x 1GbE Class 4 PoE Ports: Provides up to 30W per port to power devices like IP cameras, access points, and VoIP phones without additional power supplies.
• 4 x SFP+ Uplink Ports: Delivers high-speed uplink connections with up to 10Gbps for enhanced network performance.
• 370W PoE Power Budget: Offers sufficient power to run multiple PoE-enabled devices, simplifying network deployments.
• Layer 2+ Management: Supports VLANs, static routing, link aggregation, and ACLs for effective traffic control and network segmentation.
• Cloud-Based Management: Easily manage your network from anywhere with the Aruba Instant On mobile app or web-based portal, providing administrators with remote control and monitoring capabilities.

Technical Overview:

• Recommended for: Small and medium businesses, branch offices, and retail environments.
• Ports: 48 x 1GbE Class 4 PoE ports, 4 x 1G/10G SFP+ uplink ports.
• Switching Capacity: 176 Gbps.
• Forwarding Rate: 130.95 Mpps.
• PoE Power Budget: 370W for powering connected PoE devices.
• Layer 2+ Features: Supports VLANs, static routing, link aggregation, and ACLs for advanced network management.
• Management: Managed via Aruba Instant On mobile app and web-based GUI.
• Energy Efficiency: Meets IEEE 802.3az standards, reducing power consumption during periods of low activity.

You can check the related tab for the JL686B datasheet.

Product Name	HPE Networking Instant On Switch 48p Gigabit CL4 PoE 4p SFP+ 370W 1930 (JL686B)
Manufacturer	Hewlett Packard Enterprise
Model	JL686B
Marketing Information	The HPE Aruba Networking Instant On 1930 48p Gigabit CL4 PoE 4p SFP+ 370W Switch (JL686B) is designed for growing businesses that require reliable and high-speed networking. With 48 Gigabit Ethernet ports, this smart-managed switch supports Power over Ethernet (PoE), delivering up to 30W per port for connected devices such as IP phones, access points, and security cameras. Its four SFP+ uplink ports offer up to 10Gbps speeds for seamless connectivity to the network core, ensuring smooth data flow across your network.
Key Features	48 x 1GbE Class 4 PoE Ports, 4 x 1G/10G SFP+ Uplink Ports, 370W PoE Power Budget, Layer 2+ Management, Cloud-Based Management via Mobile App and Web-Based Portal
Recommended Use	Small and medium businesses, branch offices, and retail environments

Ports	48 RJ-45 autosensing 10/100/1000 Class 4 PoE Ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only, 4 SFP+ 1/10GbE Ports
Switching Capacity	176 Gbps
Forwarding Rate	130.95 Mpps
PoE Capability	370 W Class 4
Power consumption	520W maximum, 50W idle
Weight	4.59 kg (10.12 lb)
Input voltage	100 - 127 / 200 - 240 VAC
Processor	ARM Cortex-A9 @ 800 MHz
Memory	512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB
Energy Efficiency	Meets IEEE 802.3az standards
Layer 2+ Features	VLANs, static routing, link aggregation, ACLs
Management	Managed via Aruba Instant On mobile app and web-based GUI
Dimensions	4.39 x 44.25 x 32.26 cm (1.73 x 17.42 x 12.7 in)
