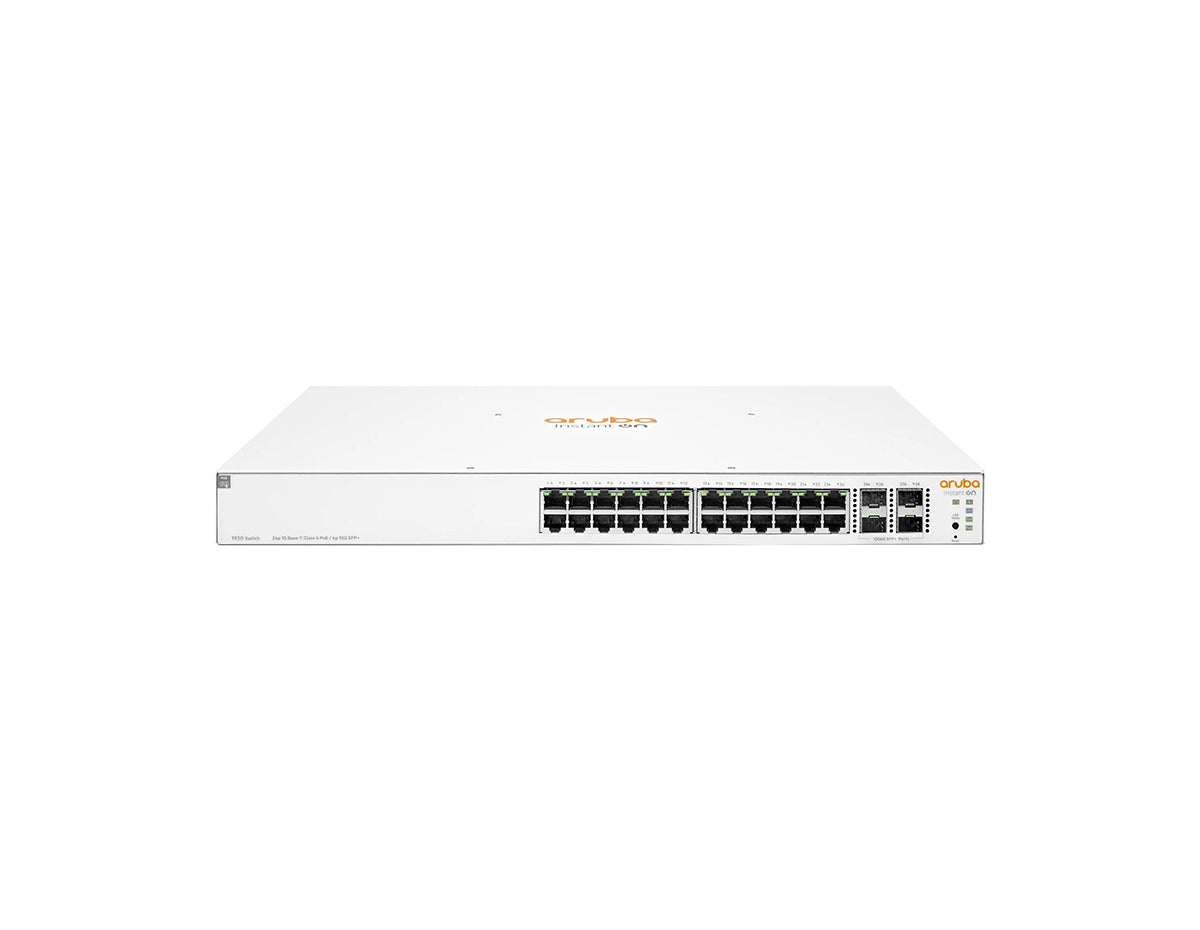

HPE ARUBA INSTANT ON 1930 24G CLASS4 POE 4SFP/SFP+ 195W SWITCH (JL683A)
| Model: | JL683A |
| Detail: | Managed, Rack-mountable, 24 x 1G ports, Fixed Uplinks (4 x SFP+), PoE+ (195W), Layer 2+, |
| Price: | $385.00 |
| Condition: | Brand New Sealed |
| Availability: | Out of Stock |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description
HPE Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W Switch (JL683A)
The HPE Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W Switch (JL683A) is a smart-managed solution designed for small businesses that need high performance and flexibility. With 24 Gigabit Ethernet ports and 4 SFP/SFP+ uplink ports, this switch provides reliable, high-speed connectivity. The 195W Power over Ethernet (PoE) budget allows for powering devices like IP phones, wireless access points, and security cameras, all while simplifying deployment by eliminating the need for separate power sources.
Key Features:
- 24 x 1GbE Class 4 PoE Ports: Delivers up to 30W per port, making it ideal for powering PoE-enabled devices such as access points, VoIP phones, and security cameras.
- 4 x SFP/SFP+ Uplink Ports: Provides high-speed uplink options up to 10Gbps, ensuring fast, reliable connections to the network core or other switches.
- 195W PoE Power Budget: Supplies ample power to connected PoE devices, reducing the need for additional power supplies.
- Smart-Managed Layer 2+ Features: Includes VLANs, link aggregation, static routing, and ACLs for efficient traffic management and network segmentation.
- Cloud-Based Management: Easily set up, manage, and monitor your network using the Aruba Instant On mobile app or cloud-based web interface, accessible from anywhere.
Technical Overview:
- Recommended for: Small businesses, retail environments, and branch offices.
- Ports: 24 x 1GbE Class 4 PoE ports, 4 x 1G/10G SFP/SFP+ uplink ports.
- Switching Capacity: 128 Gbps.
- Forwarding Rate: 95.23 Mpps.
- PoE Power Budget: 195W for powering connected devices.
- Layer 2+ Features: Supports VLANs, static routing, link aggregation, and ACLs for efficient traffic control.
- Management: Managed via the Aruba Instant On mobile app and cloud-based web portal.
- Energy Efficiency: Complies with IEEE 802.3az standards for reduced power consumption.
You can check the related tab for the JL683A datasheet.
Accessories
| Transceivers | |
| Aruba 1G SFP LC SX | 500m MMF Transceiver (J4858D) |
| Aruba 1G SFP LC LX | 10km SMF Transceiver (J4859D) |
| Aruba 1G SFP RJ45 T | 100m Cat5e Transceiver (J8177D) |
| Aruba 10G SFP+ LC SR | 300m MMF Transceiver (J9150D) |
| Aruba 10G SFP+ LC LR | 10km SMF Transceiver (J9151D) |
| Aruba 10G SFP+ to SFP+ | 1m DAC (J9281D) |
| Aruba 10G SFP+ to SFP+ | 3m DAC (J9283D) |
| AJ835A | |
Specifications
| Specifications | 1920S-JL381A |
| Memory and processor |
ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB
|
| Performance | |
| 100 Mb Latency | < 4.7µs |
| 1000 Mb Latency | < 2.4 µs |
| Throughput | 95.23 Mpps |
| Routing/Switching capacity | 128 Gbps |
| Routing table size | 32 entries |
| MAC address table size | 16000 entries |
| Management | Aruba Instant On Portal; Web browser; SNMP Manager |
| Operating temperature | 32°F to 104°F (0°C to 40°C) |
| Operating relative humidity | 15% to 95%, noncondensing @ 104°F (40°C) |
| Nonoperating/Storage temperature | -40°F to 158°F (-40°C to 70°C) |
| Nonoperating/Storage relative humidity | 15% to 95%, noncondensing |
| Altitude | up to 10,000 ft (3 km) |
| Acoustic | Pressure: 46.1 dBA Power: 60.5 dB |
| MTBF (years) | 76 |
| Safety |
UL 60950-1; IEC 60950-1; EN 60950-1; CAN/ CSA-C22.2 No. 60950-1; EN 60825-1 UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368- 1:2014
|
| Emissions |
VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A
|
| Immunity | CISPR 24 / CISPR 35 EN 55024:2010 / EN 55035:2017 IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-8 IEC 61000-4-11 EN 61000-3-2, IEC 61000-3-2 EN 61000-3-3, IEC 61000-3-3 |
| General protocols | ‚IEEE 802.3 10BASE-T ‚IEEE 802.3u 100BASE-TX ‚IEEE 802.3ab 1000BASE-T ‚IEEE 802.3z 1000BASE-X ‚IEEE 802.2af PoE 1 (PoE models only) ‚IEEE 802.3at PoE 1 (PoE models only) ‚IEEE 802.3x Flow control ‚IEEE 802.1Q VLANS ‚IEEE 802.1p Priority ‚IEEE 802.3ad Link Aggregation Control Protocol (LACP) ‚IEEE 802.1X Port Access Authentication ‚IEEE 802.3az Energy Efficient Ethernet ‚IEEE 802.1D: Spanning Tree Protocol ‚IEEE 802.1W: Rapid Spanning Tree Protocol ‚IEEE 802.1S: Multiple Spanning Tree Protocol ‚IEEE 802.1AB Link Layer Discovery Protocol ‚Denial of service protection ‚CPU DoS Protection |
Properties
| Properties | HPE OfficeConnect 1930 JL683A |
| Description | Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W Switch |
| Product Family | 1930 Series |
| Product Type | Ethernet Switch |
| I/O ports and slots | 24 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP+ 1/10GbE ports |
| Electrical characteristics | |
| Frequency | 50/60 Hz |
| AC voltage | 100 - 127/200 - 240 VAC |
| Current | 2.6/1.3 A |
| Maximum power rating | 234.0 W |
| PoE power | 195 W Class 4 PoE |
| Idle power | 19.3W |
| Dimension |
17.42(w) x 10.42(d) x 1.73(h) in (44.25 x 26.47 x 4.39 cm) (1U height)
|
| Weight | 7.71 lb (3.50 kg) |
