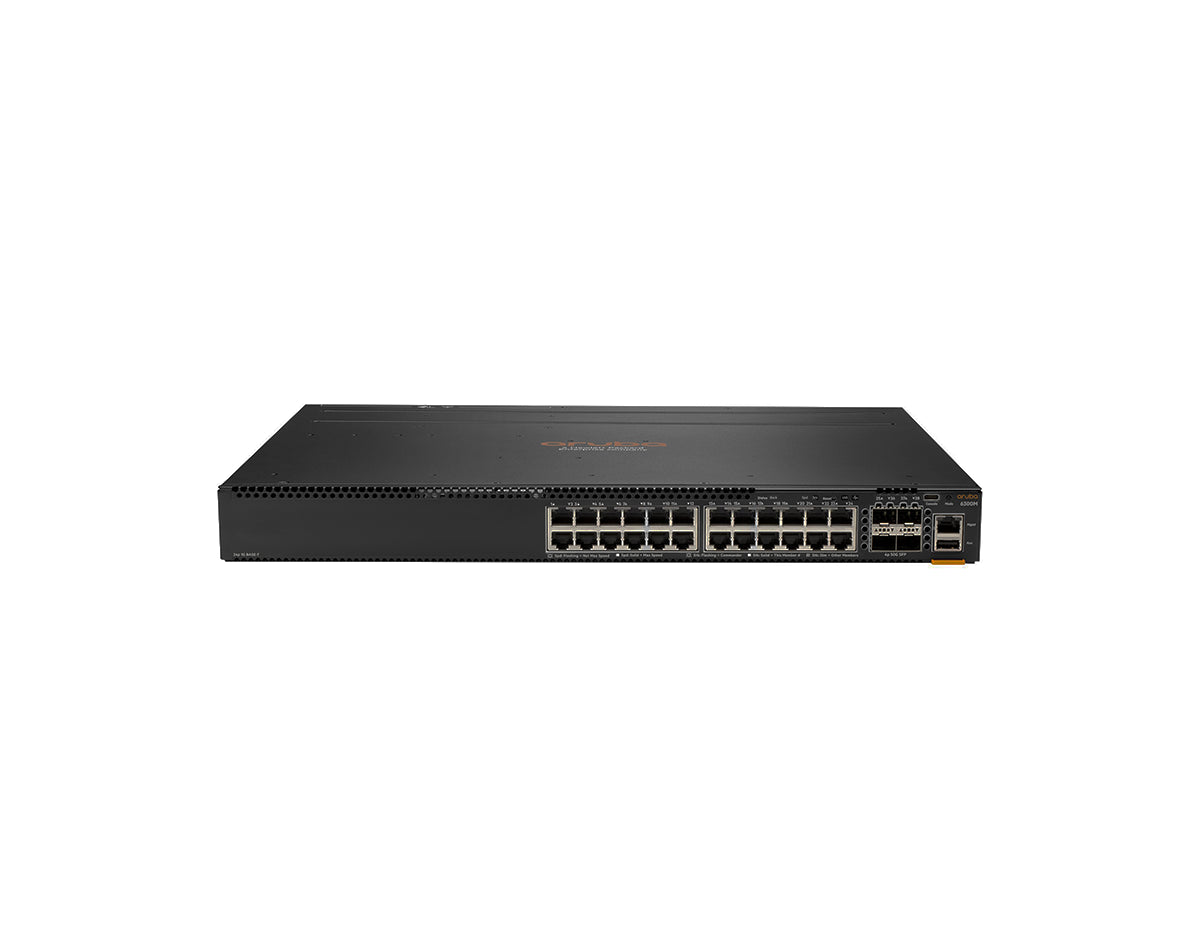

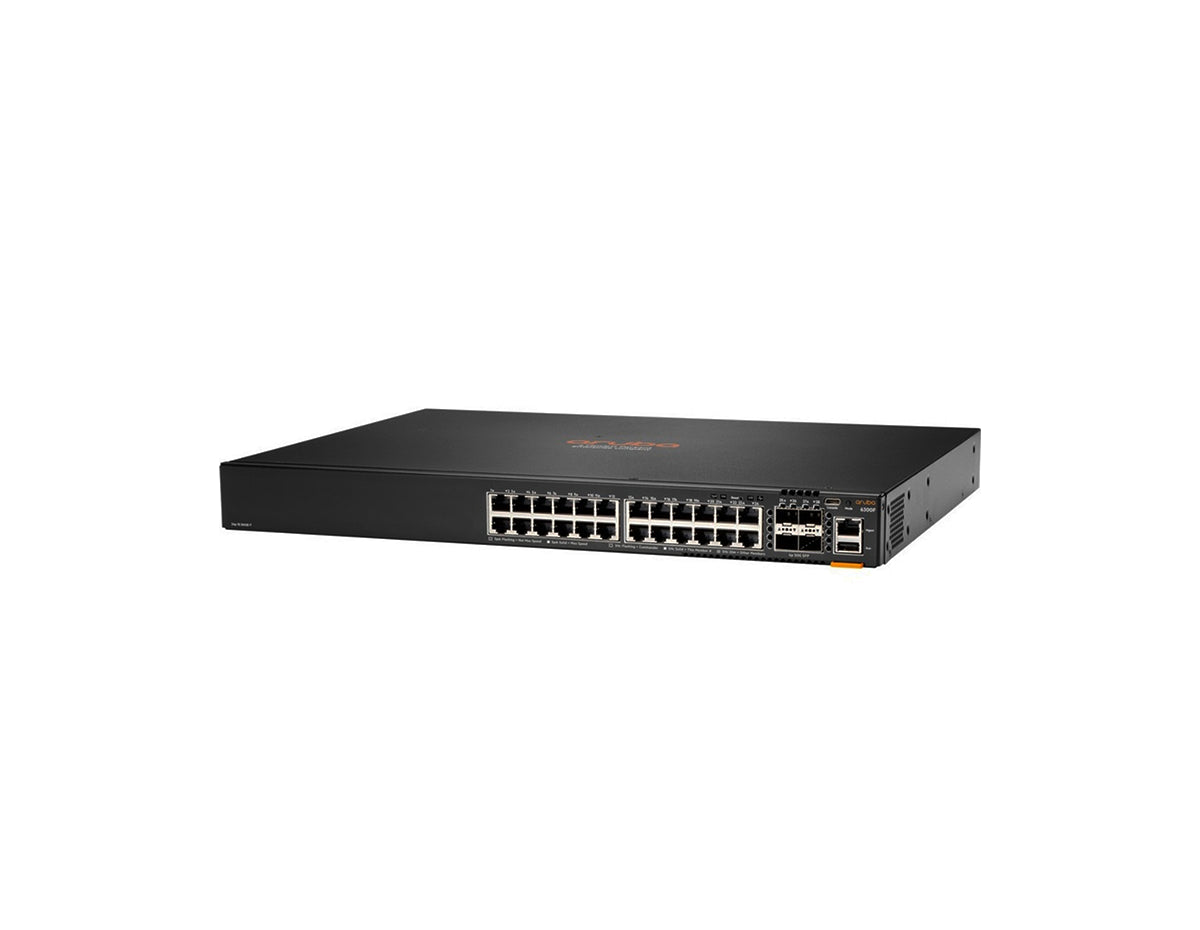

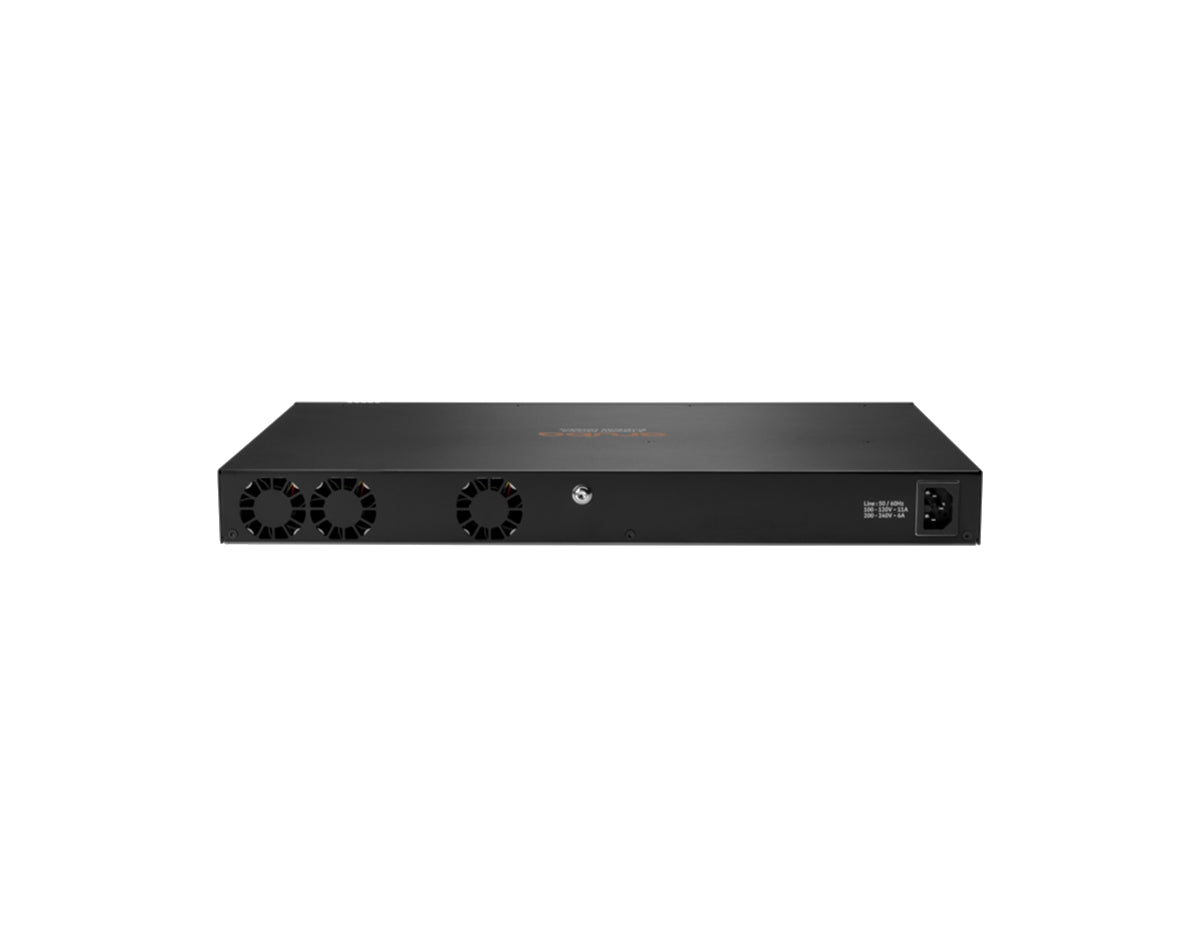

HPE Aruba Networking CX 6300F JL668A 24-Port Data Switch with 4x 1G/10G/25G/50G SFP56
- Managed, Rack-mountable, 24 x 1G ports, 4 x SFP56 uplinks (1/10/25/50G*), Non-PoE model, Layer 3
Overview
The HPE Aruba Networking CX 6300 Switch Series is a family of stackable Layer 3 switches for enterprise network access, aggregation and core, built on HPE's Gen7 ASIC architecture and the microservices-based AOS-CX operating system, with full dynamic routing and EVPN-VXLAN support in the base software. The JL668A is the 24-port 1GbE data-only configuration of the fixed CX 6300F line, for wired endpoints that need no power from the switch. As a CX 6300F model it has a built-in, fixed power supply and fixed fans, so there are no power modules to order or replace, but also no power-supply redundancy. It can still join a VSF stack alongside modular CX 6300M switches.
Technical Details
The HPE Aruba Networking CX 6300F JL668A is a Layer 3 managed 1U rackmount switch with 24 10/100/1000BASE-T ports and 4x 1G/10G/25G/50G SFP56 uplinks, running AOS-CX. Switching capacity is 448 Gbps and the forwarding rate is 334 Mpps. It carries no Power over Ethernet, so all 24 access ports are data-only. It supports VSF stacking of up to 10 members with 200 Gbps of stacking bandwidth. It connects desktops, printers and wired IoT devices in smaller campus and branch closets.
Best For
The JL668A suits smaller campus and branch closets that connect non-powered endpoints such as desktops, printers and wired IoT devices and prefer a self-contained chassis with full Layer 3 in the base software. Four SFP56 uplinks and 10-member VSF stacking carry traffic to the distribution layer.
Not suitable if:
- you need to power wireless access points, IP phones or IP cameras, since this is a data-only switch with no Power over Ethernet
- you need redundant or field-replaceable power supplies, since the power supply is fixed and internal
- you need more than 24 access ports in one unit, since this model has 24 ports
- you need multigigabit access ports, since all ports are 10/100/1000BASE-T
JL668A Specifications
| Class & Licensing | |
|---|---|
| License Tier | None (all base AOS-CX features included; optional term-based CX Advanced Feature Pack) |
| License Detail / MTBF | None (all base AOS-CX features included; optional term-based CX Advanced Feature Pack adds application-based and reflexive policies, WAN MACsec extensions and Drop Exceptions; HPE Aruba Networking Central is a separate, optional management subscription); MTBF not published |
| Ports & Uplinks | |
| Port Speed | Gigabit (10/100/1000BASE-T) |
| Uplink Configuration | 4x 1G/10G/25G/50G SFP56 (fixed); 50G capability is for use with 50G DACs for both interconnect and VSF stacking; VSF stacking not supported on 1G ports |
| Performance & Scale | |
| Stacking | HPE Aruba Networking Virtual Switching Framework (VSF) |
| Switching Capacity | 448 Gbps |
| Forwarding Rate | 334 Mpps |
| MAC Table | 32,768 entries |
| Stacking Bandwidth | 200 Gbps (400 Gbps at full duplex) |
| Max Stack Members | 10 |
| IPv4 Routes | 61,000 |
| Hardware & Memory | |
| DRAM | 8 GB DDR4 |
| ASIC | Gen7 |
| Flash | 32 GB eMMC |
| Power & Thermal | |
| Power Input / PSU | Internal fixed power supply (200 W per QuickSpecs and data sheet; HPE hardware reference lists 160 W); 100-120V/200-240V AC |
| Redundant PSU | No (internal fixed power supply) |
| Cooling | Fixed fans |
| Physical & Environmental | |
| Dimensions (H x W x D) | 1.73 x 17.4 x 12.9 in (4.39 x 44.2 x 32.7 cm) |
| Weight | 9.61 lbs (4.36 kg) |
| Operating Temperature | 32 to 113 °F (0 to 45 °C) up to 5,000 ft; 32 to 104 °F (0 to 40 °C) from 5,001 to 10,000 ft; excursion to 131 °F (55 °C) for short periods (not more than 96 consecutive hours or 360 hours total or 15 occurrences in a 1-year period) |
| Software | |
| Routing Protocols | Static (IPv4/IPv6), RIPv2/RIPng, OSPFv2/OSPFv3, BGP-4/MP-BGP, PBR, ECMP, VRRP, BFD, PIM-SM/SSM/DM, MSDP; VXLAN with MP-BGP EVPN control plane |
| Operating System | AOS-CX |
JL668A Accessories
| Power supplies | |
|---|---|
| JL085A | HPE Aruba Networking X371 12VDC 250W 100-240VAC Power Supply |
| JL086A | HPE Aruba Networking X372 54VDC 680W 100-240VAC Power Supply |
| JL087A | HPE Aruba Networking X372 54VDC 1050W 110-240VAC Power Supply |
| JL670A | HPE Aruba Networking X372 54VDC 1600W 110-240VAC Power Supply |
| JL760A | HPE Aruba Networking X371 12VDC 250W 100-240VAC Power-to-Port Power Supply |
| JL757A | HPE Aruba Networking 6300M 250W 36-72VDC PSU |
| JL758A | HPE Aruba Networking 6300M 1050W 36-72VDC |
| Fan tray | |
| JL669B | HPE Aruba Networking X751 Front-to-Back Fan Tray |
| JL761A | HPE Aruba Networking 6300M Power-to-Port Fan Tray |
| Accessories | |
| J9583A | HPE X410 1U Universal 4-post Rack Mount Kit |
| J9583B | HPE Aruba Networking X414 1U Universal 4-pack Rack Mounting Kit |
| R9G48A | HPE Aruba Networking USB-A to RJ45 PC-to-Switch Cable |
| R8Z87A | HPE Aruba Networking USB-A to RJ45 PIN3TX-6RX Cable |
| R9J32A | HPE Aruba Networking USB-A to USB-C PC-to-Switch Cable |
| R9J33A | HPE Aruba Networking USB-C to USB-C PC-to-Switch Cable |
| S1H23A | HPE Aruba Networking CX Switch Bluetooth Adapter |
| 845970-B21 | HPE QSFP28 to SFP28 Adapter |
| Transceivers | |
| J9054D | HPE Aruba Networking 100M SFP LC FX 2km MMF XCVR |
| J4858D | HPE Aruba Networking 1G SFP LC SX 500m MMF Transceiver |
| J4859D | HPE Aruba Networking 1G SFP LC LX 10km SMF Transceiver |
| J4860D | HPE Aruba Networking 1G SFP LC LH 70km SMF Transceiver |
| J8177D | HPE Aruba Networking 1G SFP RJ45 T 100m Cat5e Transceiver |
| JL745A | HPE Aruba Networking 1G SFP LC SX 500m MMF TAA Transceiver |
| JL746A | HPE Aruba Networking 1G SFP LC LX 10km SMF TAA Transceiver |
| JL747A | HPE Aruba Networking 1G SFP RJ45 T 100m Cat5e TAA Transceiver |
| J9150D | HPE Aruba Networking 10G SFP+ LC SR 300m MMF Transceiver (HPE QSFP28 to SFP28 Adapter (845970-B21) required when used with S0E91A and S0X44A switch models) |
| J9152D | HPE Aruba Networking 10G SFP+ LC LRM 220m MMF Transceiver (J9152D XCVR natively supported only in the R8S91A and R8S92A models) |
| J9151E | HPE Aruba Networking 10G SFP+ LC LR 10km SMF Transceiver (HPE QSFP28 to SFP28 Adapter (845970-B21) required when used with S0E91A and S0X44A switch models.) |
| J9153D | HPE Aruba Networking 10G SFP+ LC ER 40km SMF Transceiver (HPE QSFP28 to SFP28 Adapter (845970-B21) required when used with S0E91A and S0X44A switch models.) |
| JL563B | HPE Aruba Networking 10GBASE-T SFP+ RJ-45 30m Cat6A Transceiver (HPE QSFP28 to SFP28 Adapter (845970-B21) required when used with S0E91A and S0X44A switch models.) |
| JL748A | HPE Aruba Networking 10G SFP+ LC SR 300m MMF TAA Transceiver |
| JL749A | HPE Aruba Networking 10G SFP+ LC LR 10km SMF TAA Transceiver |
| JL484A | HPE Aruba Networking 25G SFP28 LC SR 100m MMF Transceiver (HPE QSFP28 to SFP28 Adapter (845970-B21) required when used with S0E91A and S0X44A switch models.) |
| JL485A | HPE Aruba Networking 25G SFP28 LC eSR 400m MMF Transceiver (HPE QSFP28 to SFP28 Adapter (845970-B21) required when used with S0E91A and S0X44A switch models.) |
| JL486A | HPE Aruba Networking 25G SFP28 LC LR 10km SMF Transceiver (HPE QSFP28 to SFP28 Adapter (845970-B21) required when used with S0E91A and S0X44A switch models.) |
| S2N63A | HPE Aruba Networking 25G SFP LC LR 10km SMF TAA XCVR |
| R0M48A | Aruba 50G SFP56 LC SR 100m MMF XCVR |
| Cables | |
| S1J07A | HPE Aruba Networking 50G QSFP56 to SFP56 0.65m DAC Cable |
| S1J08A | HPE Aruba Networking 50G QSFP56 to SFP56 3m DAC Cable |
| J9281D | HPE Aruba Networking 10G SFP+ to SFP+ 1m Direct Attach Copper Cable ( (HPE QSFP28 to SFP28 Adapter (845970-B21) required when used with S0E91A and S0X44A switch models.) |
| J9283D | HPE Aruba Networking 10G SFP+ to SFP+ 3m Direct Attach Copper Cable (HPE QSFP28 to SFP28 Adapter (845970-B21) required when used with S0E91A and S0X44A switch models.) |
| JL487A | HPE Aruba Networking 25G SFP28 to SFP28 0.65m Direct Attach Copper Cable (HPE QSFP28 to SFP28 Adapter (845970-B21) required when used with S0E91A and S0X44A switch models.) |
| JL488A | HPE Aruba Networking 25G SFP28 to SFP28 3m Direct Attach Copper Cable (HPE QSFP28 to SFP28 Adapter (845970-B21) required when used with S0E91A and S0X44A switch models.) |
| JL489A | HPE Aruba Networking 25G SFP28 to SFP28 5m Direct Attach Copper Cable (HPE QSFP28 to SFP28 Adapter (845970-B21) required when used with S0E91A and S0X44A switch models.) |
| R0M46A | HPE Aruba Networking 50G SFP56 to SFP56 0.65m DAC Cable (50G capability is for use with 50G DACs for both interconnect and VSF stacking. 50G transceivers and DACs are not supported on S0E91A and S0X44A) |
| R0M47A | HPE Aruba Networking 50G SFP56 to SFP56 3m DAC Cable (50G capability is for use with 50G DACs for both interconnect and VSF stacking. 50G transceivers and DACs are not supported on S0E91A and S0X44A) |
| JH234A | HPE X242 40G QSFP+ to QSFP+ 1m DAC Cable (For use with S0E91A and S0X44A switch models only) |
| JH235A | HPE X242 40G QSFP+ to QSFP+ 3m DAC Cable (For use with S0E91A and S0X44A switch models only) |
| JH236A | HPE X242 40G QSFP+ to QSFP+ 5m DAC Cable (For use with S0E91A and S0X44A switch models only) |
| R0Z22A | HPE Aruba Networking 40G QSFP+ to QSFP+ 7m AOC (For use with S0E91A and S0X44A switch models only) |
| R0Z23A | HPE Aruba Networking 40G QSFP+ to QSFP+ 15m AOC (For use with S0E91A and S0X44A switch models only) |
| R0Z24A | HPE Aruba Networking 40G QSFP+ to QSFP+ 30m AOC (For use with S0E91A and S0X44A switch models only) |
| JL307A | HPE Aruba Networking 100G QSFP28-QSFP28 3m DAC Cable (For use with S0E91A and S0X44A switch models only) |
| R0Z25A | HPE Aruba Networking 100G QSFP28 to QSFP28 1m Direct Attach Copper Cable (For use with S0E91A and S0X44A switch models only) |
| JL307A | HPE Aruba Networking 100G QSFP28 to QSFP28 3m Direct Attach Copper Cable (For use with S0E91A and S0X44A switch models only) |
| R0Z26A | HPE Aruba Networking 100G QSFP28 to QSFP28 5m Direct Attach Copper Cable (For use with S0E91A and S0X44A switch models only) |
| JL856A | HPE Aruba Networking 100G QSFP28 to QSFP28 5m Direct Attach Copper Cable |
| R0Z27A | HPE Aruba Networking 100G QSFP28 to QSFP28 7m AOC (For use with S0E91A and S0X44A switch models only) |
| R0Z28A | HPE Aruba Networking 100G QSFP28 to QSFP28 15m AOC (For use with S0E91A and S0X44A switch models only) |
| R0Z29A | HPE Aruba Networking 100G QSFP28 to QSFP28 30m AOC (For use with S0E91A and S0X44A switch models only) |
| Software | |
| JL639AAE | HPE Aruba Networking NetEdit Single Node: 1 year |
| JL640AAE | HPE Aruba Networking NetEdit Single Node: 3 years |
| Aruba CX advanced licenses | |
| S0T76AAE | HPE Aruba Networking CX Soft 63xx Sw Adv 10y E-STU |
| S0T77AAE | HPE Aruba Networking CX Soft 63xx Sw Adv 1y E-STU |
| S0T78AAE | HPE Aruba Networking CX Soft 63xx Sw Adv 3y E-STU |
| S0T79AAE | HPE Aruba Networking CX Soft 63xx Sw Adv 5y E-STU |
| S0T80AAE | HPE Aruba Networking CX Soft 63xx Sw Adv 7y E-STU |
| Aruba Central Foundation licenses | |
| Q9Y78AAE | HPE Aruba Networking Central Switch 6300/38xx Foundation 1-year Subscription E-STU |
| Q9Y79AAE | HPE Aruba Networking Central Switch 6300/38xx Foundation 3-year Subscription E-STU |
| Q9Y80AAE | HPE Aruba Networking Central Switch 6300/38xx Foundation 5-year Subscription E-STU |
| Q9Y81AAE | HPE Aruba Networking Central Switch 6300/38xx Foundation 7-year Subscription E-STU |
| R3K02AAE | HPE Aruba Networking Central Switch 6300/38xx Foundation 10-year Subscription E-STU |
| R6U83AAE | HPE Aruba Networking Central On-Premises 63xx or 38xx Switch Foundation 1-year Subscription E-STU |
| R6U84AAE | HPE Aruba Networking Central On-Premises 63xx or 38xx Switch Foundation 3-year Subscription E-STU |
| R6U85AAE | HPE Aruba Networking Central On-Premises 63xx or 38xx Switch Foundation 5-year Subscription E-STU |
| R6U86AAE | HPE Aruba Networking Central On-Premises 63xx or 38xx Switch Foundation 7-year Subscription E-STU |
| (R6U87AAE) | HPE Aruba Networking Central On-Premises 63xx or 38xx Switch Foundation 10-year Subscription E-STU |
| Aruba Central advanced licenses | |
| Q9Y78AAE | HPE Aruba Networking Central 63xx or 38xx Switch Foundation 1-year Subscription E-STU |
| Q9Y79AAE | HPE Aruba Networking Central 63xx or 38xx Switch Foundation 3-year Subscription E-STU |
| Q9Y80AAE | HPE Aruba Networking Central 63xx or 38xx Switch Foundation 5-year Subscription E-STU |
| Q9Y81AAE | HPE Aruba Networking Central 63xx or 38xx Switch Foundation 7-year Subscription E-STU |
| R3K02AAE | HPE Aruba Networking Central 63xx or 38xx Switch Foundation 10-year Subscription E-STU |
| Aruba Fabric Composer | |
| R8D18AAE | HPE Aruba Networking Fabric Composer Device Management Service Tier 3 Switch 1 year Subscription E-STU |
| R8D19AAE | HPE Aruba Networking Fabric Composer Device Management Service Tier 3 Switch 3-year Subscription E-STU |
| R8D20AAE | HPE Aruba Networking Fabric Composer Device Management Service Tier 3 Switch 5-year Subscription E-STU ( |
| Support | |
| JL658A | 4 Hour Onsite 3 Year (HR4C9E) |
| JL659A | 4 Hour Onsite 3 Year (HR4R3E) |
| JL660A | 4 Hour Onsite 3 Year (HL5Z0E) |
| JL661A | 4 Hour Onsite 3 Year (HR4Z8E) |
| JL662A | 4 Hour Onsite 3 Year (HL6R3E) |
| JL663A | 4 Hour Onsite 3 Year (HR5N2E) |
| JL664A | 4 Hour Onsite 3 Year (HL7J3E) |
| JL665A | 4 Hour Onsite 3 Year (HR5W0E) |
| JL666A | 4 Hour Onsite 3 Year (HR6E5E) |
| JL667A | 4 Hour Onsite 3 Year (HR6P0E) |
| JL668A | 4 Hour Onsite 3 Year (HR6X5E) |
| JL762A | 4 Hour Onsite 3 Year (HR5N2E) |
FAQ
Does the HPE Aruba Networking CX 6300F JL668A support PoE?
No. The HPE Aruba Networking CX 6300F JL668A is a data-only switch: its 24 10/100/1000BASE-T access ports carry no Power over Ethernet, so it cannot power wireless access points, IP phones or IP cameras. For PoE+ at the same port count in the fixed CX 6300F line, see the JL666A.
What transceivers do the uplinks on the JL668A use?
The JL668A has four SFP56 uplink ports rated 1G/10G/25G/50G. HPE's footnote states that the 50G capability is for use with 50G DACs for both interconnect and VSF stacking, and 100 Mb transceivers are not supported in any SFP56 port. The 24 access ports are RJ-45 copper and take no pluggable optics. Check optic and DAC compatibility against HPE's CX 6300 QuickSpecs transceiver list. Transceivers are sold separately.
How many JL668A switches can be stacked?
Up to 10. The JL668A supports HPE Aruba Networking Virtual Switching Framework (VSF) stacking of up to 10 members in a chain or ring, with 200 Gbps of stacking bandwidth (400 Gbps at full duplex). VSF stacking is not supported on 1G ports. HPE allows modular CX 6300M and fixed CX 6300F models in the same stack, but the Layer 2-only CX 6300L models do not stack with them. As an alternative to a stack, two switches can form a Virtual Switching Extension (VSX) cluster.
What is the difference between the JL668A and the JL664A?
Both are 24-port 10/100/1000BASE-T data-only switches with four SFP56 uplinks, VSF stacking, 448 Gbps and 334 Mpps. The JL668A is a CX 6300F with a built-in power supply, fixed fans and a 12.9 in deep chassis. The JL664A is a CX 6300M with two hot-swappable slots for the JL085A power supply (ordered separately), field-replaceable fan trays and a 15.2 in deep chassis. Choose the JL668A for a self-contained switch and the JL664A for redundant power.
Does the JL668A need a license or subscription to operate?
No. The JL668A runs AOS-CX with all base features included, among them BGP, OSPF, RIP, VRRP, PIM, VXLAN and EVPN. HPE offers an optional, term-based CX Advanced Feature Pack that adds application-based and reflexive policies, MACsec extensions for the WAN and Drop Exceptions; it adds no routing capability. HPE Aruba Networking Central is a separate, optional management subscription, and HPE states that a Central Advanced subscription also enables the Advanced Feature Pack features.
What condition is the JL668A sold in, and what warranty applies?
The JL668A is sold new and factory-sealed. It is covered by the Network Devices Inc. 1-year warranty and a 30-day return policy.
