[accessories]
| Included | 2-Post Rack Mount Kit, Power Cord |
| Optional | SFP+ Transceivers, SFP28 Transceivers, SFP56 DAC Cables, 4-Post Rack Kit |
[/accessories]
High-Performance Enterprise Switching with Flexible 50G Uplinks

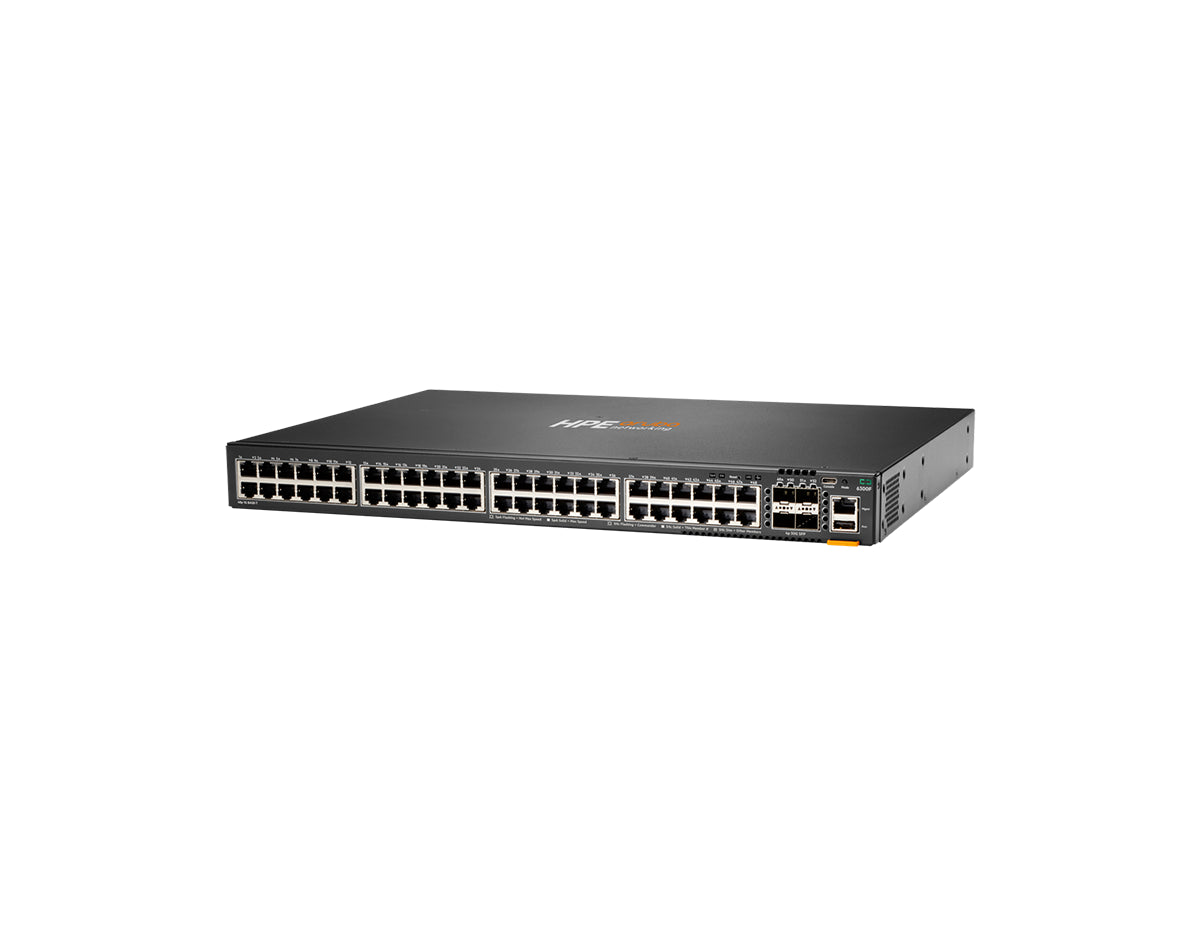

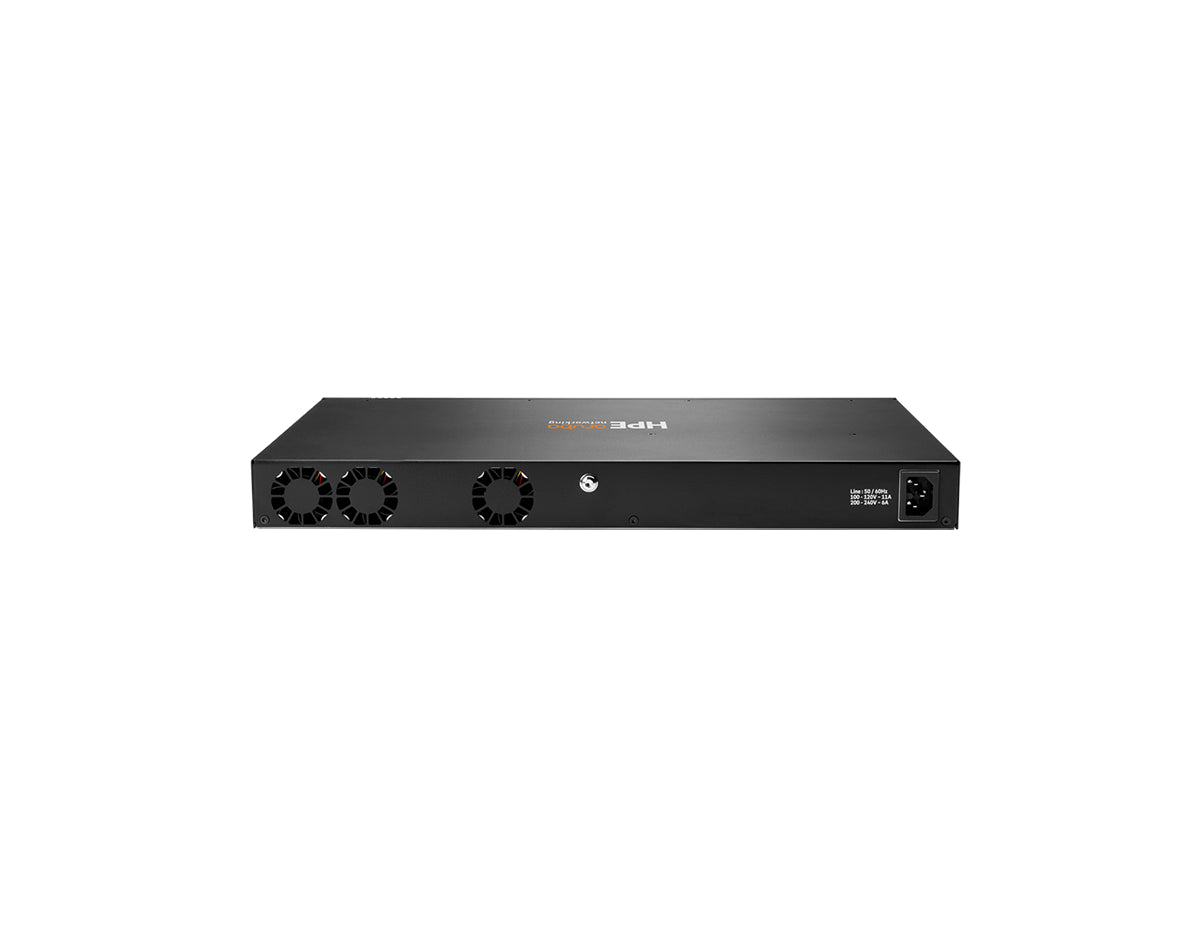

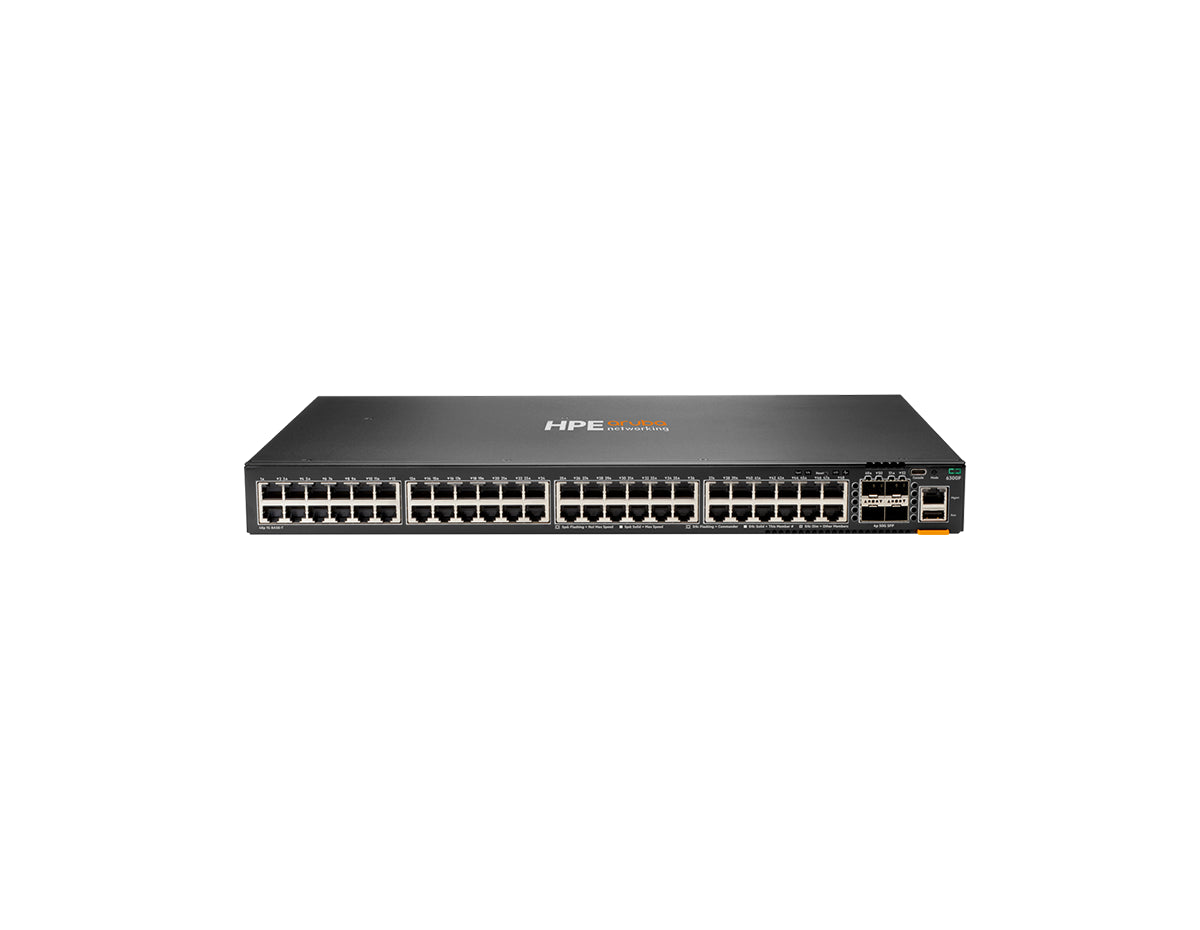

The HPE JL667A Aruba 6300F Switch delivers enterprise-grade Layer 3 performance, scalability, and intelligent automation for modern campus and data center networks. Built on the programmable Aruba CX architecture, this switch combines high-density Gigabit access with ultra-fast SFP56 uplinks, enabling seamless support for cloud, IoT, and bandwidth-intensive applications.
Key Benefits & Features
- 48-Port Gigabit Access: Provides 48 x 10/100/1000 RJ-45 ports for reliable high-density connectivity across enterprise edge and access layers.
- High-Speed SFP56 Uplinks: Includes 4 x 1G/10G/25G/50G SFP56 ports, enabling flexible uplink and high-performance stacking options.
- Advanced Layer 3 Capabilities: Full routing stack including BGP, OSPF, VRRP, and VXLAN for scalable and resilient network fabrics.
- Stackable Architecture: Aruba Virtual Switching Framework (VSF) supports stacking up to 10 switches, providing 400 Gbps of stacking bandwidth.
- Enterprise-Class Performance: Robust 496 Gbps switching capacity and 369 Mpps throughput ensure non-blocking, wire-speed performance for all ports.
Ideal Use Cases
- Enterprise campus access layer deployments
- Branch office network modernizations
- Data center Top-of-Rack (ToR) and Out-of-Band (OOBM) management
- High-density IoT and wireless aggregation networks
- Environments requiring deep analytics via Aruba Network Analytics Engine (NAE)
Technical Specifications
- Ports: 48 x 10/100/1000 Base-T and 4 x SFP56 uplinks
- Switching Capacity: 496 Gbps
- Throughput: 369 Mpps
- Latency: 1.46 microseconds (10GbE)
- Stacking Bandwidth: 400 Gbps
- MAC Table Size: 32,000 entries
- Processor: Dual-core ARM Cortex A9 1.016 GHz
- Memory: 8 GB DDR4
- Form Factor: 1U rack-mountable
- Management: Aruba Central, CLI, SNMP, REST API, NetEdit
Upgrade Your Network with Aruba CX Performance
Deploy scalable, high-speed switching with enterprise-grade reliability and built-in analytics. Order today to modernize your infrastructure with the Aruba 6300F series.
