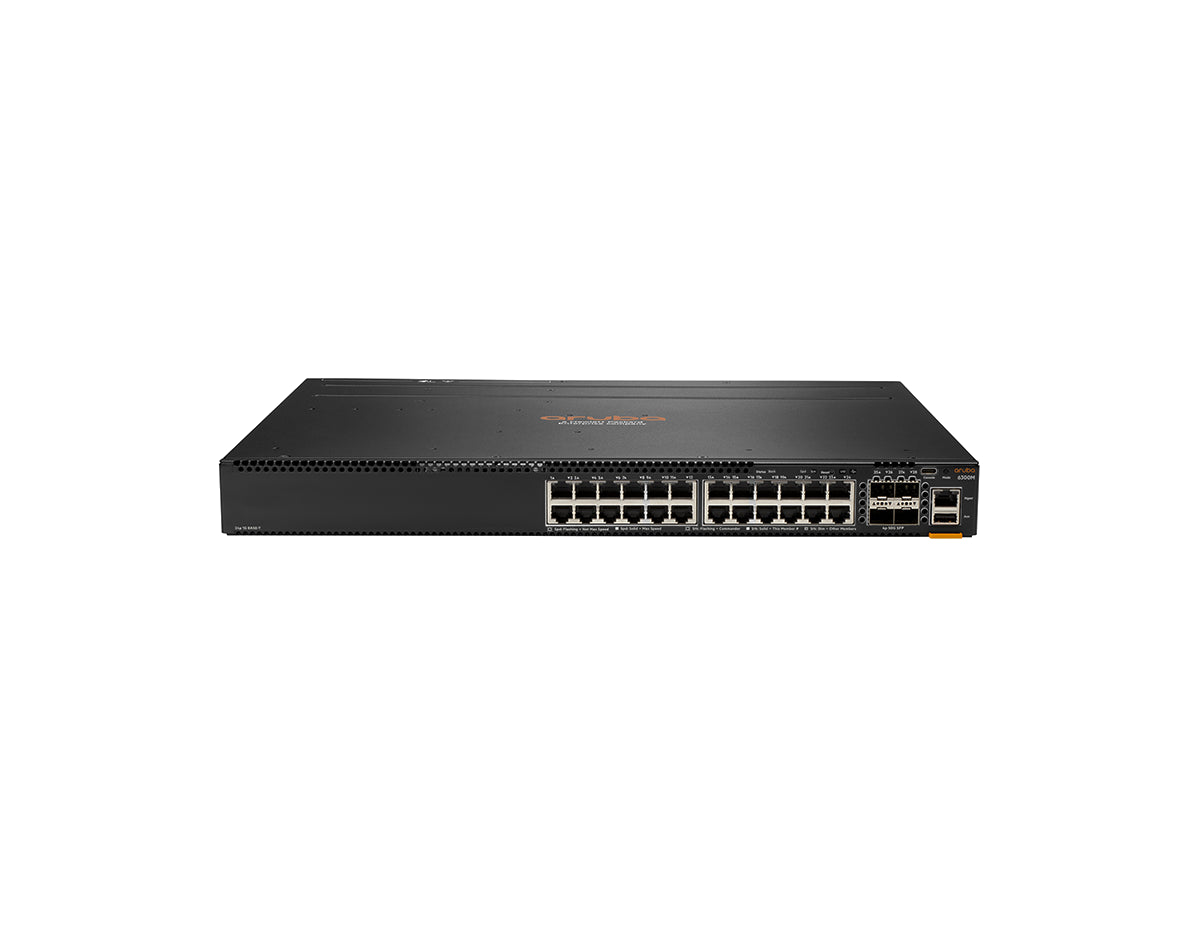

HPE Aruba Networking CX 6300M JL664A 24-Port Data Switch with 4x 1G/10G/25G/50G SFP56
- Managed, Rack-mountable, 24 x 1G ports, 4 x SFP/SFP+/SFP28/SFP56 uplinks (1/10/25/50G supported), No PoE (Data Only), Layer 3
Overview
The HPE Aruba Networking CX 6300 Switch Series is a family of stackable Layer 3 switches for enterprise network access, aggregation and core, built on HPE's Gen7 ASIC architecture and the microservices-based AOS-CX operating system, with full dynamic routing and EVPN-VXLAN support in the base software. The JL664A is the 24-port 1GbE data-only configuration of the CX 6300M, for wired endpoints that need no power from the switch. As a CX 6300M model it has two rear slots for hot-swappable power supplies and field-replaceable fan trays, so power can be made redundant and serviced in place. It takes the non-PoE JL085A power supply.
Technical Details
The HPE Aruba Networking CX 6300M JL664A is a Layer 3 managed 1U rackmount switch with 24 10/100/1000BASE-T ports and 4x 1G/10G/25G/50G SFP56 uplinks, running AOS-CX. Switching capacity is 448 Gbps and the forwarding rate is 334 Mpps. It carries no Power over Ethernet, so all 24 access ports are data-only. It supports VSF stacking of up to 10 members with 200 Gbps of stacking bandwidth. It connects desktops, printers and wired IoT devices at the campus and branch access layer.
Best For
The JL664A suits smaller campus and branch closets that connect non-powered endpoints such as desktops, printers and wired IoT devices and want routed access with full Layer 3 in the base software. Four SFP56 uplinks and 10-member VSF stacking carry traffic to the distribution layer, and hot-swappable power and fan modules suit always-on wiring closets.
Not suitable if:
- you need to power wireless access points, IP phones or IP cameras, since this is a data-only switch with no Power over Ethernet
- you need multigigabit access ports, since all ports are 10/100/1000BASE-T
- you need the switch to ship ready to power on, because the power supply is ordered separately
- you need more than 10 switches in one stack, since VSF supports up to 10 members
JL664A Specifications
| Class & Licensing | |
|---|---|
| License Tier | None (all base AOS-CX features included; optional term-based CX Advanced Feature Pack) |
| License Detail / MTBF | None (all base AOS-CX features included; optional term-based CX Advanced Feature Pack adds application-based and reflexive policies, WAN MACsec extensions and Drop Exceptions; HPE Aruba Networking Central is a separate, optional management subscription); MTBF not published |
| Ports & Uplinks | |
| Port Speed | Gigabit (10/100/1000BASE-T) |
| Uplink Configuration | 4x 1G/10G/25G/50G SFP56 (fixed); 50G capability is for use with 50G DACs for both interconnect and VSF stacking; VSF stacking not supported on 1G ports |
| Performance & Scale | |
| Stacking | HPE Aruba Networking Virtual Switching Framework (VSF) |
| Switching Capacity | 448 Gbps |
| Forwarding Rate | 334 Mpps |
| MAC Table | 32,768 entries |
| Stacking Bandwidth | 200 Gbps (400 Gbps at full duplex) |
| Max Stack Members | 10 |
| IPv4 Routes | 61,000 |
| Hardware & Memory | |
| DRAM | 8 GB DDR4 |
| ASIC | Gen7 |
| Flash | 32 GB eMMC |
| Power & Thermal | |
| Power Input / PSU | 2 field-replaceable, hot-swappable PSU slots, 1 minimum (ordered separately); supports JL085A (X371 12VDC 250W 100-240VAC) PSU |
| Redundant PSU | Yes (2 hot-swappable slots; second PSU optional; N+1 and N+N redundancy) |
| Cooling | 1 of 2 field-replaceable, hot-swappable fan trays installed (1 required; second ordered separately; 2 fans each) |
| Physical & Environmental | |
| Dimensions (H x W x D) | 1.73 x 17.4 x 15.2 in (4.4 x 44.2 x 38.5 cm) |
| Weight | 11.97 lbs (5.43 kg) |
| Operating Temperature | 32 to 113 °F (0 to 45 °C) up to 5,000 ft; 32 to 104 °F (0 to 40 °C) from 5,001 to 10,000 ft; excursion to 131 °F (55 °C) for short periods (not more than 96 consecutive hours or 360 hours total or 15 occurrences in a 1-year period) |
| Software | |
| Routing Protocols | Static (IPv4/IPv6), RIPv2/RIPng, OSPFv2/OSPFv3, BGP-4/MP-BGP, PBR, ECMP, VRRP, BFD, PIM-SM/SSM/DM, MSDP; VXLAN with MP-BGP EVPN control plane |
| Operating System | AOS-CX |
JL664A Accessories
| Accessories | |
|---|---|
| JL669B | • Aruba X751 Port to Power Fan Tray |
| JL761A | Aruba 6300M Power-to-Port Fan Tray |
| J9583A | • HPE X410 1U Universal 4-post Rack Mount Kit |
| J9583B | • Aruba X414 1U Universal 4-post Rack Mounting Kit |
| R9G48A | • Aruba USB-A to RJ45 PC-to-Switch Cable |
| R8Z87A | • Aruba USB-A to RJ45 PIN3TX-6RX Cable |
| R9J32A | • Aruba USB-A to USB-C PC-to-Switch Cable |
| R9J33A | • Aruba USB-C to USB-C PC-to-Switch Cable |
| S1H23A | • HPE Aruba Networking CX Switch Bluetooth Adapter |
| JL487A | Aruba 25G SFP28 to SFP28 0.65m Direct Attach Copper Cable |
| JL488A | Aruba 25G SFP28 to SFP28 3m Direct Attach Copper Cable |
| JL489A | Aruba 25G SFP28 to SFP28 5m Direct Attach Copper Cable |
| R0M46A | Aruba 50G SFP56 to SFP56 0.65m DAC Cable |
| R0M47A | Aruba 50G SFP56 to SFP56 3m DAC Cable |
| Cables | |
| J9281D | • Aruba 10G SFP+ to SFP+ 1m Direct Attach Copper Cable |
| J9283D | • Aruba 10G SFP+ to SFP+ 3m Direct Attach Copper Cable |
| Power Supplies | |
| JL085A | • Aruba X371 12VDC 250W 100-240VAC Power Supply |
| JL086A | • Aruba X372 54VDC 680W 100-240VAC Power Supply |
| JL087A | • Aruba X372 54VDC 1050W 100-240VAC Power Supply |
| JL670A | • Aruba X372 54VDC 1600W 100-240VAC Power Supply |
| JL760A | • Aruba X371 12VDC 250W 100-240VAC Power-to-Port Power Supply |
| JL757A | • Aruba 6300M 250W 36-72VDC PSU |
| JL758A | • Aruba 6300M 1050W 36-72VDC |
| Transceivers | |
| J9054D | Aruba 100M SFP LC FX 2km MMF XCVR (J9054D) |
| J4858D | • Aruba 1G SFP LC SX 500m MMF Transceiver |
| J4859D | • Aruba 1G SFP LC LX 10km SMF Transceiver |
| J4860D | • Aruba 1G SFP LC LH 70km SMF Transceiver |
| J8177D | • Aruba 1G SFP RJ45 T 100m Cat5e Transceiver |
| JL745A | • Aruba 1G SFP LC SX 500m MMF TAA Transceiver |
| JL746A | • Aruba 1G SFP LC SX 500m SMF TAA Transceiver |
| JL747A | • Aruba 1G SFP LC SX 500m Cat5 TAA Transceiver |
| J9150D | • Aruba 10G SFP+ LC SR 300m MMF Transceiver |
| J9151E | • Aruba 10G SFP+ LC LR 10km SMF Transceiver |
| J9153D | • Aruba 10G SFP+ LC ER 40km SMF Transceiver |
| JL563B | • Aruba 10GBASE-T SFP+ RJ-45 30m Cat6A Transceiver |
| J9152D | • Aruba 10G SFP+ LC LRM 220m MMF Transceiver |
| JL748A | • Aruba 10G SFP+ LC SR 300m MMF TAA Transceiver |
| JL749A | • Aruba 10G SFP+ LC SR 10km SMF TAA Transceiver |
| JL484A | Aruba 25G SFP28 LC SR 100m MMF Transceiver |
| JL485A | Aruba 25G SFP28 LC SR 400m MMF Transceiver |
| JL486A | Aruba 25G SFP28 LC SR 10km SMF Transceiver |
| R0M48A | Aruba 50G SFP56 LC SR 100m MMF XCVR |
FAQ
Does the HPE Aruba Networking CX 6300M JL664A support PoE?
No. The HPE Aruba Networking CX 6300M JL664A is a data-only switch: its 24 10/100/1000BASE-T access ports carry no Power over Ethernet, so it cannot power wireless access points, IP phones or IP cameras. Its power supply, the JL085A, is a non-PoE unit. For PoE+ at the same port count in the CX 6300M line, see the JL662A.
What transceivers do the uplinks on the JL664A use?
The JL664A has four SFP56 uplink ports rated 1G/10G/25G/50G. HPE's footnote states that the 50G capability is for use with 50G DACs for both interconnect and VSF stacking, and 100 Mb transceivers are not supported in any SFP56 port. The 24 access ports are RJ-45 copper and take no pluggable optics. Check optic and DAC compatibility against HPE's CX 6300 QuickSpecs transceiver list. Transceivers are sold separately.
How many JL664A switches can be stacked?
Up to 10. The JL664A supports HPE Aruba Networking Virtual Switching Framework (VSF) stacking of up to 10 members in a chain or ring, with 200 Gbps of stacking bandwidth (400 Gbps at full duplex). VSF stacking is not supported on 1G ports. HPE allows modular CX 6300M and fixed CX 6300F models in the same stack, but the Layer 2-only CX 6300L models do not stack with them. As an alternative to a stack, two switches can form a Virtual Switching Extension (VSX) cluster.
What is the difference between the JL664A and the JL662A?
Both are 24-port 10/100/1000BASE-T CX 6300M switches with four SFP56 uplinks, VSF stacking, 448 Gbps and 334 Mpps. The JL664A is data-only and takes the non-PoE JL085A power supply. The JL662A has 24 ports with PoE+ up to 30 W with a 720 W budget from two supplies, and takes the JL086A, JL087A or JL670A power supplies. Choose the JL664A when no endpoint needs power from the switch.
Does the JL664A need a license or subscription to operate?
No. The JL664A runs AOS-CX with all base features included, among them BGP, OSPF, RIP, VRRP, PIM, VXLAN and EVPN. HPE offers an optional, term-based CX Advanced Feature Pack that adds application-based and reflexive policies, MACsec extensions for the WAN and Drop Exceptions; it adds no routing capability. HPE Aruba Networking Central is a separate, optional management subscription, and HPE states that a Central Advanced subscription also enables the Advanced Feature Pack features.
Does the JL664A come with a power supply?
No. The JL664A has two field-replaceable, hot-swappable power-supply slots, and at least one power supply is required and ordered separately. This model supports the HPE Aruba Networking X371 12VDC 250W 100-240VAC power supply (JL085A); a second one adds power-supply redundancy. One of the two fan trays comes installed, and the second is ordered separately.
What condition is the JL664A sold in, and what warranty applies?
The JL664A is sold new and factory-sealed. It is covered by the Network Devices Inc. 1-year warranty and a 30-day return policy.
