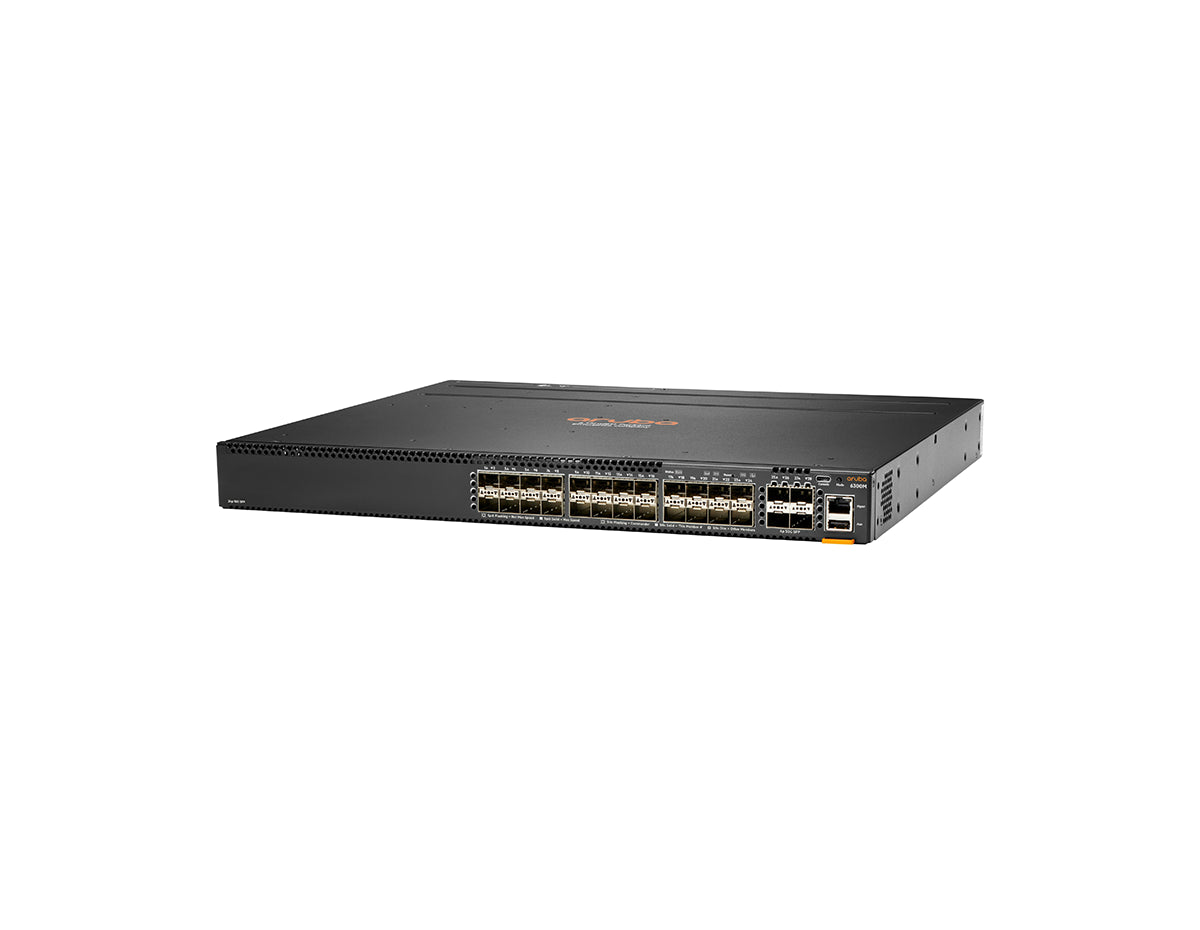

HPE Aruba Networking CX 6300M JL658A 24-Port SFP+ Data Switch with 4x 1G/10G/25G/50G SFP56
- Managed, rack-mountable, 24 x 1/10GbE SFP+ ports, 4 x SFP56 (1/10/25/50GbE)* uplinks, No PoE (data only), Layer 3 (*50G via DAC for VSF/interconnect)
Overview
The HPE Aruba Networking CX 6300 Switch Series is a family of stackable Layer 3 switches for enterprise network access, aggregation and core, built on HPE's Gen7 ASIC architecture and the microservices-based AOS-CX operating system, with full dynamic routing and EVPN-VXLAN support in the base software. The JL658A is the all-fiber CX 6300M configuration: its 24 access ports are 1G/10G SFP+ cages rather than copper, which suits it to aggregating fiber runs from access closets. As a CX 6300M model it has two rear slots for hot-swappable power supplies and field-replaceable fan trays, so power can be made redundant and serviced in place. It ships with both fan trays installed and takes the non-PoE JL085A power supply.
Technical Details
The HPE Aruba Networking CX 6300M JL658A is a Layer 3 managed 1U rackmount switch with 24 1G/10G SFP+ ports and 4x 1G/10G/25G/50G SFP56 uplinks, running AOS-CX. Switching capacity is 880 Gbps and the forwarding rate is 654 Mpps. It carries no Power over Ethernet, so all 24 SFP+ ports are data-only. It supports Virtual Switching Framework (VSF) stacking of up to 10 members with 200 Gbps of stacking bandwidth. HPE positions this high-density 24-port SFP+ model for aggregation, connecting fiber uplinks from downstream access switches and fiber-attached devices.
Best For
The JL658A suits campus and branch aggregation points that terminate many 1G or 10G fiber links from downstream access switches, with four SFP56 uplinks toward the core and VSF stacking of up to 10 members. Its hot-swappable power and fan modules fit distribution rooms that need serviceable, redundant power.
Not suitable if:
- you need to power wireless access points, IP phones or IP cameras, since this is a data-only switch with no Power over Ethernet
- you need copper RJ-45 access ports, since all 24 access ports are SFP+ cages
- you plan to run 10G SFP+ LR or ER optics in rooms above 40 °C (104 °F), since HPE lowers the rated operating temperature to 0 to 40 °C (32 to 104 °F) with those optics installed
- you need more than 10 switches in one stack, since VSF supports up to 10 members
JL658A Specifications
| Class & Licensing | |
|---|---|
| License Tier | None (all base AOS-CX features included; optional term-based CX Advanced Feature Pack) |
| License Detail / MTBF | None (all base AOS-CX features included; optional term-based CX Advanced Feature Pack adds application-based and reflexive policies, WAN MACsec extensions and Drop Exceptions; HPE Aruba Networking Central is a separate, optional management subscription); MTBF not published |
| Ports & Uplinks | |
| Port Speed | 10G (24x 1G/10G SFP+) |
| Uplink Configuration | 4x 1G/10G/25G/50G SFP56 (fixed); 50G capability is for use with 50G DACs for both interconnect and VSF stacking; VSF stacking not supported on 1G ports |
| Performance & Scale | |
| Stacking | HPE Aruba Networking Virtual Switching Framework (VSF) |
| Switching Capacity | 880 Gbps |
| Forwarding Rate | 654 Mpps |
| MAC Table | 32,768 entries |
| Stacking Bandwidth | 200 Gbps (400 Gbps at full duplex) |
| Max Stack Members | 10 |
| IPv4 Routes | 61,000 |
| Hardware & Memory | |
| DRAM | 8 GB DDR4 |
| ASIC | Gen7 |
| Flash | 32 GB eMMC |
| Power & Thermal | |
| Power Input / PSU | 2 field-replaceable, hot-swappable PSU slots, 1 minimum (ordered separately); supports JL085A (X371 12VDC 250W 100-240VAC) PSU |
| Redundant PSU | Yes (2 hot-swappable slots; second PSU optional; N+1 and N+N redundancy) |
| Cooling | 2 field-replaceable, hot-swappable fan trays installed (2 required; 2 fans each) |
| Physical & Environmental | |
| Dimensions (H x W x D) | 1.73 x 17.4 x 15.2 in (4.4 x 44.2 x 38.5 cm) |
| Weight | 12.78 lbs (5.8 kg) |
| Operating Temperature | 32 to 113 °F (0 to 45 °C) up to 5,000 ft; 32 to 104 °F (0 to 40 °C) from 5,001 to 10,000 ft; excursion to 131 °F (55 °C) for short periods (not more than 96 consecutive hours or 360 hours total or 15 occurrences in a 1-year period); reduced to 32 to 104 °F (0 to 40 °C) up to 5,000 ft when 10G SFP+ LR or ER transceivers are installed |
| Software | |
| Routing Protocols | Static (IPv4/IPv6), RIPv2/RIPng, OSPFv2/OSPFv3, BGP-4/MP-BGP, PBR, ECMP, VRRP, BFD, PIM-SM/SSM/DM, MSDP; VXLAN with MP-BGP EVPN control plane |
| Operating System | AOS-CX |
JL658A Accessories
| Accessories | |
| Fan Trays | System (std 2 // max 2) User Selection (min 0 // max 0) per enclosure Note: This switch includes 2 Fan Trays. No additional Fan Trays necessary |
| JL669B | Aruba X751 Front to Back Fan Tray |
| JL761A | Aruba 6300M Power-to-Port Fan Tray |
| USB Console Cables | System (std 0 // max 99) User Selection (min 0 // max 99) per switch |
| R8Z87A | Aruba USBA-RJ45 PIN3TX-6RX 2.5m Cable |
| R9G48A | Aruba USBA-RJ45 PC-to-Switch PIN6TX-3RX 2.5m Cable |
| R9J32A | Aruba USB-A reversible to USB-C PC-to-Switch 3m Cable |
| R9J33A | Aruba USB-C to USB-C PC-to-Switch 3m Cable |
| Bluetooth Adapter | System (std 0 // max 99) User Selection (min 0 // max 99) per switch |
| S1H23A | HPE Aruba Networking CX Switch Bluetooth Adapter |
FAQ
Does the HPE Aruba Networking CX 6300M JL658A support PoE?
No. The HPE Aruba Networking CX 6300M JL658A has 24 1G/10G SFP+ fiber access ports and provides no Power over Ethernet, so it cannot power wireless access points, IP phones or IP cameras. It is built for fiber aggregation. For copper PoE access in the same series, the CX 6300M JL662A offers PoE+ on 24 1GbE ports and the CX 6300M JL660A offers Class 6 power on 24 HPE Smart Rate ports.
What transceivers do the uplinks on the JL658A use?
The JL658A has four SFP56 uplink ports rated 1G/10G/25G/50G. HPE's footnote states that the 50G capability is for use with 50G DACs for both interconnect and VSF stacking, and 100 Mb transceivers are not supported in any SFP56 port. The 24 access ports are SFP+ cages for 1G and 10G optics; they do not run 25G or 50G. HPE supports the J9054D 100M SFP only in those SFP+ ports on this model, and installing 10G SFP+ LR or ER optics reduces the rated operating temperature to 0 to 40 °C (32 to 104 °F) up to 5,000 ft. Check optic and DAC compatibility against HPE's CX 6300 QuickSpecs transceiver list. Transceivers are sold separately.
How many JL658A switches can be stacked?
Up to 10. The JL658A supports HPE Aruba Networking Virtual Switching Framework (VSF) stacking of up to 10 members in a chain or ring, with 200 Gbps of stacking bandwidth (400 Gbps at full duplex). VSF stacking is not supported on 1G ports. HPE allows modular CX 6300M and fixed CX 6300F models in the same stack, but the Layer 2-only CX 6300L models do not stack with them. As an alternative to a stack, two switches can form a Virtual Switching Extension (VSX) cluster.
What is the difference between the JL658A and the JL664A?
Both are data-only CX 6300M switches with four SFP56 uplinks, VSF stacking and the same non-PoE JL085A power supply option. The JL658A has 24 1G/10G SFP+ fiber ports, 880 Gbps of switching capacity, 654 Mpps, and ships with both fan trays installed. The JL664A has 24 10/100/1000BASE-T copper ports, 448 Gbps and 334 Mpps, and ships with one of its two fan trays. Choose the JL658A for fiber aggregation and the JL664A for copper access.
Does the JL658A need a license or subscription to operate?
No. The JL658A runs AOS-CX with all base features included, among them BGP, OSPF, RIP, VRRP, PIM, VXLAN and EVPN. HPE offers an optional, term-based CX Advanced Feature Pack that adds application-based and reflexive policies, MACsec extensions for the WAN and Drop Exceptions; it adds no routing capability. HPE Aruba Networking Central is a separate, optional management subscription, and HPE states that a Central Advanced subscription also enables the Advanced Feature Pack features.
Does the JL658A come with a power supply?
No. The JL658A has two field-replaceable, hot-swappable power-supply slots, and at least one power supply is required and ordered separately. This model supports the HPE Aruba Networking X371 12VDC 250W 100-240VAC power supply (JL085A); a second one adds power-supply redundancy. Both fan trays come installed, and HPE requires two.
What condition is the JL658A sold in, and what warranty applies?
The JL658A is sold new and factory-sealed. It is covered by the Network Devices Inc. 1-year warranty and a 30-day return policy.
