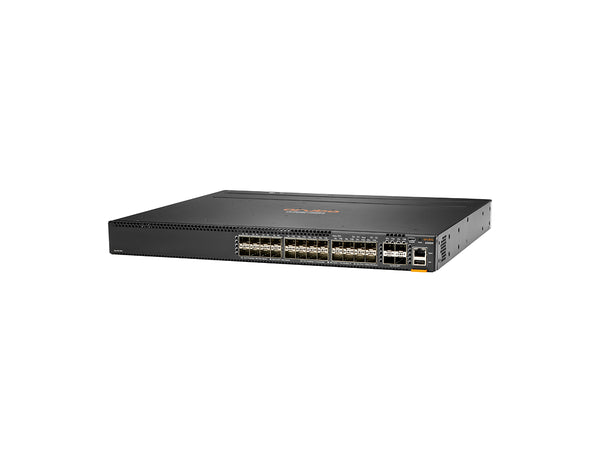

HPE ARUBA 6300M 24-PORT SFP+ AND 4-PORT SFP56 SWITCH (JL658A)
| Model: | JL658A |
| Detail: |
|
| List Price: | |
| Price: | $4,975.00 |
| You Save: | $15,854.00 (76% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description
HPE Aruba 6300M 24-port SFP+ and 4-port SFP56 Switch (JL658A)
The HPE Aruba 6300M 24-port SFP+ and 4-port SFP56 Switch (JL658A) is designed for high-performance enterprise networks. Featuring 24 SFP+ ports for 1G/10G connectivity and four high-speed SFP56 uplinks, this switch ensures exceptional bandwidth and scalability for modern networks. With a compact design and robust feature set, it is ideal for data center top-of-rack (ToR) and aggregation layer deployments, providing flexibility, security, and high availability for critical applications.
Key Features:
- 24 x 1G/10G SFP+ Ports: Supports high-speed connections for improved network performance and future growth.
- 4 x SFP56 Uplinks: Enables uplink speeds of up to 50Gbps, providing high bandwidth for inter-switch communication and network expansion.
- Advanced Layer 3 Capabilities: Includes robust routing protocols such as OSPF and BGP, offering efficient traffic management and segmentation.
- Energy-Efficient Design: Optimizes power usage in compliance with IEEE 802.3az standards, lowering operational costs.
- Stackable Architecture: Supports HPE Virtual Switching Framework (VSF) for stacking up to 10 switches, simplifying network management and scaling.
Technical Overview:
- Recommended for: Enterprise networks, data centers, and branch offices.
- Ports: 24 x 1G/10G SFP+ ports, 4 x 50G SFP56 uplink ports.
- Switching Capacity: 880 Gbps.
- Throughput: 654 Mpps.
- Layer 3 Features: OSPF, BGP, VRF, and VLAN for advanced traffic routing.
- Management: Web GUI, CLI, SNMP, and Aruba Central.
- Energy Efficiency: IEEE 802.3az compliant for reduced power consumption.
- Stacking: Supports up to 10 switches with VSF for simplified management.
You can check the related tab for the JL658A datasheet.
Accessories
| Accessories | |
| Fan Trays | System (std 2 // max 2) User Selection (min 0 // max 0) per enclosure Note: This switch includes 2 Fan Trays. No additional Fan Trays necessary |
| JL669B | Aruba X751 Front to Back Fan Tray |
| JL761A | Aruba 6300M Power-to-Port Fan Tray |
| USB Console Cables | System (std 0 // max 99) User Selection (min 0 // max 99) per switch |
| R8Z87A | Aruba USBA-RJ45 PIN3TX-6RX 2.5m Cable |
| R9G48A | Aruba USBA-RJ45 PC-to-Switch PIN6TX-3RX 2.5m Cable |
| R9J32A | Aruba USB-A reversible to USB-C PC-to-Switch 3m Cable |
| R9J33A | Aruba USB-C to USB-C PC-to-Switch 3m Cable |
| Bluetooth Adapter | System (std 0 // max 99) User Selection (min 0 // max 99) per switch |
| S1H23A | HPE Aruba Networking CX Switch |
Specifications
| Specifications | |
| Additional Ports and Slots | 1x USB‑C console port 1x OOBM 1x USB Type A host port 1x Bluetooth dongle to be used with CX Mobile App |
| Power Supplies | 2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (ordered separately) Supports JL085A PSU |
| Fan Tray | Switch has two fan tray slots and comes with two fan trays installed. Fan trays are field replaceable and hot-swappable. Minimum 2 fan trays required. Each fan tray is comprised of two fans. |
| Physical Characteristics | |
| Dimensions | 17.4 (w) x 15.2 (d) x 1.73 (h) in (44.2 x 38.5 x 4.4 cm) |
| Weight | 12.78 lbs (5.8 Kg) |
| Mounting and Enclosure | Mounts in an EIA- standard 19 in. telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included. |
| CPU | Quad Core ARM Cortex™ A72 @ 1.8GHz |
| Memory and Flash | 8 GBytes DDR4 32 GBytes eMMC |
| Packet Buffer | 8 MB packet buffer memory |
| Performance | |
| System switching capacity | 880 Gbps |
| System throughput capacity | 660 Mpps |
| Model switching capacity | 880 Gbps |
| Model throughput capacity | 654 Mpps |
| Average latency (LIFO, 64-byte packets) |
1Gbps: 1.99μSec 10Gbps: 1.49μSec 25Gbps: 2.85μSec 50Gbps: 2.82μSec |
| Stack size | 10 members |
| Max stacking distance | Up to 10 kms with long range transceivers |
| Stacking bandwidth | 200 Gbps (400 Gbps at full duplex) |
| Switched virtual interfaces (dual stack) | 1,024 |
| IPv4 host table (ARP) | 49,152 |
| IPv6 host table (ND) | 49,152 |
| IPv4 unicast routes | 61,000 |
| IPv6 unicast routes | 61,000 |
| IPv4 multicast routes | 8,192 |
| IPv6 multicast routes | 8,192 |
| MAC table capacity | 32,768 |
| IGMP groups | 8,192 |
| MLD groups | 8,192 |
| IPv4/IPv6/MAC ACL entries (ingress) | 20,480/5,120/20,480 |
| IPv4/IPv6/MAC ACL entries (engress) | 8,192/2,048/8,192 |
| VRF | 256 |
| Environment | |
| Operating temperature | 32°F to 113°F (0°C to 45°C), up to 5,000 feet 32°F to 104°F (0°C to 40°C), 5,001 to 10,000 feet 1°C de‑rating per 1,000 feet above 5,000 feet Can support excursion to 131°F (55°C) for short periods of time. Operating temperature is reduced to 32°F (0°C) to 104°F (40°C) up to 5000ft when 10G SFP+ LR or ER Transceivers are installed. (Not more than 96 consecutive hours or 360 hours total or 15 occurrences in a 1-year period.) |
| Operating humidity | 15% to 95% relative humidity at 104°F (40°C), non‑condensing |
| Non-operating temperature | ‑40°F to 158°F ('‑40°C to 70°C) |
| Non-operating humidity | 15% to 95% relative humidity at 149°F(65°C), non‑condensing |
| Max operating altitude | Up to 10,000ft (3.048 Km) |
| Max non-operating altitude | Up to 15,000ft (4.572 Km) |
| Acoustic | Sound power, LWAd = 4.9 Bel Sound pressure, LpAm (bystander) = 31.0 dB |
| Primary airflow | Front and side-to-back |
| Electrical Characteristics | |
| Frequency | 50-60 Hz |
| AC voltage | JL085A PSU: 100V-240V |
| Current (for voltages listed above) | JL085A PSU: 3A/1.2A |
| Power consumption (230VAC) | Idle: 51W 100% traffic rate: 85W |
| Safety | Europe: EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011 + A2:2013 US: UL 60950-1 2nd Ed Canada: CAN/CSA-C22.2 No. 60950-1-07 Worldwide: IEC 60950-1:2005 w/all known National Deviations |
| Emissions | Europe: EN 55022:2010, Class A EN 55032:2012, Class A EN 55024:2010, EN 61000-3-2:2014, EN 61000-3-3:2013 US: FCC part 15 Class A Canada: ICES-003 Class A Worldwide: VCCI Class A, CISPR 22 Class A CISPR 32 Class A CISPR 24:2010 |
| Lasers | EN 60825-1:2007 / IEC 60825-1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only) |
| Immunity | |
| Generic | CISPR 24 / CISPR 35 |
| EN | EN 55024:2010 / EN 55035:2017 |
| ESD | IEC 61000-4-2 |
| Radiated | IEC 61000-4-3 |
| EFT/Burst | IEC 61000-4-4 |
| Surge | IEC 61000-4-5 |
| Conducted | IEC 61000-4-6 |
| Power frequency magnetic field | IEC 61000-4-8 |
| Voltage dips and interruptions | IEC 61000-4-11 |
| Harmonics | IEC 61000-3-2, EN 61000-3-2 |
| Flicker | IEC 61000-3-3, EN 61000-3-3 |
Properties
| Properties | JL658A |
| Description | Aruba 6300M 24-port SFP+ and 4-port SFP56 Switch JL658A • 24x 1G/10G SFP+ ports 4x 1G/10G/25G SFP ports • Must Select PSU Min1 / Max2 (250W JL085A, 250W JL757A) Mix OK • Includes Fantrays Min2 / Max 2 (JL669B) • Min=0 \ Max= 24 SFP/SFP+ 100M/1/10G Transceivers • Min=0 \ Max = 4 SFP/SFP+/SFP28/SFP56 1/10/25/50G Transceiver • 1U – Height |
| Product Family | CX 6300 Switch Series |
| Product Type | Switch |
