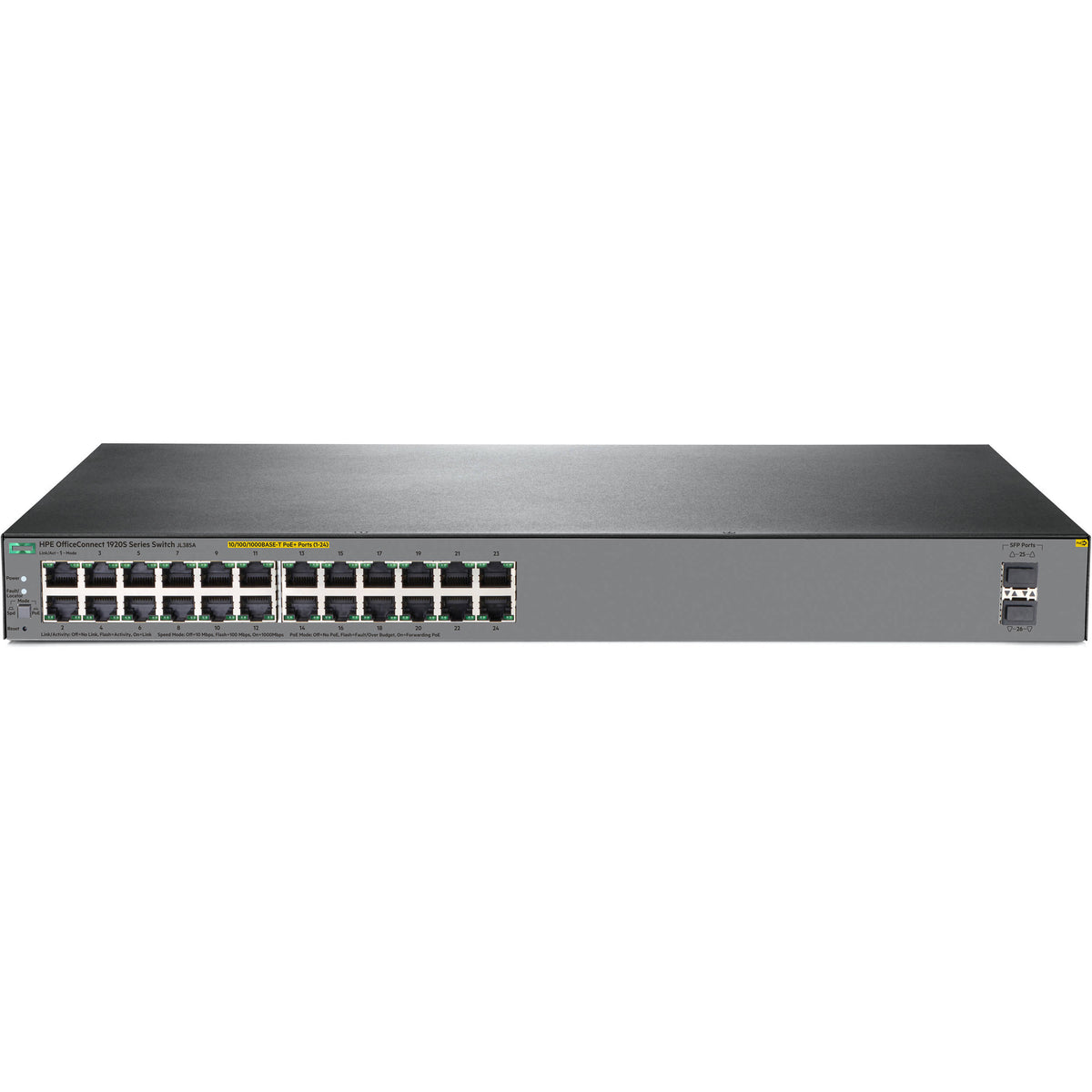

HPE OfficeConnect JL385A 1920S 24G 2SFP PoE+ 370W Switch

HPE OfficeConnect 1920S 24G 2SFP PoE+ 370W Switch (JL385A)

Properties	HPE OfficeConnect 1920S JL385A
Description	Switch, L3, Managed, 24 x 10/100/1000 (PoE+) + 2 x 100/1000 SFP, Desktop, Rack-mountable, Wall-mountable
Product Family	1920S Series
Product Type	Ethernet Switch
I/O ports and slots	24 RJ-45 autosensing 10/100/1000 PoE+ ports; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 SFP 100/1000 Mbps ports (IEEE 802.3z Type 1000BASE-X, IEEE 802.3u Type 100BASE-FX)
Electrical characteristics
Frequency	50/60 Hz
AC voltage	100 - 127/200 - 240 VAC
Current	3.5/1.9 A
Maximum power rating	435 W
Idle power	34.2 W
PoE power	370 W PoE+
Dimension	17.42(w) x 12.7(d) x 1.73(h) in (44.25 x 32.26 x 4.39 cm) (1U height)
Weight	9.7 lb (4.4 kg)
Mounting and enclosure	Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)

Specifications	1920S-JL385A
Memory and processor	ARM Cortex-A9 @ 400 MHz, 256 MB SDRAM, 64 MB flash; packet buffer: 1.5 MB
Performance
100 Mb Latency	< 7µs
1000 Mb Latency	< 2µs
Throughput	Up to 77.3 Mpps (64-byte packets)
Routing/Switching capacity	52 Gbps
Routing table size	32 entries
MAC address table size	16000 entries
Management	Web browser; SNMP Manager
Operating temperature	32°F to 104°F (0°C to 40°C)
Operating relative humidity	15% to 95%, noncondensing @ 104°F (40°C)
Nonoperating/Storage temperature	-40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity	15% to 95%, noncondensing
Altitude	up to 10,000 ft (3 km)
Acoustic	Power: 45 dB
MTBF (years)	57.1
Safety	UL 60950-1; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60825-1
Emissions	VCCI Class A; CNS 13438; ICES-003 Issue 5 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015/CISPR-32
Immunity	EN 55024, CISPR 24 EN 55024, CISPR 24 IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-8 IEC 61000-4-11 EN 61000-3-2, IEC 61000-3-2 EN 61000-3-3, IEC 61000-3-3
General protocols	IEEE 802.1D MAC Bridges IEEE 802.1p Priority IEEE 802.1Q VLANs IEEE 802.1s (MSTP) IEEE 802.1w Rapid Reconfiguration of Spanning Tree IEEE 802.3ad Link Aggregation Control Protocol (LACP) IEEE 802.3x Flow Control IEEE 802.3 Type 10BASE-T IEEE 802.3i 10BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-X
MIBs	HC-ALARM-MIB SNMP-FRAMEWORK-MIB SNMP-NOTIFICATION-MIB SNMP-USER-BASED-SM-MIB SR-AGENT-INFO-MIB BRIDGE-MIB (IEEE 802.1Q) Q-BRIDGE-MIB (RFC 2674) LLDP-MIB (IEEE 802.3AB) LLDP-EXT-MED-MIB LAG-MIB (IEEE 802.3ad) RADIUS-ACC-CLIENT-MIB EtherLike-MIB IF-MIB (RFC 2863) RFC1213-MIB II Power Ethernet MIB (RFC3621)
QoS/CoS	IEEE 802.1P (CoS)
Security	IEEE 802.1X Port Based Network Access Control

Transceivers
J9054C	HPE X121 1G SFP LC SX Transceiver
J8177C	HPE X121 1G SFP LC LX Transceiver
J4859C	HPE X121 1G SFP RJ45 T Transceiver
J4858C	HPE X111 100M SFP LC FX Transceiver
Cables
AJ833A	HPE 0.5 m Multimode OM3 LC/LC Optical Cable
AJ834A	HPE 1 m Multimode OM3 LC/LC Optical Cable
AJ835A	HPE 2 m Multimode OM3 LC/LC Optical Cable
AJ836A	HPE 5 m Multimode OM3 LC/LC Optical Cable
AJ837A	HPE 15 m Multimode OM3 LC/LC Optical Cable
AJ838A	HPE 30 m Multimode OM3 LC/LC Optical Cable
AJ839A	HPE 50 m Multimode OM3 LC/LC Optical Cable
QK732A	HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable
QK733A	HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 2m Cable
QK734A	HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 5m Cable
QK735A	HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 15m Cable
QK736A	HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 30m Cable
QK737A	HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 50m Cable
