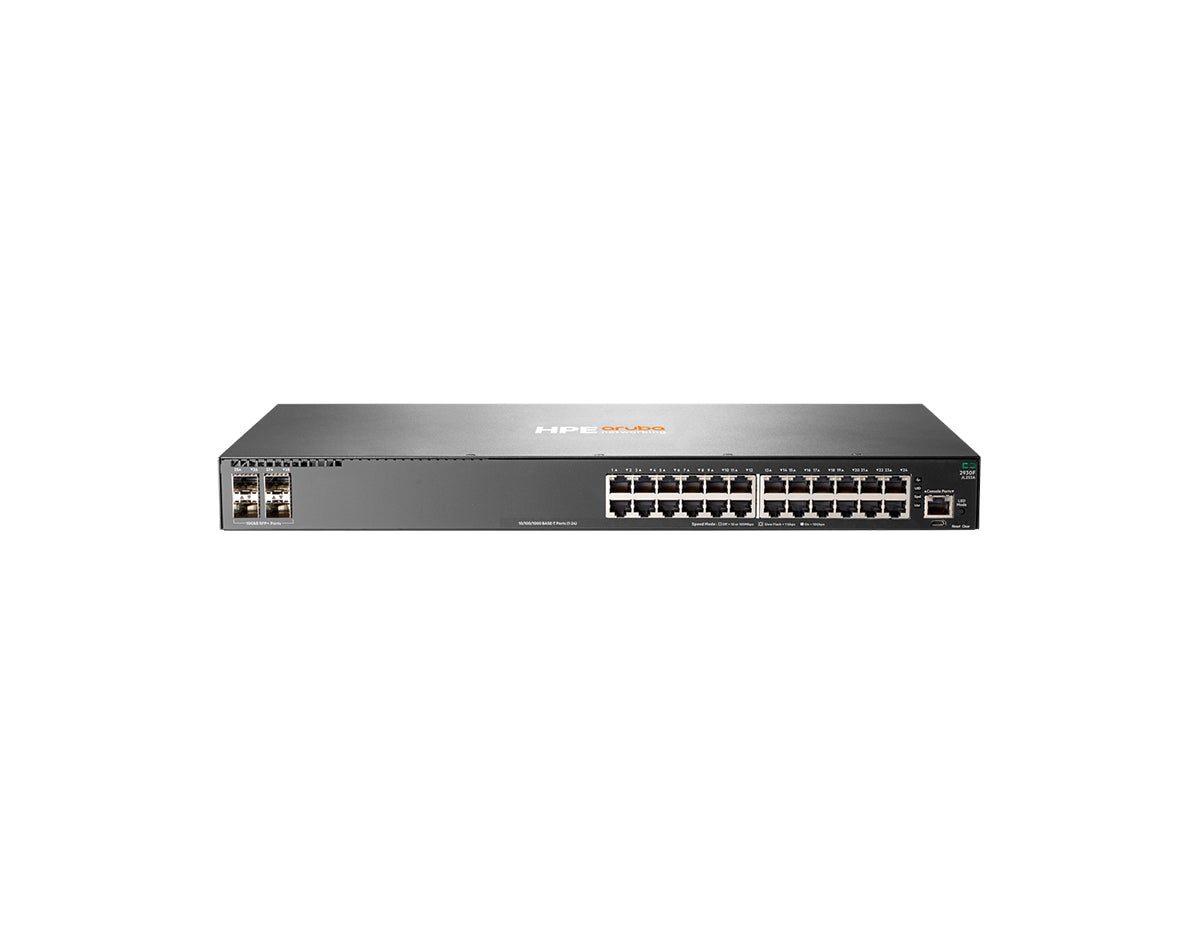

HPE Aruba Networking JL259A 2930F 24G 4SFP Switch

HPE Aruba 2930F 24G 4SFP Switch (JL259A)

The HPE Aruba 2930F 24G 4SFP Switch (JL259A) is a reliable Layer 2+ Gigabit access switch designed for small and medium-sized businesses, branch offices, and enterprise edge deployments. With 24 RJ-45 Gigabit ports and 4 fixed SFP uplinks, this model delivers fast, secure, and scalable connectivity. Featuring static and RIP routing, robust QoS, and ACL support, the JL259A provides advanced traffic management while remaining cost-effective and simple to deploy.

Key Features:

• 24 x 1GbE Ports: High-performance access layer connectivity for business-critical devices.
• 4 x SFP Uplink Ports: Flexible fiber uplinks for connecting to distribution or core switches.
• Layer 2+ Switching: Includes VLANs, ACLs, QoS, static and RIP routing for efficient network control.
• Scalable & Easy to Manage: Supports Aruba AirWave and IMC for centralized management.
• Energy Efficient: Compliant with IEEE 802.3az standards to reduce power usage.

Technical Overview:

• Recommended for: SMBs, branch offices, and education networks.
• Ports: 24 x 1GbE, 4 x SFP uplinks.
• Switching Capacity: 56 Gbps.
• Forwarding Rate: 41.7 Mpps.
• Routing: Static and RIP IPv4/IPv6.
• MAC Address Table: 32,768 entries.
• Latency: < 3.8 µs (64-byte packets at 1GbE).
• Management: Aruba AirWave, IMC, CLI, Web GUI, SNMP, RMON, OOB console.
• Power Consumption: 29.3 W max / 19.5 W idle.
• Dimensions: 1.73 x 17.42 x 7.88 in (4.39 x 44.25 x 20.02 cm).
• Weight: 2.41 kg (5.31 lb).

Properties	HPE OfficeConnect 2930F JL259A
Description	The HPE Aruba 2930F JL259A is a 28-port Gigabit access switch with 24 RJ-45 Gigabit ports and 4 fixed SFP uplink ports, designed for reliable enterprise connectivity.
Product Family	2930F Series
Product Type	Ethernet Switch
I/O ports and slots	24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP
Additional ports and slots	1 dual-personality (RJ-45 or USB micro-B) serial console port
Electrical characteristics
Frequency	50/60 Hz
Voltage	100 - 127 / 200 - 240 VAC, rated
Current	0.6/0.4 A
Maximum heat dissipation	100.0 BTU/hr (105.5 kj/hr)
Maximum power rating	29.3 W
Idle power	19.5 W
PoE power	-
Dimensions	17.42 x 7.88 x 1.73 in
Weight	5.31 lb (2.41 kg)

Specifications	2930F-JL259A
CPU	Dual Core ARM Cortex A9 @ 1016 MHz, 1 GB DDR3 SDRAM, 4 GB eMMC; Packet buffer size: 12.38 MB (4.5 MB ingress / 7.875 MB egress).
Memory and Flash	1 GB DDR3 SDRAM 4 GB Emmc
Packet Buffer	12.38 MB 4.5MB Ingress/7.785 Egress
1000 Mb Latency	< 3.8 μs (64-byte packets)
10 Gbps Latency	-
Throughput	up to 41.7 Mpps
Switching capacity	56 Gbps
Routing table size	2,000 IPv4 routes, 1,000 IPv6 routes (static and RIP).
MAC address table size	32,768 entries
Management	Aruba AirWave Network Management, IMC (Intelligent Management Center), CLI, Web browser, SNMP manager, Telnet, RMON1, FTP, Out-of-band management (RS-232C or micro USB).
Operating temperature	32°F to 113°F (0°C to 45°C); up to 5,000 Feet, 0°C to 40°C (32°F to 104°F) up to 10,000 Feet
Airflow direction	Side-to-side
Acoustic	Power: 49.7 dB, Pressure: 37.1 dB
Safety	UL 60950-1: 2nd Edition; UL 62368-1: 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; EN 62368-1: 2nd Edition; IEC 60950-1:2005 +A1:2009 +A2:2013; CSA 22.2 No. 60950-1-07 2nd; IEC-62368-1: 2nd Edition; EN 60825-1:2014 / IEC 60825-1:2014 Class 1
Emissions	EN 55032:2012/CISPR 32 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A; CNS 13438
Immunity	EN 55024, CISPR 24 IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-8 IEC 61000-4-11 EN 61000-3-2, IEC 61000-3-2 EN 61000-3-3, IEC 61000-3-3

Cables
JL448A	Aruba X2C2 RJ45 to DB9 Console Cable
Mounting Kit
J9583A	HPE X410 1U Universal 4-post Rack Mounting Kit
J9583B	Aruba X414 1U Universal 4-post Rack Mounting Kit
Transceivers
J9054D	Aruba 100M SFP LC FX 2km MMF XCVR
J9054DCM	Aruba CM 100M SFP LC FX 2km MMF XCVR
J4858D	Aruba 1G SFP LC SX 500m MMF XCVR
J4858DCM	Aruba CM 1G SFP LC SX 500m MMF XCVR
J4859D	Aruba 1G SFP LC LX 10km SMF XCVR
J4859DCM	Aruba CM 1G SFP LC LX 10km SMF XCVR
J4860D	Aruba 1G SFP LC LH 70km SMF XCVR
J4860DCM	Aruba CM 1G SFP LC LH 70km SMF XCVR
J8177D	Aruba 1G SFP RJ45 T 100m Cat5e XCVR
J8177DCM	Aruba CM 1G SFP RJ45 T 100m Cat5e XCVR
J9150D	Aruba 10G SFP+ LC SR 300m MMF XCVR
J9150DCM	Aruba CM 10G SFP+ LC SR 300m MMF XCVR
J9151E	Aruba 10G SFP+ LC LR 10km SMF XCVR
J9151ECM	Aruba CM 10G SFP+ LC LR 10km SMF XCVR
J9153D	Aruba 10G SFP+ LC ER 40km SMF XCVR
J9281D	Aruba 10G SFP+ to SFP+ 1m DAC Cable
J9283D	Aruba 10G SFP+ to SFP+ 3m DAC Cable
Note: 2930F Series Switches do not support the use of 10G LRM, nor 7M 10G DAC
