HPE JL256A ARUBA 2930F 48G POE+ 4SFP+ SWITCH
| Part No: | JL256A |
| Detail: |
|
| List Price: |
|
| Price: |
$1,475.00
|
| You Save: | $6,274.00 (81% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ, TX, FL and PA |
| Quantity: |
|
Description

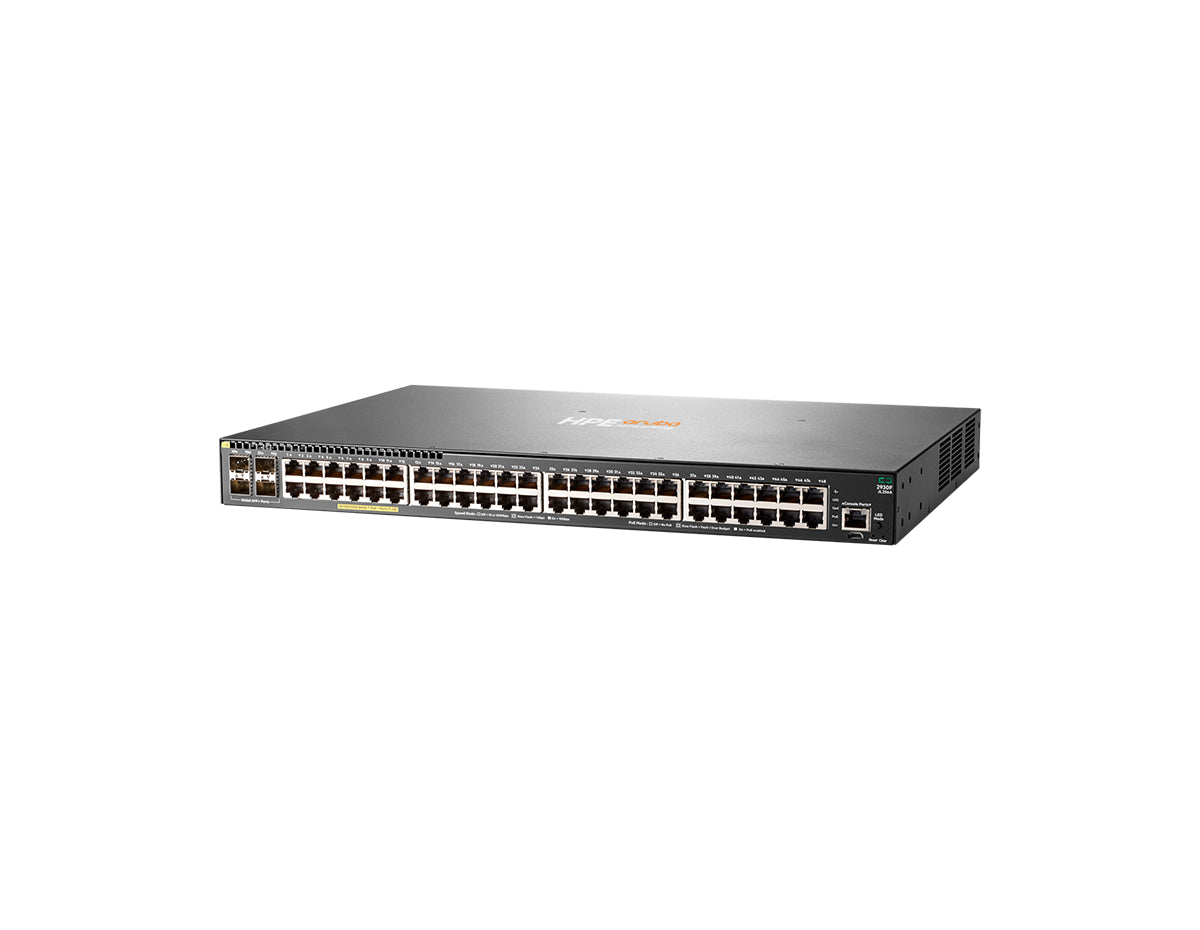

HPE Aruba 2930F 48G PoE+ 4SFP+ Switch (JL256A)
The HPE Aruba 2930F 48G PoE+ 4SFP+ Switch (JL256A) is a high-performance, scalable switch designed to deliver reliable power and network connectivity for enterprise and SMB environments. With 48 Gigabit PoE+ ports, this switch provides both power and data connectivity to devices such as IP phones, cameras, and wireless access points. The 4 SFP+ uplink ports support 10 Gigabit fiber connectivity, ensuring network scalability and redundancy. The Aruba 2930F series offers advanced Layer 2 and Layer 3 features, including traffic management, routing, and security, making it ideal for campus, branch, and SMB networks.
Key Features:
- 48 x Gigabit PoE+ Ports: Provides power and high-speed connectivity to PoE-enabled devices, simplifying the need for separate power supplies.
- 4 x SFP+ Uplink Ports: Supports 10 Gigabit fiber uplinks for high-speed network expansion and redundancy.
- Advanced Layer 2 and Layer 3 Features: Supports VLANs, QoS, static routing, and security features, providing optimized traffic management and secure network operations.
- Energy-Efficient Design: Supports Energy Efficient Ethernet (EEE) and PoE+ power management to reduce energy consumption.
- Simple Management: Managed via Aruba Central, CLI, SNMP, or web-based GUI, allowing for easy control and monitoring of the network.
Technical Overview:
- Recommended for: Enterprise and SMB networks requiring PoE+ support and high-speed fiber uplinks for scalable deployment.
- Ports: 48 x Gigabit PoE+ ports, 4 x SFP+ uplink ports for 10 Gigabit fiber connectivity.
- Power: PoE+ budget of up to 740W to power connected devices.
- Management: Managed via Aruba Central, CLI, SNMP, and web-based GUI for comprehensive network control.
- Form Factor: Rack-mountable design for efficient deployment in space-constrained environments.
You can check the related tab for the HPE Aruba 2930F 48G PoE+ 4SFP+ Switch (JL256A) datasheet.
Accessories
| Transceivers | |
| J9054D | Aruba 100M SFP LC FX 2km MMF XCVR |
| J9054DCM | Aruba CM 100M SFP LC FX 2km MMF XCVR |
| J4858D | Aruba 1G SFP LC SX 500m MMF XCVR |
| J4858DCM | Aruba CM 1G SFP LC SX 500m MMF XCVR |
| J4859D | Aruba 1G SFP LC LX 10km SMF XCVR |
| J4859DCM | Aruba CM 1G SFP LC LX 10km SMF XCVR |
| J4860D | Aruba 1G SFP LC LH 70km SMF XCVR |
| J4860DCM | Aruba CM 1G SFP LC LH 70km SMF XCVR |
| J8177D | Aruba 1G SFP RJ45 T 100m Cat5e XCVR |
| J8177DCM | Aruba CM 1G SFP RJ45 T 100m Cat5e XCVR |
| J9150D | Aruba 10G SFP+ LC SR 300m MMF XCVR |
| J9150DCM | Aruba CM 10G SFP+ LC SR 300m MMF XCVR |
| J9151E | Aruba 10G SFP+ LC LR 10km SMF XCVR |
| J9151ECM | Aruba CM 10G SFP+ LC LR 10km SMF XCVR |
| J9153D | Aruba 10G SFP+ LC ER 40km SMF XCVR |
| J9281D | Aruba 10G SFP+ to SFP+ 1m DAC Cable |
| J9283D | Aruba 10G SFP+ to SFP+ 3m DAC Cable |
| Note: 2930F Series Switches do not support the use of 10G LRM, nor 7M 10G DAC |
|
| Cables | |
| JL448A | Aruba X2C2 RJ45 to DB9 Console Cable |
| Mounting Kit (for 24 and 48 port models) | |
| J9583A | HPE X410 1U Universal 4-post Rack Mounting Kit |
| J9583B | Aruba X414 1U Universal 4-post Rack Mounting Kit |
| Accessories for 8 port PoE+ model (JL258A) | |
| JL311A | Aruba 2930F 8-port Cable Guard |
| JL311ACM | Aruba CM 2930F 8-port Cable Guard |
| JL312A | Aruba 2930F 8-port Power Shelf |
| JL312ACM | Aruba CM 2930F 8-port Power Shelf |
| Aruba Central Foundation Licenses | |
| Q9Y73AAE | Aruba Central Switch 6200/29xx Foundation 1-year Subscription E-STU |
| Q9Y74AAE | Aruba Central Switch 6200/29xx Foundation 3-year Subscription E-STU |
| Q9Y75AAE | Aruba Central Switch 6200/29xx Foundation 5-year Subscription E-STU |
| Q9Y76AAE | Aruba Central Switch 6200/29xx Foundation 7-year Subscription E-STU |
| Q9Y77AAE | Aruba Central Switch 6200/29xx Foundation 10-year Subscription E-STU |
| Q9Y68AAE | Aruba Central 25xx/6100/8 to 12 port Switch Foundation 1 year Subscription E-STU |
| Q9Y69AAE | Aruba Central 25xx/6100/8 to 12 port Switch Foundation 3-year Subscription E-STU |
| Q9Y70AAE | Aruba Central 25xx/6100/8 to 12 port Switch Foundation 5-year Subscription E-STU |
| Q9Y71AAE | Aruba Central 25xx/6100/8 to 12 port Switch Foundation 7-year Subscription E-STU |
| Q9Y72AAE | Aruba Central 25xx/6100/8 to 12 port Switch Foundation 10-year Subscription E-STU |
| R6U78AAE | Aruba Central On-Premises 62xx or 29xx Switch Foundation 1-year Subscription E-STU |
| R6U79AAE | Aruba Central On-Premises 62xx or 29xx Switch Foundation 3-year Subscription E-STU |
| R6U80AAE | Aruba Central On-Premises 62xx or 29xx Switch Foundation 5-year Subscription E-STU |
| R6U81AAE | Aruba Central On-Premises 62xx or 29xx Switch Foundation 7-year Subscription E-STU |
| R6U82AAE | Aruba Central On-Premises 62xx or 29xx Switch Foundation 10-year Subscription E-STU |
| R6U73AAE | Aruba Central On-Premises 25xx/6100/8 to 12 port Switch Foundation 1 year Subscription E-STU |
| R6U74AAE | Aruba Central On-Premises 25xx/6100/8 to 12 port Switch Foundation 3-year Subscription E-STU |
| R6U75AAE | Aruba Central On-Premises 25xx/6100/8 to 12 port Switch Foundation 5-year Subscription E-STU |
| R6U76AAE | Aruba Central On-Premises 25xx/6100/8 to 12 port Switch Foundation 7-year Subscription E-STU |
| R6U77AAE | Aruba Central On-Premises 25xx/6100/8 to 12 port Switch Foundation 10-year Subscription E-STU |
Specifications
| Specifications | 2930F-JL256A |
| Memory and processor | Dual Core ARM Cortex @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress, 4 GB eMMC |
| Performance | |
| 1000 Mb Latency | < 3.8 μs (64-byte packets) |
| 10 Gbps Latency | < 2.9 μs (64-byte packets) |
| Throughput | up to 112.0 Mpps |
| Switching capacity | 176 Gbps |
| Routing table size | 2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP |
| MAC address table size | 32,768 entries |
| Management | Aruba Central; Aruba AirWave Network Management; IMC Intelligent Management Center; Command-line interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP |
| Operating temperature | 32°F to 113°F (0°C to 45°C); up to 5,000 Feet, 0°C to 40°C (32°F to 104°F) up to 10,000 Feet |
| Operating relative humidity | 15% to 95% @ 104°F (40°C), noncondensing |
| Nonoperating/Storage temperature | -40°F to 158°F (-40°C to 70°C) |
| Nonoperating/Storage relative humidity | 15% to 95% @ 149°F (65°C), noncondensing |
| Airflow direction | Side-to-side |
| Acoustic | Power: 55.7 dB, Pressure: 41.7 dB |
| Safety | UL 60950-1: 2nd Edition; UL 62368-1: 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; EN 62368-1: 2nd Edition; IEC 60950-1:2005 +A1:2009 +A2:2013; CSA 22.2 No. 60950-1-07 2nd; IEC-62368-1: 2nd Edition; EN 60825-1:2014 / IEC 60825- 1:2014 Class 1 |
| Emissions | EN 55032:2012/CISPR 32 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A; CNS 13438 |
| Immunity | EN 55024, CISPR 24 IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-8 IEC 61000-4-11 EN 61000-3-2, IEC 61000-3-2 EN 61000-3-3, IEC 61000-3-3 |
| ENHANCED FEATURES | |
| Software-defined networks | Supports REST APIs to enable automation of network operations, monitoring, and troubleshooting |
| Unified Wired and Wireless | Supports unified wired and wireless policies using Aruba ClearPass Policy Manager Switch auto-configuration automatically configures switches for different settings such as VLAN, CoS, PoE max power, and PoE priority when an Aruba access point is detected User Role defines a set of switch-based policies in areas such as security, authentication, and QoS. A user role can be assigned to a group of users or devices, using switchbased local user role or download from ClearPass Static IP Visibility allows ClearPass to do accounting for clients with static IP address |
| Quality of Service (QoS) | Traffic prioritization (IEEE 802.1p) allows real-time traffic classification into eight priority levels mapped to eight queues Layer 4 prioritization based on TCP/UDP port numbers Class of service (CoS) sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ Rate limiting sets per-port ingress enforced maximums and per-port, per-queue minimums Large buffers provide graceful congestion management |
| Connectivity | Flexible 10 Gbps Ethernet with four built-in 10 Gigabit ports (SFP+) Auto-MDIX provides automatic adjustments for straight-through or crossover cables on all 10/100 and 10/100/1000 ports IEEE 802.3at Power over Ethernet (PoE+) provides up to 30 W per port that allows support of the latest PoE+- capable devices such as IP phones, wireless access points, and security cameras, as well as any IEEE 802.3afcompliant end device; eliminates the cost of additional electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments Pre-standard PoE support detects and provides power to pre-standard PoE devices IPv6: - IPv6 host Enables switches to be managed in an IPv6 network - Dual stack (IPv4 and IPv6) Transitions from IPv4 to IPv6, supporting connectivity for both protocols - MLD snooping Forwards IPv6 multicast traffic to the appropriate interface - IPv6 ACL/QoS Supports ACL and QoS for IPv6 network traffic - IPv6 routing Supports static and RIPng protocols - Security Provides RA guard, DHCPv6 protection, dynamic IPv6 lockdown, and ND snooping |
| Performance and Efficiency | The energy-efficient design delivers power savings: - 80 PLUS Silver Certified power supply increases efficiency and savings - Energy-efficient Ethernet (EEE) support reduces power consumption in accordance with IEEE 802.3az Designed with the latest ProVision ASIC, providing very low latency, increased packet buffering, and adaptive power consumption Selectable queue configurations allow for increased performance by selecting the number of queues and associated memory buffering that best meet the requirements of the network applications |
| Convergence | IP multicast snooping and IGMP automatically prevent flooding of IP multicast traffic IEEE 802.1AB Link Layer Discovery Protocol (LLDP) facilitates easy mapping using network management applications with LLDP automated device discovery protocol LLDP-MED (Media Endpoint Discovery) defines a standard extension of LLDP that stores values for parameters such as QoS and VLAN to configure automatically network devices such as IP phones PoE and PoE+ allocations support multiple methods (automatic, IEEE 802.3at dynamic, LLDP-MED fine grain, IEEE 802.3af device class, or user-specified) to allocate and manage PoE and PoE+ power for more efficient energy savings Local MAC Authentication assigns attributes such as VLAN and QoS using a locally configured profile that can be a list of MAC prefixes |
| Resiliency and high availability | IEEE 802.1s Multiple Spanning Tree provides high link availability by allowing multiple spanning trees; provides legacy support for IEEE 802.1d and IEEE 802.1w IEEE 802.3ad link-aggregation-control protocol (LACP) and port trunking support up to 26 static, dynamic, or distributed trunks, with each trunk having up to eight links (ports) per static trunk SmartLink provides easy-to-configure link redundancy of active and standby links |
| Simplified Configuration and Management | SNMPv1, v2, and v3 provide complete support of SNMP; support of industry-standard Management Information Base (MIB) plus private extensions; SNMPv3 supports increased security using encryption Zero-Touch Provisioning (ZTP) simplifies installation of the switch using Aruba Activate or a DHCP-based process with AirWave Network Management Flexible management with same hardware Supports both cloud-based Central and on-premise AirWave without ripping and replacing switching infrastructure Aruba Central cloud-based management platform offers a simple, secure, and cost-effective way to manage switches |
| Manageability | Dual flash images provide independent primary and secondary operating system files for backup while upgrading Friendly port names allow the assignment of descriptive names to ports Find-Fix-Inform finds and fixes common network problems automatically, then informs the administrator Multiple configuration files allow multiple configuration files to be stored in a flash image Software updates free downloads from the Web RMON, XRMON, and sFlow® provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events Troubleshooting ingress and egress port monitoring enable more efficient problem solving Unidirectional link detection (UDLD) monitors the link between two switches and blocks the ports on both ends of the link if the link goes down at any point between the two devices |
| Layer 2 switching | VLAN support and tagging support IEEE 802.1Q (4,094 VLAN IDs) and 512 VLANs simultaneously Jumbo packet support improves the performance of large data transfers; supports frame size of up to 9,220 bytes IEEE 802.1v protocol VLANs isolate select non-IPv4 protocols automatically into their own VLANs Rapid per-VLAN spanning tree (RPVST+) allows each VLAN to build a separate spanning tree to improve link bandwidth usage; is compatible with PVST+ GVRP and MVRP allow automatic learning and dynamic assignment of VLANs |
| Layer 3 services | DHCP server centralizes and reduces the cost of IPv4 address management |
| Layer 3 routing | Static IP routing provides manually configured routing; includes ECMP capability 256 static and 2,000 RIP routes facilitate the segregation of user data, without adding external hardware Routing Information Protocol (RIP) provides RIPv1, RIPv2, and RIPng routing |
| Security | Multiple user authentication methods: - Uses an IEEE 802.1X supplicant on the client in conjunction with a RADIUS server to authenticate in accordance with industry standards - Supports web-based authentication - Supports MAC-based authentication Authentication flexibility - Multiple IEEE 802.1X users per port provides authentication of multiple devices on a single port; prevents a user from piggybacking on another users IEEE 802.1X authentication - Concurrent IEEE 802.1X, Web, and MAC authentication schemes per port switch port will accept up to 32 sessions of IEEE 802.1X, Web, and MAC authentications Access control lists (ACLs) provide IP Layer 3 filtering based on source and destination IP address or subnet and source and destination TCP/UDP port number Source-port filtering allows only specified ports to communicate with each other RADIUS/TACACS+ eases switch management security administration by using a password authentication server Secure shell encrypts all transmitted data for secure remote CLI access over IP networks Secure Sockets Layer (SSL) encrypts all HTTP traffic, allowing secure access to the browser-based management GUI in the switch Port security allows access only to specified MAC addresses, which can be learned or specified by the administrator MAC address lockout prevents particular configured MAC addresses from connecting to the network Secure FTP allows secure file transfer to and from the switch; protects against unwanted file downloads or unauthorized copying of a switch configuration file Switch management logon security helps secure switch CLI logon by optionally requiring either RADIUS or TACACS+ authentication Custom banner displays security policy when users log in to the switch STP BPDU port protection blocks Bridge Protocol Data Units (BPDUs) on ports that do not require BPDUs, preventing forged BPDU attacks DHCP protection blocks DHCP packets from unauthorized DHCP servers, preventing denial-of-service attacks Dynamic ARP protection blocks ARP broadcasts from unauthorized hosts, preventing eavesdropping or theft of network data Dynamic IP lockdown works with DHCP protection to block traffic from unauthorized hosts, preventing IP source address spoofing STP root guard protects the root bridge from malicious attacks or configuration mistakes Identity-driven ACL enables the implementation of a highly granular and flexible access security policy and VLAN assignment specific to each authenticated network user Per-port broadcast throttling configures broadcast control selectively on heavy traffic port uplinks Monitor and diagnostics digital optical monitoring of SFP+ and 1000BASE-T transceivers allow detailed monitoring of the transceiver settings and parameters |
Properties
| Properties | HPE OfficeConnect 2930F JL256A |
| Description | Switch, L3, managed, 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink), rack-mountable, PoE+ (370 W) |
| Product Family | 2930F Series |
| Product Type | Ethernet Switch |
| I/O ports and slots | 48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only |
| 4 SFP+ 1/10GbE ports; PHY-less | |
| Additional ports and slots | 1 dual-personality (RJ-45 or USB micro-B) serial console port |
| Electrical characteristics | |
| Frequency | 50/60 Hz |
| Voltage | 100 - 127 / 200 - 240 VAC, rated |
| Current | 5.1/2.5 A |
| Maximum heat dissipation | 293.0 BTU/hr (309.1 kJ/hr) |
| Maximum power rating | 459 W |
| Idle power | 48.6 W |
| PoE power | 370 W PoE+ |
| Dimensions | 17.42(w) x 11.98(d) x 1.73(h) in (44.25 x 30.42 x 4.39 cm) (1U height) |
| Weight | 9.83 lb (4.46 kg) |
| Power efficiency certifications | 80plus.org certification: Silver |
