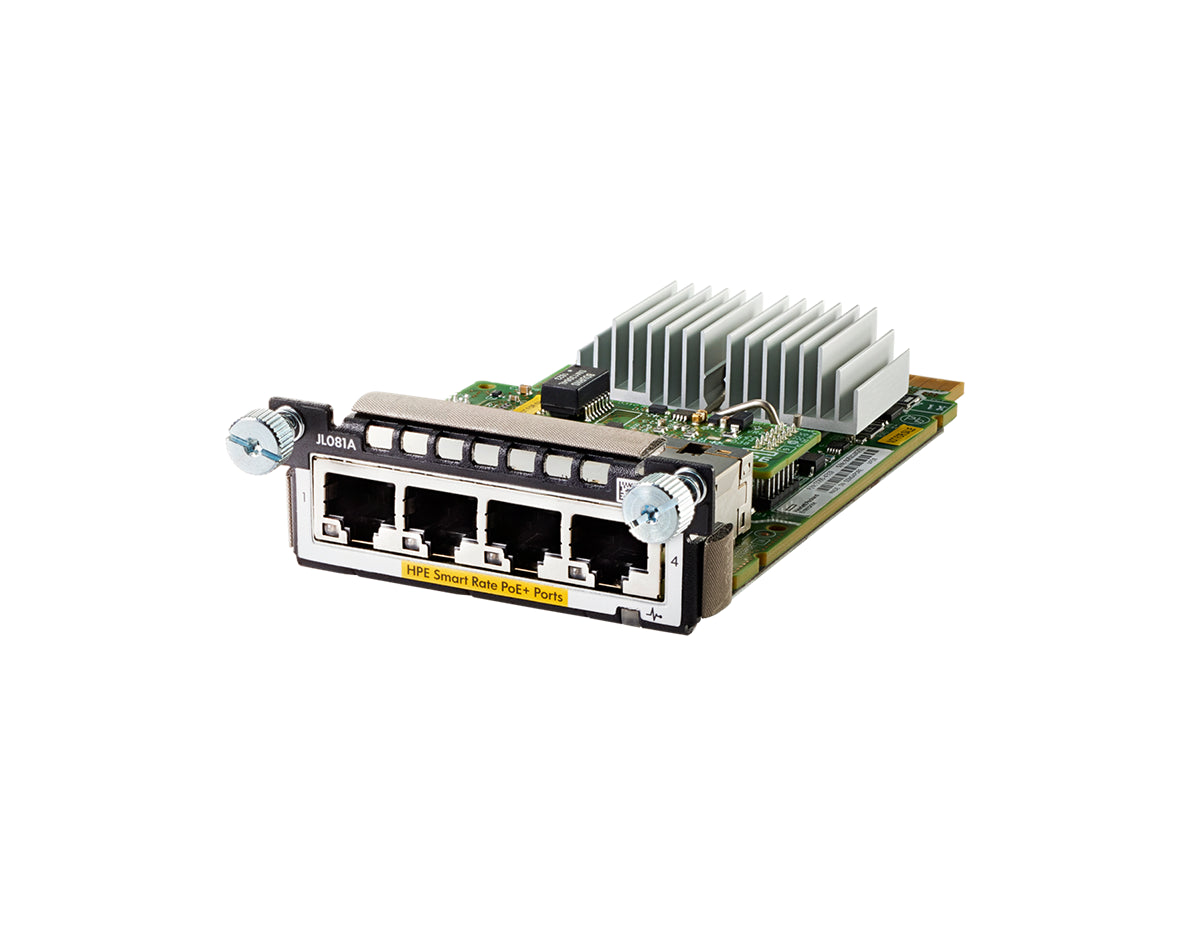

ARUBA 3810M 4 HPE SMART RATE POE+ MODULE (JL081A)
| Model: | JL081A |
| Detail: | |
| Price: | $600.00 |
| Condition: | Brand New Sealed |
| Availability: | Out of Stock |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
The HPE Aruba JL081A 3810 Series is a high-capacity switch module that is engineered for network infrastructures that necessitate rapid and dependable connectivity. This module has four 10 Gigabit Ethernet SFP+ ports and effectively enhances bandwidth capacity to manage resource-intensive applications and data-centric operations. By utilizing reliable technology that is widely used in the industry, this switch module ensures dependability in critical operational environments. Its compact design renders it suitable for spatially limited environments without compromising performance quality.
Quick Specs:
- 4x 10GB Ethernet SFP+ uplink ports
- Compatibility: Aruba 3810M/2930M Series
- PoE
- Data Networking
Please see the related tabs for the JL081A datasheet and compatible accessories.
Specifications
| Data Transfer Rates | Supports 1Gbps, 2.5Gbps, 5Gbps, and 10Gbps on each port |
| Certifications | CE, FCC, RoHS compliant |
| Environmental Safety | RoHS 3 compliant (Directive 2015/863/EU), low-halogen design |
| EMC Compliance | Meets EN 55032, EN 55024, CISPR 32, and FCC Part 15 standards |
| MTBF | >1,000,000 hours at 25°C |
| Power Consumption | Up to 125W with full PoE+ load |
| PoE Budget | 30W per port (PoE+ 802.3at) |
| Vibration Resistance | Tested to withstand 1 Grms (5-500 Hz) per IEC 60068-2-6 |
| Shock Resistance | Tested up to 30 G for 11 ms according to IEC 60068-2-27 |
| Firmware Compatibility | Supports automated updates via ArubaOS |
| Reliability | Rated for continuous, high-traffic environments with seamless failover when installed in compatible switches |
| Network Security | Supports access control features such as 802.1X authentication |
| Deployment | Optimized for enterprise networks requiring flexible, high-speed connectivity for PoE-enabled devices |
| Monitoring and Diagnostics | Integrated status LEDs for link/activity and power monitoring |
| Advanced Features | Supports QoS, VLAN tagging, and link aggregation for enhanced performance |
Properties
| Product Name | JL081A |
| Description | Aruba 3810M 4-port HPE Smart Rate PoE+ Module, designed to expand the Aruba 3810M switch with four multi-gigabit HPE Smart Rate ports supporting PoE+. |
| Module Type | Smart Rate PoE+ expansion module |
| Total Ports | 4 x HPE Smart Rate (1Gbps, 2.5Gbps, 5Gbps, and 10Gbps) |
| PoE Support | PoE+ (IEEE 802.3at) up to 30W per port |
| Compatibility | Compatible with Aruba 3810M switches |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 5% to 95% non-condensing |
| Dimensions | 22.9 cm x 15.9 cm x 2.5 cm (9.0 in x 6.3 in x 1.0 in) |
| Weight | 0.75 kg (1.65 lb) |
| Mounting Options | Hot-swappable into Aruba 3810M modular switch |
| Usage | Ideal for high-bandwidth applications, supporting advanced PoE for access points and other devices |
| Durability | Tested to perform reliably in enterprise networking environments |
