HPE ARUBA FLEXNETWORK 5130 EI SWITCH (JG936A)
| Model: | JG936A |
| Detail: | Managed, Rack-mountable, 24 x 1G PoE+ ports, 4 x 1G/10G SFP+ Uplinks, PoE+ (370W), Layer 3, < |
| Price: | $1,769.00 |
| Condition: | Brand New Sealed |
| Availability: | Out of Stock |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

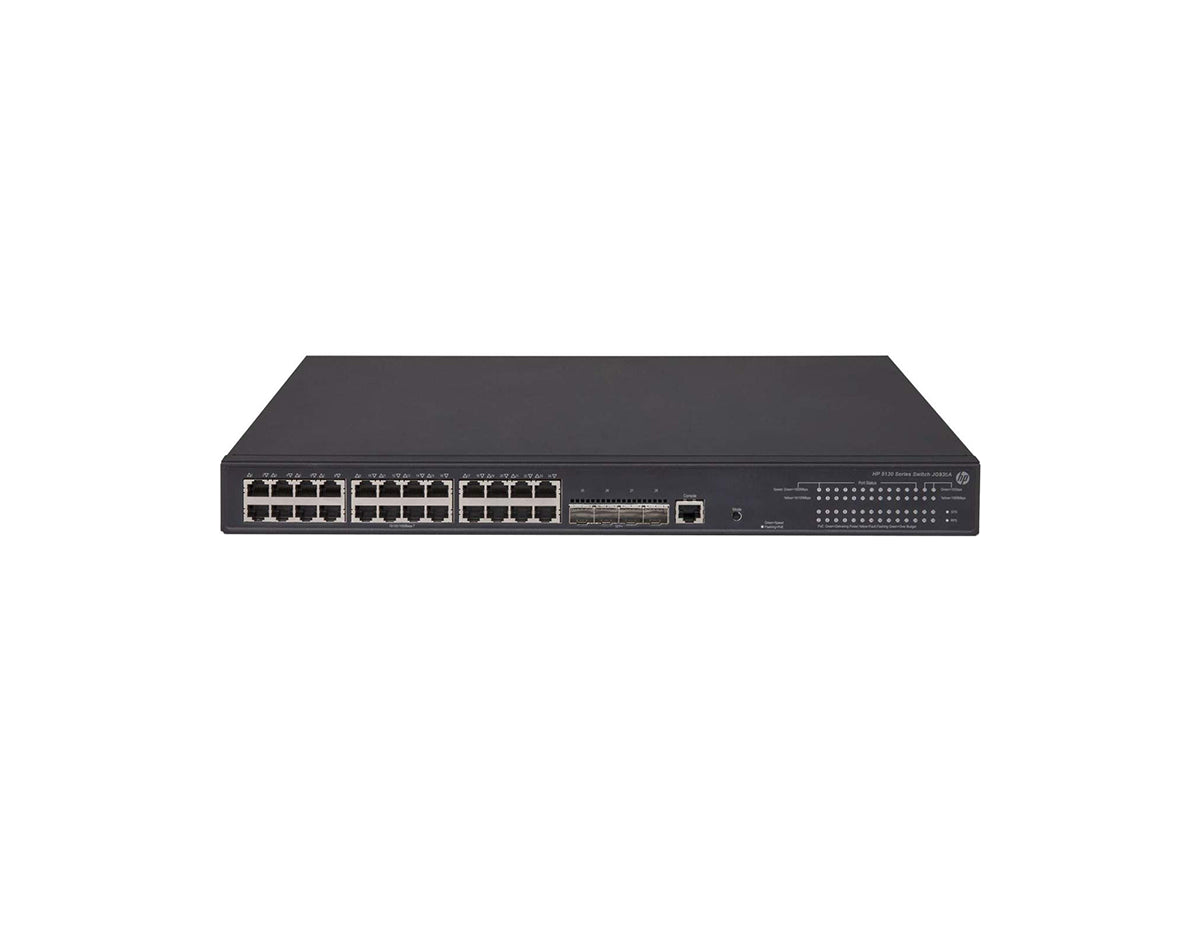

HPE Aruba FlexNetwork 5130 24G PoE+ 4SFP+ (370W) EI Switch (JG936A)
The HPE Aruba FlexNetwork 5130 24G PoE+ 4SFP+ (370W) EI Switch (JG936A) is designed for enterprise campus networks that require high performance, security, and scalability. Equipped with 24 Gigabit Ethernet PoE+ ports and 4 SFP+ uplinks, it supports Power over Ethernet (PoE+) with a power budget of 370W, making it ideal for powering IP phones, wireless access points, and other PoE devices. Its advanced Layer 2 and Layer 3 features provide efficient network management, while Intelligent Resilient Fabric (IRF) technology allows for simplified network deployment and improved resiliency.
Key Features:
- 24 x 1GbE PoE+ Ports: Delivers up to 30W per port, providing both data and power for PoE-enabled devices.
- 4 x SFP+ Uplink Ports: Supports fiber uplinks up to 10Gbps for high-speed connectivity.
- 370W PoE Power Budget: Provides ample power for connected devices, eliminating the need for additional power sources.
- Advanced Layer 3 Features: Includes OSPF, RIP, and static routing for optimized traffic management.
- IRF Stacking: Supports Intelligent Resilient Fabric (IRF) technology for improved network scalability and redundancy.
Technical Overview:
- Recommended for: Enterprise campus networks, SMBs, and branch offices.
- Ports: 24 x 1GbE PoE+ ports, 4 x 1/10GbE SFP+ uplinks.
- Switching Capacity: 256 Gbps.
- Forwarding Rate: 190.5 Mpps.
- PoE Power Budget: 370W for powering PoE-enabled devices.
- Management: Managed via CLI, web-based GUI, or SNMP.
- Energy Efficiency: Compliant with IEEE 802.3az for energy-efficient operation.
You can check the related tab for the JG936A datasheet.
Accessories
Specifications
| Specifications | JG936A |
| System specifications | |
| I/O ports and slots | · 24 x RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only · 4 x SFP+ fixed 1000/10000 SFP+ ports |
| Additional ports and slots | 1 x RJ-45 serial console port |
| Power supplies | N/A |
| Memory and processor | · 1 GB SDRAM · 512 MB flash · packet buffer size: 1.5 MB |
| Reliability | MTBF (years): 48.3 |
| Mounting and enclosure | Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included) |
| Management | IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager |
| Physical specifications | |
| Dimensions (H x W x D) | 4.37 x 44 x 30 cm (1.72 x 17.32 x 11.81 in) |
| Weight | 8 kg (17.64 lb) |
| Environmental specifications | |
| Acoustic | Low-speed fan: 49.8 dB, High-speed fan: 52.9 dB; ISO 7779 |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Operating relative humidity | 10% to 90%, noncondensing |
| Nonoperating/Storage temperature | -40°C to 70°C (-40°F to 158°F |
| Nonoperating/Storage relative humidity | 5% to 95%, noncondensing |
| Electrical specifications | |
| Frequency | 50/60 Hz |
| Maximum heat dissipation | 102/1569 BTU/hr (107.61/1655.29 kJ/hr), for AC Power. For DC Power min heat dissipation is 85BTU/hr and max heat dissipation is 2559 BTU/hr |
| AC voltage | 100 - 240 V ac |
| Current | 10A |
| Maximum power rating | 460 W |
| Idle power | N/A |
| PoE power | 370 W PoE+ |
| Safety certifications | |
| Safety | UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance |
| Emissions | EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A; EN 61000-4-11:2004; ANSI C63.4-2009; EN61000-3- 3:2008; VCCI V-4/2012.04; EN 6100-3-2:2006+A1:2009 + A2:2009; EN 61000-3-2:2006+A1:2009+A2:2009 ; EN 61000- 4-3:2006; EN 61000-4-4:2012; EN 61000-4-5:2006; EN 61000-4-6:2009; AS/NZS CISPR 22:2009 Class A; CISPR 22:2008 Class A; EN 55022:2010 Class A; EN 61000-4-29: 2000; CISPR 24:2010; EN 300 386 V1.6.1; VCCI V3/2013.04 Class A |
| Standard and protocols | |
| Device management | RFC 1157 SNMPv1/v2c RFC 1305 NTPv3 RFC 2573 (SNMPv3 Applications) RFC 2819 (RMON groups Alarm, Event, History and Statistics only) RFC 3416 (SNMP Protocol Operations v2) HTML and telnet management Multiple Configuration Files SNMP v3 and RMON RFC support SSHv1/SSHv2 Secure Shell TACACS/TACACS+ Web UI |
| General protocols | IEEE 802.1D MAC Bridges IEEE 802.1p Priority IEEE 802.1Q VLANs IEEE 802.1s Multiple Spanning Trees IEEE 802.1w Rapid Reconfiguration of Spanning Tree IEEE 802.1X PAE IEEE 802.3 Type 10BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3ad Link Aggregation Control Protocol (LACP) IEEE 802.3ae 10-Gigabit Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-X IEEE 802.3x Flow Control IEEE 802.3z 1000BASE-X RFC 768 UDP RFC 783 TFTP Protocol (revision 2) RFC 791 IP RFC 792 ICMP RFC 793 TCP RFC 826 ARP RFC 854 TELNET RFC 951 BOOTP RFC 1213 Management Information Base for Network Management of TCP/IP-based internets RFC 1305 NTPv3 RFC 1350 TFTP Protocol (revision 2) RFC 1519 CIDR RFC 1812 IPv4 Routing RFC 1866 Hypertext Markup Language - 2.0 RFC 2131 DHCP RFC 2236 IGMP Snooping RFC 2616 HTTP Compatibility v1.1 RFC 2665 Definitions of Managed Objects for the Ethernet-like Interface Types RFC 2668 Definitions of Managed Objects for IEEE 802.3 Medium Attachment Units (MAUs) RFC 2865 Remote Authentication Dial In User Service (RADIUS) RFC 2866 RADIUS Accounting RFC 3414 User-based Security Model (USM) for version 3 of the Simple Network Management Protocol (SNMPv3) RFC 3415 View-based Access Control Model (VACM) for the Simple Network Management Protocol (SNMP) RFC 3418 Management Information Base (MIB) for the Simple Network Management Protocol (SNMP) RFC 3576 Ext to RADIUS (CoA only) RFC 4213 Basic IPv6 Transition Mechanisms802.1r - GARP Proprietary Attribute Registration Protocol (GPRP) |
| IPv6 | RFC 2461 IPv6 Neighbor Discovery RFC 2463 ICMPv6 RFC 3162 RADIUS and IPv6 RFC 3306 Unicast-Prefix-based IPv6 Multicast Addresses RFC 3315 DHCPv6 (client and relay) |
| MIBs | RFC 1212 Concise MIB Definitions RFC 1213 MIB II RFC 1493 Bridge MIB RFC 1757 Remote Network Monitoring MIB RFC 2096 IP Forwarding Table MIB RFC 2233 Interface MIB RFC 2571 SNMP Framework MIB RFC 2572 SNMP-MPD MIB RFC 2573 SNMP-Notification MIB RFC 2573 SNMP-Target MIB RFC 2574 SNMP USM MIB RFC 2618 RADIUS Authentication Client MIB RFC 2620 RADIUS Accounting Client MIB RFC 2665 Ethernet-Like-MIB RFC 2668 802.3 MAU MIB RFC 2674 802.1p and IEEE 802.1Q Bridge MIB RFC 2737 Entity MIB (Version 2) RFC 2819 RMON MIB RFC 2863 The Interfaces Group MIB RFC 2925 Ping MIB RFC 3414 SNMP-User based-SM MIB RFC 3415 SNMP-View based-ACM MIB RFC 3418 MIB for SNMPv3 RFC 3621 Power Ethernet MIB |
| Network management | IEEE 802.1AB Link Layer Discovery Protocol (LLDP) RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events) ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED) SNMPv1/v2c/v3 |
| Security | IEEE 802.1X Port-Based Network Access Control RFC 1492 TACACS+ RFC 2138 RADIUS Authentication RFC 2139 RADIUS Accounting RFC 2865 RADIUS (client only) RFC 2866 RADIUS Accounting Secure Sockets Layer (SSL) SSHv2 Secure Shell |
Properties
| Properties | JG936A |
| Description | The HPE FlexNetwork 5130 EI Switch Series comprises Gigabit Ethernet switches that support static and RIP Layer 3 routing, diversified services, and IPv6 forwarding, as well as provide four 10-Gigabit Ethernet (10GbE) interfaces. |
| Product Family | HPE Aruba FlexNetwork 5130 EI Switch Series |
| Product Type | Switch |
