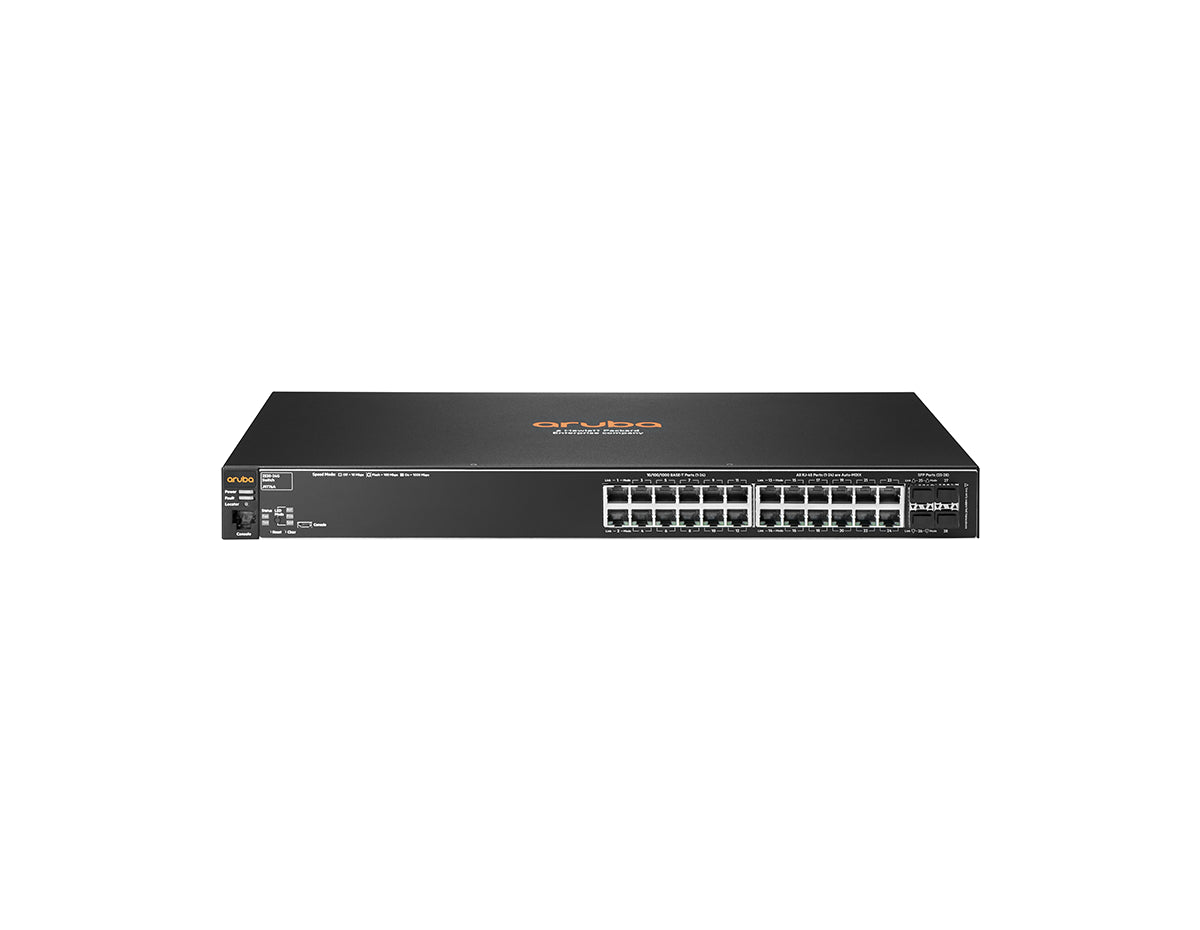

J9776A HPE ARUBA 2530 24G SWITCH

Accessories

Transceivers
J9054C	HPE X121 1G SFP LC SX Transceiver
J8177C	HPE X121 1G SFP LC LX Transceiver
J4859C	HPE X121 1G SFP RJ45 T Transceiver
J4858C	HPE X111 100M SFP LC FX Transceiver
Cables
AJ833A	HPE 0.5 m Multimode OM3 LC/LC Optical Cable
AJ834A	HPE 1 m Multimode OM3 LC/LC Optical Cable
AJ835A	HPE 2 m Multimode OM3 LC/LC Optical Cable
AJ836A	HPE 5 m Multimode OM3 LC/LC Optical Cable
AJ837A	HPE 15 m Multimode OM3 LC/LC Optical Cable
AJ838A	HPE 30 m Multimode OM3 LC/LC Optical Cable
AJ839A	HPE 50 m Multimode OM3 LC/LC Optical Cable
QK732A	HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable
QK733A	HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 2m Cable
QK734A	HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 5m Cable
QK735A	HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 15m Cable
QK736A	HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 30m Cable
QK737A	HPE Premier Flex LC/LC Multi-mode OM4 2 fiber 50m Cable

Specifications

Specifications	2530-J9776A
Memory and processor	ARM9E @ 800 MHz, 128 MB flash; Packet buffer size: 1.5 MB dynamically allocated, 256 MB DDR3 DIMM
Performance
100 Mb Latency	< 7.4 µs (LIFO 64-byte packets)
1000 Mb Latency	< 2.3 µs (LIFO 64-byte packets)
Throughput	up to 41.6 Mpps (64-byte packets)
Switching capacity	56 Gbps
MAC address table size	16000 entries
Management	IMC - Intelligent Management Center; command-line interface; Web browser; configuration menu; Out-of-band management (serial RS-232C or MicroUSB); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB
Operating temperature	32°F to 113°F (0°C to 45°C)
Operating relative humidity	15% to 95% @ 104°F (40°C), noncondensing
Nonoperating/Storage temperature	-40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity	15% to 90% @ 149°F (65°C), noncondensing
Altitude	up to 10,000 ft (3 km)
Acoustic	Power: 34.0 dB, Pressure: 26.4 dB
Safety	UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN 60950-1
Emissions	FCC Class A; EN 55022/CISPR-22 Class A; VCCI Class A
Immunity	EN 55024, CISPR 24 IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-8 IEC 61000-4-11 EN 61000-3-2, IEC 61000-3-2 EN 61000-3-3, IEC 61000-3-3
Technical Specifications
General Protocols	• IEEE 802.1D MAC Bridges • IEEE 802.1p Priority • IEEE 802.1Q VLANs • IEEE 802.1s Multiple Spanning Trees • IEEE 802.1w Rapid Reconfiguration of Spanning Tree • IEEE 802.3 Type 10BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3ad Link Aggregation Control Protocol (LACP) • IEEE 802.3af Power over Ethernet • IEEE 802.3at Power over Ethernet Plus • IEEE 802.3az Energy Efficient Ethernet • IEEE 802.3x Flow Control • RFC 768 UDP • RFC 783 TFTP Protocol (revision 2) • RFC 792 ICMP • RFC 793 TCP • RFC 826 ARP • RFC 854 TELNET • RFC 868 Time Protocol • RFC 951 BOOTP • RFC 1350 TFTP Protocol (revision 2) • RFC 1542 BOOTP Extensions • RFC 1918 Address Allocation for Private Internet • RFC 2030 Simple Network Time Protocol (SNTP) v4 • RFC 2131 DHCP • RFC 3411 An Architecture for Describing Simple Network Management Protocol (SNMP) Management Frameworks • RFC 3412 Message Processing and Dispatching for the Simple Network Management Protocol (SNMP) • RFC 3413 Simple Network Management Protocol (SNMP) Applications • RFC 3414 User-based Security Model (USM) for version 3 of the Simple Network Management Protocol (SNMPv3) • RFC 3415 View-based Access Control Model (VACM) for the Simple Network Management Protocol (SNMP) • RFC 3416 Protocol Operations for SNMP • RFC 3575 IANA Considerations for RADIUS • RFC 5905 Network Time Protocol Version 4: Protocol and Algorithms Specification
Denial of service protection	Network DoS Filter
Device Management	• RFC 1591 DNS (client) • RFC 2576 (Coexistence between SNMP V1, V2, V3) • RFC 2579 (SMIv2 Text Conventions) • RFC 2580 (SMIv2 Conformance) • RFC 3416 (SNMP Protocol Operations v2) • RFC 3417 (SNMP Transport Mappings) • SSHv1/SSHv2 Secure Shell
MIBs	• RFC 1155 Structure & ID of Mgmt Info for TCP/IP Internets • RFC 1212 Concise MIB Definitions • RFC 1213 MIB II • RFC 1493 Bridge MIB • RFC 2021 RMONv2 MIB • RFC 2578 Structure of Management Information Version 2 (SMIv2) • RFC 2579 Textual Conventions for SMIv2 • RFC 2613 SMON MIB • RFC 2618 RADIUS Client MIB • RFC 2620 RADIUS Accounting Client MIB • RFC 2665 Ethernet-Like-MIB • RFC 2668 802.3 MAU MIB • RFC 2674 802.1p and IEEE 802.1Q Bridge MIB • RFC 2737 Entity MIB (Version 2) • RFC 2863 The Interfaces Group MIB • RFC 4836 Managed Objects for 802.3 Medium Attachment Units (MAU)
IPv6	• RFC 1981 IPv6 Path MTU Discovery • RFC 2460 IPv6 Specification • RFC 2464 Transmission of IPv6 over Ethernet Networks • RFC 2925 Remote Operations MIB (Ping only) • RFC 3315 DHCPv6 (client only) • RFC 3484 Default Address Selection for IPv6 • RFC 3513 IPv6 Addressing Architecture • RFC 3596 DNS Extension for IPv6 • RFC 3810 Multicast Listener Discovery Version 2 (MLDv2) for IPv6 • RFC 4022 MIB for TCP • RFC 4113 MIB for UDP • RFC 4251 SSHv6 Architecture • RFC 4252 SSHv6 Authentication • RFC 4252 SSHv6 Transport Layer • RFC 4254 SSHv6 Connection • RFC 4291 IP Version 6 Addressing Architecture • RFC 4293 MIB for IP • RFC 4419 Key Exchange for SSH • RFC 4443 ICMPv6 • RFC 4861 IPv6 Neighbor Discovery • RFC 4862 IPv6 Stateless Address Auto-configuration • RFC 5095 Deprecation of Type 0 Routing Headers in IPv6
QoS/CoS	• RFC 2474 DiffServ precedence, with 4 queues per port • RFC 2475 DiffServ Architecture • RFC 2597 DiffServ Assured Forwarding (AF) • RFC 2598 DiffServ Expedited Forwarding (EF)
IP Multicast	RFC 2236 IGMPv2
Network Management	• IEEE 802.1AB Link Layer Discovery Protocol (LLDP) • RFC 1098 A Simple Network Management Protocol (SNMP) • RFC 1155 Structure of Management Information • RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events) • RFC 3411 SNMP Management Frameworks • RFC 3412 Message Processing and Dispatching for the Simple Network Management Protocol (SNMP) • RFC 3413 Simple Network Management Protocol (SNMP) Applications • RFC 3414 User-based Security Model (USM) for version 3 of the Simple Network Management Protocol (SNMPv3) • RFC 3415 View-based Access Control Model (VACM) for the Simple Network Management Protocol (SNMP) • RFC 3418 Management Information Base (MIB) for the Simple Network Management Protocol (SNMP) • RFC 5424 Syslog Protocol • ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED) • SNMPv1/v2c/v3
Security	• IEEE 802.1X Port Based Network Access Control • RFC 1492 TACACS+ • RFC 2138 RADIUS Authentication • RFC 2866 RADIUS Accounting • Secure Sockets Layer (SSL)

Properties

Properties	HPE OfficeConnect 2530 J9776A
Description	Switch, managed, 8 x 10/100/1000 + 2 x combo Gigabit SFP, desktop, rack-mountable, wall-mountable
Product Family	2530 Series
Product Type	Ethernet Switch
I/O ports and slots	24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
	4 fixed Gigabit Ethernet SFP ports
Additional ports and slots	1 dual-personality (RJ-45 or USB micro-B) serial console port
Electrical characteristics
Frequency	50/60 Hz
Voltage	100 - 127 / 200 - 240 VAC, rated
Current	.6/.4 A
Maximum heat dissipation	164 BTU/hr (173.02 kJ/hr)
Maximum power rating	48.0 W
Idle power	28.8 W
Dimension	17.44(w) x 10.00(d) x 1.75(h) in (44.3 x 25.4 x 4.45 cm) (1U height)
Weight	6.1 lb (2.77 kg)
Mounting and enclosure	Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included) Horizontal surface mounting; Wall mounting
