Description

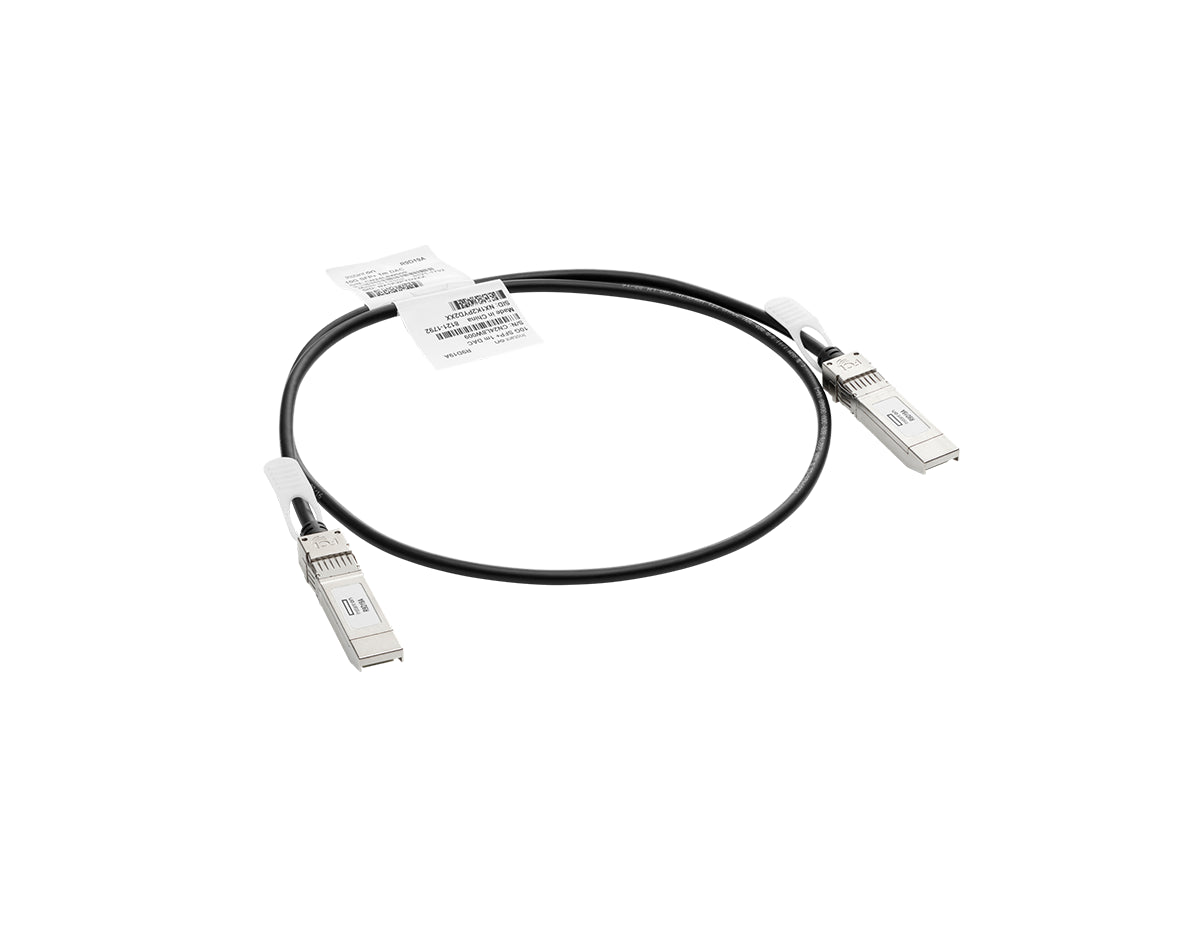

HPE Aruba J9281D Passive Direct Attach Copper Twinax Cable

Our HPE Aruba J9281D Passive Direct Attach Copper Twinax Cable price and datasheet are based on our 10G-PDAC-SFP-1 product, which has the same parameters and is manufactured in accordance with the same industry standards as its OEM counterpart. Our HP J9281D Aruba 10G SFP+ to SFP+ 1m DAC Cable is equipped with MSA standard SFP+ compatible transceiver assembly at each end of the cable and uses Copper Twinax Cable in between the assembly unit. Our Aruba 10G SFP+ to SFP+ 1m DAC Cable is designed for operation in standard temperature networking environments ranging from 0°-70°C. According to our Aruba HP J9281D compatibility datasheet, this cable chipset supports data rates ranging from 1.25-10.31 Gbps and such applications as 10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps). It is important to note that the mentioned application support will vary depending on the port where the cable will be used, and it supported applications as well as cable speed configuration during the ordering process, but we can ensure that our cable will support at least the same functionality as its OEM counterpart. This is a multi-purpose cable that can be used in a variety of different places in today’s networking. As a result, cost-effective, high-speed, and close-range interconnections within equipment rooms of telecom operators, data centers, or enterprise networks are the most popular applications for this product.

Our HPE Aruba J9281D DAC cable is CE/RoHS certified, meets product safety standards, and is compliant with SFP+ Multi-Source Agreement (MSA) SFF-8432 industry standard. To ensure smooth operation, we have completed compatibility tests for this cable with the most recent platforms of HPE Aruba networking equipment, allowing us to encode cable EEPROM memory to be compatible with and work seamlessly in HPE Aruba platforms. We are committed to quality, therefore before delivering our products, we conduct stringent quality inspections that include optical parameter measurements, connector cleanliness tests, and EEPROM memory data validation tests. If you have any questions, please contact us. We will gladly learn about your needs and recommend the best compatible products from our portfolio.

Specifications

• Media Type: Twinax Cable
• DAC Copper Type: AWG30
• Maximum Distance: 1m
• Supported Data Rate: 1.0625-10.52 Gbps
• Supported Applications: CPRI option 3 (2.458 Gbp, 10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps), 10G Fiber Channel (10.52 Gbps), 8G Fiber Channel (8.5 Gbps), 4G Fiber Channel (4.25 Gbps), 2G Fiber Channel (2.125 Gbps), 1G Fiber Channel (1.0625 Gbps), CPRI option 2 (1228.8 Mbps)
• DDM/DOM: Supported
• Temperature Range: Standard 0°-70°C
• Connectors: SFP+
• Power: +3.3V single power supply
• Power Consumption: 0.5W
• MTBF: 1,000,000 Hours
• Compliance: CE, RoHS, SFF-8431, SFP+ MSA
• Transceiver Type: DAC
