HPE J9150D ARUBA 10G SFP+ LC SR 300M OM3 MMF TRANSCEIVER

Part No:	J9150D
Detail:	Fiber Mode: MMF, Fiber Diameter: 50/125 µm, Central Wavelength: 850 nm, <
Price:	$185.00
Condition:	Brand New Sealed
Availability:	IN STOCK
Shipping:	FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax:	$0.00 Tax Outside NJ, TX, FL and PA
Quantity:	+ -

Description
Properties
Specifications
Shipping

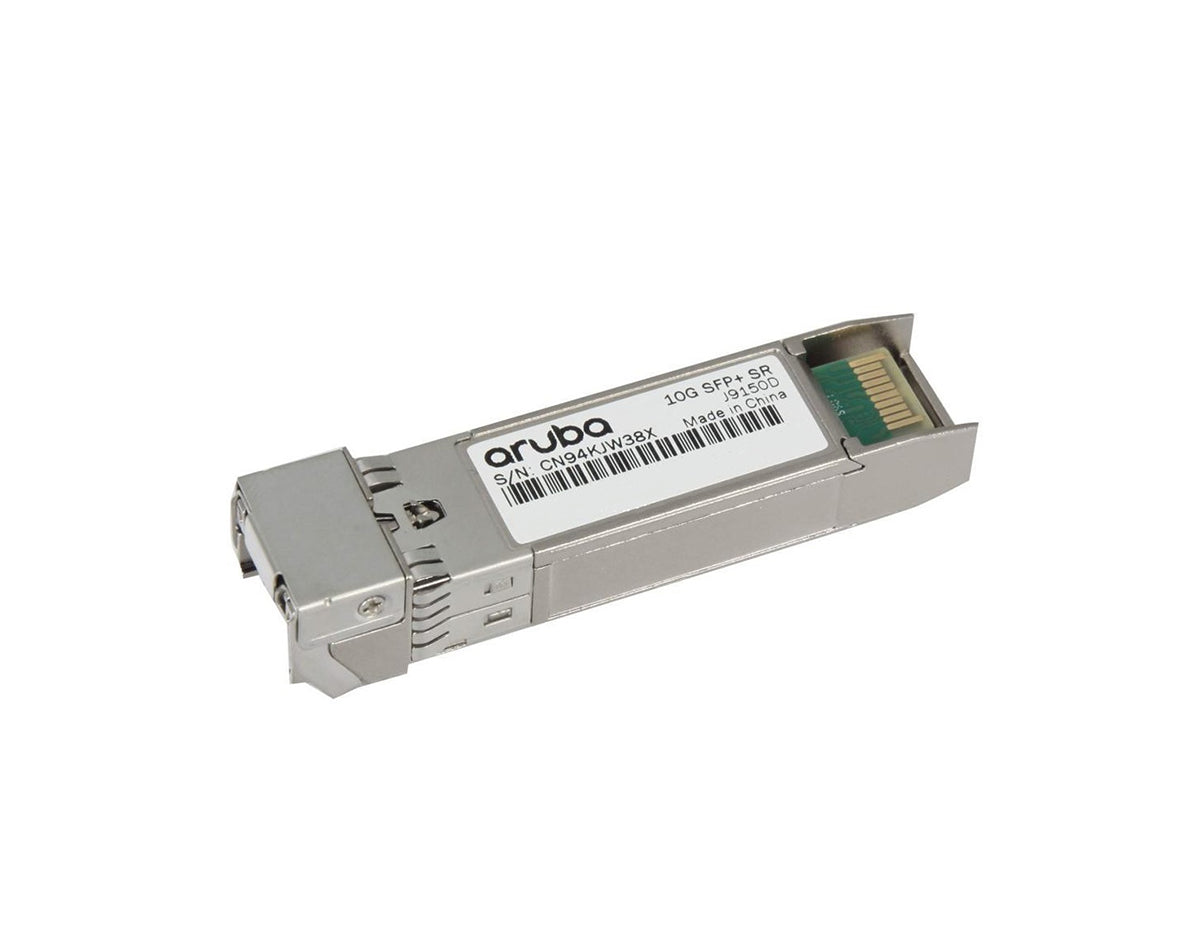

HPE Aruba J9150D 10G SFP+ LC SR Transceiver

The HPE Aruba J9150D is a 10G SFP+ LC SR 300m MMF transceiver designed for high-speed data transmission over multimode fiber. Ideal for various Aruba switches, it ensures reliable and efficient network performance.

Quick Specs:

Product Name: Aruba 10G SFP+ LC SR 300m MMF XCVR (J9150D)
Digital Optical Monitoring: Yes (1990-4391, 1990-4175)
Central Wavelength: 850 nm
Fiber Mode: MMF
Fiber Diameter: 50/125 µm
Transmission Distance:
- 4700 MHz*km (OM4): 400 m (1312.34 ft)
- 2000 MHz*km (OM3): 300 m (984.25 ft)
- 500 MHz*km (OM2): 82 m (269.03 ft)
- 400 MHz*km: 66 m (216.54 ft)
- 200 MHz*km (OM1): 33 m (108.27 ft)
- 160 MHz*km: 26 m (85.30 ft)

Supported Devices:

Aruba 2530 Series
Aruba 2920 Series
Aruba 2930F Series
Aruba 3810M Series

Optical Parameters:

Transmit Power: –7.3 to –1 dBm
Receive Power: –9.9 to +0.5 dBm

Physical Characteristics:

Dimensions: 0.6 x 2.2 x 0.5 in
Weight: 0.1 lb

Specifications

Form Factor	SFP+ MSA compliant
Supported Standards	IEEE 802.3ae (10GBASE-LR)
Certifications	CE, FCC, RoHS compliant
Environmental Safety	Complies with environmental standards for electronic products
EMC Compliance	Meets international EMC standards for network equipment
Transmission Media	Single-mode optical fiber
Signal Integrity	Supports digital diagnostic monitoring for real-time performance tracking
Hot-Swappable	Yes, supports hot-swapping without network interruption
MTBF	1,500,000 hours
Security	Supports encrypted communication with compatible devices
Power Supply	3.3V DC
Monitoring	Includes real-time monitoring for temperature, power, and signal levels
Latency	Low latency for high-speed data transmission
Installation	Plug-and-play installation
Deployment	Ideal for extending network reach in large-scale enterprise or service provider environments
Firmware Compatibility	Firmware updates supported for enhanced functionality

Properties

Product Name	J9150D
Description	HPE Aruba J9150D, a 10G SFP+ LC LR transceiver module designed for high-speed data transmission over single-mode fiber.
Transceiver Type	SFP+ (Small Form-Factor Pluggable Plus)
Data Rate	10 Gbps
Connector Type	LC Duplex
Wavelength	1310 nm
Maximum Distance	10 km (6.2 miles)
Fiber Type	Single-mode fiber
Digital Diagnostic Monitoring	Yes
Hot-Swappable	Yes
Operating Temperature	0°C to 70°C (32°F to 158°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Power Consumption	1W (maximum)
Dimensions	5.6 cm x 1.4 cm x 1.2 cm (2.2 in x 0.55 in x 0.47 in)
Weight	0.018 kg (0.04 lb)
Compatibility	Compatible with HPE Aruba networking equipment
Usage	Data centers, enterprise networks, and telecommunications
Durability	Designed for long-distance, high-speed data transmission
