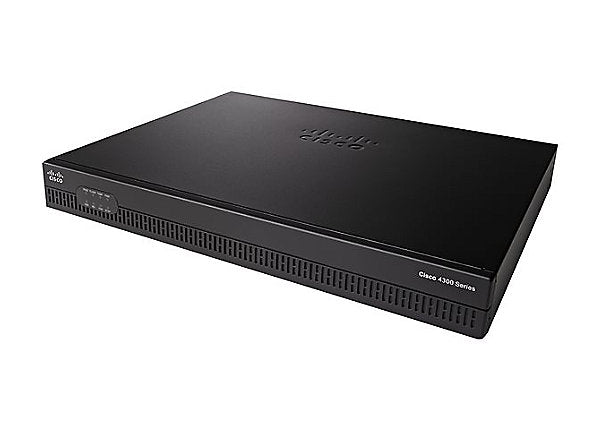

CISCO ISR4321-AX/K9 ROUTER
| Part No: | ISR4321-AX-K9 |
| Detail: | 50Mbps-100Mbps system throughtput, 2 WAN/LAN ports, 1 SFP port, multi-Core CPU, 2 NIM, Security, Voice, WAAS, Intelligent WAN, OnePK, AVC |
| List Price: |
|
| Price: |
$1,950.00
|
| You Save: | $1,545.00 (44% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ, TX, FL and PA |
| Quantity: |
|
Description
The Cisco 4000 family Integrated Services Router (ISR) revolutionizes WAN communications in the enterprise branch. With amazing levels of built-in intelligent network capabilities and convergence, it specifically addresses the growing need for application-aware networking in distributed enterprise sites. These locations tend to have lean IT resources. But they often also have a growing need for direct communication with both private data centers and public clouds across diverse links, including Multiprotocol Label Switching (MPLS) VPNs and the Internet. The Cisco 4000 series ISRs consolidate many must-have IT functions, including network, compute, and storage resources. The high-performance, integrated routers run multiple concurrent IWAN services without slowing your data throughput.
Cisco ISR 4321 features modular network interfaces with diverse connection options for load-balancing and network resiliency and modular interfaces with online removal and insertion (OIR) for module upgrades without network disruption.
Accessories
| Accessories | There is no additional accessories. |
| Bundles | Features |
| Application Experience with Voice (AXV) | AX + Voice |
| Voice with Security (VSEC) | Voice + Security |
| Application Experience (AX) | IP Base + Security + advanced networking protocols: L2TPv3, BFD, MPLS, VRF, VXLAN10 (Bandwidth <100Mbps) |
| Application Experience: PfRv3, WAAS with AppNav, NBAR2, AVC, IP SLA | |
| Hybrid Cloud Connectivity: LISP, OTV (for Bandwidth <100Mbps), VPLS, EoMPLS Intelligent Web Caching: Akamai Connect | |
| Voice (V) | IP Base + Unified Communications: CME, SRST, CUBE |
| Security (SEC) | IP Base + Advanced Security: Zone Based Firewall, IPSec VPN, EZVPN, DMVPN, |
Specifications
| Specifications | ISR4321-AX-K9 |
| Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM | 4 GB |
| Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | 8 GB |
| Default memory DDR3 ECC DRAM (data plane) | NA |
| Maximum memory DDR3 ECC DRAM (data plane) | NA |
| Default memory DDR3 ECC DRAM (control/services plane) | NA |
| Maximum memory DDR3 ECC DRAM (control/services plane) | NA |
| Default flash memory | 4 GB |
| Maximum Flash Memory | 8 GB |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Operating humidity | 5% to 85% |
| Safety | UL 60950-1 |
| CAN/CSA C22.2 No. 60950-1 | |
| EN 60950-1 | |
| AS/NZS 60950-1 | |
| IEC 60950-1 | |
| EMC | ICES-003 Class A |
| EN55032 Class A | |
| CISPR32 Class A | |
| AS/NZS CISPR 32 Class A | |
| VCCI V-3 | |
| CNS 13438 | |
| EN 300-386 | |
| EN 61000 (Immunity) | |
| EN 55024, CISPR 24 | |
| KN22, KN24 | |
| Protocols | IPv4, IPv6, static routes, Routing Information Protocol Versions 1 and 2 (RIP and RIPv2), Open Shortest Path First (OSPF), Enhanced IGRP (EIGRP), Border Gateway Protocol (BGP), BGP Router Reflector, Intermediate System-to-Intermediate System (IS-IS), Multicast Internet Group Management Protocol Version 3 (IGMPv3), Protocol Independent Multicast sparse mode (PIM SM), PIM Source Specific Multicast (SSM), RSVP, CDP, ERSPAN, IPSLA, Call Home, EEM, IKE, ACL, EVC, DHCP, FR, DNS, LISP, OTV6, HSRP, RADIUS, AAA, AVC, Distance Vector Multicast Routing Protocol (DVMRP), IPv4-to-IPv6 Multicast, MPLS, Layer 2 and Layer 3 VPN, IP sec, Layer 2 Tunneling Protocol Version 3 (L2TPv3), Bidirectional Forwarding Detection (BFD), IEEE802.1ag, and IEEE802.3ah |
Properties
| Properties | ISR4321-AX-K9 |
| Description | ISR 4321 with 2 onboard GE, 2 NIM slots, 1 ISC slot, 4 GB Flash Memory default, 4 GB DRAM default |
| Product Family | ISR 4000 Series |
| Product Type | Routers |
| Total onboard WAN or LAN 10/100/1000 ports | 2 |
| RJ-45-based ports | 2 |
| SFP-based ports | 1 |
| Enhanced service- module slots | 0 |
| Aggregate Throughput (Default) | 50 Mbps |
| AC input voltage | 100 to 240 VAC autoranging |
| Power-supply options | External: AC and PoE |
| Maximum power with AC power supply (watts) | 125 |
| Maximum power with PoE power supply (platform only) (watts) | 260 |
| Unit dimensions in. (W x D x H) | 1.75 x 14.55 x 11.60 |
| Rack-mount 19in. | Included |
| Wall-mount | Mounting holes under chassis |
